pengenalan
Thank you for choosing the Moulinex Moulinette Essential Chopper. This appliance is designed to simplify your food preparation tasks, offering efficient chopping, slicing, and blending. Please read this manual carefully before first use to ensure safe and optimal performance.
Image: The Moulinex Moulinette Essential Chopper, fully assembled and ready for use.
Arahan Keselamatan Penting
Sentiasa ikuti langkah berjaga-jaga keselamatan asas apabila menggunakan peralatan elektrik untuk mengurangkan risiko kebakaran, renjatan elektrik dan/atau kecederaan kepada orang, termasuk yang berikut:
- Keselamatan Bilah: Handle the blades with extreme care as they are very sharp. Always hold them by the plastic shaft.
- Operasi Perkakas: Do not run the appliance empty. Ensure there are ingredients in the bowl before operating.
- Filling Capacity: Do not fill ingredients above the maximum level indicated on the bowl.
- Sambungan Kuasa: Sentiasa cabut plag perkakas daripada soket kuasa apabila tidak digunakan, sebelum memasang atau membuka bahagian-bahagiannya, dan sebelum membersihkannya.
- Penyeliaan: Pengawasan rapi diperlukan apabila sebarang perkakas digunakan oleh atau berhampiran kanak-kanak.
- kerosakan: Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau terjatuh atau rosak dalam apa jua cara.
- Double-Safety Lid: The chopper features a double-safety lid design. Ensure the lid is correctly secured before operating the appliance.
- Tapak tidak licin: The non-slip base provides stability during operation. Always place the chopper on a stable, flat surface.
Image: Excerpt from the original manual highlighting safety precautions regarding blades and filling levels.
Produk Selesaiview
The Moulinex Moulinette Essential Chopper consists of several key components designed for easy assembly and efficient performance.
- Motor Unit (A): The main power unit with the control button.
- Lid (B): Secures the motor unit to the bowl and ensures safe operation.
- Blade Assembly (D1/D2): Features 4 sharp stainless steel blades for effective chopping.
- Chopping Bowl (E): A 400ml capacity bowl for processing ingredients.
- Gasket/Seal (C): Ensures a tight seal between the lid and the bowl.
Imej: Meletup view diagram showing the individual components of the chopper: motor unit, lid, blade assembly, and chopping bowl.
The chopper is designed for versatility, allowing you to chop, slice, and blend various ingredients with ease.

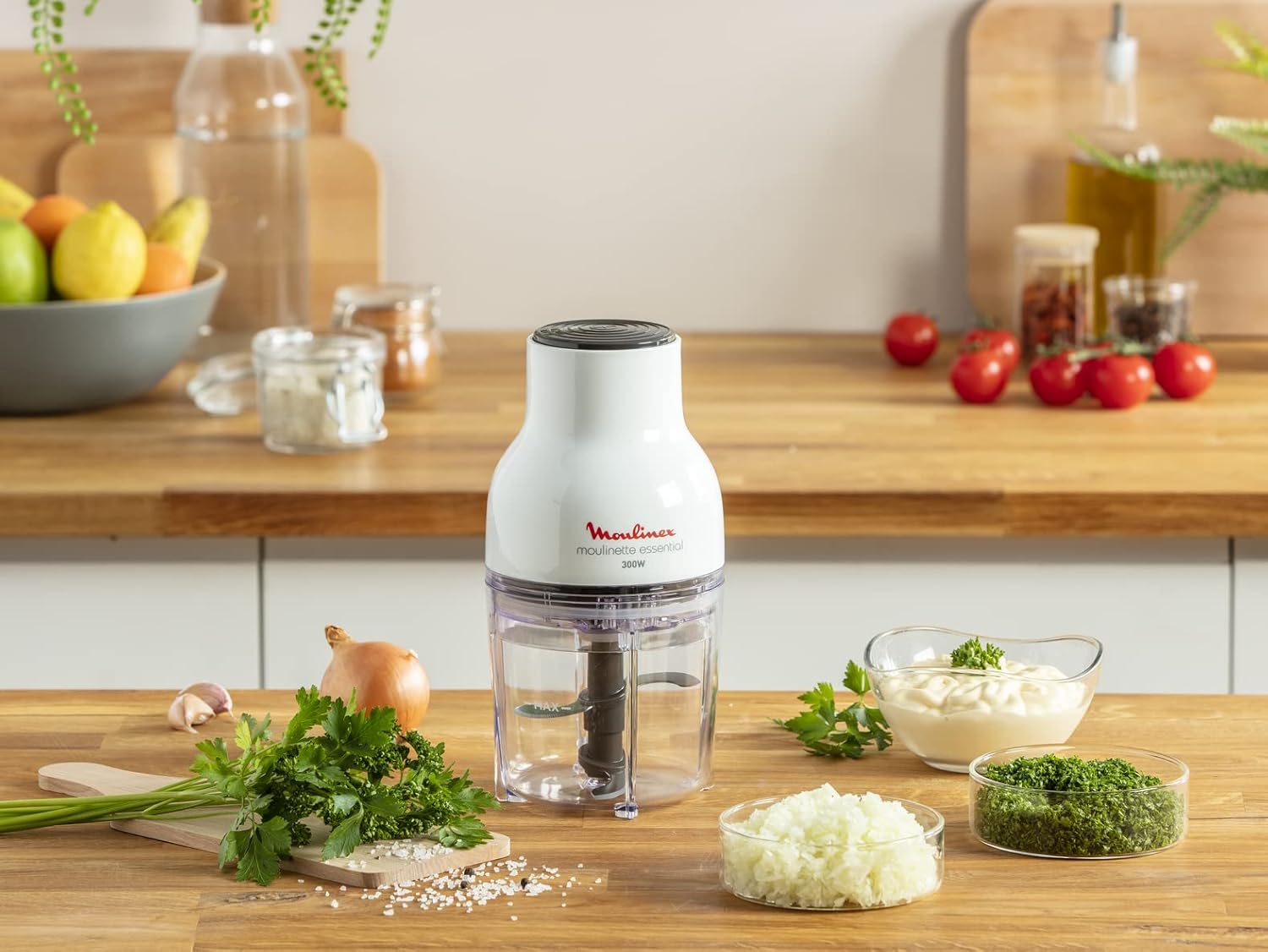

Image: The Moulinex Moulinette Essential Chopper positioned on a kitchen counter with fresh ingredients like parsley, onions, and garlic, demonstrating its intended use.
Persediaan
Before initial use, ensure all parts are clean. Refer to the 'Maintenance and Cleaning' section for detailed cleaning instructions.
- Sisipkan Bilah: Carefully place the blade assembly (D) onto the central pin inside the chopping bowl (E). Ensure it is securely seated.
- Tambah Bahan: Place your desired ingredients into the chopping bowl. Remember not to exceed the MAX fill line. For best results, cut larger ingredients into approximately 1cm x 1cm pieces.
- Pasang Tudung: Place the lid (B) onto the chopping bowl, ensuring it is properly aligned and securely closed.
- Position Motor Unit: Place the motor unit (A) onto the lid, aligning it correctly. The appliance is designed to operate only when the motor unit is properly seated.

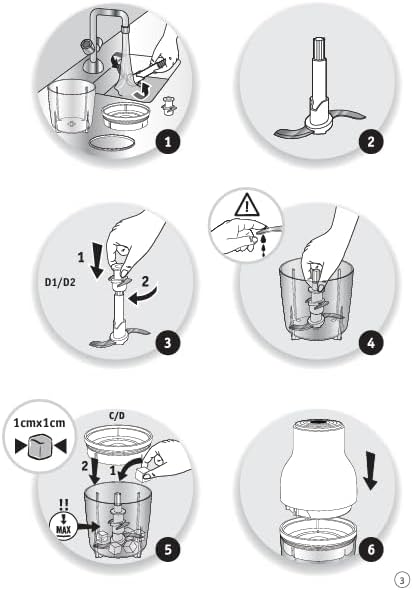

Image: Step-by-step diagrams showing how to assemble the chopper, including inserting the blade, adding ingredients, and securing the lid and motor unit.
Arahan Operasi
The Moulinex Moulinette Essential Chopper offers powerful performance with its 300W motor and 4 sharp stainless steel blades.
- Hidupkan kuasa: Palamkan perkakas ke dalam salur keluar kuasa yang sesuai.
- Operasi nadi: To operate, press down firmly on the top of the motor unit (A). The appliance will run as long as you maintain pressure. Release to stop.
- Keputusan Optimum: For best results, use a pulsing action (press and release repeatedly) rather than continuous operation. This allows ingredients to fall back onto the blades for even chopping.
- Stuck Ingredients: If ingredients become stuck to the sides of the bowl (e.g., ham, onions), release the motor unit, unplug the appliance, and use a spatula to push the ingredients down before resuming.
- Blade Configuration: Depending on the quantity and type of ingredients, you may use 2 or all 4 blades.
- Masa Pemprosesan: Do not operate the appliance continuously for more than 20 seconds. Allow a short break between cycles to prevent overheating.
Image: A hand pressing the top of the chopper, demonstrating the simple one-touch operation for processing ingredients like parsley.
Image: The chopper with a graphic overlay suggesting fast and efficient processing, highlighting its quick performance.
Produk dalam Tindakan
Video: This video demonstrates the assembly and basic operation of the Moulinex Moulinette Essential Chopper, showing how to place the blades, add ingredients, and activate the chopping function.
Penyelenggaraan dan Pembersihan
Proper cleaning and maintenance will extend the life of your Moulinex Moulinette Essential Chopper.
- Cabut plag: Sentiasa cabut plag perkakas dari stopkontak sebelum membersihkan.
- Buka: Carefully remove the motor unit, lid, and blade assembly from the chopping bowl.
- Unit Motor: Lap unit motor dengan iklanamp kain. Jangan rendam unit motor dalam air atau sebarang cecair lain.
- Bahagian boleh tanggal: The chopping bowl, lid, and blade assembly are dishwasher safe. Alternatively, wash them by hand with warm, soapy water. Rinse thoroughly and dry.
- Penjagaan Bilah: Exercise extreme caution when cleaning the blades due to their sharpness. Use a brush if necessary.
- Storan: Store the assembled chopper or its parts in a dry, safe place. Its compact design makes it easy to store.
Image: The removable parts of the Moulinex Moulinette Essential Chopper, including the bowl, lid, and blades, placed in a dishwasher rack, illustrating their dishwasher-safe feature.
Image: Diagrams showing how to safely unplug the appliance, clean the motor unit, and wash the removable parts by hand or in a dishwasher.
Menyelesaikan masalah
If you encounter any issues with your Moulinex Moulinette Essential Chopper, please refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Perkakas tidak dimulakan. | Not plugged in; motor unit not correctly seated; lid not properly closed. | Ensure the appliance is plugged in. Check that the motor unit is correctly placed on the lid and the lid is securely closed. |
| Bahan-bahan tidak dicincang sekata. | Overfilling; ingredients too large; continuous operation instead of pulsing. | Do not overfill the bowl. Cut ingredients into smaller, uniform pieces. Use a pulsing action to allow ingredients to redistribute. |
| Perkakas berhenti semasa operasi. | Overheating due to prolonged use; motor unit lifted. | Allow the appliance to cool down for a few minutes. Ensure continuous pressure on the motor unit during operation (max 20 seconds per cycle). |
| Bunyi atau getaran yang kuat. | Blade not properly installed; appliance not on a flat surface. | Check that the blade assembly is correctly seated. Ensure the chopper is placed on a stable, flat surface. |
Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi sokongan pelanggan.
Spesifikasi
- Jenama: Moulinex
- Nombor Model: DJ520127
- warna: Putih / Hitam
- Kuasa/Wattage: 300 Watt
- Voltage: 220 Volt
- Bahan: plastik
- Bilangan Kelajuan: 1
- Ciri Khas: Safety lock, Non-slip base
- Dimensi Produk: 27 x 13 x 13 cm
- Berat Barang: 1.21 Kilogram
- Kapasiti Mangkuk: 0.4 Liter (400 ml)
- Bilah: 4 sharp stainless steel blades
- Penggunaan yang Disyorkan: Food processing (chopping, slicing, blending)
Waranti & Sokongan
This Moulinex Moulinette Essential Chopper (Model DJ520127) comes with a Waranti pengilang selama 2 tahun against defects in materials and workmanship from the date of purchase.
For warranty claims, technical support, or any questions regarding your product, please contact Moulinex customer service or your local retailer. Keep your proof of purchase for warranty validation.
Additional extended warranty plans may be available through your retailer.
