pengenalan
This manual provides essential information for the proper installation, operation, and maintenance of the NC Water Pump, part number 6110-63-1111. This water pump is specifically designed for use with Komatsu GD31-3H, GD37-5H, and 4D120 engines. Adhering to the guidelines in this manual will help ensure optimal performance and longevity of the product.
Produk Selesaiview

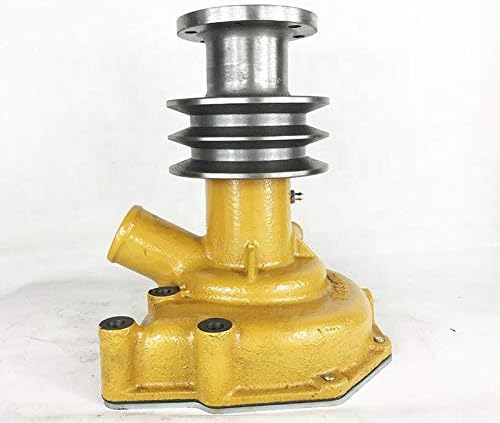

An image showing the Water Pump 6110-63-1111, featuring its yellow main body, a metal shaft with three pulleys, and various connection points. This view highlights the overall structure of the pump.
The 6110-63-1111 water pump is a critical component of the engine's cooling system, responsible for circulating coolant to maintain optimal engine operating temperatures. It features a robust construction designed for durability and reliable performance in demanding applications.
Persediaan dan Pemasangan
Proper installation is crucial for the water pump's performance and the engine's cooling efficiency. It is recommended that installation be performed by a qualified technician.
- Keselamatan Diutamakan: Ensure the engine is cool and disconnected from its power source before beginning any work. Wear appropriate personal protective equipment (PPE).
- Longkang Penyejuk: Completely drain the engine's cooling system. Dispose of old coolant responsibly.
- Keluarkan Pam Lama: Carefully disconnect all hoses and mounting bolts from the old water pump. Note the orientation and connections for reassembly.
- Bersihkan Permukaan Pemasangan: Thoroughly clean the engine block's mounting surface to remove any old gasket material or debris. A clean surface ensures a proper seal.
- Pasang Gasket Baharu: Apply a new gasket to the mounting surface of the new water pump. Ensure it is correctly aligned.
- Pasang Pam Baharu: Position the new 6110-63-1111 water pump onto the engine block. Secure it with the appropriate mounting bolts, tightening them to the manufacturer's specified torque settings in a crisscross pattern to ensure even pressure.
- Sambung semula Hos: Reconnect all coolant hoses to the new pump, ensuring clamps are secure and tight to prevent leaks.
- Isi Semula Penyejuk: Refill the cooling system with the recommended type and amount of coolant. Bleed any air from the system as per engine manufacturer guidelines.
- Periksa Kebocoran: After refilling, run the engine to operating temperature and carefully inspect all connections for any signs of leaks.
Garis Panduan Operasi
Once installed, the water pump operates automatically as part of the engine's cooling system. However, regular monitoring of the engine's temperature gauge is essential to ensure proper function.
- Pemantauan Suhu: Always observe the engine temperature gauge during operation. Overheating can indicate a problem with the cooling system, including the water pump.
- Tahap Penyejuk: Periodically check the coolant reservoir level. A consistently low level may indicate a leak in the system.
- Bunyi Luar Biasa: Listen for any unusual noises coming from the water pump area, such as grinding, squealing, or rattling, which could indicate bearing wear or other issues.
Penyelenggaraan
Regular maintenance helps extend the life of your water pump and ensures efficient engine cooling.
- Coolant System Flush: Follow the engine manufacturer's recommendations for regular coolant system flushes and refills. This prevents corrosion and buildup that can damage the pump.
- Hos dan Clamp Pemeriksaan: Periodically inspect all coolant hoses for cracks, swelling, or hardening. Check hose clamps untuk sesak.
- Pemeriksaan Tali Pinggang: If the water pump is belt-driven, inspect the drive belt for cracks, fraying, or excessive wear. Ensure proper belt tension.
- Pemeriksaan Kebocoran: Regularly inspect the water pump and surrounding areas for any signs of coolant leaks. Even small drips can indicate a developing problem.
- Bearing Play: With the engine off and cool, gently try to wiggle the water pump pulley (if accessible). Excessive play can indicate worn bearings.
Menyelesaikan masalah
If you experience issues with your engine's cooling, the water pump may be a contributing factor. Here are some common problems and potential solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Enjin Terlalu Panas | Low coolant level, faulty thermostat, clogged radiator, failing water pump (impeller corrosion, bearing failure) | Check coolant, inspect thermostat, flush radiator, inspect/replace water pump. |
| Kebocoran Penyejuk | Hos longgar clamps, cracked hoses, damaged gasket, cracked pump housing, worn shaft seal | Ketatkan clamps, replace hoses, replace gasket, replace pump. |
| Unusual Noises (Grinding, Squealing) | Worn water pump bearings, loose or worn drive belt | Inspect/replace water pump, inspect/adjust/replace drive belt. |
| No Coolant Circulation | Broken impeller, severely clogged system | Inspect/replace water pump, flush system. |
If troubleshooting steps do not resolve the issue, consult a professional mechanic or the engine manufacturer's service manual.
Spesifikasi
- Nombor Bahagian: 6110-63-1111
- Permohonan: For Komatsu GD31-3H, GD37-5H, and 4D120 Engines
- Jenama: NC
- Pengeluar: n\c
- Nombor Model Item: 6110-63-1111
- Nombor Bahagian Pengilang: 6110-63-1111
- ASIN: B08ZS4ZPMJ
- Pertama Tersedia: 23 Mac 2021
Waranti dan Sokongan
For specific warranty information regarding your NC Water Pump 6110-63-1111, please refer to the documentation provided at the time of purchase or contact your seller directly. Warranty terms and conditions may vary.
For technical support or further assistance, please contact the product supplier or a certified service center. When contacting support, please have your product model number (6110-63-1111) and purchase details readily available.
