ExpertPower 12V 100Ah Lithium LiFePO4 Deep Cycle Rechargeable Battery Instruction Manual

1. Produk Lebihview

The ExpertPower 12V 100Ah Lithium LiFePO4 Deep Cycle Rechargeable Battery is designed for various applications requiring reliable and long-lasting power. This battery utilizes advanced Grade A+ prismatic cells and features a built-in Battery Management System (BMS) for optimal performance and safety.

Ciri-ciri utama termasuk:

• Ketumpatan Tenaga Tinggi: Stores significantly more energy compared to traditional lead-acid batteries.
• Mesra Alam: Uses more abundant and non-toxic materials, easier to recycle.
• berkuasa: Approximately 4 times more powerful than conventional SLA batteries.
• Hayat Perkhidmatan Panjang: Provides 2500 to 7000 cycles and an expected 10-year lifetime.
• ringan: Conveniently light, making it versatile for various uses.
• Built-in BMS: Protects against overcharge, deep discharge, overloading, overheating, low-temperatures, and short circuits.
• Kesambungan Bluetooth: Allows easy monitoring of battery level and BMS status via a smartphone app.

Figure 1: ExpertPower 12V 100Ah Lithium LiFePO4 Deep Cycle Rechargeable Battery.

2. Garis Panduan Keselamatan

Always adhere to safety precautions when handling batteries. Improper use can lead to damage, injury, or fire. Ensure proper ventilation during charging and operation. Do not short-circuit the battery terminals. Use only compatible chargers and controllers designed for LiFePO4 batteries.

The prismatic cells used in this battery undergo rigorous testing for resilience against various types of damage, including puncture, fire, short circuit, impact, and liquid exposure, ensuring enhanced safety and reliability.

Figure 2: Rigorous testing ensures battery cell resilience.

3. Komponen dan Ciri

3.1 Intelligent Battery Design with BMS

The battery incorporates an industry-leading Battery Management System (BMS) that provides accurate battery monitoring and over 20 protection parameters. These include protection against overcharge, deep discharge, overloading, overheating, low-temperatures, and short circuits. The BMS also features auto cell balancing and resistance against high currents.

Figure 3: Intelligent battery design with integrated BMS.

3.2 Kesambungan Bluetooth

The built-in Bluetooth feature allows users to easily track the battery level and BMS status on their smartphone using the dedicated app. This provides real-time data for optimal management.

Figure 4: Monitor battery status with the Bluetooth app.

4. Persediaan dan Pemasangan

4.1 Sambungan Siri dan Selari

The ExpertPower LiFePO4 battery supports expansion for increased voltage or capacity. Up to 2 batteries can be connected in series for a 24V 100Ah system, or a maximum of 10 batteries can be connected in parallel for a 12V 1000Ah system. Always ensure proper wiring and consult a professional if unsure.

Figure 5: Series and Parallel Connection Options.

4.2 Kaedah Pengecasan

The battery can be charged using solar power or an AC adapter. Ensure that any charging equipment used is compatible with LiFePO4 batteries.

Rajah 6: Persediaan Pengecasan Solar.

Figure 7: AC Adapter Charging Setup.

4.3 Connection Diagram Example (RV/Camper Solar System)

For RV, camper, solar, overland, or off-grid applications, a typical setup involves connecting the battery to a solar panel via a solar charge controller, and potentially an inverter charger for AC loads. Shore power can also be used to charge the battery through the inverter charger.

5. Operasi

Once installed and charged, the battery is ready for use. Monitor its status using the Bluetooth app to ensure optimal performance and to track charge levels, voltage, current, and cell health. The battery is suitable for various applications including trolling motors, home backup, RV/camper power, and DIY solar projects.

Figure 8: Versatile applications of the ExpertPower LiFePO4 battery.

6. Penyelenggaraan dan Penyimpanan

LiFePO4 batteries require minimal maintenance. They have a low self-discharge rate, losing approximately 2% charge per month. A fully charged LiFePO4 battery can potentially hold a charge for up to 1 year when stored properly. Store the battery in a cool, dry place away from direct sunlight and extreme temperatures.

Figure 9: Low Self-Discharge Rate of LiFePO4 Batteries.

7. Penyelesaian masalah

If you encounter issues with your ExpertPower LiFePO4 battery, consider the following:

• Tiada Output Kuasa: Check all connections for tightness and corrosion. Ensure the battery is adequately charged. Verify that the BMS has not activated a protection mode (e.g., due to over-discharge or over-current) using the Bluetooth app.
• Isu Pengecasan: Confirm that your charger is compatible with LiFePO4 batteries and is functioning correctly. Check charging cables and connections. Ensure the ambient temperature is within the recommended charging range.
• Masalah Kesambungan Bluetooth: Ensure Bluetooth is enabled on your device and the battery is within range. Restart the app or your device if necessary.
• Prestasi Dikurangkan: Over time, battery capacity may slightly decrease. Ensure the battery is not consistently over-discharged or exposed to extreme conditions.

For persistent issues, refer to the detailed specifications or contact ExpertPower customer support.

8. Spesifikasi

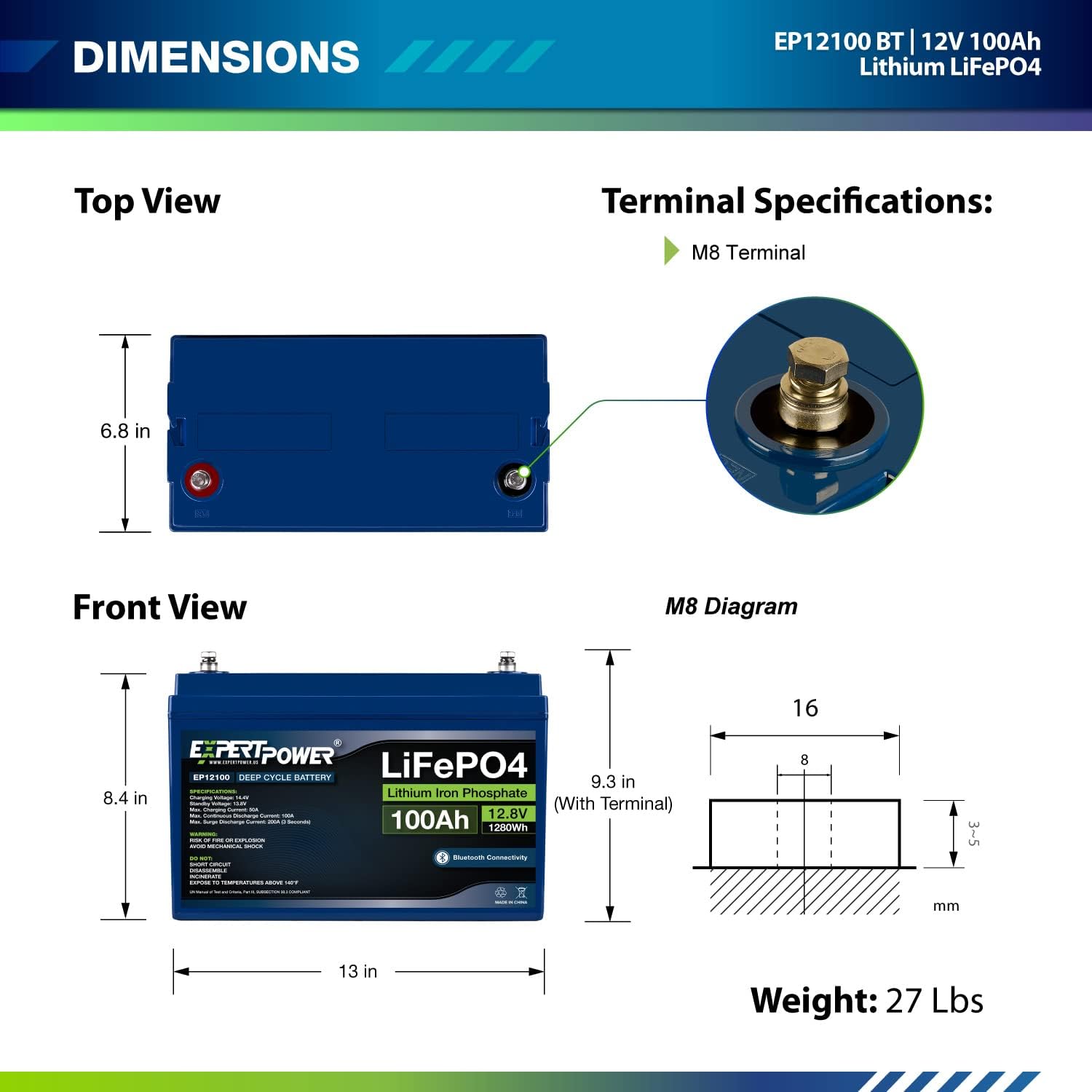

Figure 10: Product Dimensions and Terminal Specifications.

9. Waranti dan Sokongan

ExpertPower offers an unwavering warranty and world-class technical support for their LiFePO4 batteries. For specific warranty details and to access technical assistance, please refer to the official ExpertPower website or contact their customer service directly. The seller, ExpertPower Direct, provides 30-day easy returns and customer support.

For further information or assistance, please visit the ExpertPower Store on Amazon.
