GEARWRENCH 1 Inch Drive Electronic Torque Wrench

1. Pengenalan

This manual provides essential instructions for the safe and effective operation, setup, and maintenance of your GEARWRENCH 1 Inch Drive Electronic Torque Wrench, Model 85085. This tool is designed for precise torque measurement and application within a range of 150-1000 ft/lbs. Please read this manual thoroughly before use and retain it for future reference.

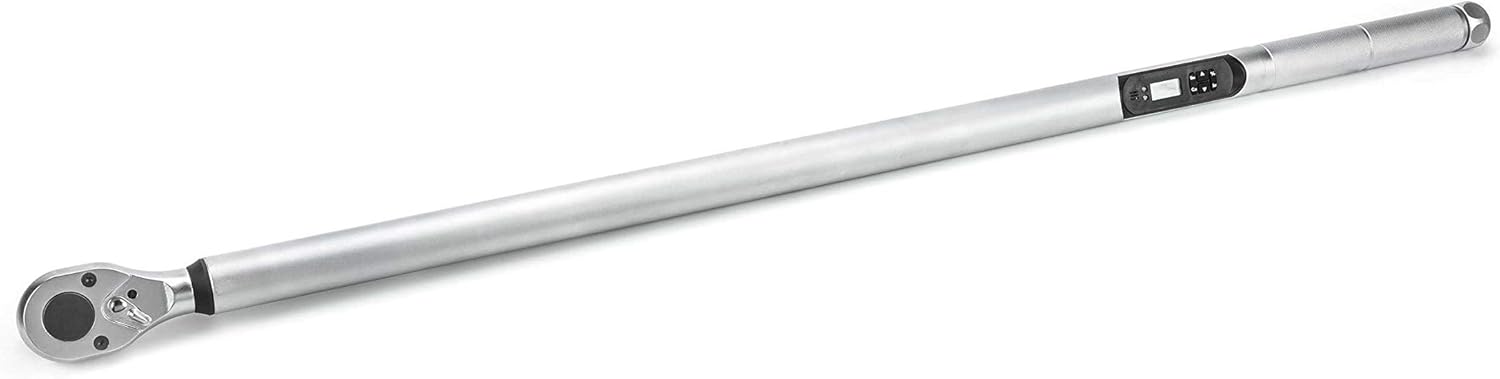

Image 1.1: The GEARWRENCH 1 Inch Drive Electronic Torque Wrench, Model 85085.

2. Maklumat Keselamatan

Always observe basic safety precautions to reduce the risk of injury or damage to the tool. Failure to follow these instructions may result in serious injury or property damage.

• Pakai peralatan pelindung diri yang sesuai, termasuk pelindung mata.
• Ensure the workpiece is stable and secured before applying torque.
• Do not exceed the maximum torque capacity of the wrench (1000 ft/lbs).
• Jauhkan tangan dan pakaian daripada bahagian yang bergerak.
• Do not use the wrench if it is damaged or malfunctioning.
• Store the wrench in its protective case when not in use to prevent damage.

3. Produk Lebihview

The GEARWRENCH Model 85085 is a 1 inch drive electronic torque wrench designed for high-precision applications. It features a durable alloy steel construction and an electronic display for accurate readings.

Imej 3.1: Jarak dekat view of the 1 inch fixed square drive head of the electronic torque wrench.

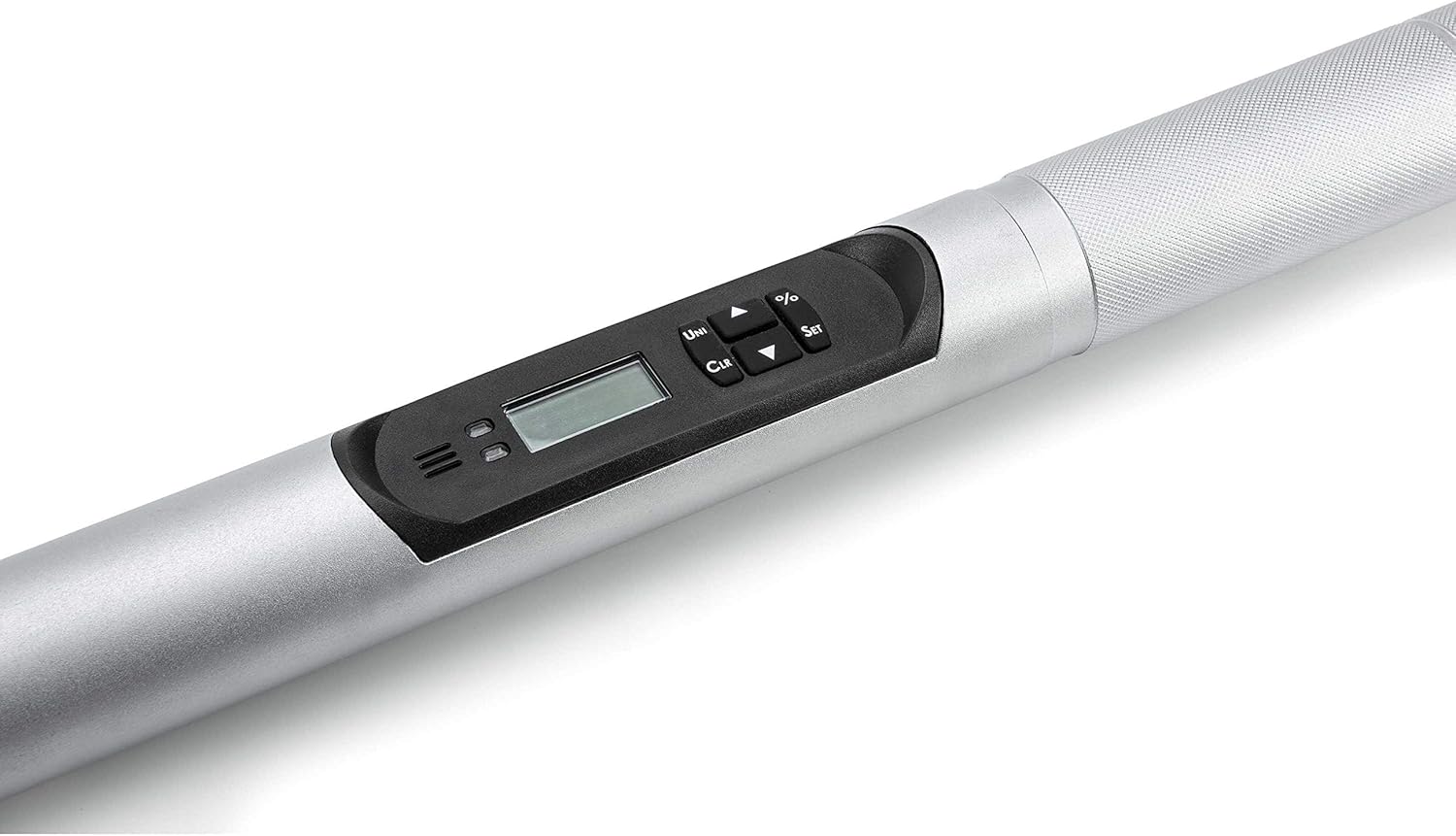

Image 3.2: The electronic display and control buttons for setting torque values and units.

Komponen utama termasuk:

• Fixed Square Head: For secure socket attachment.
• Paparan Elektronik: Provides real-time torque readings.
• Butang Kawalan: For unit selection, target torque setting, and mode adjustments.
• Knurled Pemegang: For improved grip during operation.

4. Persediaan

Before first use, ensure the wrench is properly prepared.

1. Pemasangan Bateri: The wrench requires batteries for operation. Refer to the battery compartment for correct polarity and type. (Batteries are not included with the product).
2. Hidupkan kuasa: Press the power button to activate the electronic display.
3. Pemilihan Unit: Use the 'Unit' button to cycle through the available measurement units: Nm, ft-lb, in-lb, Kgf-m, and Kgf-cm. Select the desired unit for your application.
4. Target Torque Setting: Use the 'Set' button and arrow keys to adjust the target torque value.

Image 4.1: The wrench offers an adjustable range for various torque requirements.

5. Arahan Operasi

Follow these steps for accurate torque application:

1. Pasang Soket: Securely attach the appropriate 1 inch drive socket to the wrench head.
2. Sepana Kedudukan: Place the socket onto the fastener to be torqued. Ensure a straight and firm engagement.
3. Gunakan Tork: Apply steady, increasing force to the wrench handle. The electronic display will show the real-time torque value.
4. Target Torque Alert: As you approach the preset target torque, the wrench will provide a warning through a vibrating handle, an audible buzzer, and a solid LED light. This multi-notification system indicates when the target torque is reached, ensuring precise application.
5. Daya Pelepasan: Once the target torque is achieved and indicated, stop applying force and remove the wrench from the fastener.

Image 5.1: Proper technique for applying torque with the electronic wrench.

Image 5.2: The multi-notification system provides visual, audible, and tactile feedback for ease of use.

The wrench offers a torque accuracy of +/-2% clockwise (CW) and +/-3% counter-clockwise (CCW) between 20% and 100% of its capability.

6. Penyelenggaraan

Proper maintenance ensures the longevity and accuracy of your torque wrench.

• Pembersihan: Wipe the wrench clean with a soft, dry cloth after each use. Do not use harsh chemicals or solvents.
• Storan: Store the wrench in its original protective case in a dry, temperature-controlled environment. Avoid dropping or subjecting the wrench to impact.
• Penggantian Bateri: Replace batteries promptly when the low battery indicator appears on the display. Remove batteries during extended periods of non-use to prevent leakage.
• Penentukuran: Electronic torque wrenches require periodic calibration to maintain accuracy. Refer to the warranty section for calibration details.

Image 6.1: The torque wrench should be stored in its protective case when not in use.

7. Penyelesaian masalah

If you encounter issues with your torque wrench, consider the following common solutions:

• Wrench not powering on: Periksa pemasangan bateri dan pastikan bateri segar.
• Bacaan tidak tepat: Ensure the correct unit of measurement is selected. The wrench may require recalibration if readings remain inconsistent.
• No alert at target torque: Verify that the target torque is set correctly and within the wrench's operating range.

Untuk isu yang berterusan, hubungi sokongan pelanggan.

8. Spesifikasi

9. Waranti dan Sokongan

Penerangan Waranti: This product comes with a 90-day calibration warranty and a 1-year parts warranty.

For technical support, service, or warranty claims, please contact GEARWRENCH customer service. Refer to the official GEARWRENCH webtapak untuk maklumat hubungan semasa.

Sumber Dalam Talian: Untuk maklumat dan sokongan produk tambahan, sila layari laman rasmi GEARWRENCH Store.
