1. Produk Lebihview
The Sodeca CAM-545-2T-4 is a high-pressure, single-suction centrifugal fan designed for industrial applications. It features a robust construction with a steel sheet casing and an aluminum cast turbine, ensuring durability and efficient performance.
Figure 1: Sodeca CAM-545-2T-4 High-Pressure Centrifugal Fan. This image shows the overall beige-colored fan unit with its distinctive spiral casing and rectangular outlet.
Ciri-ciri Utama:
- High-pressure centrifugal fan with 3Kw power.
- Manufactured by Sodeca, a specialist in industrial fan design.
- Compact dimensions: 65.4 x 47.4 x 77.2 centimeters.
- Equipped with an IE3 efficiency motor (for powers ≥ 0.75kW, excluding single-phase, 2-speed, and 8-pole).
- Class F motors with ball bearings and IP55 protection.
- Suitable for air transport temperatures from -20°C to +120°C.
- Anti-corrosive polyester resin finish, polymerized at 190°C.
2. Maklumat Keselamatan
Read all safety instructions carefully before installation, operation, or maintenance of the fan. Failure to comply with these instructions may result in serious injury or damage to the equipment.
- Keselamatan Elektrik: Ensure the fan is properly grounded. All electrical connections must be performed by a qualified electrician in accordance with local and national electrical codes. Disconnect power before any installation, maintenance, or repair work.
- Bahagian bergerak: Keep hands, clothing, and tools clear of the fan's rotating parts during operation. Install appropriate guards if the fan is accessible.
- Pengudaraan: Ensure adequate ventilation in the installation area to prevent overheating of the motor.
- Had Suhu: Do not operate the fan outside the specified air transport temperature range (-20°C to +120°C).
- Pemasangan: Securely mount the fan on a stable, level surface capable of supporting its weight (68 kg) and operational vibrations.
- Alat Pelindung Diri (PPE): Always wear appropriate PPE, such as safety glasses, gloves, and hearing protection, when working with the fan.
3. Komponen dan Bahagian
The Sodeca CAM-545-2T-4 centrifugal fan consists of the following primary components:
- Casing: Constructed from durable steel sheet, providing protection for internal components.
- Turbin: An aluminum cast turbine (or steel sheet for models 752, 880, and 980) designed for high-pressure air movement.
- Motor: An IE3 efficiency motor (for powers ≥ 0.75kW), Class F insulated, with ball bearings and IP55 protection. Available in three-phase configurations: 230/400V-50Hz (up to 4kW) and 400/690V-50Hz (above 4kW).
- Inlet and Outlet: Designed for single aspiration and efficient air discharge.
- Pangkalan Pemasangan: Integrated base for secure installation.
4. Persediaan dan Pemasangan
Proper installation is crucial for the fan's performance and longevity. It is highly recommended that installation be performed by qualified personnel.
4.1. Membongkar dan Pemeriksaan
- Tanggalkan kipas dari pembungkusannya dengan berhati-hati.
- Inspect the fan for any signs of shipping damage. Report any damage to the carrier immediately.
- Sahkan bahawa semua komponen yang disenaraikan dalam senarai pembungkusan ada.
4.2. Pemasangan
- Select a stable, level, and vibration-free mounting surface capable of supporting the fan's 68 kg weight.
- Ensure sufficient clearance around the fan for airflow, maintenance, and service access.
- Secure the fan to the mounting surface using appropriate fasteners through the designated mounting holes on the base.
4.3. Sambungan elektrik
- Before connecting, ensure the power supply matches the fan's voltage requirements (230/400V-50Hz or 400/690V-50Hz).
- Semua pendawaian mesti mematuhi kod elektrik tempatan dan nasional.
- Connect the fan to a dedicated circuit with appropriate overcurrent protection.
- Pastikan pembumian yang betul untuk mengelakkan kejutan elektrik.
- Consult the motor's wiring diagram (usually found on the motor's terminal box cover) for correct connections.
4.4. Ductwork Connection (if applicable)
- Connect the inlet and outlet ducts to the fan using flexible connectors to minimize vibration transmission.
- Ensure ductwork is properly sealed to prevent air leakage.
- Avoid sharp bends or obstructions in the ductwork that could impede airflow.
5. Operasi
Once installed and all safety checks are complete, the fan can be operated.
5.1. Pemeriksaan Pra Operasi
- Sahkan semua sambungan elektrik selamat.
- Ensure no foreign objects are in the fan's inlet or outlet.
- Confirm all guards are in place.
5.2. Starting the Fan
- Turn on the main power supply to the fan.
- Listen for any unusual noises or vibrations during startup. If any are detected, immediately shut down the fan and investigate the cause.
- Allow the fan to reach its operating speed.
5.3. Shutting Down the Fan
- Turn off the power supply to the fan using the designated switch.
- For extended periods of non-use or maintenance, disconnect the main power at the circuit breaker.
6. Penyelenggaraan
Regular maintenance is essential to ensure the fan's optimal performance and extend its lifespan. Always disconnect power before performing any maintenance.
6.1. Pembersihan
- Periodically inspect and clean the fan impeller and casing to prevent dust and debris buildup, which can reduce efficiency and cause imbalance.
- Use a soft brush or compressed air for cleaning. Avoid using harsh chemicals that could damage the finish.
6.2. Bearing Inspection
- The motor is equipped with sealed ball bearings (IP55 protection) that typically do not require lubrication.
- Listen for unusual bearing noises (grinding, squealing) during operation. If detected, consult a qualified technician.
6.3. Pemeriksaan Elektrik
- Periksa sambungan elektrik secara berkala untuk kesesakan dan tanda-tanda kakisan.
- Periksa kabel kuasa untuk sebarang kerosakan.
6.4. Pemeriksaan Am
- Check for loose fasteners, excessive vibration, or unusual odors.
- Ensure the fan's mounting is secure.
7. Penyelesaian masalah
This section provides solutions to common issues. For problems not listed here, or if solutions do not resolve the issue, contact a qualified technician or Sodeca support.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Kipas tidak bermula | No power supply; tripped circuit breaker; faulty wiring; motor issue. | Check power supply; reset circuit breaker; inspect wiring (by qualified electrician); contact service. |
| Bunyi atau getaran yang berlebihan | Loose mounting; unbalanced impeller (due to dirt/damage); worn bearings. | Tighten mounting bolts; clean impeller; inspect impeller for damage; contact service for bearing replacement. |
| Pengurangan aliran udara | Blocked inlet/outlet; dirty impeller; ductwork obstruction; incorrect motor speed. | Clear obstructions; clean impeller; check ductwork; verify motor wiring/speed settings. |
| Motor terlalu panas | Insufficient ventilation; excessive load; motor fault. | Ensure adequate ventilation; check for airflow obstructions; contact service. |
8. Spesifikasi
Detailed technical specifications for the Sodeca CAM-545-2T-4 Centrifugal Fan.

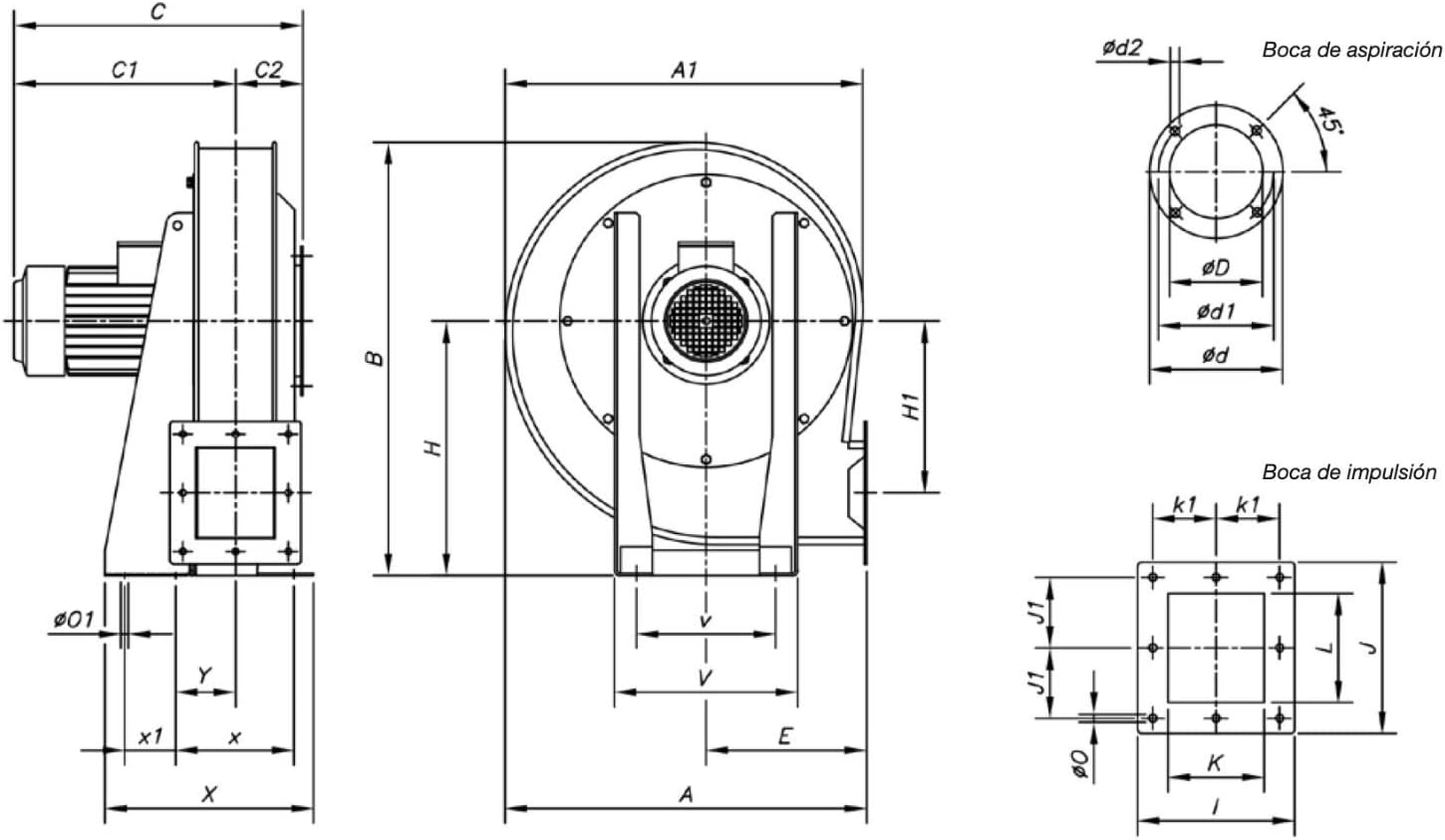

Figure 2: Technical drawing showing detailed dimensions and aspiration/impulsion ports of the Sodeca CAM-545-2T-4 fan.
| Atribut | Nilai |
|---|---|
| Pengeluar | Sodeca |
| Pengenal Produk Pengilang | 1010401 |
| Nombor Model Produk | 1010401 |
| Dimensi Produk (L x W x H) | 65.4 x 47.4 x 77.2 cm |
| Berat Produk | 68 kg |
| warna | Beige |
| Komponen yang Disertakan | Centrifugal fan unit |
| Bateri Diperlukan | Tidak |
| Kecekapan Motor | IE3 (for powers ≥ 0.75kW, except single-phase, 2-speed, 8-pole) |
| Perlindungan Motor | IP55 |
| Motor Voltage / Kekerapan | Three-phase 230/400V-50Hz (up to 4kW), 400/690V-50Hz (above 4kW) |
| Max Air Transport Temperature | -20°C hingga +120°C |
| Selesai | Anti-corrosive polyester resin |
| ASIN | B08S9739WR |
| First Available on Amazon.es | 6 Januari 2021 |
9. Waranti dan Sokongan
For warranty information, please refer to the documentation provided with your purchase or contact your point of sale. Sodeca products are designed for durability and performance, backed by their expertise in industrial ventilation.
For technical support, spare parts, or service inquiries, please contact Sodeca directly or your authorized distributor. You can find contact information on the official Sodeca webtapak: www.sodeca.com
When contacting support, please have your product model number (CAM-545-2T-4 or 1010401) and serial number (if applicable) ready.
