Innoflame 48-inch Flush Mount Electric Fireplace User Manual

pengenalan

This manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your Innoflame 48-inch Flush Mount Electric Fireplace, Model RV48D80F. Please read all instructions carefully before installation and use, and retain this manual for future reference.

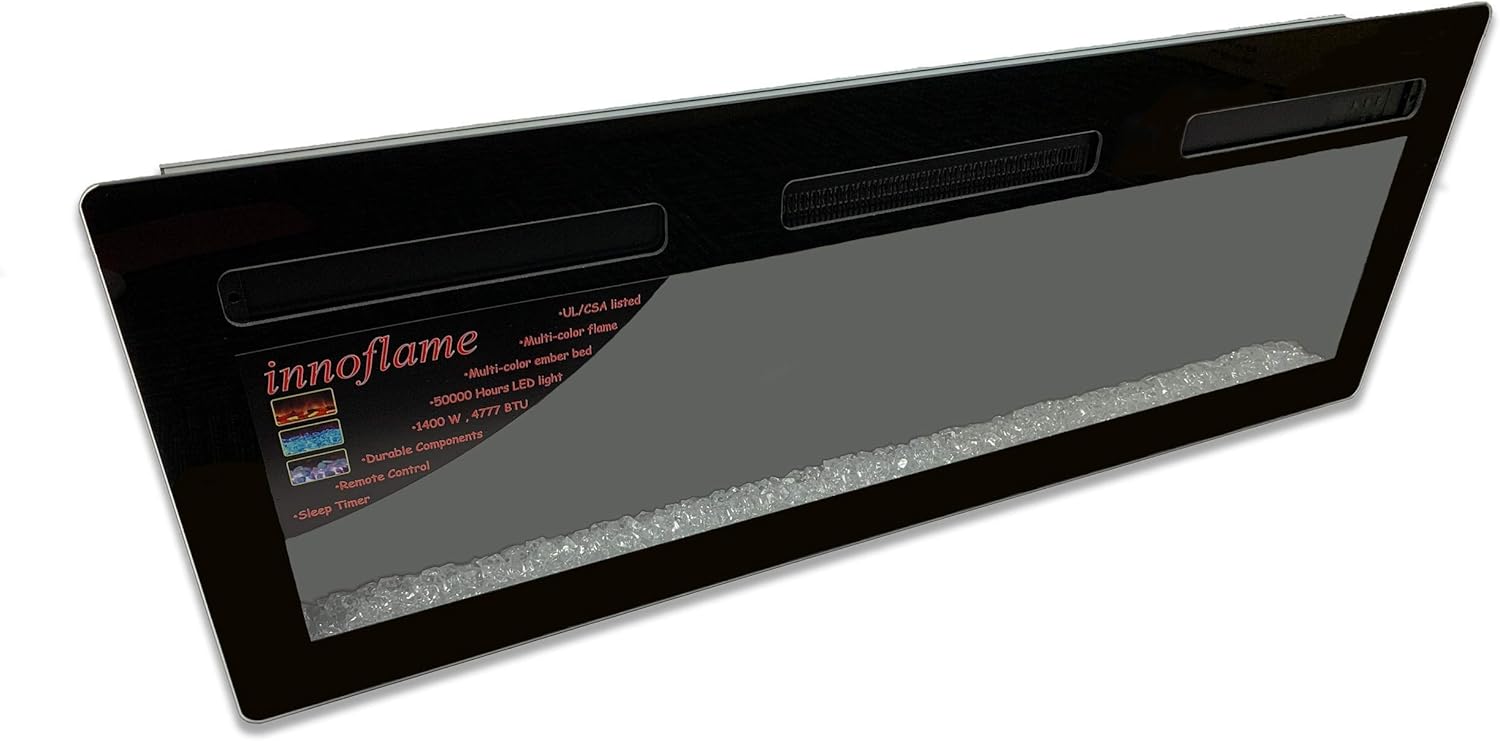

Imej: Depan view of the Innoflame 48-inch Electric Fireplace, showcasing the crystal ember bed and integrated controls.

Maklumat Keselamatan

• Pastikan pendiangan disambungkan ke alur keluar yang dibumikan dengan betul.
• Jangan kendalikan perapian dengan kord atau palam yang rosak.
• Jauhkan bahan mudah terbakar sekurang-kurangnya 3 kaki (0.9 meter) dari hadapan pendiangan.
• Jangan sekat lubang udara.
• Unplug the fireplace before performing any maintenance or cleaning.

Persediaan dan Pemasangan

The Innoflame RV48D80F is designed for flush mount, built-in installation. Careful planning of the installation location and proper ventilation are essential.

Dimensi dan Pelepasan

Refer to the diagram below for precise measurements required for installation. Ensure adequate clearance around the unit for proper air circulation and heat dissipation.

Image: Dimensional drawing of the 48-inch electric fireplace insert, indicating a width of 48 inches, a height of 17 inches, and a depth of 5 inches.

• Overall Dimensions with Glass: 48 inci (Lebar) x 17 inci (Tinggi)
• Dimensi Pangkalan: 46.5 inches (Width) x 15.375 inches (Depth) x 5.375 inches (Height)
• Dimensi Produk (Keseluruhan): 46.5 x 15 x 5 inci

Sambungan elektrik

This unit operates on a standard corded electric power source. Ensure the electrical outlet meets the fireplace's power requirements and is easily accessible after installation.

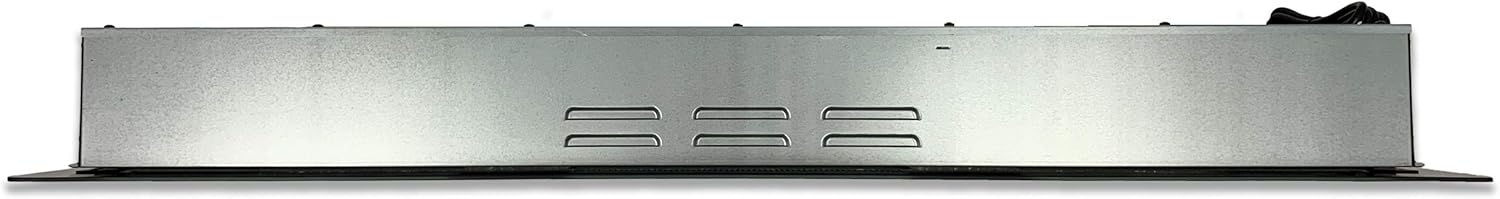

Imej: Belakang view of the electric fireplace, illustrating the metal casing and integrated ventilation slots necessary for proper air flow during operation.

Arahan Operasi

Your Innoflame electric fireplace can be operated using the control panel on the unit or the included remote control.

Fungsi Kawalan Jauh

The remote control provides convenient access to all fireplace features.

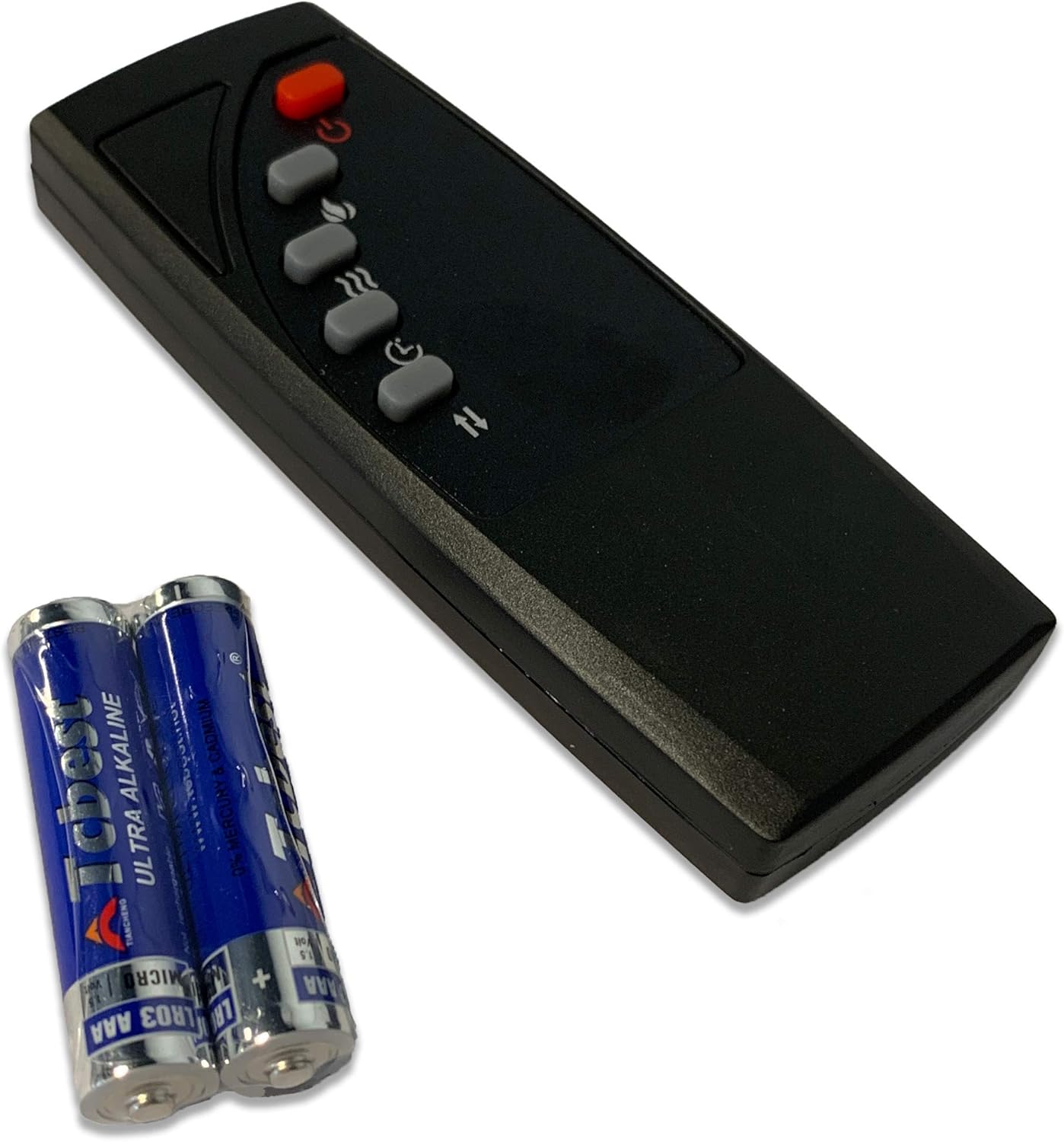

Image: The remote control for the electric fireplace, featuring buttons for power, flame effects, heat settings, and a timer function. Two AAA batteries are shown next to it.

• Butang Kuasa: Menghidupkan atau mematikan pendiang api.
• Butang nyalaan: Cycles through various multi-color LED flame and ember bed effects.
• Butang haba: Adjusts the heat output. The fireplace provides up to 50,000 BTU of heat, capable of heating up to 1800 square feet.
• Butang Pemasa: Sets an automatic shut-off timer for convenience.

Penyelenggaraan

Penyelenggaraan tetap memastikan jangka hayat dan prestasi optimum perapian elektrik anda.

• Pembersihan: Ensure the unit is unplugged and cool before cleaning. Use a soft, damp cloth to wipe down the glass and exterior surfaces. Do not use abrasive cleaners.
• Pengudaraan: Periodically check that the air intake and exhaust vents are clear of dust and obstructions to maintain proper airflow.
• Lampu LED: The LED lights for the flame and ember bed are designed for long-term use, with an estimated lifespan of 50,000 hours. Replacement is generally not required.

Menyelesaikan masalah

If you encounter issues with your fireplace, refer to the following common problems and solutions:

• Tiada Kuasa:
  • Periksa sama ada kord kuasa dipasang dengan selamat ke salur keluar elektrik yang berfungsi.
  • Sahkan bahawa pemutus litar tidak tersandung.
• Tiada Keluaran Haba:
  • Ensure the heat function is activated via the control panel or remote.
  • Check for any obstructions blocking the heater's air vents.
• Kesan Nyalaan Tidak Berfungsi:
  • Sahkan unit telah dihidupkan.
  • If using the remote, check and replace batteries if necessary.
• Alat Kawalan Jauh Tidak Menjawab:
  • Gantikan bateri dalam alat kawalan jauh.
  • Ensure there are no obstructions between the remote and the fireplace's sensor.

Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi sokongan pelanggan.

Spesifikasi

Maklumat Waranti

The Innoflame RV48D80F Electric Fireplace comes with a Waranti Terhad. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product or contact Innoflame customer support directly. Keep your proof of purchase for warranty claims.

Sokongan Pelanggan

For technical assistance, replacement parts, or any questions not covered in this manual, please contact Innoflame customer support. Have your model number (RV48D80F) and purchase information ready when contacting support.

Contact information for Innoflame can typically be found on their official webtapak atau pada pembungkusan produk.
