KYX Running Boards Instruction Manual

Produk Selesaiview

The KYX Running Boards are designed to provide a convenient and safe step for entering and exiting your vehicle, while also offering side protection. Crafted from high-grade alloy steel with a matte black powder-coated finish, these running boards are built for durability and resistance against rust and wear.

Ciri-ciri Utama:

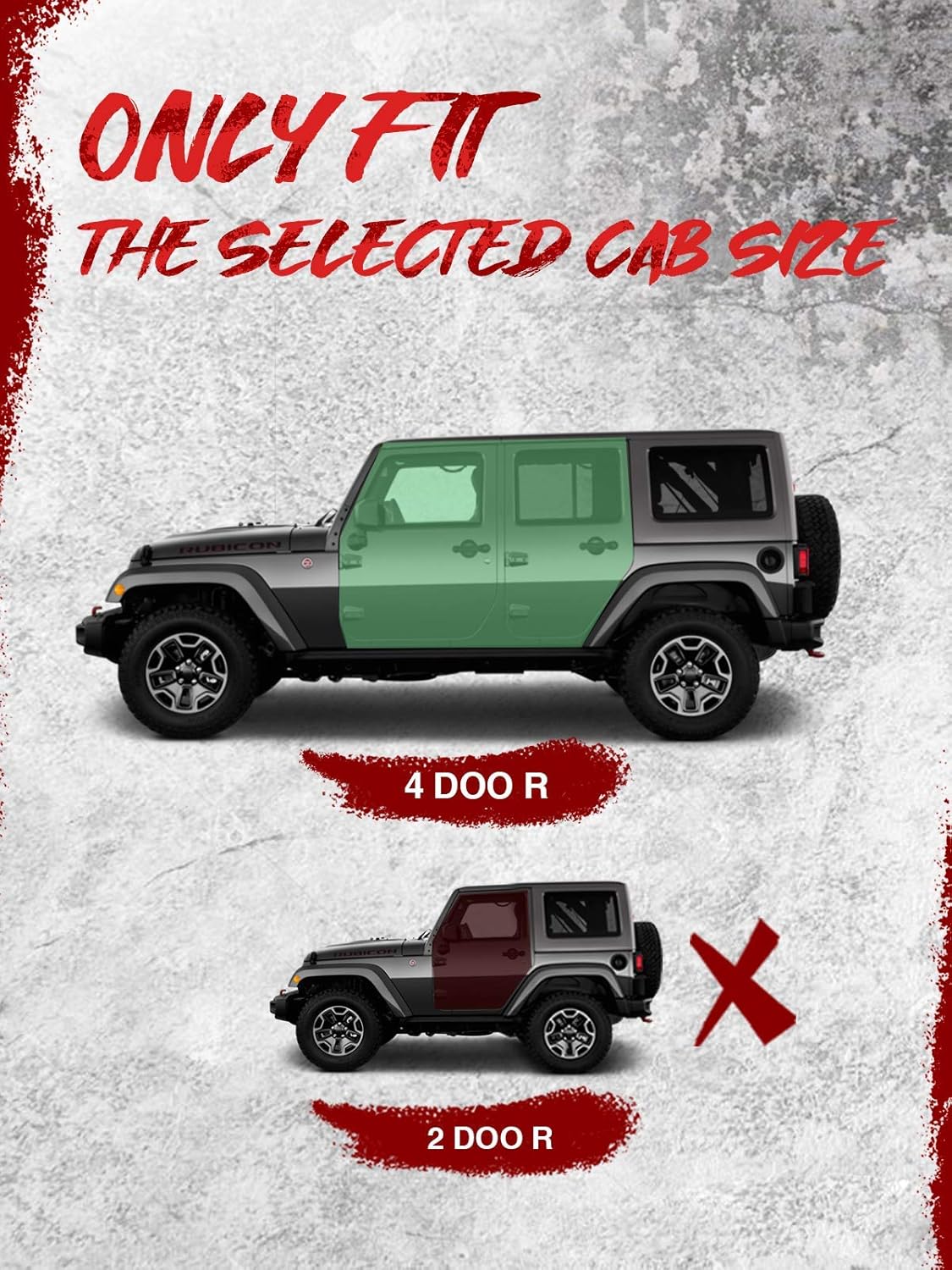

• Sesuai Sempurna: Compatible with 2007-2018 Wrangler JK 4 Door models. Please verify your vehicle's cab size before purchase.
• Pemasangan Mudah: 100% bolt-on design requires no drilling, allowing for straightforward home installation with common garage tools. All necessary mounting hardware and instructions are included.

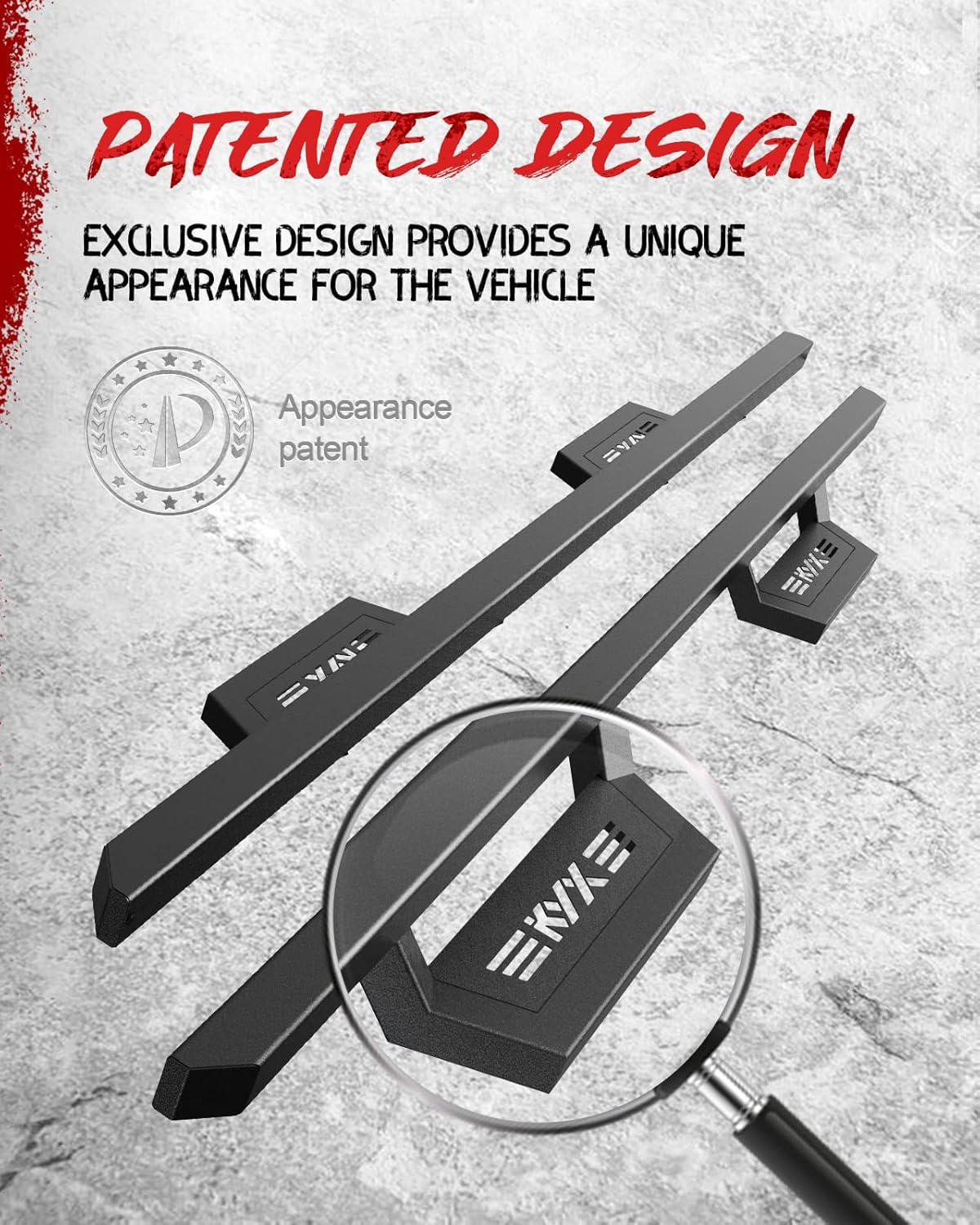

• Reka bentuk yang dipatenkan: Features an exclusive design that enhances your vehicle's appearance and provides convenient access with an extra step area and appropriate ground clearance.
• Kestabilan Tinggi: Constructed with top-grade steel, capable of supporting up to 500 lbs, offering robust protection for the vehicle's side and ensuring safety for users.
• Pembinaan Tahan Lama: Seamlessly welded high-grade sturdy steel with a powder-coated, slip-resistant surface ensures a super long lifespan and resistance to rust.

Kandungan Pakej

Before beginning installation, please ensure all components listed below are present and undamaged.

• 2 x KYX 2007-2018 Wrangler JK 4 Door Running Boards
• 1 x Mounting Hardware Set (includes M8*30 Hexagon Bolts, M8 Hexagon Nuts, M8 Spring Washers, M8*20*2.0 Flat Washers)
• 6 x kurungan
• 1 x Manual Pemasangan (dokumen ini)

Panduan Pemasangan

Sebelum Pemasangan:

• Baca semua arahan dengan teliti sebelum memulakan.
• Pastikan kenderaan anda diletakkan di permukaan yang rata dan enjinnya dimatikan.
• Gather necessary tools: a ratchet, sockets (likely 13mm and 10mm), and potentially an open-ended wrench or cordless impact wrench.
• For optimal safety and ease, consider having a second person assist with holding the running boards during installation.

Arahan langkah demi langkah:

Untuk panduan visual, sila rujuk video pemasangan rasmi di bawah.

1. Kenal pasti Komponen: Lay out all running board components and hardware. Distinguish between left and right running boards and confirm the correct mounting direction for each bracket as per the instruction manual.
2. Install Brackets (Front): Secure the front brackets to the vehicle's frame. Do not fully tighten the screws at this stage to allow for adjustment.
3. Install Remaining Brackets: Repeat the process for the center and rear brackets. Ensure all brackets are loosely attached to the vehicle's frame.
4. Mount Running Boards: With assistance, carefully lift and align the running board with the installed brackets. Insert bolts through the running board and bracket holes. Hand-tighten all bolts initially.
5. Adjust and Align: Adjust the position of the running boards and brackets to ensure perfect alignment and desired ground clearance.
6. Fully Tighten All Screws: Once satisfied with the alignment, fully tighten all bolts and nuts using appropriate tools. Ensure all connections are secure to prevent movement during vehicle operation.

Petua Penyelenggaraan

Proper maintenance will prolong the lifespan and preserve the appearance of your KYX Running Boards.

• Pembersihan tetap: Use a mild soap and water solution to clean the running boards. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Waxing: To protect your investment, it is recommended to wax this product after installation and at regular intervals thereafter. This adds a protective layer and helps prolong lifespan.
• Scratch Treatment: For small scratches and scuffs on stainless steel components, aluminum polish may be used. For gloss black finishes, use only mild soap for cleaning.
• Pemeriksaan Berkala: Regularly inspect all mounting hardware for tightness. Vibrations from driving can cause bolts to loosen over time. Re-tighten as necessary.

Menyelesaikan Masalah Isu Biasa

If you encounter any difficulties during installation or use, consider the following common issues and solutions:

• Difficulty with Alignment: Ensure all bolts are only hand-tightened before final adjustment. This allows for slight movement to align holes. A second person can greatly assist in holding the running board steady during alignment.
• Bolts Not Reaching: If bolts seem too short, ensure the bracket is flush against the vehicle's pinch weld. Gentle pressure or a clamp might be needed to compress components enough for the nut to catch.
• Loose Running Boards: This is typically due to insufficient tightening of the mounting bolts. Re-check and fully tighten all bolts and nuts after installation and periodically thereafter.
• Incorrect Side Identification: Refer to the installation manual to correctly distinguish between the left (driver's side) and right (passenger's side) running boards and brackets.

Spesifikasi Produk

Waranti dan Sokongan Pelanggan

KYX products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty covering defects in materials and workmanship. For specific warranty details or to initiate a claim, please refer to your purchase documentation or contact the seller directly.

For any questions, technical assistance, or support regarding your KYX Running Boards, please visit the official KYX Store on Amazon or contact Amazon Customer Service.

KYX Store: Visit the KYX Store on Amazon
