KRUPS Espresso Machine Piston Seal MS0698568 User Manual

1. Pengenalan

This manual provides essential instructions for the proper installation, maintenance, and care of your KRUPS Espresso Machine Piston Seal, model MS0698568. This seal is a critical component for maintaining optimal pressure and preventing leaks in compatible KRUPS and ROWENTA espresso machines. Please read this manual thoroughly before attempting any installation or maintenance.

2. Produk Lebihview

The KRUPS Piston Seal (MS0698568) is designed to create a tight seal within the espresso machine's brewing piston assembly. A properly functioning piston seal is vital for achieving correct brewing pressure and preventing water leakage during the espresso extraction process. This replacement part ensures your machine continues to produce high-quality espresso.

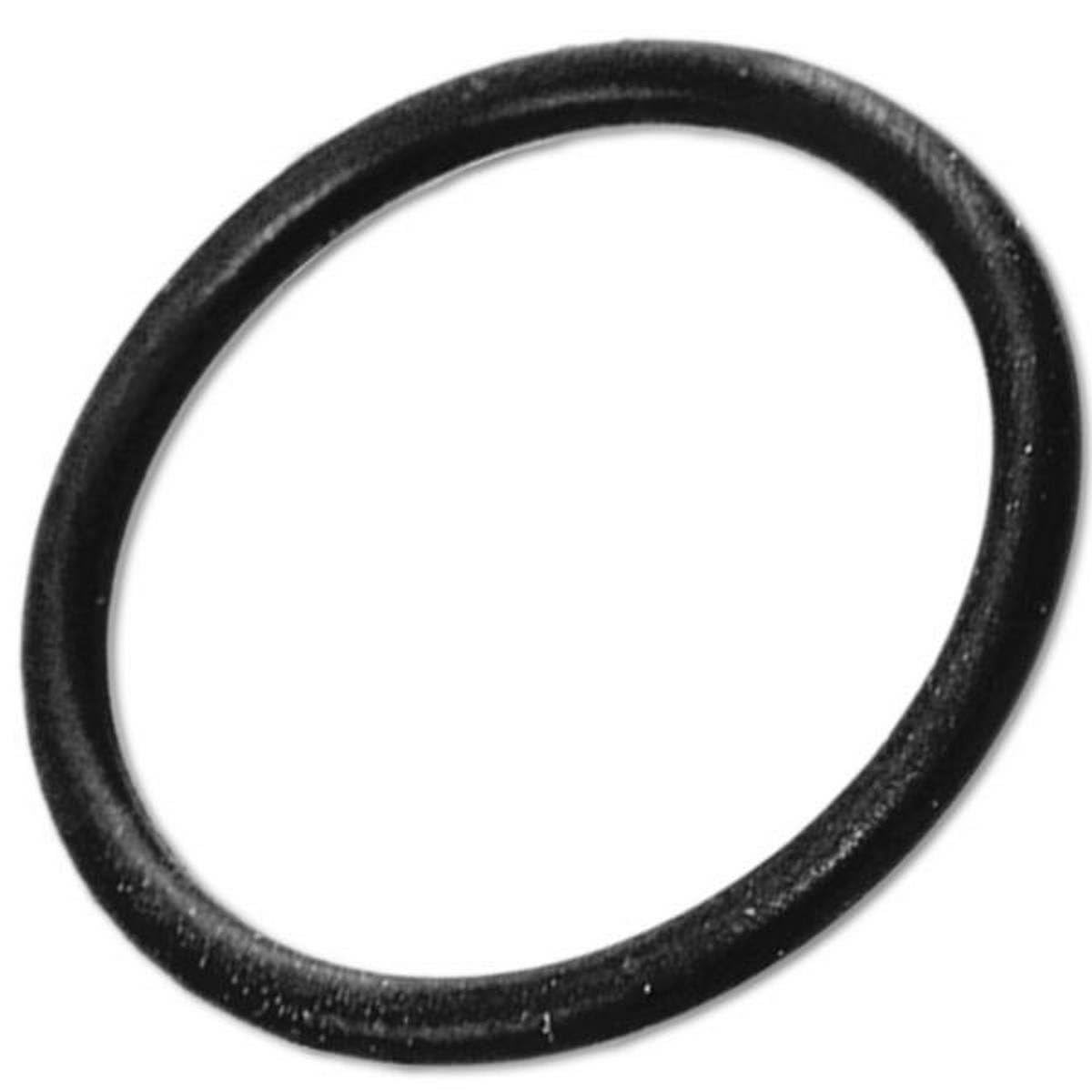

Rajah 2.1: KRUPS Espresso Machine Piston Seal MS0698568. This image shows the silicone piston seal, which is a crucial component for maintaining pressure in espresso machines.

3. Arahan Keselamatan

Always observe the following safety precautions when handling or installing the piston seal:

• Putuskan Kuasa: Always unplug your espresso machine from the power outlet before beginning any maintenance or installation.
• Benarkan Penyejukan: Ensure the machine has completely cooled down to prevent burns from hot water or steam.
• Gunakan Alat yang Sesuai: Use only the recommended tools for disassembly and reassembly to avoid damaging components.
• Tangani dengan Berhati-hati: The seal is made of silicone; avoid sharp objects that could puncture or tear it.
• Bantuan Profesional: If you are unsure about any step, consult a qualified technician or KRUPS customer support.

4. Panduan Pemasangan

Replacing the piston seal requires careful attention. Refer to your specific espresso machine's service manual for detailed disassembly instructions. The following steps provide a general guide for replacing the piston seal:

1. Penyediaan: Ensure the espresso machine is unplugged and completely cool. Remove any water tanks, drip trays, and coffee bean hoppers.
2. Access the Piston Assembly: Carefully disassemble the machine's casing and internal components to gain access to the brewing piston assembly. This step varies significantly by machine model.
3. Keluarkan Meterai Lama: Once the piston assembly is accessible, locate the old piston seal. Gently pry it out using a small, non-abrasive tool, being careful not to scratch the piston or surrounding components.
4. Clean the Piston: Thoroughly clean the piston and the groove where the seal sits. Remove any coffee residue, scale, or debris. Ensure the surface is smooth and dry.
5. Pasang Seal Baharu: Carefully place the new KRUPS Piston Seal (MS0698568) into the designated groove on the piston. Ensure it sits evenly and is not twisted or pinched. The silicone material should allow for a snug fit.
6. Pasang semula: Reassemble the brewing piston assembly and the espresso machine in reverse order of disassembly. Ensure all connections are secure and components are correctly seated.
7. Ujian: After reassembly, fill the water tank and perform a test cycle without coffee to check for leaks and proper operation. Observe the machine for any unusual noises or water drips.

Nota: For specific disassembly and reassembly instructions, always refer to the service manual for your particular KRUPS or ROWENTA espresso machine model.

5. Semakan Selepas Pemasangan

After installing the new piston seal, it is important to perform a functional check to ensure proper operation and prevent damage to your machine or poor coffee extraction.

• Pengesanan Kebocoran: Run several cycles of hot water through the machine without coffee. Carefully inspect for any water leaks around the brewing unit or from within the machine.
• Pemeriksaan Tekanan: Observe the espresso extraction process. A properly installed seal will help maintain consistent pressure, resulting in a steady, even flow of espresso with good crema.
• Tahap Bunyi: Listen for any unusual grinding, squeaking, or hissing noises that were not present before the seal replacement.

If any issues are detected, immediately unplug the machine and re-evaluate the installation steps or consult a professional.

6. Penyelenggaraan dan Penjagaan

To prolong the life of your piston seal and ensure optimal performance of your espresso machine, follow these maintenance guidelines:

• Pembersihan tetap: Periodically clean the brewing unit and piston area according to your espresso machine's user manual. Coffee oils and grounds can degrade the seal over time.
• Pelinciran (jika berkenaan): Some espresso machine pistons require food-grade silicone grease for smooth operation. Consult your machine's manual to determine if lubrication is necessary for your model and how often it should be applied.
• Pemeriksaan: During routine cleaning, visually inspect the piston seal for any signs of wear, cracking, hardening, or deformation. Replace the seal if any damage is observed.
• Mengurangkan: Regular descaling of your espresso machine helps prevent mineral buildup that can affect the seal's integrity and the machine's overall performance.

7. Menyelesaikan masalah Isu Biasa

If you experience problems after replacing the piston seal, consider the following:

If troubleshooting steps do not resolve the issue, contact KRUPS customer support or a certified service center.

8. Spesifikasi

• Nombor Bahagian: MS0698568, MS-0698568 (256690-4260)
• Jenama: KRUPS
• Bahan: silikon
• Keserasian: KRUPS and ROWENTA Espresso Machines (verify with your specific model's service manual)
• warna: Black (as per product image)
• Berat Barang: Kira-kira 0.176 auns (5 gram)

9. Waranti dan Sokongan

This piston seal is a replacement part. For warranty information regarding your KRUPS espresso machine or the replacement part, please refer to the original product documentation that came with your espresso machine or visit the official KRUPS website. For technical support or further assistance, please contact KRUPS customer service.

KRUPS Official Webtapak: www.krups.com
