FLAMMA FS05 Multi Modulation Pedal Instruction Manual

pengenalan

The FLAMMA FS05 Multi Modulation Pedal is a versatile stereo effects pedal designed for electric guitar. It offers 11 distinct modulation effects and 7 storable preset slots, providing a wide range of tonal possibilities for musicians.

Maklumat Keselamatan

Always ensure proper power supply connections and use the pedal in a dry environment. Avoid exposing the unit to extreme temperatures or humidity. Disconnect power when not in use or during cleaning.

Kandungan Pakej

FLAMMA FS05 Multi Modulation Pedal
Manual Arahan (dokumen ini)
(Bekalan kuasa tidak termasuk)

Produk Selesaiview

The FS05 pedal features a compact design with intuitive controls for easy operation and sound shaping.

Figure 1: FLAMMA FS05 Multi Modulation Pedal front view.

Kawalan dan Sambungan

Rajah 2: Terperinci view of the FS05 control knobs.

Tombol KADAR: Melaraskan kelajuan kesan modulasi.
Tombol JENIS: Selects one of the 11 modulation effects.
Tombol KEDALAMAN: Controls the intensity or depth of the modulation.
CTRL 1 Tombol: Adjusts a primary parameter specific to the selected effect (e.g., Mix, Duty, Pitch).
CTRL 2 Tombol: Adjusts a secondary parameter specific to the selected effect (e.g., Tone, Feedback, Smooth, Bit Rate).
SAVE/SELECT Button: Used to save presets or select between them.
LED Indicators (1-7): Show the currently selected preset slot.
Suis kaki: Activates/deactivates the pedal.
Input L (Mono) / Input R: Audio input jacks.
Output L (Mono) / Output R: Audio output jacks.
DC DALAM: Power input (9V DC, center negative).

Video 1: Produk rasmi tamatview of the FLAMMA FS05 Multi Modulation Pedal, demonstrating its features and 11 modulation effects.

Persediaan

Bekalan Kuasa

The FLAMMA FS05 pedal requires a 9V DC power supply with a minimum current of 302mA (center negative). The power supply is NOT INCLUDED with the pedal. Insufficient current may cause operational issues.

Menyambung Pedal

The FS05 supports both mono and stereo connections, offering flexibility for various setups.

Figure 3: Diagram illustrating stereo and mono to stereo connection setups for the FS05 pedal.

Persediaan Mono: Connect your guitar to Input L (Mono) and your amplifier to Output L (Mono).
Persediaan Stereo: Connect your guitar to Input L (Mono) and Input R. Connect Output L (Mono) and Output R to your stereo ampliifier atau antara muka audio.

Arahan Operasi

Selecting Modulation Effects

The FS05 offers 11 distinct modulation effects, ranging from classic to experimental tones. Use the TYPE knob to cycle through the available effects.

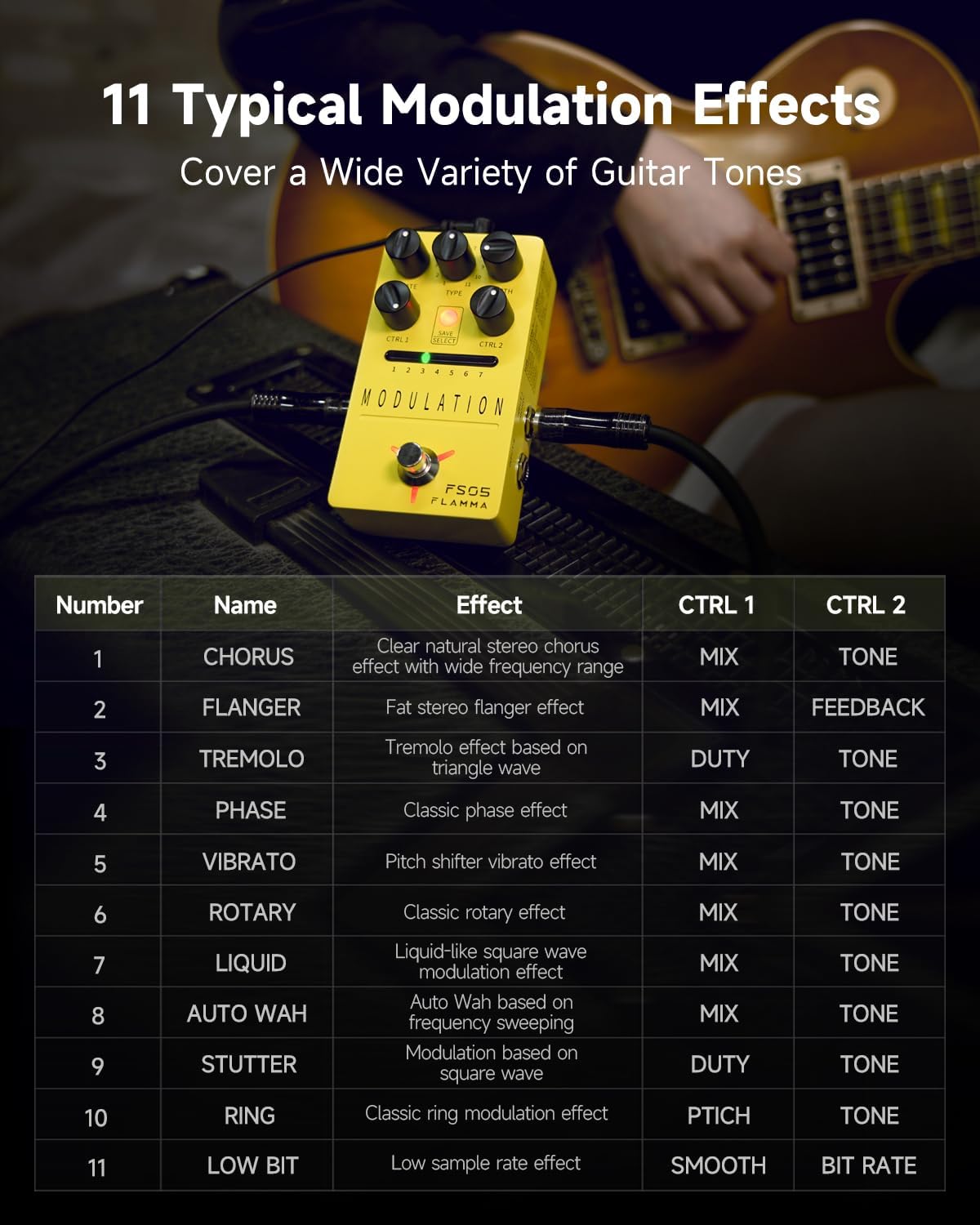

Figure 4: List of 11 modulation effects and their corresponding CTRL 1 and CTRL 2 parameters.

The available effects include Chorus, Flanger, Tremolo, Phase, Vibrato, Rotary, Liquid, Auto Wah, Stutter, Ring, and Low Bit.

Adjusting Effect Parameters

Each effect has adjustable parameters via the RATE, DEPTH, CTRL 1, and CTRL 2 knobs. Refer to Figure 4 for specific parameter functions per effect.

FLAMMA FS05 pedal with versatile controls

Figure 5: The FS05 pedal highlighting its versatile control knobs.

Menyimpan dan Mengingat Semula Pratetap

The pedal features 7 preset slots to save your customized settings. Use the SAVE/SELECT button and LED indicators to manage your presets.

Figure 6: The FS05 pedal showing the 7 preset slots and SAVE/SELECT button.

Untuk menyelamatkan: Adjust the parameters to your desired settings. Press and hold the SAVE/SELECT button until the LED for the current slot flashes, indicating the preset is saved.
Untuk Diingat: Briefly press the SAVE/SELECT button to cycle through the 7 preset slots. The corresponding LED will illuminate.

True Bypass / Buffer Bypass

The FS05 features True Bypass to minimize signal loss when the pedal is disengaged. Some videos also mention a low-noise buffer bypass, which helps maintain signal integrity over long cable runs.

Video 2: Demonstration of the FLAMMA FS05 Multi Modulation Pedal's features, including its true bypass functionality and various effects.

Penyelenggaraan

Clean the pedal's exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure all connections are secure before and after use.

Menyelesaikan masalah

Tiada Kuasa: Ensure the 9V DC power supply is correctly connected and provides sufficient current (minimum 302mA).
Tiada Bunyi: Check all audio cables and connections. Verify the pedal is engaged (footswitch LED illuminated).
Bunyi yang tidak diingini: Ensure proper grounding and use a high-quality, isolated power supply.

Spesifikasi

model: FS05
Berat Barang: 10.5 auns (0.3 Kilogram)
Dimensi Produk: 2.75"L x 1.97"W x 4.78"H
Voltage: 9 Volt DC
Cabutan Semasa: >302mA (Power Supply NOT INCLUDED)
Jenis Penyambung: 2.1mm DC power jack
Format Isyarat: digital
Antara muka perkakasan: USB (for potential firmware updates, not for audio)
Kesan: 11 Modulation Effects (Chorus, Flanger, Tremolo, Phase, Vibrato, Rotary, Liquid, Auto Wah, Stutter, Ring, Low Bit)
Pratetap: 7 Storable Slots
Pintasan: Bypass Betul

Waranti & Sokongan

Untuk maklumat waranti dan sokongan teknikal, sila rujuk kepada pegawai pengilang webtapak atau hubungi pengedar tempatan anda. Simpan resit pembelian anda sebagai bukti pembelian.
