KEENETIC Skipper (KN-1910-01EN) AC1300 Dual-Band Wi-Fi Gigabit Router User Manual

1. Pengenalan

Welcome to the user manual for your KEENETIC Skipper (KN-1910-01EN) AC1300 Dual-Band Wi-Fi Gigabit Router. This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your device. The Keenetic Skipper is designed to deliver stable and high-speed internet connectivity, advanced network management features, and robust security for your home or small business network.

2. Maklumat Keselamatan

Please read these safety instructions carefully before using the device to prevent damage and ensure proper operation.

• Jangan dedahkan peranti kepada air, lembapan atau kelembapan yang tinggi.
• Avoid placing the device near heat sources such as radiators, heat registers, stoves, or other heat-producing appliances.
• Gunakan hanya penyesuai kuasa yang dibekalkan bersama peranti.
• Pastikan pengudaraan yang betul; jangan sekat sebarang bukaan pengudaraan.
• Jangan cuba membuka atau membaiki peranti sendiri. Rujuk semua servis kepada kakitangan perkhidmatan yang berkelayakan.
• Jauhkan peranti daripada medan elektromagnet yang kuat.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej anda:

• KEENETIC Skipper (KN-1910-01EN) AC1300 Dual-Band Wi-Fi Gigabit Router
• Penyesuai Kuasa
• Kabel Ethernet
• Panduan Mula Pantas

4. Produk Lebihview

The Keenetic Skipper router features a compact design with external antennas for optimal Wi-Fi coverage. It includes multiple ports for wired connections and USB ports for expanded functionality.

4.1 Panel Depan

Panel hadapan mempunyai penunjuk LED yang memberikan maklumat status tentang operasi penghala.

• LED kuasa: Menunjukkan status kuasa.
• LED Internet: Menunjukkan status sambungan internet.
• LED Wi-Fi: Indicate 2.4 GHz and 5 GHz Wi-Fi activity.

Imej: Depan view of the KEENETIC Skipper router, showing the top panel with LED indicators and the Keenetic logo.

4.2 Panel Belakang

The rear panel houses all the essential ports for network connectivity.

• Pelabuhan WAN (Biru): Menyambung ke modem atau peralatan pembekal perkhidmatan internet anda.
• Port LAN (Kuning, 1-4): Connect to your wired devices such as computers, gaming consoles, or smart TVs.
• Port USB (2): For connecting USB storage devices or USB printers.
• Pelabuhan Kuasa: Menyambung kepada penyesuai kuasa.
• Butang Tetapkan Semula: Digunakan untuk memulihkan tetapan lalai kilang.

Imej: Belakang view of the KEENETIC Skipper router, displaying the WAN port, four LAN ports, and the power input.

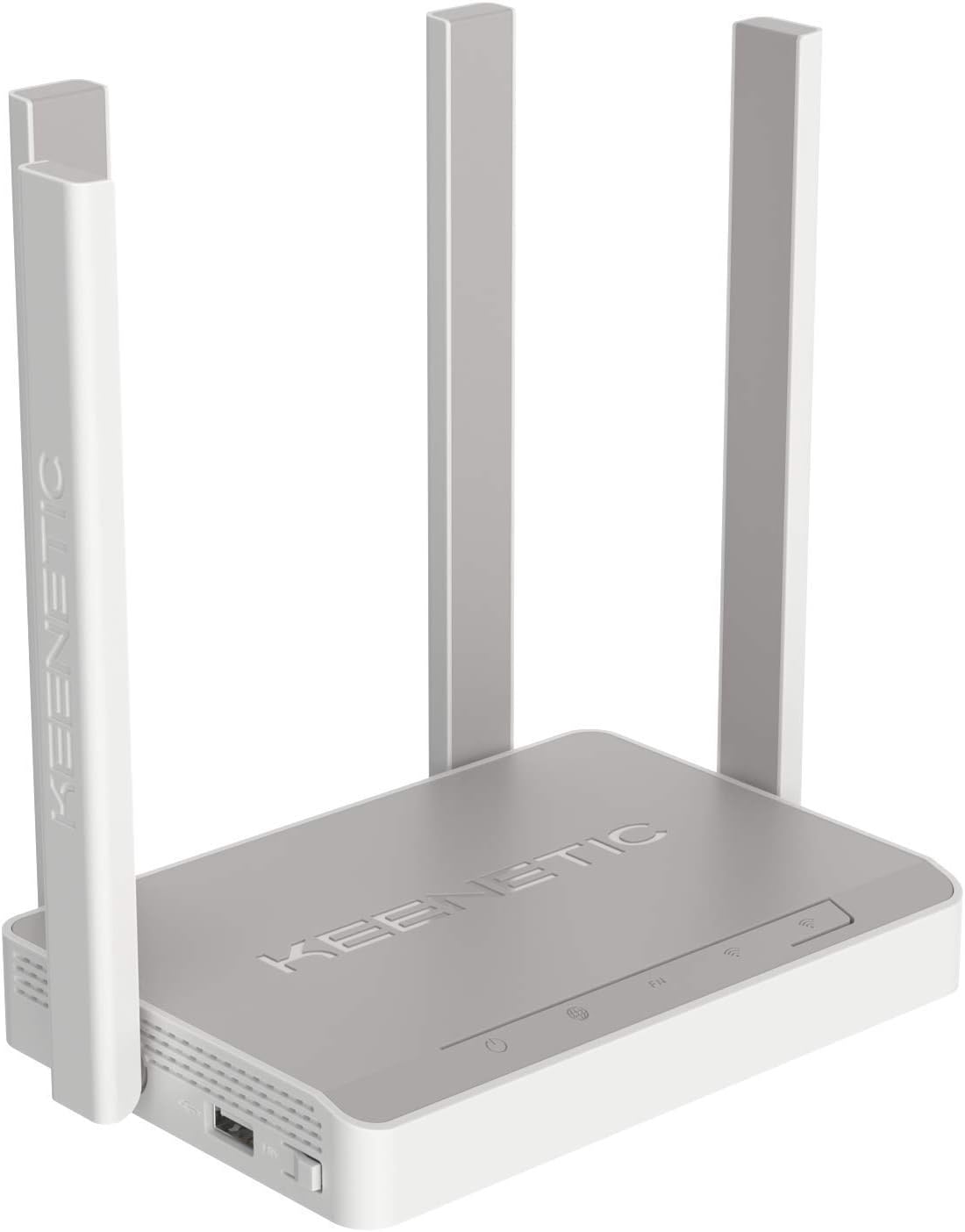

Imej: Sisi view of the KEENETIC Skipper router, highlighting the two USB ports available for connecting external devices.

Image: The KEENETIC Skipper router discreetly mounted on a wall next to decorative items, demonstrating its compact size and flexible placement options.

Image: The KEENETIC Skipper router placed on a wooden table in a living room, blending into the home environment while providing network connectivity.

Image: A collection of various Keenetic router models, including the Skipper, showcasing the brand's range of networking devices.

5. Persediaan

Follow these steps to set up your Keenetic Skipper router and establish an internet connection.

5.1 Sambungan Perkakasan

1. Matikan: Disconnect power from your modem (if applicable) and the router.
2. Sambungkan Port WAN: Connect one end of the Ethernet cable to the WAN (blue) port on your Keenetic router and the other end to your modem's Ethernet port or the wall jack provided by your ISP.
3. Sambungkan Peranti (Pilihan): Connect your computer or other wired devices to the LAN (yellow) ports using Ethernet cables.
4. Sambungkan Kuasa: Sambungkan penyesuai kuasa ke port kuasa penghala dan pasangkannya ke soket kuasa.
5. Hidupkan kuasa: Power on your modem first (if applicable), wait for it to fully boot up, then power on your Keenetic router.

5.2 Tatarajah Awal

You can configure your router using the Keenetic web interface or the Keenetic mobile app.

Menggunakan Web Antara muka:

1. Ensure your computer is connected to the router (via Wi-Fi or Ethernet).
2. Buka a web pelayar dan masukkan my.keenetic.net or 192.168.1.1 dalam bar alamat.
3. Follow the on-screen instructions of the KeeneticOS setup wizard to configure your internet connection, Wi-Fi network name (SSID), and password.

Using the Keenetic Mobile App:

1. Download the Keenetic app from your device's app store.
2. Open the app and follow the instructions to discover and set up your new router.

6. Beroperasi

Your Keenetic Skipper router offers a range of features to enhance your network experience.

6.1 Wi-Fi Network Management

The router supports dual-band Wi-Fi (2.4 GHz and 5 GHz) for optimal performance. You can manage your Wi-Fi settings, including network names (SSIDs), passwords, and security protocols, through the web antara muka atau aplikasi mudah alih.

Creating Guest Networks:

Set up separate guest Wi-Fi networks to provide internet access to visitors without compromising your main network's security.

6.2 Ciri-ciri USB

The two USB ports on your router enable various functionalities:

• Storan USB: Connect a USB hard drive or flash drive to create network-attached storage (NAS) for file sharing within your network or via personal cloud services.
• USB Printer Server: Sambungkan pencetak USB untuk menjadikannya boleh diakses oleh semua peranti pada rangkaian anda.
• 3G/4G USB Modem Support: Use a compatible USB modem for backup internet connectivity or as a primary connection.

6.3 Kawalan Ibu Bapa

Utilize the built-in parental control features to manage internet access for specific devices or users. You can set schedules, block websites, and filter content to ensure a safe online environment.

6.4 Mesh Wi-Fi System

The Keenetic Skipper can be integrated into a Mesh Wi-Fi system with other compatible Keenetic routers. This allows you to expand your Wi-Fi coverage and create a seamless network throughout your home or office.

7. Penyelenggaraan

Penyelenggaraan berkala memastikan prestasi optimum dan jangka hayat penghala anda.

7.1 Kemas Kini Perisian Tegar

KeeneticOS regularly receives updates that improve performance, add new features, and enhance security. It is recommended to keep your router's firmware up to date. You can check for and install updates via the web interface or the Keenetic app.

7.2 Menetapkan Semula Peranti

If you encounter persistent issues, you may need to reset the router to its factory default settings. Locate the reset button on the rear panel, press and hold it for approximately 10 seconds until the LEDs flash, then release. Note that resetting will erase all your custom configurations.

7.3 Pembersihan

Gently wipe the router's exterior with a soft, dry cloth. Do not use liquid cleaners or aerosol sprays.

8. Penyelesaian masalah

This section addresses common issues you might encounter with your Keenetic Skipper router.

8.1 Tiada Sambungan Internet

• Semak Kabel: Pastikan semua kabel Ethernet disambungkan dengan selamat ke port yang betul (WAN ke modem, LAN ke peranti).
• Status Modem: Pastikan modem anda berfungsi dengan betul dan mempunyai sambungan internet yang aktif.
• LED penghala: Check the Internet LED on the router. If it's off or red, there might be an issue with your internet service or router configuration.
• But semula: Power cycle both your modem and router. Unplug them, wait 30 seconds, then plug the modem back in, wait for it to boot, then plug the router back in.
• Tetapan ISP: Confirm your internet connection settings (e.g., PPPoE, DHCP, Static IP) are correctly configured in the router's web antara muka.

8.2 Isu Sambungan Wi-Fi

• Periksa LED Wi-Fi: Ensure the Wi-Fi LEDs on the router are lit.
• kata laluan: Sahkan anda memasukkan kata laluan Wi-Fi yang betul.
• Kekuatan Isyarat: Move closer to the router to check if signal strength is an issue.
• Gangguan: Other electronic devices (cordless phones, microwaves) can cause interference. Try changing your Wi-Fi channel in the router settings.
• Kemas Kini Pemandu: Pastikan pemacu penyesuai wayarles peranti anda terkini.

8.3 Kelajuan Internet Perlahan

• Penggunaan Lebar Jalur: Check if multiple devices are consuming high bandwidth (e.g., streaming 4K video, large downloads).
• Saluran Wi-Fi: Try changing the Wi-Fi channel to avoid congestion with neighboring networks.
• Perisian tegar: Pastikan perisian tegar penghala anda dikemas kini.
• Kelajuan ISP: Contact your Internet Service Provider to verify your subscribed speed and check for any network issues on their end.

9. Spesifikasi

10. Waranti dan Sokongan

For warranty information, please refer to the warranty card included with your product or visit the official Keenetic website. For technical support, firmware updates, and additional resources, please visit the Keenetic support portal or contact their customer service. Keep your purchase receipt for warranty claims.

Sumber Dalam Talian:

• Official Keenetic Webtapak: keenetic.com
• Support Portal: Refer to the official website for regional support contacts and knowledge base.
