1. Pengenalan
Welcome to the user manual for your HK Audio Premium PR:O Move 8 Powered Full Range Speaker. This manual provides essential information for the safe and efficient operation of your new audio system. Please read it thoroughly before initial use and retain it for future reference. The PR:O Move 8 is a versatile, battery-powered speaker designed for various applications, offering high-quality sound and integrated mixing capabilities.
2. Arahan Keselamatan
Untuk memastikan operasi yang selamat dan mencegah kerosakan, patuhi langkah berjaga-jaga keselamatan berikut:
- Sumber Kuasa: Hanya gunakan penyesuai kuasa yang dibekalkan bersama unit ini. Pastikan volumtage sepadan dengan bekalan kuasa tempatan anda.
- Keselamatan Bateri: Do not expose the battery to excessive heat, direct sunlight, or fire. Do not attempt to open or modify the battery. Dispose of batteries according to local regulations.
- penempatan: Place the speaker on a stable, level surface. Ensure adequate ventilation around the unit to prevent overheating. Avoid placing it near heat sources or in direct sunlight.
- Kelembapan: Do not expose the unit to rain, moisture, or any liquids. This product is not waterproof.
- Pembersihan: Putuskan sambungan kuasa sebelum membersihkan. Gunakan kain kering dan lembut. Jangan gunakan pembersih cecair atau aerosol.
- Servis: Jangan cuba servis produk ini sendiri. Rujuk semua perkhidmatan kepada pegawai perkhidmatan yang berkelayakan.
- Perlindungan Pendengaran: Prolonged exposure to high volume levels can cause permanent hearing damage. Use caution when setting volume levels.
3. Kandungan Pakej
Sila pastikan semua item ada dalam pakej anda:
- HK Audio Premium PR:O Move 8 Powered Full Range Speaker
- Penyesuai Kuasa
- Manual Pengguna (dokumen ini)
Jika ada barang yang hilang atau rosak, sila hubungi pengedar anda dengan segera.
4. Produk Lebihview
The HK Audio PR:O Move 8 is a compact and powerful battery-powered speaker featuring an 8-inch bass/midrange speaker and a 1-inch driver with horn. It includes a 4-channel mixer with Bluetooth 5.0 audio streaming.
Rajah 4.1: Bahagian Depan dan Bahagian Sisi View. This image displays the speaker from the front and a slight side angle, highlighting the protective metal grille covering the speaker components and a recessed handle on the top side for portability.
Figure 4.2: Rear and Side View dengan Kawalan. This image shows the rear panel of the speaker, which houses the integrated 4-channel mixer. Visible elements include input jacks, volume and tone controls, reverb knobs, and the HK Audio branding.

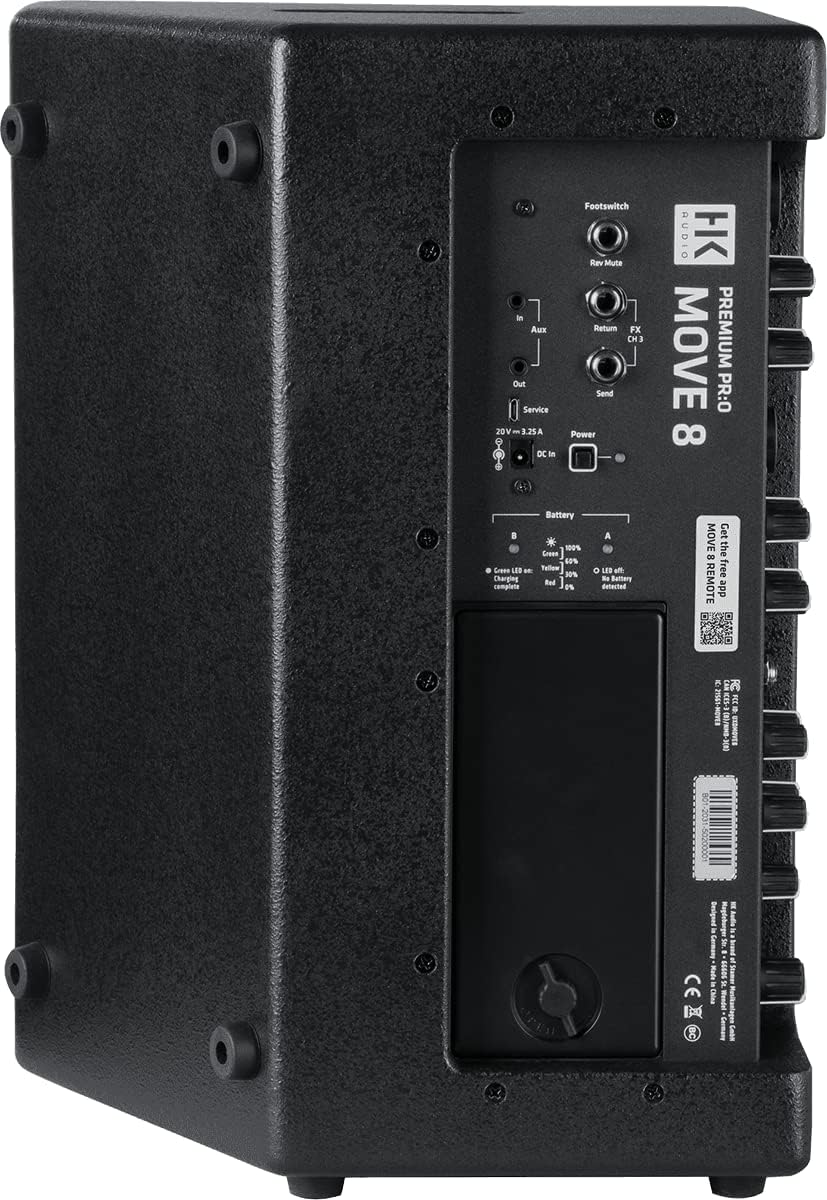

Figure 4.3: Detailed Rear Panel. A closer look at the rear panel, detailing the various input/output connections, the DC power input, battery status indicators, and the removable battery compartment cover.
Figure 4.4: Mixer Control Panel Detail. Imej ini memberikan yang terperinci view of the mixer section, illustrating the individual controls for each of the four channels, including volume, treble, bass, and reverb adjustments, along with the master volume knob.
Figure 4.5: Floor Monitor Position. The speaker is shown lying on its side, angled upwards, demonstrating its capability to function as a floor monitor for stage or practice use.
Figure 4.6: Pole Mount Socket. This image highlights the integrated pole mount socket located on the bottom of the speaker, allowing it to be mounted on a standard speaker stand for elevated sound projection.
5. Persediaan
5.1 Pengecasan Awal
- Connect the supplied power adapter to the DC IN port on the rear panel of the speaker.
- Palamkan penyesuai kuasa ke salur keluar elektrik yang sesuai.
- The battery indicator LEDs on the rear panel will show the charging status. A full charge is indicated when all LEDs are lit and stable.
- Allow the speaker to fully charge before its first battery-powered use.
5.2 Pilihan Penempatan
- Vertical Stand Mount: Use the integrated pole mount socket on the bottom of the speaker to place it on a standard speaker stand.
- Pemantau Lantai: The speaker can be placed horizontally on the floor, angled upwards, to serve as a stage pantau.
- Tabletop/Floor: Place the speaker vertically on a stable, flat surface.
5.3 Menghidupkan/Mematikan
Locate the power switch on the rear panel. Press it to turn the speaker ON or OFF. The power LED will illuminate when the unit is on.
6. Arahan Operasi
6.1 Menyambung Peranti
The PR:O Move 8 features a 4-channel mixer:
- Channels 1 & 2 (Mic/Line): These channels feature XLR/TRS combo jacks, suitable for microphones or line-level instruments. Adjust the input sensitivity using the respective switch.
- Saluran 3 (Instrumen): This channel is optimized for instruments like acoustic guitars, featuring a 1/4-inch jack and a switchable cabinet simulation for authentic sound.
- Channel 4 (Aux/Bluetooth): This channel handles auxiliary input via a 3.5mm jack or Bluetooth audio streaming.
6.2 Berpasangan Bluetooth
Untuk menyambungkan peranti Bluetooth:
- Pastikan pembesar suara dihidupkan.
- Aktifkan Bluetooth pada peranti audio anda (telefon pintar, tablet, dll.).
- Press and hold the 'Pairing' button on Channel 4 of the speaker's mixer until the Bluetooth indicator LED flashes.
- On your device, search for 'HK Audio MOVE 8' in the Bluetooth settings and select it to pair.
- Once successfully paired, the Bluetooth indicator LED on the speaker will glow solid.
6.3 Kawalan Pengadun
Each channel (1-3) includes:
- Kelantangan: Adjusts the input level for the respective channel.
- Tiga kali ganda: Mengawal tindak balas frekuensi tinggi.
- Bes: Mengawal tindak balas frekuensi rendah.
- Reverb: Adds a reverberation effect to the channel's signal.
Channel 4 has a single Volume control for both Aux and Bluetooth inputs.
The Cikgu knob controls the overall output volume of the speaker.
6.4 Operasi Bateri
The PR:O Move 8 is designed for extended battery operation. The battery status LEDs on the rear panel indicate the remaining charge:
- Green LED: 100% - 50% charge
- Yellow LED: 50% - 20% charge
- Red LED: Below 20% charge (recharge soon)
When the battery is critically low, the speaker may automatically reduce output or shut down to protect the battery.
7. Penyelenggaraan
7.1 Pembersihan
Regularly clean the speaker's exterior with a soft, dry, lint-free cloth. Do not use abrasive cleaners, solvents, or waxes. Ensure no moisture enters the speaker grille or control panel.
7.2 Penyimpanan
When not in use for extended periods, store the speaker in a cool, dry place, away from direct sunlight and extreme temperatures. For optimal battery health, ensure the battery is charged to approximately 50% before long-term storage and recharge it every few months.
8. Penyelesaian masalah
If you encounter issues with your PR:O Move 8 speaker, refer to the following table for common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada keluaran bunyi | Speaker not powered on; Master volume too low; Input channel volume too low; Incorrect input selected; Cable issue. | Check power switch and power adapter; Increase Master volume; Increase individual channel volume; Verify correct input connection; Test with different cables. |
| Kualiti bunyi yang lemah / Herotan | Input signal too high (clipping); Volume levels too high; Damaged cable; Speaker placed too close to a wall. | Reduce input gain or source volume; Lower Master or channel volume; Replace faulty cables; Adjust speaker placement. |
| Bluetooth tidak bersambung | Speaker not in pairing mode; Device too far; Interference; Previously paired device connected. | Press and hold 'Pairing' button; Move device closer to speaker; Turn off other Bluetooth devices; Disconnect from other devices. |
| Bateri tidak dicas | Power adapter not connected properly; Faulty power outlet; Damaged power adapter. | Ensure power adapter is securely connected; Test outlet with another device; Contact support for adapter replacement if suspected faulty. |
If the problem persists after trying these solutions, please contact HK Audio customer support or your dealer.
9. Spesifikasi
| Ciri | Spesifikasi |
|---|---|
| Nama Model | GERAK 8 |
| Jenis Pembesar Suara | Portable Speaker, Full Range |
| Jenis Pemasangan | Floor Standing, Pole Mount |
| Saiz Pembesar Suara | 8 Inches (Woofer/Subwoofer Diameter) |
| Jenis Pemacu Audio | Pemandu Dinamik |
| Kuasa Output Maksimum Pembesar Suara | 60 Watt |
| Respons Kekerapan | Sehingga 20 KHz |
| Nisbah Isyarat-ke-Bunyi | 60 dB |
| Sumber Kuasa | Dikuasakan Bateri |
| Teknologi Ketersambungan | Bantu, Bluetooth |
| Teknologi Komunikasi Tanpa Wayar | Bluetooth 5.0 |
| Julat Bluetooth | 10 Meter |
| Mod Keluaran Audio | Stereo |
| Peranti Serasi | Telefon Pintar, Tablet, Pemain MP3, Desktop, Komputer Riba |
| Berat Barang | 8.5 Kilogram (18.7 paun) |
| Dimensi Produk | 0.39 x 0.39 x 0.39 inches (Note: These dimensions appear to be placeholder values and may not reflect the actual product size.) |
| Penggunaan Dalaman/Luar | Dalaman |
| Kaedah Kawalan | Touch (Knobs/Buttons) |
| Tahap Ketahanan Air | Bukan Tahan Air |
10. Waranti dan Sokongan
The HK Audio Premium PR:O Move 8 speaker comes with a limited warranty. Please refer to the warranty card included with your product or visit the official HK Audio webtapak untuk terma dan syarat jaminan terperinci.
For technical support, service inquiries, or replacement parts, please contact your authorized HK Audio dealer or visit the HK Audio official support page. When contacting support, please have your product model number (MOVE 8) and serial number available.
