WAVLINK USB 3.0 Universal Docking Station UG39DK101-BL

1. Pengenalan

The WAVLINK USB 3.0 Universal Docking Station (Model: UG39DK101-BL) is designed to expand the connectivity of your laptop or desktop computer. It provides a comprehensive solution for connecting multiple peripherals, external displays, and network access through a single USB 3.0 connection to your host device. This manual provides detailed instructions for setup, operation, and troubleshooting to ensure optimal performance.

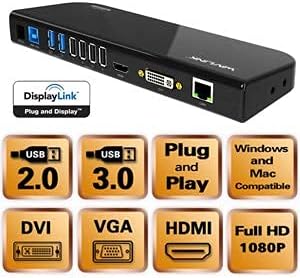

Image 1.1: WAVLINK USB 3.0 Universal Docking Station, front view.

2. Ciri-ciri Produk

• Extensive Port Selection: Features 13 ports including 2x USB 3.0, 4x USB 2.0, 1x USB 3.0 IN (for host connection), 1x HDMI, 1x DVI, 1x Gigabit Ethernet, 1x DC Power Jack, 1x Audio Input, and 1x Audio Output.
• High-Resolution Dual Display: Supports dual external monitors. HDMI output supports resolutions up to 2560x1440@50Hz. DVI or VGA (via included adapter) supports resolutions up to 2048x1152@60Hz / 1920x1080@60Hz. When using HDMI + DVI/VGA, resolutions up to 2048x1152@60Hz / 1920x1080@60Hz are supported for extended or mirrored displays.
• Gigabit-Ethernet: Provides a stable and fast wired network connection with support for 10/100/1000Mbps Ethernet via the RJ-45 port.
• Super-Speed Data Transfer: Port USB 3.0 menawarkan kelajuan pemindahan data sehingga 5Gbps.
• Keserasian Luas: Compatible with Windows Vista/7/8/8.1/10/11 and Mac OS 10.2 and later.
• Reka bentuk padat dan ringan: Designed for portability and minimal desk space.

Imej 2.1: Selesaiview of the docking station ports and key features.

3. Kandungan Pakej

Sila sahkan bahawa semua item terdapat dalam pakej:

• 1x WAVLINK USB 3.0 Universal Docking Station (UG39DK101-BL)
• 1x SuperSpeed USB 3.0 Cable
• 1x DVI-to-VGA Adapter
• 1x Penyesuai Kuasa
• 1x Manual Pengguna

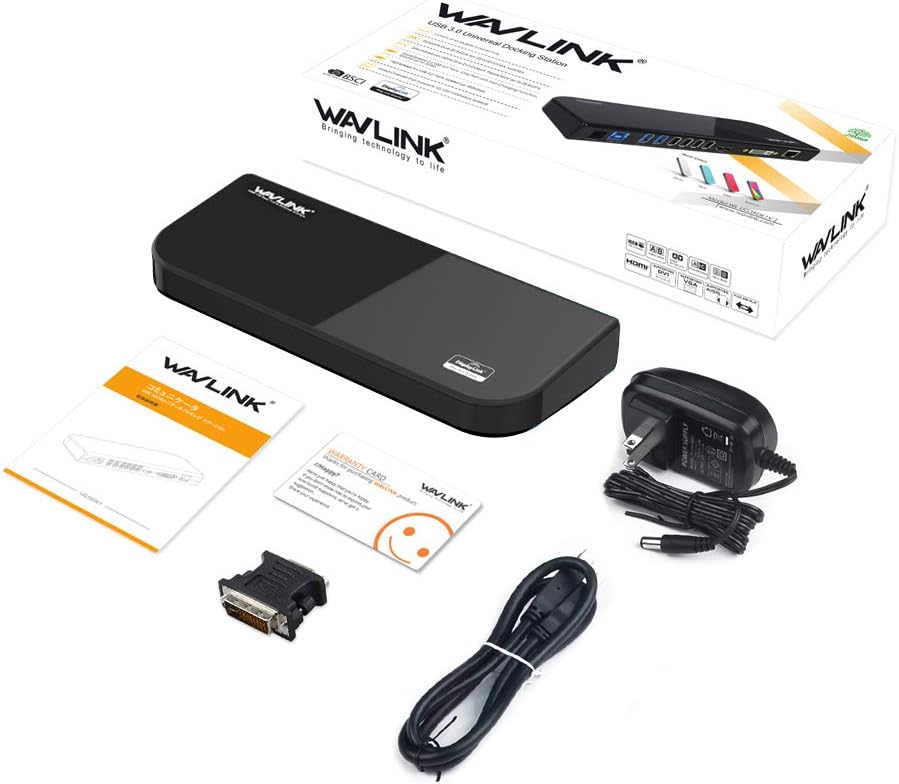

Image 3.1: All items included in the product package.

4. Arahan Persediaan

1. Pasang Pemacu: Before connecting the docking station, ensure that the latest DisplayLink drivers are installed on your computer. These can typically be downloaded from the WAVLINK support website or DisplayLink's official webtapak.
2. Sambungkan Kuasa: Connect the provided power adapter to the DC 12V port on the docking station and then plug it into a power outlet.
3. Sambungkan ke Komputer Hos: Use the SuperSpeed USB 3.0 cable to connect the USB 3.0 IN port on the docking station to an available USB 3.0 port on your laptop or desktop computer.
4. Sambung Peranti:
   • Pemantau: Connect your external monitors to the HDMI and/or DVI ports on the docking station. If using a VGA monitor, use the DVI-to-VGA adapter.
   • Peranti USB: Connect your USB devices (keyboard, mouse, printer, external drives, etc.) to the available USB 3.0 and USB 2.0 ports.
   • Ethernet: Connect an Ethernet cable from your router or modem to the RJ-45 Gigabit Ethernet port on the docking station.
   • Audio: Connect headphones, speakers, or a microphone to the audio input/output ports as needed.
5. Sahkan Sambungan: Once all connections are made, your computer should detect the docking station and connected devices. You may need to adjust display settings in your operating system.

Imej 4.1: Terperinci view of the docking station's ports and their labels.

5. Arahan Operasi

5.1 Mod Paparan

The docking station supports various display modes for external monitors:

• Mod Lanjutan: Each monitor displays a different part of your desktop, allowing for increased workspace.
• Mirror Mode (Duplicate Mode): All monitors display the same content as your primary display.
• Primary Mode / Alternate Mode: Use this mode if you are using your laptop with the lid closed, displaying only on external monitors.

You can configure these display settings through your operating system's display settings (e.g., Windows Display Settings or macOS System Preferences > Displays).

Image 5.1: Illustration of different display modes (Primary, Mirror, Extended).

5.2 Konfigurasi Audio

After connecting audio devices to the docking station, you may need to select the docking station as the default audio output/input device in your operating system's sound settings.

5.3 Kesambungan Rangkaian

The Gigabit Ethernet port provides a stable wired network connection. Ensure your network cable is securely connected to the docking station and your network source. Your operating system should automatically detect the network connection.

6. Penyelenggaraan

• Keep the docking station in a dry, well-ventilated area, away from direct sunlight and heat sources.
• Elakkan daripada mendedahkan peranti kepada air atau kelembapan berlebihan.
• Bersihkan peranti dengan kain lembut dan kering. Jangan gunakan pembersih cecair atau aerosol.
• Ensure cables are not bent or crimped excessively to prevent damage.
• Periodically check for and install updated DisplayLink drivers for optimal performance and compatibility.

7. Penyelesaian masalah

• Tiada Paparan pada Monitor Luaran:
  • Ensure the docking station is powered on and connected to your computer via USB 3.0.
  • Verify that the monitor cables (HDMI, DVI, VGA) are securely connected to both the docking station and the monitors.
  • Check your computer's display settings to ensure the external monitors are detected and configured correctly (e.g., extended or mirrored).
  • Update or reinstall DisplayLink drivers.
  • Test the monitors directly with your computer if possible to rule out monitor issues.
• Peranti USB Tidak Berfungsi:
  • Ensure the docking station is powered and connected to the host computer.
  • Cuba sambungkan peranti USB ke port berbeza pada stesen dok.
  • Connect the USB device directly to your computer to confirm it is functional.
• Tiada Sambungan Rangkaian:
  • Verify the Ethernet cable is securely connected to the docking station and your network source.
  • Semak tetapan rangkaian pada komputer anda.
  • Restart your router/modem and the computer.
• Isu Audio:
  • Pastikan kabel audio disambungkan dengan betul.
  • Check your computer's sound settings to ensure the docking station's audio output/input is selected as the default device.

8. Spesifikasi

Image 8.1: Product dimensions of the WAVLINK docking station.

9. Waranti dan Sokongan

WAVLINK provides a Waranti 12 bulan for this product, covering manufacturing defects and malfunctions under normal use. We are confident in the design and durability of our products.

If you encounter any issues or have questions regarding the product, please do not hesitate to contact WAVLINK customer support. For the latest drivers, FAQs, and support resources, please visit the official WAVLINK webtapak.

Note: If you are unsure about device compatibility, please contact customer support for assistance.
