GoolRC LS-E525 RC Drone User Manual

1. Pengenalan

Terima kasih kerana membeliasing the GoolRC LS-E525 RC Drone. This manual provides essential information for the safe operation, setup, and maintenance of your drone. Please read it thoroughly before use to ensure proper functionality and to maximize your flying experience. The LS-E525 is a foldable FPV drone equipped with a 4K HD camera, offering features such as Headless Mode, Altitude Hold, Track Flight, and 3D Flip capabilities.

2. Kandungan Pakej

Sebelum bermula, sila sahkan bahawa semua item yang disenaraikan di bawah ada di dalam pakej anda:

Image: Components included in the GoolRC LS-E525 Drone package.

• 1 x GoolRC LS-E525 RC Drone
• 1 x Alat Kawalan Jauh
• 4 x Pengawal Baling-baling
• 4 x Blade Spare
• 1 x Pemutar skru
• 1 x Kabel Pengecas USB
• 1 x Manual Pengguna
• 2 x Drone Batteries (3.7V 1800mAh Lithium)
• 1 x Beg Penyimpanan

3. Panduan Persediaan

3.1 Drone Battery Installation and Charging

1. Insert the provided 3.7V 1800mAh Lithium battery into the drone's battery compartment. Ensure it is securely latched.
2. Sambungkan bateri dron ke kabel pengecas USB.
3. Pasangkan kabel pengecas USB ke sumber kuasa USB yang sesuai (cth., port USB komputer, penyesuai dinding USB).
4. Charging time is approximately 100 minutes. The indicator light on the USB cable will change to indicate charging status (refer to the specific indicator behavior in the included manual for details).

3.2 Pemasangan Bateri Alat Kawalan Jauh

1. Buka petak bateri di belakang alat kawalan jauh.
2. Masukkan 3 bateri AA x 1.5V (tidak disertakan), pastikan kekutuban yang betul (+/-).
3. Tutup petak bateri dengan selamat.

3.3 Pemasangan Propeller Guard

For enhanced safety, attach the propeller guards to the drone's arms. Align the guards with the designated slots and gently push until they click into place.

3.4 Mobile App Download and Connection

Image: Smartphone displaying the drone control app, highlighting WiFi connectivity.

1. Scan the QR code in the included manual or search for the designated app (e.g., 'GoolRC FPV' or similar, check the physical manual for the exact app name) on the App Store (iOS 9.0 or later) or Google Play Store (Android 5.0 or later).
2. Pasang apl pada peranti mudah alih anda.
3. Hidupkan dron.
4. On your mobile device, go to Wi-Fi settings and connect to the drone's Wi-Fi network (usually named 'GoolRC-XXXX' or similar).
5. Open the installed app to establish a connection and view suapan FPV langsung.

4. Arahan Operasi

4.1 Kawalan Asas Penerbangan

Familiarize yourself with the remote controller layout and basic flight functions:

• Throttle Stick (Left Stick): Up/Down for altitude control.
• Directional Stick (Right Stick): Forward/Backward, Turn Left/Right for horizontal movement.
• Trimming Buttons: Used to fine-tune the drone's stability if it drifts.

4.2 One Key Take-off, Landing, and Return

Image: Drone performing one-key auto return to a home point.

• One Key Take-off: Press the designated button on the remote controller, and the drone will automatically ascend to a stable hovering altitude.
• Satu Pendaratan Utama: Press the designated button, and the drone will slowly descend and land.
• Satu Pulangan Utama: Press this button to initiate an automatic return to the take-off point. Ensure a clear path for return.

4.3 Mod Tahan Altitud

Image: Drone maintaining a stable hover using altitude hold.

The intelligent altitude hold function uses air pressure sensors to accurately lock the drone's flight altitude, providing stable hovering. This feature is crucial for capturing clear aerial photos and videos by minimizing camera shake.

4.4 Mod Tanpa Kepala

In Headless Mode, the drone's orientation is relative to the pilot, regardless of the drone's actual front. This simplifies control, especially for beginners, as you don't need to worry about which way the drone is facing.

4.5 Track Flight (App Control)

After setting a target or drawing a flight path via the mobile app, the drone will automatically follow the designated track. This allows for hands-free flight along a pre-defined route.

4.6 Gesture Photo/Video

Image: Drone flying, illustrating gesture photography capability.

During flight, face the drone's camera and perform specific hand gestures (e.g., a 'Victory' sign for photos, an open palm for video). The drone will automatically recognize these gestures and capture photos or start/stop video recording.

4.7 3D Flip

Press the 3D Flip button on the remote controller and then move the directional stick to perform an acrobatic 360-degree flip in the desired direction.

4.8 4K HD Camera and FPV Live Video

Image: Close-up of the drone's 4K HD camera with 90-degree adjustable angle.

Image: Real-time FPV video feed displayed on a smartphone.

The drone is equipped with a 4K High-definition camera capable of capturing sharp and vivid images and videos. The camera angle is manually adjustable by 90 degrees. Through the Wi-Fi connection and mobile app, you can view a real-time FPV (First Person View) video feed directly on your smartphone, allowing for immersive flight and precise framing of shots.

5. Penyelenggaraan

5.1 Penjagaan Bateri

• Always use the original charging cable.
• Jangan cas berlebihan atau terlalu nyahcas bateri.
• Simpan bateri di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
• If the drone will not be used for an extended period, charge the batteries to approximately 50% before storage.

5.2 Penggantian Baling-Baling

If propellers are damaged or bent, they should be replaced immediately to ensure stable flight. Use the provided screwdriver to remove the old propeller and install a new one from the spare blades, ensuring it is securely fastened.

5.3 Pembersihan dan Penyimpanan

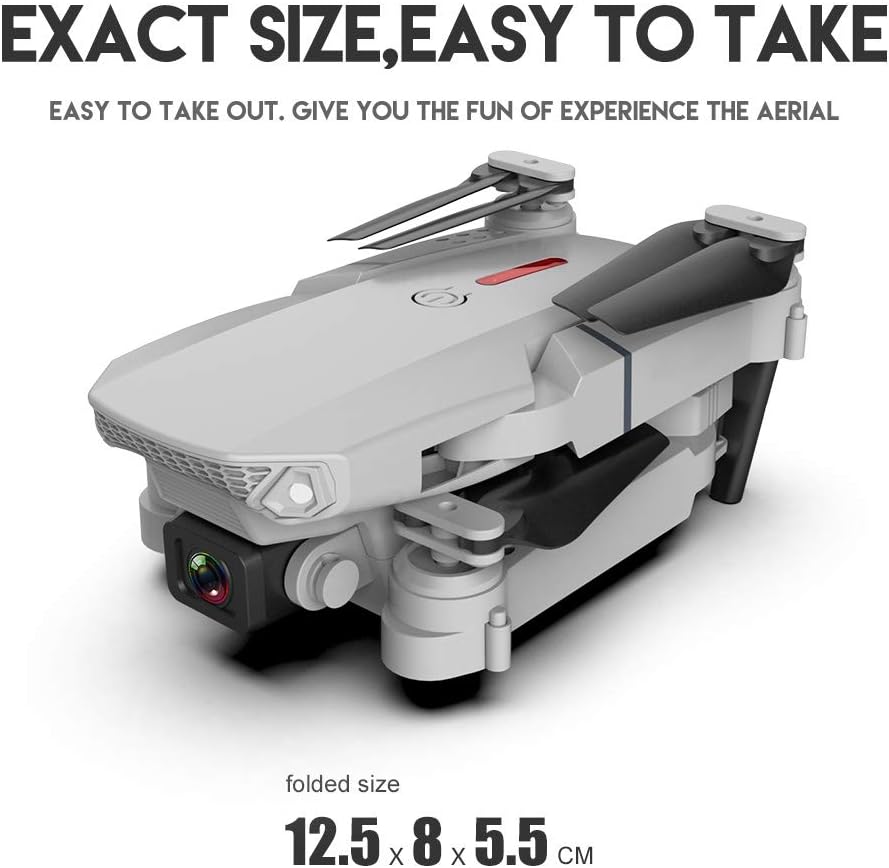

Image: Folded drone, ready for storage in its compact form.

• Wipe the drone's body with a soft, dry cloth after each use to remove dust and debris.
• Elakkan menggunakan bahan kimia atau pelarut yang keras.
• When not in use, fold the drone's arms and store it in the provided storage bag to protect it from damage.

6. Penyelesaian masalah

If you encounter issues with your GoolRC LS-E525 drone, refer to the following common problems and solutions:

• Drone does not respond to remote controller:
  Ensure both the drone and remote controller are powered on and fully charged. Re-pair the drone and remote controller according to the initial setup instructions. Check for signal interference.
• Dron melayang semasa penerbangan:
  Perform a calibration of the drone's gyroscope. Use the trimming buttons on the remote controller to adjust for minor drifts. Check for damaged propellers.
• Poor FPV video quality or no video feed:
  Ensure your mobile device is correctly connected to the drone's Wi-Fi network. Move closer to the drone to improve signal strength. Close other applications on your phone that might interfere with Wi-Fi.
• Masa penerbangan yang singkat:
  Ensure the drone battery is fully charged. Battery performance can degrade over time; consider replacing old batteries. Avoid aggressive flying maneuvers that consume more power.
• Drone fails to take off:
  Check if the propellers are installed correctly and not obstructed. Ensure the battery is fully charged. Perform a gyroscope calibration.

For persistent issues not covered here, please consult the full user manual included in the package or contact GoolRC customer support.

7. Spesifikasi

8. Waranti dan Sokongan

8.1 Maklumat Waranti

Specific warranty details for the GoolRC LS-E525 RC Drone are typically provided with the product packaging or on the manufacturer's official website. Please refer to the warranty card or documentation included in your package for information regarding coverage, duration, and terms. For any warranty claims, retain your proof of purchase.

8.2 Sokongan Pelanggan

Should you require technical assistance, have questions about product operation, or need to report a defect, please contact GoolRC customer support. Contact information can usually be found on the manufacturer's website or in the product's original documentation. When contacting support, please have your model number (LS-E525) and purchase details readily available.
