Master-Bilt Crossflow Blower 161094 Instruction Manual

1. Pengenalan dan Lebihview

This manual provides essential information for the safe and effective handling, installation, and maintenance of the Master-Bilt Crossflow Blower, Model 161094. This component is a genuine OEM (Original Equipment Manufacturer) replacement part designed to ensure compatibility and optimal performance within Master-Bilt refrigeration or HVAC systems. The blower assembly is responsible for circulating air, which is critical for the proper functioning of the equipment.

2. Maklumat Keselamatan

WARNING: Before proceeding with any installation, maintenance, or troubleshooting, ensure that the power supply to the equipment is completely disconnected and locked out. Failure to do so can result in serious injury or death.

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling the blower assembly.
• Only qualified and trained personnel should perform installation and service procedures involving electrical components.
• Ensure all electrical connections are secure and conform to local and national electrical codes.
• Keep hands and loose clothing away from moving parts during operation or testing.
• Do not operate the blower if it is damaged or if any components are missing.

3. Apa yang ada di dalam Kotak

Upon unpacking, verify that the following item is present:

• One (1) Master-Bilt Crossflow Blower Assembly, Model 161094.

Inspect the part for any signs of shipping damage. If damage is found, contact your supplier immediately.

4. Persediaan dan Pemasangan

The Master-Bilt 161094 Crossflow Blower is designed as a direct replacement part. Refer to the original equipment's service manual for specific installation instructions and diagrams. The following general guidelines apply:

1. Putuskan Kuasa: Ensure the main power supply to the unit is disconnected and locked out before beginning installation.
2. Akses Petak Peniup: Carefully open the equipment panel to access the existing blower assembly.
3. Remove Old Blower: Disconnect all wiring from the old blower. Note the orientation and connection points for reinstallation. Unfasten any mounting screws or clips securing the old blower and carefully remove it.
4. Install New Blower: Position the new Master-Bilt 161094 blower assembly in the same orientation as the old unit. Secure it using the original mounting hardware.
5. Sambungan Pendawaian: Reconnect all electrical wiring to the new blower, ensuring connections are tight and correct according to the original equipment's wiring diagram.
6. Sahkan Pemasangan: Double-check all connections and mounting points to ensure the blower is securely installed and free from obstructions.
7. Tutup Petak: Carefully close and secure the equipment panel.

Using genuine OEM parts like the Master-Bilt 161094 ensures:

• Guaranteed Compatibility: OEM parts fit and function exactly like the original components, ensuring a perfect match.
• Higher Quality and Reliability: OEM parts are built to the same quality standards as the original components, reducing the risk of premature failure.
• Jaminan Keselamatan: Genuine parts provide peace of mind that your equipment remains safe to use.
• Maintain Your Warranty: Using genuine OEM parts is less likely to void your equipment's warranty.

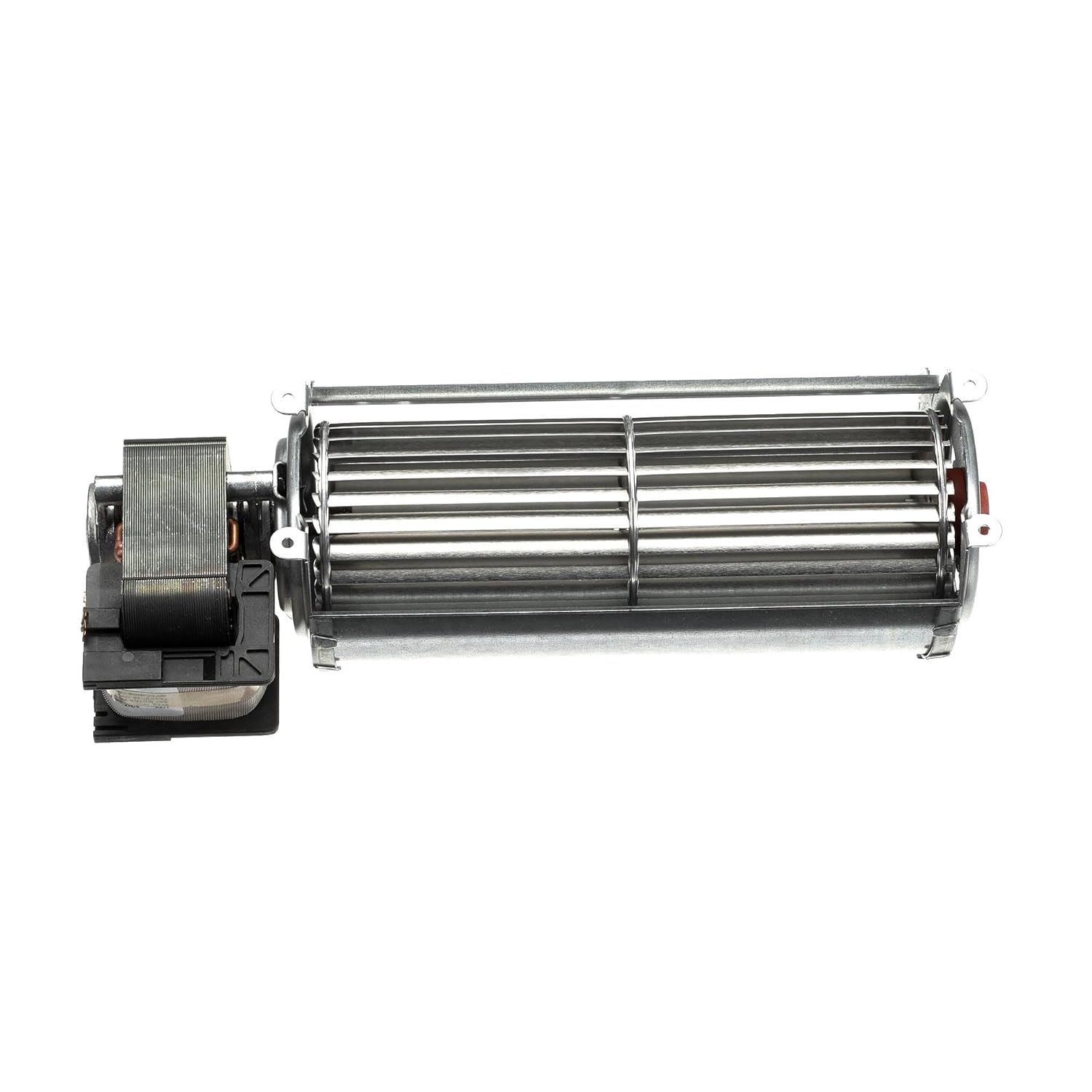

Rajah 1: sebelah view of the Master-Bilt 161094 Crossflow Blower Assembly, showing the motor and fan housing.

Rajah 2: bersudut view of the blower assembly, highlighting the motor and the intake side of the fan.

Rajah 3: Atas view of the Master-Bilt 161094 blower, showing the elongated fan blades within the housing.

Rajah 4: bersudut view of the blower assembly from the side opposite the motor, showing the fan outlet.

5. Arahan Operasi

Once the Master-Bilt 161094 Crossflow Blower is correctly installed and all safety checks are completed, restore power to the equipment. The blower will operate automatically as part of the system's normal cycle, typically controlled by the equipment's thermostat or control board. Ensure that the airflow is unobstructed and that the blower operates smoothly without unusual noises or vibrations.

6. Penyelenggaraan

Regular maintenance helps ensure the longevity and efficient operation of the blower assembly. Always disconnect power before performing any maintenance.

• Pembersihan: Periodically inspect the blower wheel and housing for dust, dirt, or debris accumulation. Use a soft brush or vacuum cleaner to gently remove any buildup. Avoid using harsh chemicals or excessive moisture.
• Pemeriksaan: Check for any signs of wear on the motor, wiring, or fan blades. Ensure all mounting hardware remains tight.
• Pelinciran: The motor in this blower assembly is typically sealed and does not require user lubrication. Refer to the original equipment's service manual for specific motor maintenance requirements.

7. Penyelesaian masalah

If the equipment experiences issues related to airflow, consider the following troubleshooting steps. Always disconnect power before inspecting the blower.

• Peniup Tidak Berfungsi:
  • Check if the equipment has power.
  • Verify all electrical connections to the blower are secure.
  • Consult the equipment's wiring diagram and control board for proper signaling.
• Aliran Udara berkurangan:
  • Inspect the blower wheel and housing for obstructions or excessive dirt buildup.
  • Ensure air intake and exhaust vents of the main equipment are clear.
• Bunyi atau Getaran Luar Biasa:
  • Disconnect power and inspect the blower wheel for any foreign objects.
  • Check if the blower is securely mounted and that mounting hardware is tight.
  • If the noise persists and is internal to the motor, the motor may require replacement.

For complex issues, it is recommended to contact a qualified service technician or Master-Bilt customer support.

8. Spesifikasi

9. Waranti dan Sokongan

As a genuine OEM part, the Master-Bilt 161094 Crossflow Blower is covered by Master-Bilt's standard warranty for replacement parts. Please refer to your original equipment's warranty documentation or contact Master-Bilt customer service for specific warranty terms and conditions.

For technical support, service inquiries, or to order additional genuine Master-Bilt parts, please visit the official Master-Bilt webtapak atau hubungi terus bahagian perkhidmatan pelanggan mereka.
