pengenalan
This manual provides detailed instructions for the Razer BlackShark V2 gaming headset. Designed for esports, this headset offers high-quality audio, clear microphone communication, and effective sound isolation. Please read this manual thoroughly to ensure proper setup and optimal performance of your device.
Penerangan Video: Seorang pegawai tamatview tayangan videocasing the Razer BlackShark V2 headset, highlighting its design and key features. This video provides a visual introduction to the product and its various models.
Apa yang ada dalam Kotak
Sahkan bahawa semua komponen terdapat dalam pakej anda:
- Razer BlackShark V2 Headset
- Kad Bunyi USB
- Detachable Razer HyperClear Cardioid Microphone
- Manual Pengguna
Arahan Persediaan
Follow these steps to set up your Razer BlackShark V2 headset:
- Sambungkan Mikrofon: Insert the detachable Razer HyperClear Cardioid Microphone into the port on the left earcup until it clicks into place.
- Sambung ke Peranti:
- Via USB Sound Card (Recommended for PC/Mac): Connect the headset's 3.5mm jack to the USB Sound Card, then plug the USB Sound Card into an available USB port on your computer. This enables advanced audio features via Razer Synapse.
- Via 3.5mm Jack (for Consoles/Mobile): Connect the headset's 3.5mm jack directly to the 3.5mm audio port on your PlayStation, Xbox, Nintendo Switch, or mobile device.
- Install Razer Synapse (PC/Mac): For full customization and access to features like THX Spatial Audio and advanced microphone controls, download and install Razer Synapse from the official Razer webtapak.
- Konfigurasikan Tetapan Audio: After connecting, ensure your operating system's audio output and input devices are set to the Razer BlackShark V2 or the Razer USB Sound Card.
Arahan Operasi
Audio Performance with Razer TriForce Titanium 50mm Drivers

Penerangan Imej: This image illustrates the unique design of the Razer TriForce Titanium 50mm Drivers. It shows the driver divided into three parts, each dedicated to tuning highs, mids, and lows, resulting in clearer and more powerful audio. The titanium-coated diaphragms are also visible.
The Razer BlackShark V2 features TriForce Titanium 50mm Drivers. These drivers are designed with titanium-coated diaphragms and are divided into three parts for individual tuning of high, mid, and low audio frequencies. This design ensures brighter, clearer audio with richer highs and more powerful lows, enhancing your listening experience for both gaming and multimedia.
Mikrofon Kardioid Razer HyperClear

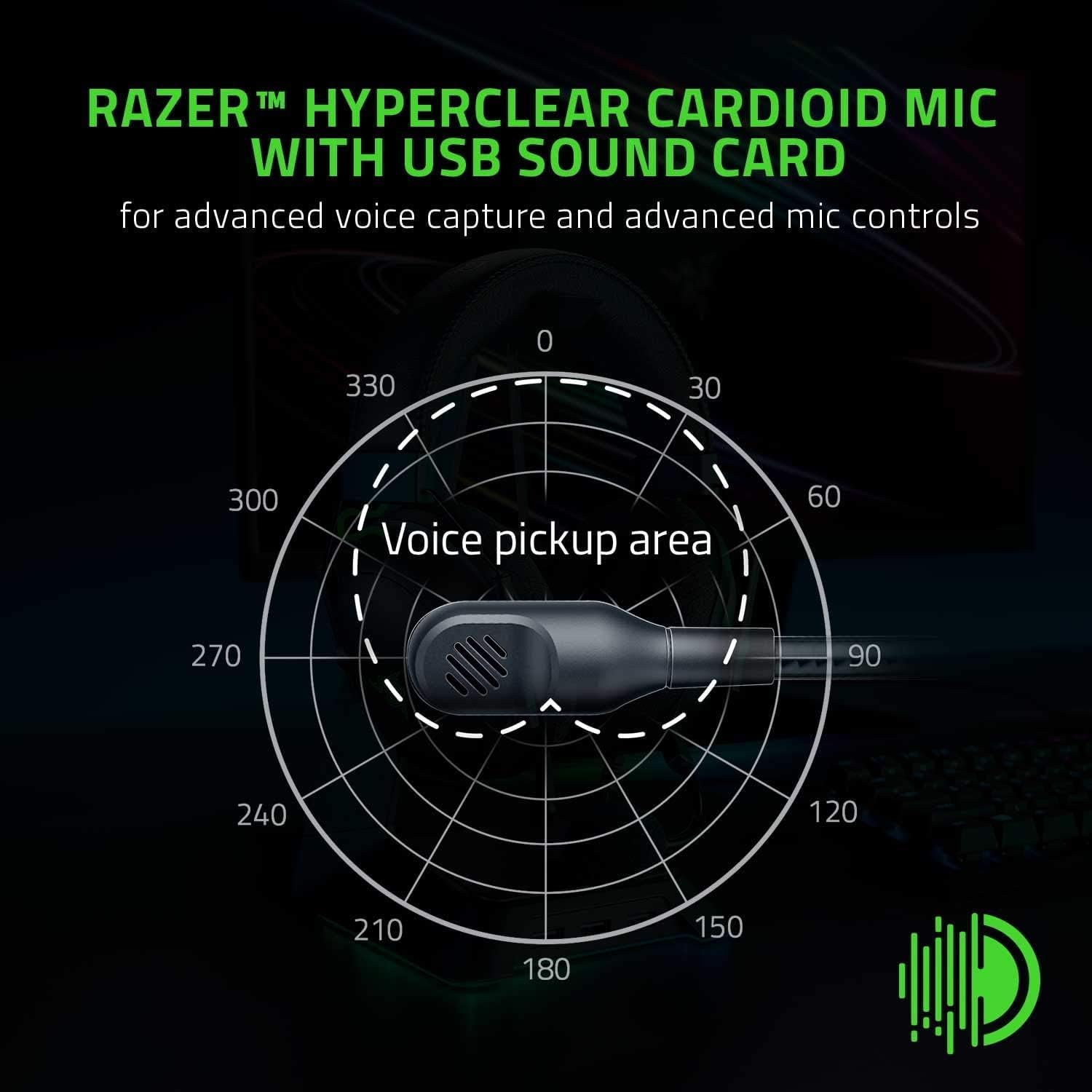

Penerangan Imej: This image displays a polar pattern diagram illustrating the focused voice pickup area of the Razer HyperClear Cardioid Microphone. The diagram highlights how the microphone is tuned to capture sound primarily from the front, minimizing background noise.
The detachable Razer HyperClear Cardioid Mic is engineered for enhanced voice capture. Its cardioid pickup pattern focuses on your voice while suppressing background noise. When connected via the USB Sound Card, you can further refine your voice output using Razer Synapse software, adjusting settings for clarity and noise reduction.
- Butang Bisukan: A dedicated mute button is located on the left earcup for quick microphone control.
- Kawalan Kelantangan: A volume wheel on the left earcup allows for easy adjustment of audio levels.
Advanced Passive Noise Cancellation

Penerangan Imej: The image shows the Razer BlackShark V2 headset positioned on a desk, emphasizing its closed-earcup design. This design, combined with plush ear cushions, creates a tight seal around the ears to provide advanced passive noise cancellation, blocking out external distractions.
The headset features advanced passive noise cancellation. Its special closed earcups fully cover your ears, and the plush cushions form a perfect seal. This design effectively blocks out external noise, allowing for uninterrupted focus during gaming or other activities.
Ultra-Soft Breathable Memory Foam Cushions

Penerangan Imej: A detailed close-up of the headset's ear cushions, highlighting the ultra-soft breathable memory foam wrapped in plush leatherette. This design is intended to reduce clamping force and minimize heat buildup for extended comfort.
For premium comfort during long sessions, the ear cushions are made from ultra-soft breathable memory foam, wrapped in plush leatherette. The improved density of the foam reduces clamping force, while the breathable fabric minimizes sweat and heat buildup, ensuring comfort over extended periods of use.
Audio Spatial THX

Penerangan Imej: The Razer BlackShark V2 headset is shown with the THX logo prominently displayed, signifying its THX Spatial Audio feature. This technology provides pinpoint positional accuracy in audio, enhancing immersion and competitive advantage in gaming.
When used with the USB Sound Card and Razer Synapse, the Razer BlackShark V2 supports THX Spatial Audio. This feature provides pinpoint positional accuracy, optimizing game sound design for true-to-life acoustics. This allows you to better identify the direction of sounds, gaining a competitive edge in games.
Penyelenggaraan
Untuk memastikan ketahanan dan prestasi optimum alat dengar anda, ikuti garis panduan penyelenggaraan ini:
- Pembersihan: Gunakan kain lembut dan kering untuk mengelap penutup telinga dan ikat kepala. Untuk pembersihan yang lebih mendalam, sedikitamp cloth with mild soap can be used, but ensure no moisture enters the speaker grilles or microphone.
- Penjagaan Mikrofon: When not in use, you can detach the microphone to prevent damage. Store it in a safe place.
- Storan: Simpan alat dengar di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau. Elakkan meletakkan objek berat di atas alat dengar.
- Pengurusan Kabel: Elakkan selekoh tajam atau tarikan kabel yang berlebihan untuk mengelakkan kerosakan dalaman.
Menyelesaikan masalah
If you encounter issues with your Razer BlackShark V2 headset, refer to the following common solutions:
- Tiada Audio/Kelantangan Rendah:
- Check the volume wheel on the left earcup and ensure it is turned up.
- Verify that the headset is correctly plugged into your device or USB Sound Card.
- Confirm that the correct audio output device is selected in your operating system's sound settings.
- If using the USB Sound Card, ensure Razer Synapse is installed and updated, and check its audio settings.
- Mikrofon Tidak Berfungsi:
- Ensure the microphone is securely inserted into the headset's port.
- Check if the microphone mute button on the left earcup is disengaged (not muted).
- Verify that the correct microphone input device is selected in your operating system's sound settings and any communication software (e.g., Discord, Zoom).
- If using the USB Sound Card, check microphone settings within Razer Synapse.
- Ensure the microphone is oriented correctly towards your mouth, as it has a focused pickup area.
- Gangguan/Herotan Audio:
- Try connecting the headset to a different USB port or 3.5mm jack.
- Update your audio drivers and Razer Synapse software.
- Test the headset on another device to determine if the issue is with the headset or the source device.
- Ketidakselesaan Semasa Penggunaan:
- Adjust the headband for a comfortable fit. The earcups are designed to slide to accommodate different head sizes.
- Ensure the ear cushions are properly seated around your ears.
Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | Razer |
| Nama Model | BlackShark V2 |
| Nombor Model | RZ04-03230100-R3M1 |
| warna | Hitam |
| Penempatan Telinga | Atas Telinga |
| Teknologi Ketersambungan | Wired (3.5 mm Jack, USB via Sound Card) |
| Jenis Pemacu Audio | Dynamic Driver (Razer TriForce Titanium) |
| Saiz Pemacu Audio | 50 Milimeter |
| Respons Kekerapan | 12Hz - 28KHz |
| Impedans | 32 ohm |
| Sensitiviti | 98 dB |
| Kawalan Bunyi | Pengasingan Bunyi (Pembatalan Bunyi Pasif) |
| Jenis Mikrofon | Razer HyperClear Cardioid (Detachable) |
| Peranti Serasi | PC, Mac, PS4, Xbox One, Nintendo Switch, Mobile Devices |
| Berat Barang | 1.32 Paun (lebih kurang 599g) |
| bahan | Faux Leather (ear cushions) |
Waranti dan Sokongan
Razer products come with a limited manufacturer's warranty. For detailed warranty information, product registration, and technical support, please visit the official Razer support webtapak:
Simpan bukti pembelian anda untuk tuntutan waranti.
