Okin Deltadrive Series Motor Instruction Manual

1. Pengenalan

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Okin Model 1.28.000.110.30 Deltadrive Series Motor. This motor is designed as a replacement actuator for electric recliner lift chairs.

Nota Keserasian Penting: It is crucial to verify that the motor SKU "1.28.000.110.30" on the product label and the shapes of the cable connectors/motor end are identical to your existing unit. This motor is not universally compatible and cannot replace other models.

2. Produk Lebihview

The Okin Deltadrive Series Motor 1.28.000.110.30 is a low-voltage DC motor (24V) designed for quiet and safe operation in electric recliners. It features specific stroke and installation dimensions critical for proper function.

Figure 2.1: Okin Deltadrive Series Motor 1.28.000.110.30, showing the main unit and included pins.

2.1 Identifying Your Motor

Before installation, confirm the model number on the motor's label. The correct model number is 1.28.000.110.30.

Rajah 2.2: Jarak dekat view of the motor label, highlighting the model number 1.28.000.110.30 and serial number S19060860 00029.

3. Spesifikasi Teknikal

Figure 3.1: Motor dimensions, illustrating the stroke and minimum installation size.

4. Arahan Pemasangan

Replacing your existing actuator requires careful attention to detail. Ensure the chair is unplugged from the power source before beginning installation.

1. Penyediaan: Unplug the recliner from the wall outlet. Carefully flip the chair over or position it to access the existing motor and its connections.
2. Putuskan Motor Lama: Disconnect the 2-pin flat round power transformer connection and the 5-pin hand control plug connection from the old motor. Note their orientation.
3. Keluarkan Motor Lama: The old actuator is typically held in place by pins and locking springs at each end. Carefully remove these pins to detach the old motor.
4. Pasang Motor Baru: Position the new Okin Deltadrive motor in the same location as the old one. Secure it using the pins and locking springs. Ensure the motor is properly aligned.
5. Sambungkan Kabel: Connect the 2-pin flat round power transformer cable and the 5-pin hand control plug to the corresponding ports on the new motor. Ensure connections are secure.
6. Pengurusan Kabel: Use zip-ties or other appropriate fasteners to secure loose cables, preventing them from interfering with moving parts or becoming damaged.
7. Panjang Kord Kuasa: Be aware that the power cord may be short (approximately 1-2 inches long). An extension may be required depending on your setup.

Figure 4.1: Motor connections, illustrating the 2-pin power and 5-pin hand control plugs.

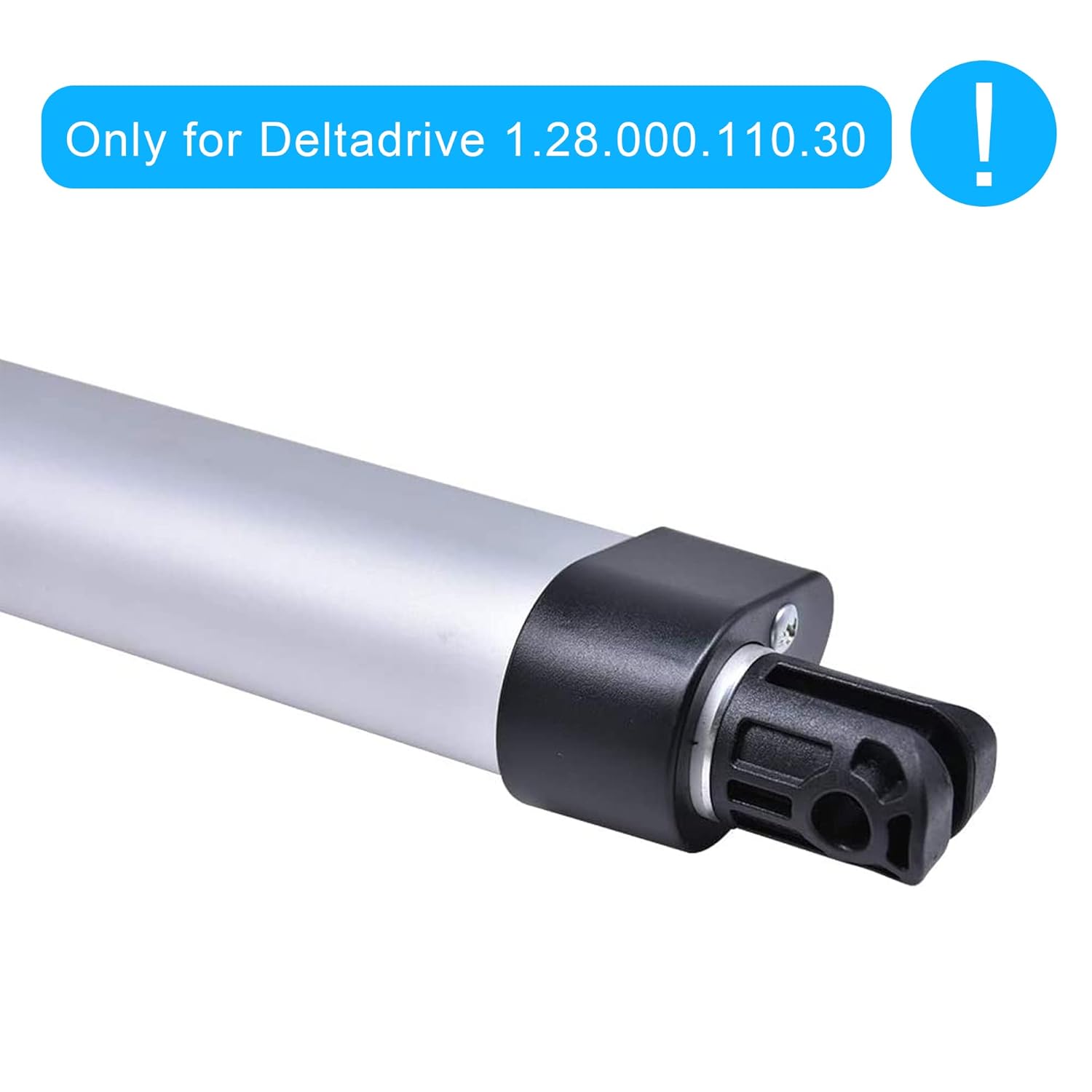

Figure 4.2: Detail of the motor's end connection point, where it attaches to the recliner mechanism.

5. Operasi

Once installed, plug the recliner back into a power outlet. Use your recliner's hand control to operate the motor. The motor is designed for quiet and smooth operation.

• Berbaring: Press and hold the appropriate button on your hand control to extend the footrest and recline the chair.
• Returning Upright: Press and hold the appropriate button to retract the footrest and return the chair to the upright position.
• Kitaran Tugas: The motor has an operation frequency of "On 1 min / Off 8 min". This means it can operate continuously for up to 1 minute, followed by a mandatory 8-minute rest period to prevent overheating and ensure longevity. Adhering to this duty cycle is essential.

6. Penyelenggaraan

Regular maintenance helps ensure the longevity and optimal performance of your Okin Deltadrive motor.

• Pembersihan: Keep the motor and surrounding areas free from dust and debris. Use a dry cloth for cleaning. Do not use liquid cleaners directly on the motor.
• Semakan Sambungan: Periodically inspect all cable connections (power and hand control) to ensure they are secure and free from damage.
• Bahagian bergerak: Ensure that no foreign objects obstruct the movement of the motor or the recliner mechanism.
• Pelinciran: Motor ini secara amnya bebas penyelenggaraan dari segi pelinciran dalaman. Jangan cuba melincirkan komponen dalaman melainkan diarahkan secara khusus oleh sokongan Okin.

7. Penyelesaian masalah

If you encounter issues with your Okin Deltadrive motor, refer to the following common problems and solutions:

8. Waranti dan Sokongan

For warranty information or technical support, please contact Okin customer service. Keep your purchase receipt and the motor's serial number (found on the label) readily available when contacting support.

Visit the official Okin Store for more information: Kedai Okin di Amazon
