tectake 401702 CD Cabinet Instruction Manual

1. Pengenalan

This manual provides essential instructions for the assembly, operation, and maintenance of your tectake 401702 CD Cabinet. Please read this manual thoroughly before assembly and use to ensure safe and correct handling of the product. Keep this manual for future reference.

2. Amaran Keselamatan

AMARAN: Please do not exceed the weight limit and ensure correct installation to prevent accidents.

• Sentiasa ikut arahan pemasangan dengan teliti.
• Pastikan semua pengikat diketatkan dengan kukuh sebelum digunakan.
• Do not overload the shelves. The maximum weight capacity per shelf is approximately 3 kg (6.6 lbs). The total maximum weight capacity is approximately 81 kg (178.6 lbs).
• Letakkan kabinet di atas permukaan yang rata dan stabil untuk mengelakkannya daripada terbalik.
• Jauhkan bahagian kecil daripada kanak-kanak semasa pemasangan.
• Produk ini direka untuk kegunaan dalaman sahaja.

3. Kandungan Pakej

Sebelum memulakan pemasangan, sahkan bahawa semua bahagian yang disenaraikan di bawah ada dan tidak rosak.

• 1 x CD Cabinet (unassembled)
• Perkakasan pemasangan (skru, dowel, dll.)
• Arahan pemasangan

Note: Decorative materials shown in product images are not included.

4. Persediaan & Pemasangan

The tectake 401702 CD Cabinet is designed for quick and easy assembly. Follow these steps for proper installation.

4.1 Alat Diperlukan

• Pemutar skru (kepala Phillips disyorkan)
• Tukul (pilihan, untuk dowel)

4.2 Langkah Perhimpunan

1. Buka Pembungkusan Komponen: Keluarkan semua bahagian dari bungkusan dengan berhati-hati dan letakkannya di atas permukaan yang bersih dan lembut untuk mengelakkan calar.
2. Kenal pasti Bahagian: Refer to the included assembly diagram to identify each panel and hardware piece.
3. Pangkalan Berhimpun: Attach the side panels to the base plate using the provided screws and dowels. Ensure a stable connection.
4. Pasang Rak: Insert the intermediate shelves into the designated slots or attach them with hardware as per the diagram. The cabinet features 27 compartments.
5. Lampirkan Panel Belakang: Secure the back panel to the assembled frame. This adds stability to the structure.
6. Lampirkan Panel Atas: Secure the top panel to complete the main structure.
7. Pemasangan Dinding (Pilihan tetapi Disyorkan): For added stability and safety, especially in households with children or pets, it is highly recommended to secure the cabinet to a wall using appropriate wall anchors (not always included, check package contents).
8. Semakan Akhir: Pastikan semua skru diketatkan dan kabinet stabil.

Image 1: Product information diagram showing dimensions and technical details. This image illustrates the overall dimensions (180 cm H x 102 cm W x 23.5 cm D) and material thicknesses, including the base plate (1.8 cm), top plate (1.5 cm), side and intermediate plates (1.5 cm), and back wall (0.3 cm). It also highlights the internal compartment dimensions.

Image 2: An assembled tectake CD cabinet in a living room, demonstrating its capacity for CDs and other media. The cabinet is shown against a light wall, next to a brown sofa and a plant, illustrating its integration into a home environment.

5. Arahan Operasi

This section details how to effectively use your tectake 401702 CD Cabinet for storage.

5.1 Storing CDs and Media

• The cabinet features 27 compartments designed to hold CDs, DVDs, Blu-rays, or small books. It can store up to 1080 CDs.
• Organize your media by genre, artist, or any preferred method for easy access.
• Distribute the weight evenly across the shelves to maintain stability. Avoid concentrating heavy items on a single shelf or side.

Imej 3: Gambar jarak dekat view of one of the shelves within the tectake CD cabinet, showcasing its capacity to hold multiple CDs. The image highlights the neat organization possible within the compartments.

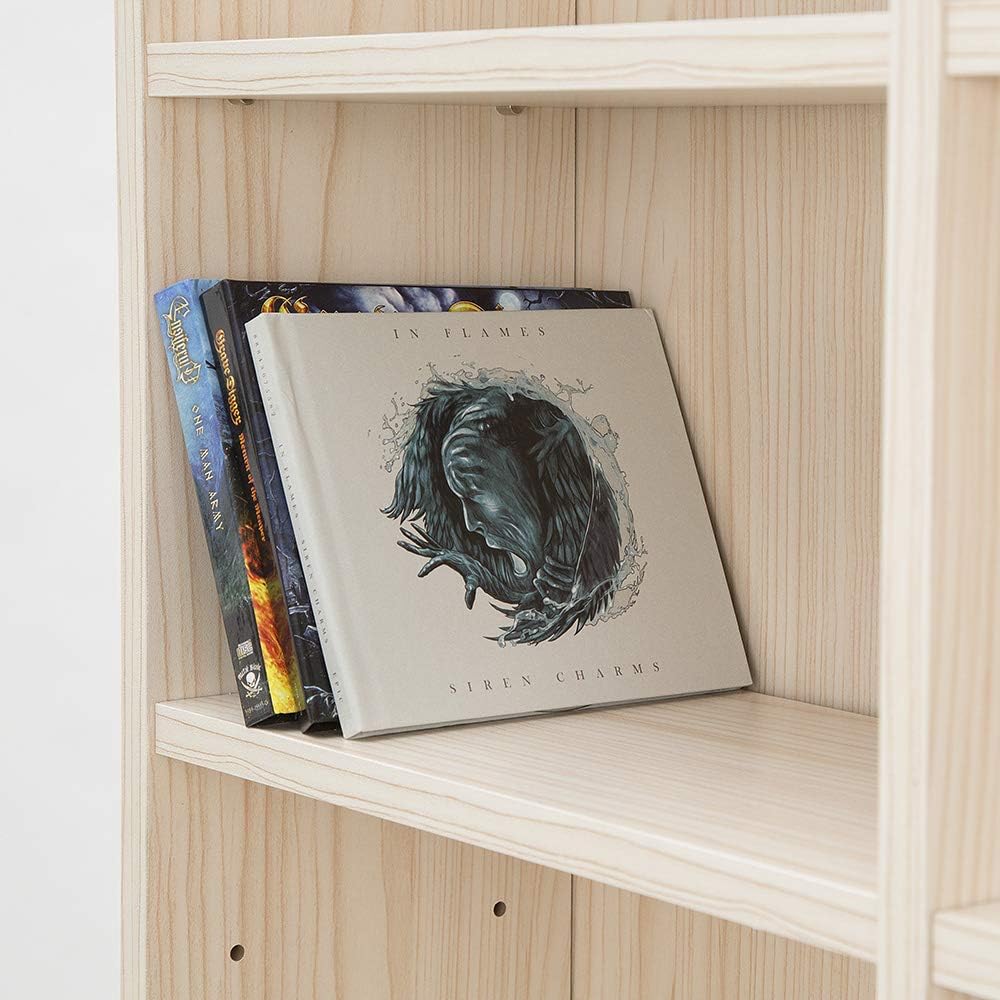

Imej 4: Perincian view of a shelf in the tectake CD cabinet, displaying a combination of CDs and a book. This illustrates the versatility of the compartments for various media types.

6. Penyelenggaraan

Proper maintenance will extend the life and appearance of your CD cabinet.

• Pembersihan: Lap permukaan dengan lembut, damp cloth. Avoid abrasive cleaners or harsh chemicals, as they may damage the MDF/veneer finish.
• Pemeriksaan: Periksa semua skru dan pengikat secara berkala untuk memastikan ia kekal ketat. Ketatkan semula jika perlu.
• penempatan: Avoid placing the cabinet in direct sunlight or near heat sources, which can cause material degradation or discoloration.

7. Penyelesaian masalah

Bahagian ini menangani isu biasa yang mungkin anda hadapi.

Issue: Cabinet feels wobbly after assembly.

Penyelesaian: Ensure all screws are fully tightened. Verify that the cabinet is placed on a level surface. If necessary, use shims under the base to stabilize it. Consider wall mounting for enhanced stability.

Issue: Difficulty fitting the top section onto the bottom section during assembly.

Penyelesaian: As noted by some users, aligning the upper and lower parts can be challenging. It may be easier to assemble the unit vertically rather than horizontally, or to have a second person assist in aligning the parts. Ensure all connecting dowels and holes are perfectly aligned before applying pressure.

Issue: Missing parts or damaged components.

Penyelesaian: Contact tectake customer support with your purchase details and a description of the missing or damaged parts. Refer to the "Support & Warranty" section for contact information.

8. Spesifikasi

9. Sokongan & Waranti

For technical assistance, missing parts, or warranty inquiries, please contact tectake customer service.

• Pengeluar: tectake
• Penjual: tectake nederland (as per product information)
• Maklumat Waranti: Specific warranty details may vary by region and retailer. Please refer to your purchase documentation or contact the seller directly for warranty terms.
• Alat Ganti: Maklumat mengenai ketersediaan alat ganti tidak tersedia pada masa ini. Sila hubungi khidmat pelanggan untuk mendapatkan bantuan.

You can often find contact information on the official tectake webtapak atau melalui peruncit tempat anda membeli produk tersebut.
