VOUNOT Small Wooden Chicken House Instruction Manual

1. Pengenalan

Terima kasih kerana membeliasing the VOUNOT Small Wooden Chicken House. This manual provides essential information for the safe assembly, operation, and maintenance of your new poultry habitat. Please read these instructions thoroughly before beginning assembly or use to ensure proper function and longevity of the product.

Amaran Keselamatan:

• Perhimpunan dewasa diperlukan.
• Always check for damaged parts before assembly. Do not use if any parts are broken or missing.
• Ensure all screws and fasteners are securely tightened during assembly.
• Place the chicken house on a level, stable surface.
• Regularly inspect the coop for wear and tear, especially the roof and wooden components.

2. Kandungan Pakej

Please verify all components are present and undamaged before beginning assembly. Refer to the parts list and hardware pack provided in your product packaging. If any parts are missing or damaged, contact customer support immediately.

Rajah 2.1: Meletup view of the VOUNOT Small Wooden Chicken House, highlighting key components such as the bitumen and removable roof, wire rack, two-zone nest box, discharge drawer, access ramp, and door with latch. Use this diagram to identify all parts.

3. Arahan Persediaan dan Pemasangan

Follow these steps carefully to assemble your chicken house. It is recommended to have at least two adults for assembly.

1. Buka bungkusan dan Susun: Carefully remove all components from the packaging. Lay out all parts on a clean, flat surface and compare them against the provided parts list to ensure everything is present.
2. Assemble the Main Coop Structure: Begin by connecting the side panels to the front and back panels of the main coop section using the provided screws. Ensure all connections are snug but do not overtighten initially.
3. Install the Floor and Perches: Insert the floor panel into the main coop. Secure the perches inside the coop as indicated in the assembly diagrams.
4. Attach the Nest Box: Secure the nest box to the side of the main coop. Ensure the two nest box zones are properly separated.
5. Construct the Run: Assemble the wire run panels. Connect the run to the main coop, ensuring a secure and seamless transition for the animals.
6. Pasang Bumbung: Place the bitumen roof sections onto the main coop and nest box. Secure them according to the instructions. The roof is designed to be waterproof and provide insulation.
7. Attach Doors and Ramp: Install the main access door with its latch, and the access ramp leading from the coop to the run. Ensure the ramp is stable and the door opens and closes smoothly.
8. Masukkan Dulang Boleh Tanggal: Slide the removable discharge tray into its designated slot beneath the main coop floor.
9. Semakan Akhir: Once assembled, double-check all screws and connections to ensure they are tight and secure. Verify that all doors and latches function correctly.

Rajah 3.1: The fully assembled VOUNOT Small Wooden Chicken House, demonstrating its complete structure with the main coop, nest box, and integrated run.

4. Arahan Operasi

The VOUNOT Small Wooden Chicken House is designed to provide a comfortable and secure habitat for small poultry and other small animals.

• kapasiti: This chicken house can comfortably accommodate 2-3 small to medium-sized chickens. It is also suitable for other small animals such as quail, rabbits, or guinea pigs.
• Akses Ramp: The integrated access ramp allows animals to move freely between the main coop and the outdoor run. Ensure the ramp is always in place when animals are using the run.
• Main Door with Latch: Use the main door with its secure latch to access the interior of the coop for feeding, watering, or animal handling. Always ensure the latch is properly secured to prevent escape or predator entry.
• Nest Boxes: The coop features two nest box zones, accessible from the outside. This design allows for easy egg collection without disturbing the animals inside the main coop.
• Pengudaraan: The design includes appropriate ventilation to ensure fresh air circulation within the coop.

Rajah 4.1: Dalaman view of the VOUNOT Small Wooden Chicken House, showing the two nest box zones and two perches inside the main coop area, designed for animal comfort.

Rajah 4.2: jarak dekat view of the main door with a secure latch and the access ramp leading into the VOUNOT Small Wooden Chicken House, facilitating easy entry and exit for animals.

5. Penyelenggaraan

Regular maintenance will extend the life of your chicken house and ensure a healthy environment for your animals.

• Pembersihan Harian: Remove droppings and soiled bedding daily from the coop and run areas.
• Dulang boleh tanggal: The chicken house is equipped with a removable tray for easy cleaning. Slide out the tray, empty its contents, clean with a mild disinfectant, rinse, and dry thoroughly before reinserting.
• Pembersihan Dalam: Perform a thorough cleaning of the entire coop and run at least once a month. This includes scrubbing surfaces, disinfecting, and replacing all bedding.
• Penjagaan Kayu: The wooden components should be inspected regularly for signs of weathering or damage. Consider applying a non-toxic, animal-safe wood sealant annually to protect the wood from moisture and prolong its lifespan.
• Roof Inspection: Periodically check the asphalt roof for any damage, tears, or leaks. Repair any issues promptly to maintain its waterproof and insulating properties.

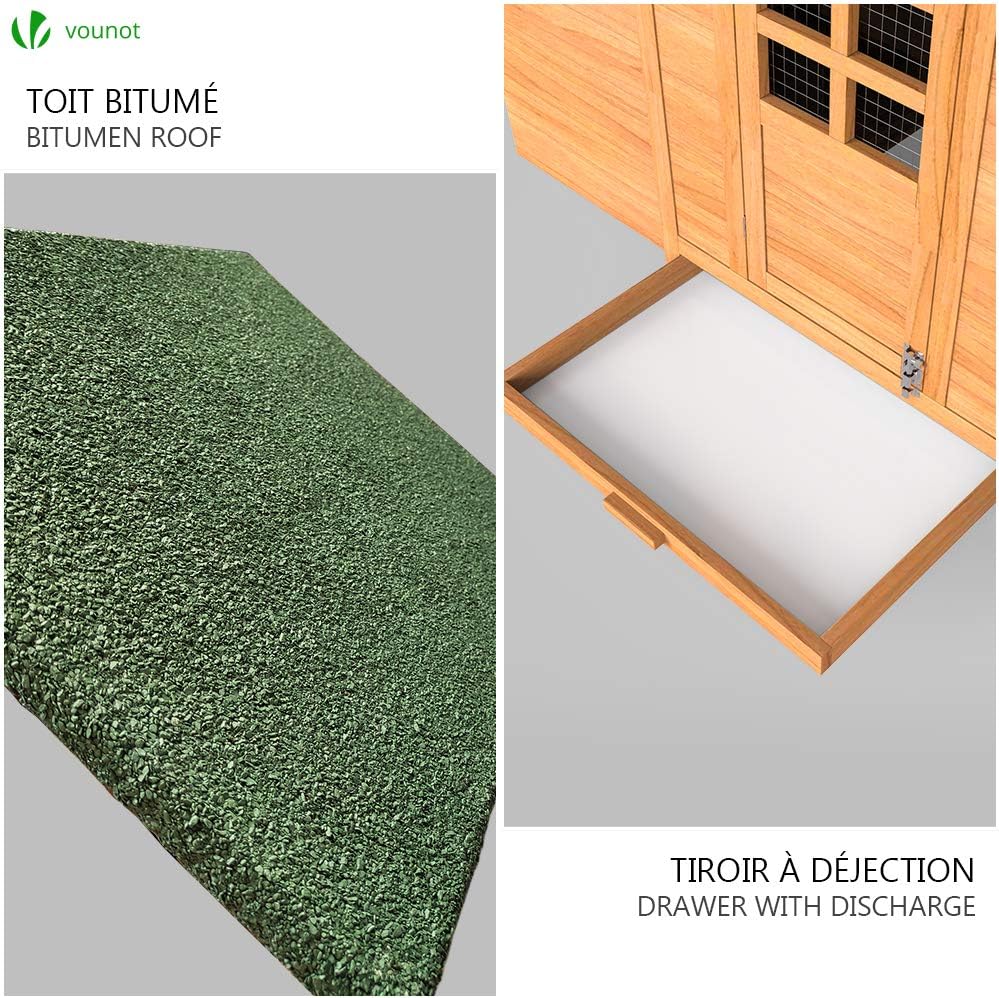

Rajah 5.1: jarak dekat view of the durable bitumen roof material and the convenient removable discharge drawer of the VOUNOT Small Wooden Chicken House, designed for easy cleaning and weather protection.

6. Penyelesaian masalah

This section addresses common issues you might encounter with your chicken house.

• Struktur goyah: If the chicken house feels unstable, re-check all screw connections. Ensure they are tightened securely. Verify that the coop is placed on a completely level surface.
• Pintu Tidak Tertutup dengan Baik: Check for any obstructions in the door frame or hinges. Ensure the latch mechanism is aligned correctly. Adjust screws if necessary.
• Kebocoran air: Inspect the roof for any cracks, tears, or gaps in the bitumen material. Ensure all roof sections are properly overlapped and sealed. Check for gaps around windows or doors.
• Pest Entry: Regularly inspect the wire mesh of the run for any holes or damage. Ensure all doors and access points are securely latched, especially at night.

7. Spesifikasi

Rajah 7.1: Diagram illustrating the dimensions of the VOUNOT Small Wooden Chicken House, including total length (190cm), width (55cm), height (100cm), and run dimensions (97cm length, 69cm height).

8. Waranti dan Sokongan

VOUNOT products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your purchase or contact VOUNOT customer support directly. If you have any questions regarding assembly, operation, or maintenance, please reach out to our support team for assistance.
