APS Aluminum Drop Steps Running Boards

1. Produk Lebihview

These APS Aluminum Drop Steps Running Boards are designed to provide a convenient and secure step for accessing your vehicle. Constructed from durable aluminum with a matte black powder-coated finish, they offer both functionality and an enhanced aesthetic.

Keserasian: Produk ini direka khusus untuk Toyota Tacoma Double Cab/Crew Cab models from 2005 to 2023. It is not compatible with Regular Cab or Access Cab configurations.

Image: Compatibility diagram showing the running boards fit only Double Cab (4 full-size doors) Toyota Tacoma models.

2. Kandungan Pakej

Sila sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:

• Set of Running Boards (2 units)
• Kurung Pemasangan
• Perkakasan Pemasangan
• Manual Arahan (dokumen ini)

3. Persediaan dan Pemasangan

Installation of these running boards is designed to be straightforward with no drilling required for most applications. All necessary mounting hardware is included.

1. Penyediaan: Park your vehicle on a level surface and engage the parking brake. It is recommended to have a second person assist with the installation to ensure proper alignment and safety.
2. Pembersihan Benang: Before attaching the brackets, it is highly recommended to clean out the factory threaded holes on your truck's frame. An M8x1.25 tap can be used to clear any debris or rust, which will significantly ease the installation of bolts.
3. Pemasangan Kurungan: Attach the mounting brackets to the designated points on your vehicle's frame using the provided hardware. Do not fully tighten bolts at this stage.
4. Running Board Attachment: Carefully position the running boards onto the installed brackets. Secure them with the remaining hardware, ensuring proper alignment and spacing.
5. Pengetatan Akhir: Once both running boards are correctly aligned, progressively tighten all bolts to the manufacturer's specifications. Double-check all connections for security.

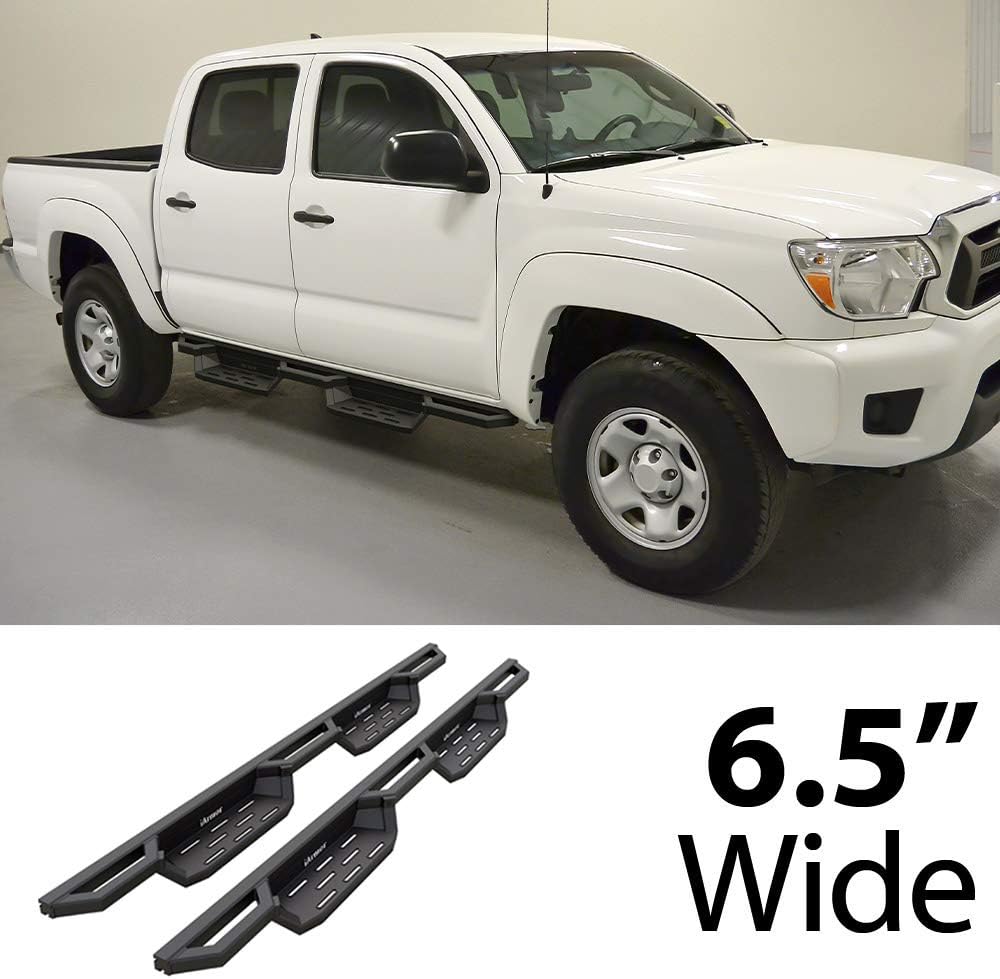

Image: Installed running boards on a white Toyota Tacoma, demonstrating the final appearance.

Image: Robotic welding in the manufacturing process, highlighting precision and quality construction.

4. Arahan Operasi

These running boards are designed for daily use, providing a stable and secure step into and out of your vehicle. Each running board has a maximum weight capacity of 500 paun (226 kg). Ensure that the weight limit is not exceeded to maintain safety and product integrity.

• Always step onto the running board with caution, especially in wet or icy conditions.
• Ensure your footwear has adequate grip on the non-skid step surface.
• Avoid jumping onto the running boards or using them for purposes other than stepping into the vehicle.

Image: A child demonstrating the ease of access provided by the running board.

5. Penyelenggaraan

Regular maintenance will help prolong the life and appearance of your running boards.

• Pembersihan: Wash the running boards regularly with mild soap and water to remove dirt, road salt, and other contaminants. Avoid abrasive cleaners or harsh chemicals that could damage the powder-coated finish.
• Pemeriksaan: Periodically inspect all mounting hardware for tightness. Re-tighten any loose bolts to prevent rattling or instability. Check the running board surface for any signs of wear, damage, or corrosion.
• Selesaikan Penjagaan: While the product features an anti-corrosion primer and powder coating, prolonged exposure to harsh environmental conditions (e.g., road salt, extreme UV) can affect the finish over time. Address any chips or scratches promptly to prevent moisture ingress and potential corrosion.

Image: Diagram showing the protective layers: Aluminum base, Pre-treatment, Anti-corrosion primer, and Powder Coating.

6. Penyelesaian masalah

If you encounter any issues with your running boards, consider the following:

• Loose or Rattling Boards: Check all mounting bolts and ensure they are securely tightened. Over time, vibrations can cause bolts to loosen.
• Paint Flaking or Corrosion: While designed for durability, environmental factors can impact the finish. Ensure regular cleaning and inspection, especially in areas exposed to road salt or harsh weather. Minor chips can be touched up to prevent further damage.
• Kesukaran dengan Pemasangan: Re-verify vehicle compatibility. Ensure all factory threads are clean and free of obstruction. A second person can greatly assist with alignment during installation.

7. Spesifikasi

Imej: Terperinci view of the running board highlighting key features and approximate dimensions.

8. Maklumat Waranti

Produk ini disertakan dengan a Waranti 5 Tahun Terhad against manufacturing defects. This warranty covers defects in materials and workmanship under normal use and service. It does not cover damage resulting from improper installation, accidents, misuse, abuse, neglect, normal wear and tear, or unauthorized modifications.

Sila simpan bukti pembelian anda untuk tuntutan waranti.

9. Sokongan Pelanggan

For technical assistance, warranty claims, or any questions regarding your APS Aluminum Drop Steps Running Boards, please contact the manufacturer or your point of purchase. Have your model number (IA-TIIT058B) and proof of purchase ready when contacting support.
