Manual Pengguna Pembersih Vakum dan Mop Robot ZACO V5x

1. Pengenalan

Thank you for choosing the ZACO V5x Robot Vacuum Cleaner and Mop. This intelligent 2-in-1 cleaning robot is designed to simplify your daily cleaning tasks, providing efficient vacuuming and mopping for hard floors and tiles. Please read this manual thoroughly before using the device to ensure proper operation, maintenance, and to maximize its lifespan.

The ZACO V5x features automatic charging, app control (ZACO Home), voice control compatibility with Alexa and Google Assistant, and multiple cleaning modes. Its slim design allows it to clean under furniture, and its infrared sensors help navigate around obstacles.

2. Produk Lebihview

2.1 Kandungan Pakej

Pastikan semua barang ada dan dalam keadaan baik:

• ZACO V5x Robot Vacuum Cleaner
• Dok Pengecasan
• Penyesuai Kuasa
• Alat Kawalan Jauh (termasuk bateri)
• Dustbin (300ml, pre-installed)
• Tangki Air (300ml)
• Microfiber Mop Cloths (2)
• Berus Sisi (2 pasang)
• Penapis Kecekapan Tinggi
• Alat Pembersihan
• Manual Pengguna

Image: The ZACO V5x robot vacuum cleaner with all its included accessories laid out, such as the charging station, remote control, water tank, mop cloths, and cleaning tools.

2.2 Komponen Robot

Familiarize yourself with the main parts of your ZACO V5x:

• Panel Atas: Features the "CLEAN" button, Wi-Fi indicator, and dustbin release.
• Bampar Hadapan: Equipped with anti-collision sensors.
• Berus Sisi: Two rotating brushes for sweeping debris into the suction path.
• Main Wheel: Drives the robot.
• Mengecas Kenalan: Located on the bottom, for docking with the charging station.
• Dustbin/Water Tank: Interchangeable modules for vacuuming or mopping.
• Penderia Inframerah: Detect obstacles and stairs.

Imej: A terperinci view of the ZACO V5x robot vacuum cleaner from above, showcasing its sleek design, along with its remote control, water tank, and a smartphone displaying the ZACO Home app interface.

3. Persediaan

3.1 Penempatan Dok Pengecasan

Place the charging dock against a wall in an open, uncluttered area. Ensure there is at least 1 meter (3 feet) of clear space on both sides and 2 meters (6 feet) in front of the dock for optimal navigation and docking.

• Sambungkan penyesuai kuasa ke dok pengecasan dan pasangkannya ke salur keluar dinding.
• Ensure the power indicator on the dock is lit.

Image: The ZACO V5x robot vacuum cleaner is shown automatically docking with its charging station, highlighting its self-charging capability.

3.2 Caj Permulaan

Before first use, fully charge the robot. You can place the robot directly on the charging dock, ensuring the charging contacts align. The indicator lights on the robot will show charging status.

• Pengecasan penuh mengambil masa kira-kira 4-5 jam.
• Once fully charged, the indicator lights will turn solid.

Image: The ZACO V5x robot vacuum cleaner is shown charging at its dock, with an overlay indicating its 120-minute operating time and power specifications (22W, 2400mAh).

3.3 Memasang Berus Sisi

Attach the side brushes by pressing them onto the square posts on the bottom of the robot until they click into place. Ensure the L and R markings on the brushes match the corresponding markings on the robot.

3.4 Sambungan Aplikasi (Pilihan tetapi Disyorkan)

Download the "ZACO Home" app from your smartphone's app store. Follow the in-app instructions to connect your ZACO V5x to your home Wi-Fi network. This enables advanced features like scheduling, cleaning mode selection, and remote control.

Image: A smartphone screen showing the ZACO Home app's scheduling interface, with icons for Alexa and Google Assistant, indicating smart home compatibility.

4. Arahan Operasi

4.1 Memulakan Kitaran Pembersihan

Anda boleh memulakan kitaran pembersihan dengan beberapa cara:

• Pada Robot: Press the "CLEAN" button on the top of the robot.
• Kawalan Jauh: Press the "CLEAN" button on the remote control.
• ZACO Home App: Use the app to initiate cleaning.

The robot will automatically return to its charging dock when the battery is low or when the cleaning cycle is complete.

4.2 Mod Pembersihan

The ZACO V5x offers four unique cleaning modes:

• Pembersihan Auto: The robot cleans automatically, adjusting its path based on the environment.
• Pembersihan Tempat: Fokus pada kawasan kotor tertentu, pembersihan dalam corak lingkaran.
• Pembersihan Tepi: Membersihkan sepanjang dinding dan tepi perabot.
• Pembersihan Berjadual: Set a specific time for the robot to start cleaning daily via the app or remote.

Image: A visual representation demonstrating the ZACO V5x's dual functionality, transitioning from vacuuming (Saugfunktion) to mopping (Wischfunktion) by swapping modules.

4.3 Fungsi Mop

Untuk menggunakan fungsi mengemop:

1. Remove the dustbin and install the water tank.
2. Fill the water tank with clean water. Do not use cleaning solutions that may clog the nozzles.
3. Attach a clean microfiber mop cloth to the water tank.
4. Start a cleaning cycle. The robot will automatically switch to mopping mode.

The ZACO V5x has three levels of water flow for mopping. Adjust this setting via the ZACO Home app.

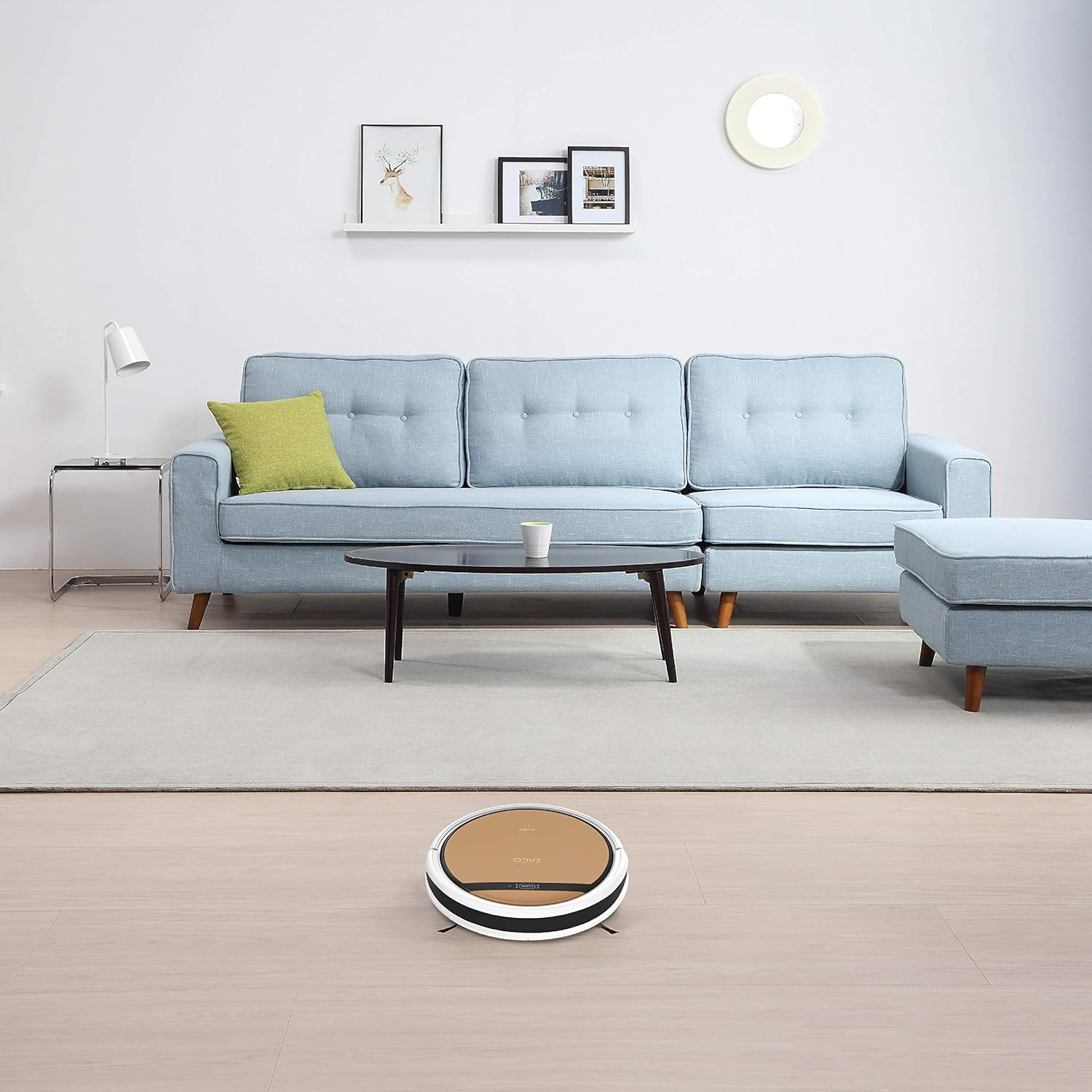

Image: The ZACO V5x robot vacuum cleaner is shown actively cleaning a light-colored hard floor in a modern living room setting, demonstrating its ability to navigate open spaces.

5. Penyelenggaraan

Regular maintenance ensures optimal performance and extends the life of your ZACO V5x.

5.1 Mengosongkan Tong Sampah

Empty the dustbin after each cleaning cycle or when full. Press the "PUSH" button on the top panel to release the dustbin.

Image: A person is shown easily removing and emptying the dustbin from the ZACO V5x robot vacuum cleaner into a waste bin, illustrating simple maintenance.

5.2 Membersihkan Penapis

Tap off excess dirt from the high-efficiency filter after each use. Replace the filter every 1-3 months, depending on usage.

5.3 Membersihkan Berus Sisi

Check and clean the side brushes regularly. Remove any tangled hair or debris. Replace brushes if they are worn or damaged (typically every 3-6 months).

5.4 Cleaning the Water Tank and Mop Cloth

After mopping, empty any remaining water from the tank and rinse it thoroughly. Wash the microfiber mop cloth by hand or machine and let it air dry.

5.5 Membersihkan Penderia dan Mengecas Kenalan

Wipe the infrared sensors and charging contacts on both the robot and the charging dock with a clean, dry cloth periodically to ensure proper function.

6. Penyelesaian masalah

7. Spesifikasi

8. Waranti dan Sokongan

The ZACO V5x comes with a standard manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and duration. Spare parts availability is stated as 2 years.

For technical support, troubleshooting assistance, or warranty claims, please contact ZACO customer service through their official webtapak atau maklumat hubungan yang diberikan dalam pembungkusan produk anda.

Sumber Dalam Talian:

• Official ZACO Webtapak: www.zaco.eu (Cthamppautan le, pautan sebenar mungkin berbeza-beza)
• ZACO Home App Support: Check your app store for updates and support sections.
