iFlight SucceX-D F7 TwinG Flight Controller User Manual

1. Pengenalan

The iFlight SucceX-D F7 TwinG is an advanced F7 flight controller designed for high-performance FPV drones. It features a dual ICM20689 gyroscope system for enhanced stability and precision, a built-in OSD (On-Screen Display), BEC (Battery Eliminator Circuit), and current sensor. This flight controller is optimized for seamless integration with the DJI FPV Air Unit (HD Version), offering a plug-and-play solution for digital FPV systems.

iFlight SucceX-D F7 TwinG Flight Controller V2.1 with key features highlighted

Figure 1: iFlight SucceX-D F7 TwinG V2.1 Flight Controller highlighting F722 Gyro Fusion, Type-C USB, Plug & Play for DJI, 5V 9V BEC, and 30.5x30.5mm mounting.

2. Spesifikasi

Below are the technical specifications for the iFlight SucceX-D F7 TwinG Flight Controller:

Pemproses: STM32F722
Gyroscopes: Dual ICM20689
OSD: Built-in BetaFlight OSD
BEC: 5V and 9V outputs
Sensor Semasa: ya
Kotak Hitam: ya
Port USB: Jenis-C
Corak Pemasangan: 30.5 x 30.5 mm
Ketersambungan: O3 (OcuSync 3.0) compatible for DJI FPV Air Unit
Berat: Kira-kira 1.58 auns (45g)

Dimensions of the iFlight SucceX-D F7 TwinG Flight Controller

Figure 2: Physical dimensions of the SucceX-D F7 TwinG Flight Controller, showing a 36mm x 36mm board size with 4mm mounting holes.

3. Kandungan Pakej

The standard package for the iFlight SucceX-D F7 TwinG Flight Controller typically includes:

iFlight SucceX-D F7 TwinG Flight Controller unit
Connection cables (e.g., for DJI Air Unit, ESC, receiver)
Mounting hardware (e.g., standoffs, grommets)

iFlight SucceX-D F7 TwinG Flight Controller with included cables and mounting hardware

Figure 3: The SucceX-D F7 TwinG Flight Controller shown with typical included accessories such as various connection cables and rubber grommets for mounting.

4. Persediaan dan Pemasangan

Proper installation and wiring are crucial for the safe and correct operation of your flight controller. Always ensure power is disconnected before making any connections.

4.1. Diagram Pendawaian

Refer to the detailed wiring diagram for connecting your flight controller to other components such as the ESC, receiver, VTX, GPS, and LED/Buzzer. Pay close attention to voltage requirements and pin assignments.

Detailed wiring diagram for iFlight SucceX-D F7 TwinG Flight Controller

Figure 4: Comprehensive wiring diagram illustrating connections for DJI FPV Air Unit, various receivers (FrSky, TBS, DSMX), VTX, GPS, ESC, LED, and Buzzer.

4.2. Connecting to DJI FPV Air Unit

The SucceX-D F7 TwinG is designed for direct compatibility with the DJI FPV Air Unit. Use the provided cable to connect the Air Unit to the designated port on the flight controller. Ensure the correct pin orientation.

iFlight SucceX-D F7 TwinG Flight Controller connected to DJI FPV Air Unit

Figure 5: The flight controller connected to a DJI FPV Air Unit and camera, demonstrating the plug-and-play integration.

4.3. Mounting the Flight Controller

Mount the flight controller securely onto your drone frame using the provided standoffs and grommets. Ensure the board is oriented correctly according to your BetaFlight configuration. The 30.5x30.5mm mounting pattern is standard for many frames.

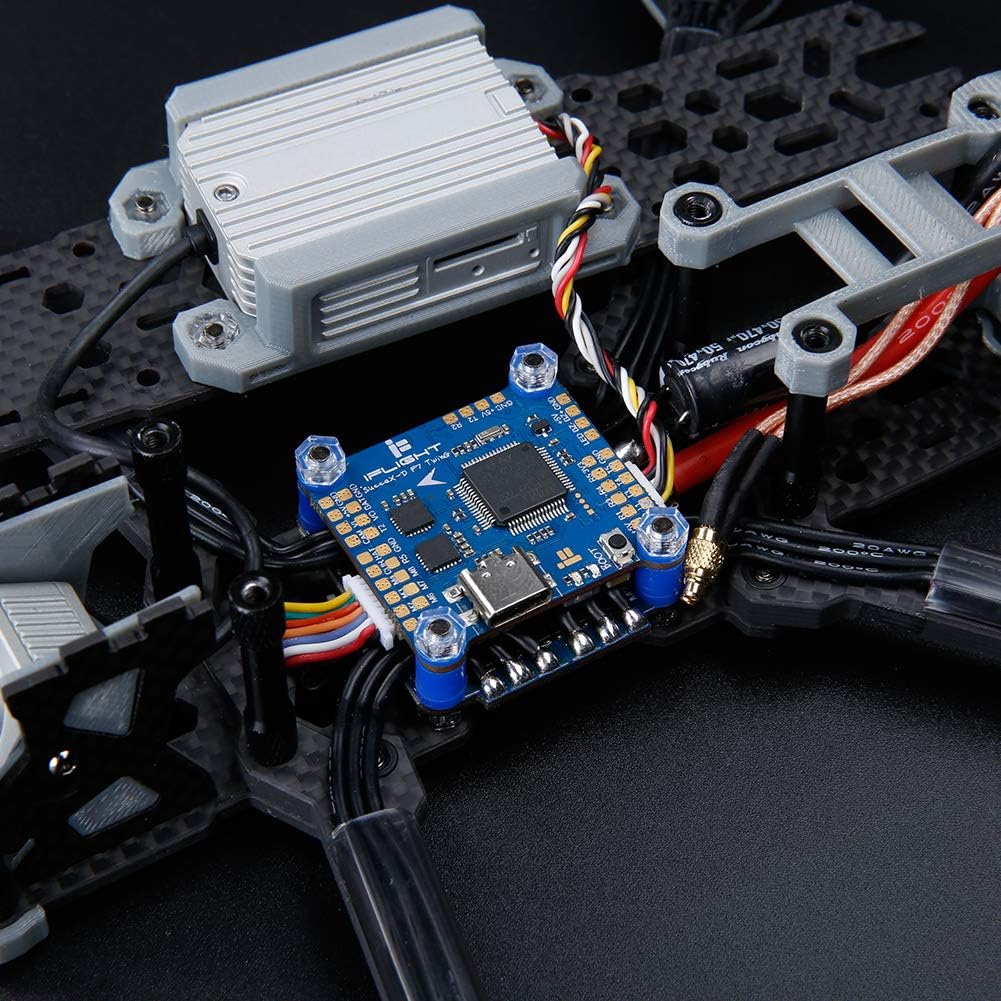

iFlight SucceX-D F7 TwinG Flight Controller installed in a drone frame

Figure 6: The flight controller mounted within a drone frame, showing connections to other components.

4.4. BetaFlight Configuration

After physical installation, connect the flight controller to your computer via the USB Type-C port. Use the BetaFlight Configurator software to:

Flash the latest firmware (if necessary).
Configure UARTs for your receiver, VTX, GPS, etc.
Calibrate accelerometers and gyroscopes.
Set up flight modes and OSD elements.
Perform motor testing and ESC calibration.

Refer to the official BetaFlight documentation for detailed instructions on software configuration.

5. Operating the Flight Controller

Once installed and configured, the flight controller manages the drone's flight dynamics. Its dual gyroscopes provide precise data for stable flight. The integrated OSD displays critical flight information directly in your FPV feed.

Hidupkan kuasa: Connect the drone battery. The flight controller will initialize.
mempersenjatai: Arm the drone using your configured switch on the remote controller. Ensure propellers are clear before arming.
Mod Penerbangan: Select desired flight modes (e.g., Acro, Angle, Horizon) via your remote controller.
Maklumat OSD: Pantau bateri voltage, current draw, flight time, RSSI, and other data displayed on your FPV goggles or monitor.

6. Penyelenggaraan

To ensure the longevity and reliable performance of your iFlight SucceX-D F7 TwinG Flight Controller, follow these maintenance guidelines:

Jaga kebersihan: Regularly inspect the board for dust, dirt, or debris. Use compressed air or a soft brush to gently clean the components.
Elakkan Kelembapan: Protect the flight controller from water and excessive humidity. If exposed to moisture, ensure it is completely dry before powering on.
Periksa Sambungan: Periodically check all soldered joints and connectors for looseness or damage. Re-solder or replace as necessary.
Kemas kini Firmware: Keep the BetaFlight firmware updated to benefit from performance improvements and bug fixes.
Perlindungan Fizikal: Consider using a protective enclosure or conformal coating for added durability, especially in harsh environments.

7. Penyelesaian masalah

If you encounter issues with your flight controller, consider the following troubleshooting steps:

Tiada Kuasa/LED Mati:
- Periksa sambungan bateri dan voltage.
- Inspect power cables for damage or incorrect polarity.
- Verify BEC output if powering other components.
No Connection to BetaFlight Configurator:
- Ensure USB Type-C cable is fully inserted and functional.
- Install necessary VCP (Virtual COM Port) drivers.
- Cuba port USB atau komputer lain.
Penerbangan Tidak Stabil:
- Recalibrate accelerometers in BetaFlight.
- Check for loose mounting or vibrations affecting the gyros.
- Verify PID settings are appropriate for your drone setup.
OSD Tidak Memaparkan:
- Ensure OSD is enabled in BetaFlight and configured correctly.
- Check VTX and camera connections.
Penerima Tidak Memberi Balasan:
- Verify receiver wiring to the correct UART.
- Ensure the correct serial receiver protocol (e.g., SBUS, Crossfire, Spektrum) is selected in BetaFlight.
- Check receiver binding status.

For more in-depth troubleshooting, consult the iFlight support resources or the BetaFlight documentation online.

8. Waranti dan Sokongan

For warranty information, please refer to the official iFlight webtapak atau hubungi peruncit anda. Simpan bukti pembelian anda untuk sebarang tuntutan waranti.

For technical support, firmware updates, and additional resources, please visit the official iFlight website or their dedicated support channels. Online communities and forums can also be valuable resources for assistance.

iFlight Official Webtapak: www.iflight-rc.com
