This manual provides detailed instructions for the installation, operation, and maintenance of your Sony DSX-M80 Digital Media Receiver. The DSX-M80 is a 1 DIN marine media receiver designed for high-quality audio output and versatile connectivity, including Bluetooth and SiriusXM readiness.
Imej: Depan view of the Sony DSX-M80 Digital Media Receiver, showcasing butang paparan dan kawalannya.
Apa yang ada dalam Kotak
Selepas membuka bungkusan, pastikan semua komponen berikut hadir:
- Sony DSX-M80 Digital Media Receiver
- Harness wayar
Persediaan dan Pemasangan
Proper installation is crucial for optimal performance. This unit is a standard single DIN receiver.
Pertimbangan Pendawaian
For the high-power output of the DSX-M80, it is recommended to use 12-gauge hot and ground wires for power connections. Inadequate wiring may lead to reduced volume potential or unexpected shutdowns. If replacing an existing unit, verify the gauge of the current wiring and upgrade if necessary.
Komponen Penyambung
The receiver features various connection points for power, speakers, and external amppenyelamat.
Imej: Belakang view of the Sony DSX-M80, illustrating the various RCA pre-outs, power harness connection, and antenna input.
- Sambungan Kuasa: Use the provided wire harness to connect to your vehicle's power supply. Ensure correct polarity.
- Sambungan Pembesar Suara: Connect your speakers to the appropriate outputs on the wire harness.
- RCA Pra-amp Keluaran: For expanding your sound system with external amplifiers, utilize the 5 Volt RCA pre-amp outputs for front, rear, and subwoofer channels.
- Subwoofer Direct Connection: A subwoofer can be connected directly to either side of the rear channel speaker output using the 2-ohm option.
- Antena: Connect your radio antenna for AM/FM reception.
Memasang Unit
Secure the DSX-M80 into a standard single DIN opening in your vehicle's dashboard. Ensure it is firmly seated to prevent movement, especially in marine environments.
Image: The Sony DSX-M80 receiver integrated into a boat's dashboard, showing a clean and secure installation.
Arahan Operasi
This section details the primary functions and features of your DSX-M80 receiver.
Power On/Off and Source Selection
Tekan ke OFF/SRC button to power the unit on or off, and to cycle through available audio sources (e.g., Bluetooth, USB, SiriusXM, Radio).

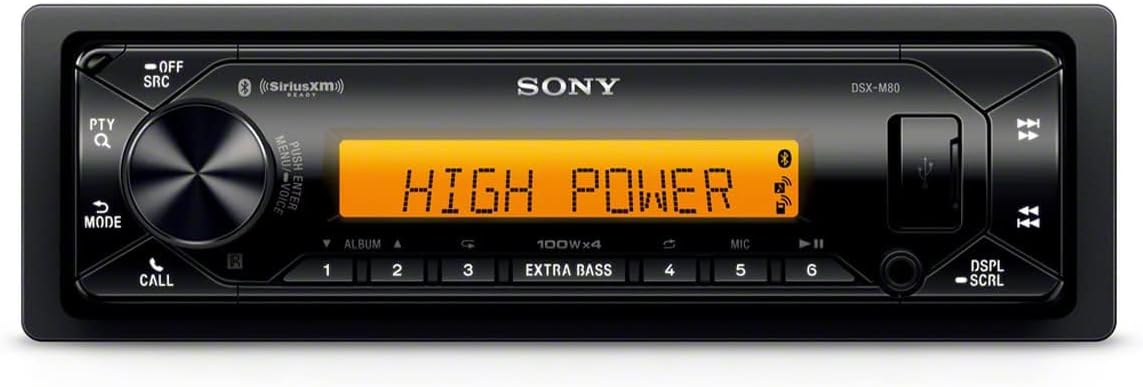

Image: Close-up of the Sony DSX-M80's front panel, displaying "HIGH POWER" on the screen, indicating its robust audio capabilities.
Kesambungan Bluetooth
The DSX-M80 supports dual Bluetooth connections, allowing two smartphones to be paired simultaneously.
- Pairing the First Phone: Access the Bluetooth settings on your smartphone and select "DSX-M80" from the list of available devices. Confirm the pairing on both devices. This provides full access to navigation, music playback, and communication features.
- Pairing the Second Phone: Follow the same procedure for the second phone. The second phone will typically be for music playback only, while the first maintains primary control.
Image: The Sony DSX-M80 unit in a boat, with two smartphones connected via Bluetooth, demonstrating its dual connectivity feature.
Ciri Audio
- terbina dalam Amplebih hidup: The unit features a built-in 4x45W RMS Class-D amplifier for powerful audio output.
- BASS TAMBAHAN: Utilize the EXTRA BASS button for enhanced low-frequency sound.
- Penyama: Adjust audio settings using the built-in equalizer to customize your sound profile.
Display and Illumination
Customize the unit's appearance to match your vehicle's interior.
- Penyesuaian Warna: Browse through 35,000 colors to set the two-zone illumination.
- Display Scroll: Gunakan DSPL/SCRL button to change display information or scroll through text.
Image: The Sony DSX-M80's display showing song information, with the blue backlighting active.
SiriusXM Sedia
The DSX-M80 is SiriusXM ready. A SiriusXM Connect Vehicle Tuner and subscription are required (sold separately) to access SiriusXM satellite radio.
Penyelenggaraan
To ensure the longevity and optimal performance of your DSX-M80 receiver, follow these maintenance guidelines:
- Membersihkan Unit: Gunakan kain lembut dan kering untuk mengelap panel hadapan. Untuk kotoran degil, dampen the cloth lightly with water. Avoid abrasive cleaners or solvents.
- Lindungi daripada Kelembapan: Although designed for marine use, avoid direct exposure to excessive water spray or submersion. Ensure all covers and seals are properly secured.
- Pemeriksaan Sambungan: Periodically check all wiring connections to ensure they are secure and free from corrosion, especially in marine environments.
- Kemas Kini Perisian: Check the Sony support website for any available firmware updates for your model.
Menyelesaikan masalah
If you encounter issues with your DSX-M80, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| No sound or sound cuts out at high volume. | Inadequate power wiring (e.g., thin gauge wires). | pastikan 12-gauge hot and ground wires are used for power connections. If wired to the vehicle's dedicated 12V power source for the factory radio, consider wiring directly to the battery if issues persist. |
| "Output Error" message appears, especially with vibration. | Loose speaker connections or internal component sensitivity to vibration. | Check all speaker wire connections for tightness. Ensure the unit is securely mounted to minimize vibration. If the problem persists, professional inspection may be required. |
| Remote control does not turn the radio on. | Remote battery depleted or remote signal obstruction. | Replace the remote control battery. Ensure there is a clear line of sight between the remote and the unit's IR receiver. |
| Unit tidak dihidupkan. | No power supply or blown fuse. | Check the vehicle's fuse box and the fuse on the unit's wiring harness. Verify power connections. |
| Isu sambungan Bluetooth. | Pairing error or interference. | Delete "DSX-M80" from your phone's Bluetooth device list and re-attempt pairing. Ensure no other devices are actively trying to connect. |
If these solutions do not resolve the issue, please contact Sony customer support.
Spesifikasi
Below are the technical specifications for the Sony DSX-M80 Digital Media Receiver:
- Nombor Model: DSXM80
- Dimensi Produk: 7 x 7.12 x 2 inci
- Berat Barang: 3.2 paun
- Pengeluar: Sony
- Teknologi Ketersambungan: Bluetooth, RCA
- Teknologi Komunikasi Tanpa Wayar: Bluetooth
- Ciri Khas: Built-In Wi-Fi (Note: This feature is listed in specifications but may refer to a general capability, not necessarily for internet access on the unit itself. Refer to operating instructions for specific Wi-Fi related functions if any.)
- Jenis Pengawal: Tombol mekanikal
- Peranti Serasi: Telefon Pintar, Pembesar Suara
- Mod Output Audio: Stereo
- Konfigurasi Saluran Bunyi Sekeliling: 2.1
- Amplebih hidup: Built-in 4x45W RMS Class-D amplebih hidup
- pra-amp Keluaran: 5 Volt RCA (Front, Rear, Subwoofer)
- Sambungan Subwufer: Direct connection with 2-ohm option
- Pencahayaan: Two-zone, 35,000 color options
- SiriusXM Sedia: Yes (requires tuner and subscription)
- Tarikh Mula-mula Tersedia: 25 Januari 2020
Waranti dan Sokongan
Maklumat Waranti
This product is covered by Sony's standard manufacturer warranty. For detailed information regarding warranty terms, conditions, and duration, please refer to the warranty card included with your product or visit the official Sony support webtapak. Simpan bukti pembelian anda untuk tuntutan waranti.
Sokongan Pelanggan
For technical assistance, troubleshooting beyond this manual, or service requests, please contact Sony customer support. You can find contact information and additional resources on the official Sony webtapak:
www.sony.com/electronics/support
When contacting support, please have your model number (DSX-M80) and serial number ready.
