HONEY JOY 6V Ride On ATV Instruction Manual

pengenalan

Thank you for choosing the HONEY JOY 6V Ride On ATV. This manual provides important information for the safe assembly, operation, and maintenance of your new ride-on toy. Please read it thoroughly before use and retain it for future reference.

This 4-wheel quad off-road vehicle is designed for children aged 37-72 months, offering features such as working headlights, music effects, and forward/backward functions. It includes an MP3 player with AUX input and USB port for personalized entertainment.

Maklumat Keselamatan Penting

AMARAN: Untuk mengurangkan risiko kecederaan, pengawasan orang dewasa diperlukan. Jangan sekali-kali gunakan di jalan raya, berhampiran kenderaan bermotor, di atas atau berhampiran tanjakan atau tangga yang curam, kolam renang atau badan air lain. Sentiasa pakai kasut, dan jangan benarkan lebih daripada seorang penunggang.

• This product is intended for children aged 37-72 months (3-6 years) with a maximum weight capacity of 55 lbs (25 kg).
• Always ensure the child wears appropriate safety gear, including a helmet, when operating the ATV.
• Operate the vehicle only on flat, level surfaces. Avoid rough terrain, sand, gravel, or wet areas.
• Jauhkan tangan, rambut dan pakaian daripada bahagian yang bergerak.
• Do not modify the electrical system. Alterations can cause fire, explosion, or electric shock.
• The product is ASTM certified, ensuring it meets safety standards.

Produk Selesaiview

The HONEY JOY 6V Ride On ATV is designed to provide an engaging and safe riding experience for young children. Key features include:

• Reka Bentuk Realistik: Features a cool ATV appearance with working headlights.
• Interactive Controls: Easy-to-use foot pedal for acceleration and a forward/backward switch.
• Entertainment System: Built-in music, AUX input, and USB port for connecting external devices.
• Comfort & Safety: Extended seat for comfort and stable four-wheel design with skid-resistant tires.
• Pembinaan Tahan Lama: Made from high-quality PP and iron material.

Figure 1: HONEY JOY 6V Ride On ATV in use.

Figure 2: Detailed features of the ATV, including headlights, seat, foot pedal, and charging port.

Figure 3: Control panel layout with labeled functions.

Persediaan dan Perhimpunan

Before first use, adult assembly is required. Please ensure all parts are present and undamaged before beginning assembly. Refer to the included assembly instructions for detailed steps.

Parts List (Typical)

• Main ATV Body
• Roda (4)
• Hendal
• tempat duduk
• 6V 4.5AH Battery (pre-installed or separate)
• Pengecas
• Axles and Fasteners

Langkah-langkah Perhimpunan (Umum)

1. Attach the wheels to the axles, ensuring they are securely fastened.
2. Pasang bar hendal pada lajur stereng.
3. Connect the battery terminals (if not pre-connected). Ensure correct polarity.
4. Secure the seat in place.
5. Perform an initial charge of the battery for 8-10 hours before first use.

Pengecasan Bateri

The ATV is powered by a 6V 4.5AH rechargeable battery. Proper charging ensures optimal performance and battery longevity.

1. Locate the charging port on the ATV (refer to Figure 2).
2. Palamkan pengecas ke salur keluar dinding standard.
3. Connect the charger plug to the ATV's charging port.
4. Charge the battery for approximately 8-10 hours for a full charge. Do not overcharge.
5. Putuskan sambungan pengecas setelah pengecasan selesai.

A full charge provides up to 60 minutes of play time, depending on usage conditions.

Arahan Operasi

Starting the ATV

1. Ensure the ATV is on a flat, safe surface.
2. Press the Power switch (labeled '5' in Figure 3) to turn on the ATV.
3. The headlights will illuminate, and a startup sound may play.

Driving the ATV

1. Select the desired direction using the Forward/Reverse switch (labeled '3' in Figure 3).
2. Press the foot pedal (refer to Figure 2) to accelerate. Release the pedal to brake.
3. Steer the ATV using the handlebars.

Using the Music Player

• Muzik Terbina dalam: The ATV has pre-programmed music. Use the music player controls (labeled '4' in Figure 3) to cycle through tracks and adjust volume.
• Input AUX: Connect an external audio device (e.g., smartphone, MP3 player) to the AUX input (labeled '2' in Figure 3) using a 3.5mm audio cable.
• Port USB: Insert a USB memory card into the USB interface (labeled '1' in Figure 3) to play audio files.
• Adjust the volume using the dedicated volume buttons on the control panel.

Penyelenggaraan

Penjagaan Am

• Regularly inspect the ATV for loose parts, damaged wiring, or worn components. Tighten any loose fasteners.
• Bersihkan ATV dengan iklanamp kain. Jangan gunakan pembersih atau pelarut yang melelas. Elakkan menyembur air terus ke komponen elektrik.
• Store the ATV in a dry, covered area when not in use. Protect it from direct sunlight and moisture.

Penjagaan Bateri

• Cas semula bateri selepas setiap penggunaan.
• If storing the ATV for an extended period, charge the battery fully every 30 days to prevent deep discharge and prolong battery life.
• Do not store the battery in temperatures below 0°C (32°F) or above 40°C (104°F).
• Only use the charger provided with the ATV.

Menyelesaikan masalah

Spesifikasi

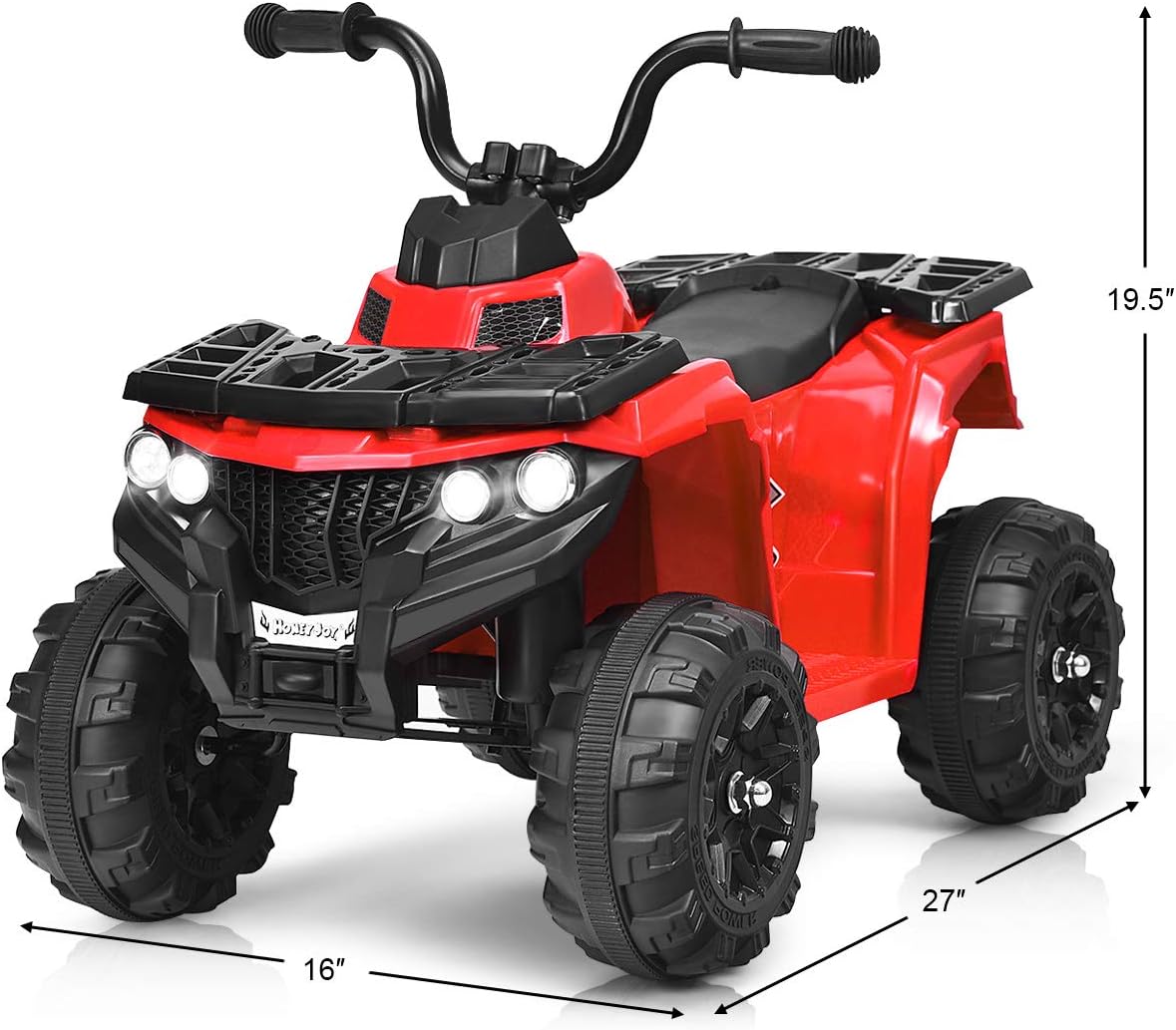

Rajah 4: Dimensi produk.

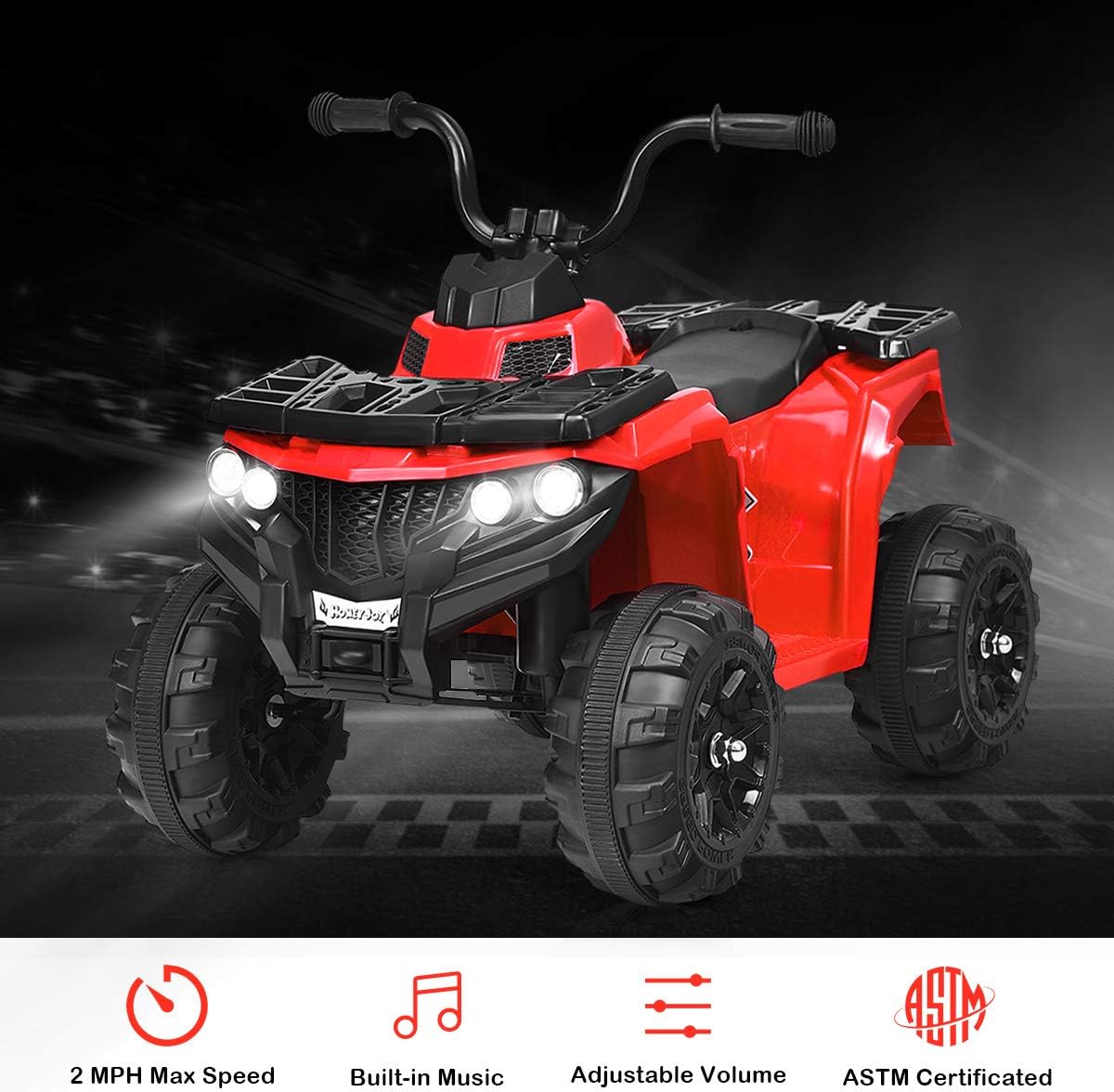

Figure 5: Key features summary.

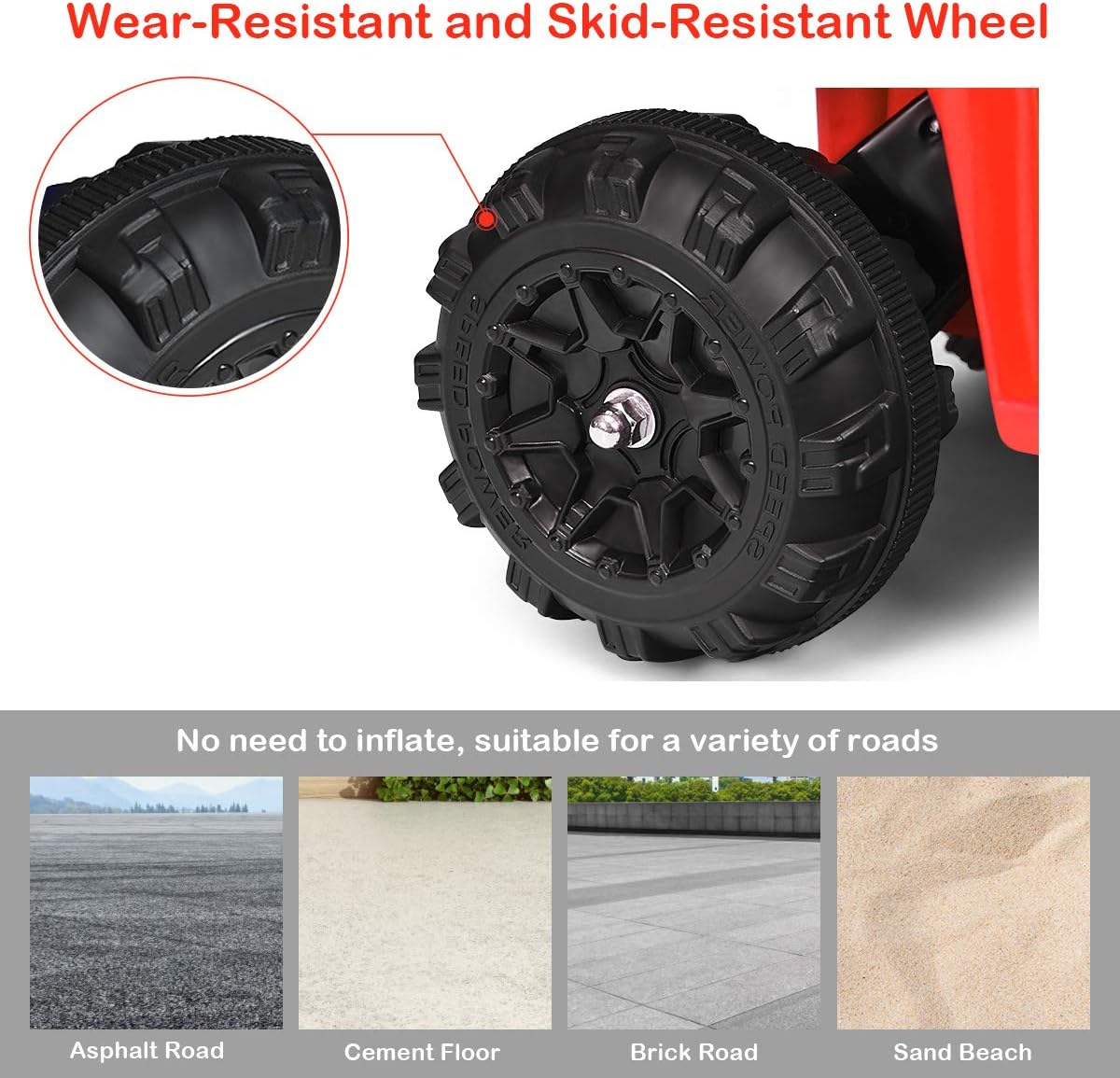

Figure 6: Wheel design and suitable operating surfaces.

Waranti dan Sokongan

For warranty information or technical support, please refer to the specific warranty card included with your product or contact HONEY JOY customer service. Please have your model number (3201-A-RED) and purchase details ready when contacting support.

Manufacturer: HONEY JOY
