PAC RP5-GM11 Radio Replacement Package Instruction Manual

pengenalan

This manual provides detailed instructions for the installation and operation of the PAC RP5-GM11 Radio Replacement Package. This package is designed to facilitate the installation of an aftermarket radio in specific 2005-2010 H3 and H3T vehicles, while retaining essential factory features.

The RP5-GM11 interface module ensures the retention of OnStar, factory Bluetooth, rear seat audio controls, and BOSE audio systems. It also includes steering wheel control retention and navigation outputs. Please note that this system does not retain climate control steering wheel controls.

Maklumat Keselamatan

• Always disconnect the vehicle's negative battery terminal before beginning any electrical installation to prevent electrical shorts and damage.
• Pastikan semua sambungan selamat dan terlindung dengan betul untuk mengelakkan litar pintas.
• Rujuk juruteknik automotif profesional jika anda tidak pasti tentang mana-mana bahagian proses pemasangan.
• Do not modify the wiring harness or components of this package. Unauthorized modifications may void the warranty and cause damage.
• Route all cables away from moving parts, heat sources, and sharp edges to prevent damage.

Kandungan Pakej

Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:

• Radio Replacement Interface Module (PAC RP5-GM11)
• Kit Pemuka DIN Berganda
• Penyesuai Antena
• Flush Mount USB Cigarette Adapter (if applicable)
• Pemasangan Pendawaian

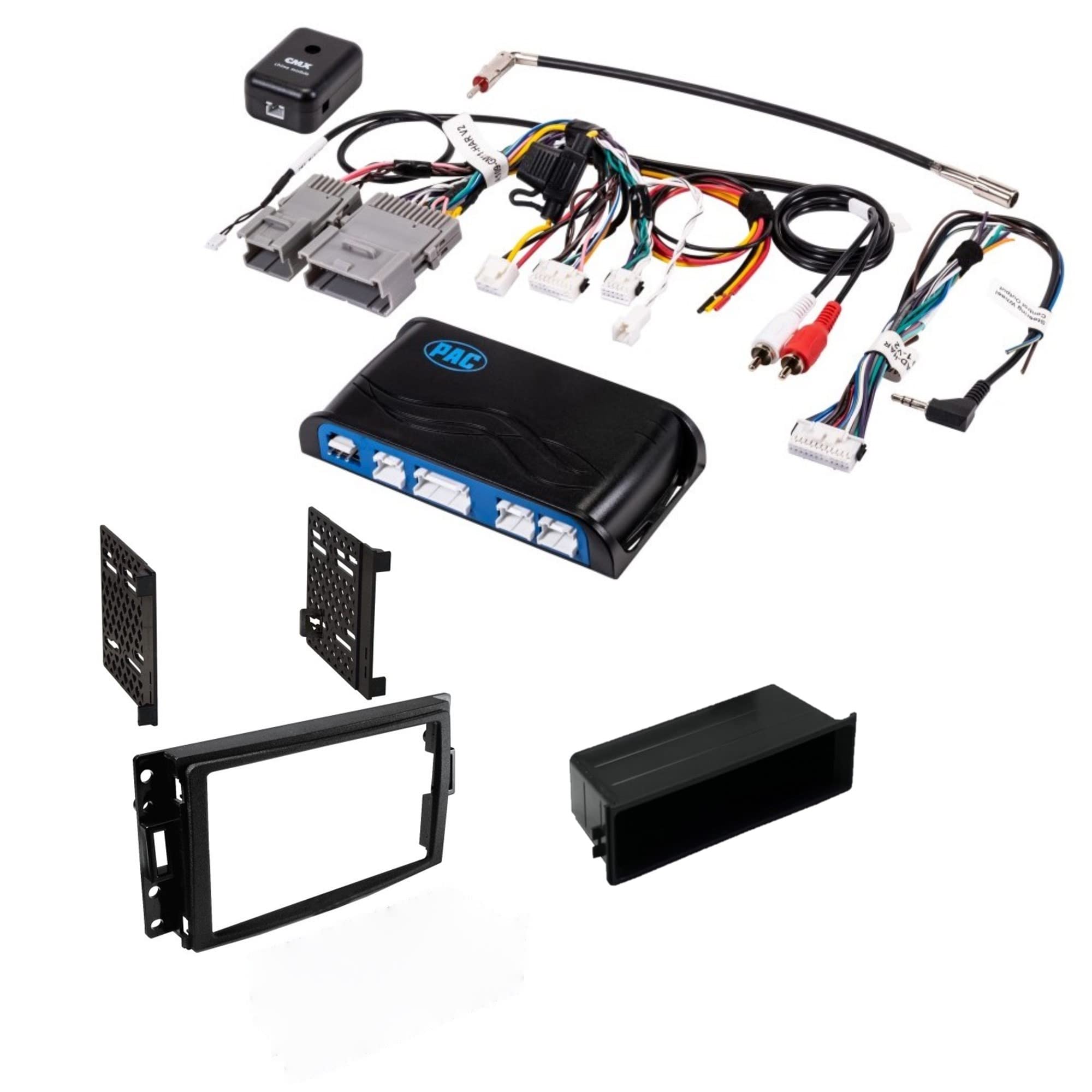

Image: The PAC RP5-GM11 Radio Replacement Package, showing the interface module, dash kit, and associated wiring.

Persediaan dan Pemasangan

Keserasian Kenderaan

This package is compatible with select 2005-2010 H3 and H3T vehicles. Please confirm your vehicle's make, model, and year before proceeding with installation.

Langkah Pra-Pemasangan

1. Read this entire manual before beginning.
2. Gather all necessary tools (wire strippers, crimpers, electrical tape, multimeter, panel removal tools).
3. Disconnect the negative battery terminal of the vehicle.
4. Carefully remove the factory radio and associated trim panels. Refer to your vehicle's service manual for specific removal procedures.

Arahan Pendawaian

The RP5-GM11 interface module connects between your new aftermarket radio and the vehicle's factory wiring harness.

• Connect the aftermarket radio's wiring harness to the RP5-GM11 harness: Match wire colors and functions (e.g., constant power, accessory power, ground, speaker wires).
• Connect the RP5-GM11 harness to the vehicle's factory harness: This connection will typically be plug-and-play.
• Connect the antenna adapter: Plug one end into the vehicle's antenna cable and the other into the aftermarket radio.
• Connect the flush mount USB adapter: If included, route the USB cable to a desired location and install the adapter.
• Navigation Outputs: If your aftermarket radio has navigation, connect the appropriate wires from the RP5-GM11 (e.g., parking brake, reverse, VSS) to the radio's navigation input wires.

Note: Specific wiring diagrams for your aftermarket radio and the RP5-GM11 module are typically provided with the product or available on the manufacturer's website. Always refer to these diagrams for precise connections.

Pemeriksaan Selepas Pemasangan

1. Sambung semula terminal bateri negatif kenderaan.
2. Turn on the vehicle and test the aftermarket radio's basic functions (power, volume, tuning).
3. Verify retention of OnStar, factory Bluetooth, and rear seat audio controls.
4. Test steering wheel controls (if applicable and configured).
5. Ensure all speakers are functioning correctly.
6. If all functions are verified, carefully reassemble the dash and trim panels.

Arahan Operasi

Aftermarket Radio Operation

Once installed, your aftermarket radio will operate according to its own manufacturer's instructions. The PAC RP5-GM11 interface ensures that the necessary power, ground, and speaker signals are correctly routed, and that retained factory features function seamlessly.

Retained Factory Features

• OnStar: OnStar functionality will be retained. Refer to your vehicle's owner's manual for OnStar operation.
• Factory Bluetooth: The factory Bluetooth system will continue to function.
• Rear Seat Audio Controls: These controls will remain operational.
• BOSE Audio Systems: The factory BOSE amplifier and speakers will be integrated with the aftermarket radio.
• Kawalan Roda Stereng: Most steering wheel audio controls (volume, track, mode) will be retained and can be programmed to control your aftermarket radio. Refer to the RP5-GM11 specific instructions for programming details. Note: Climate control steering wheel controls are not retained.
• Dual Zone Audio: The interface supports dual zone audio functions, allowing separate audio control for front and rear passengers if supported by your aftermarket radio.

Penyelenggaraan

The PAC RP5-GM11 Radio Replacement Package is designed for long-term reliability and typically requires no routine maintenance.

• Pembersihan: Keep the interface module free from dust and moisture. Do not use liquid cleaners directly on the module.
• Sambungan: Periodically check that all wiring connections remain secure, especially if you experience intermittent issues.
• Kemas Kini Perisian: Check the PAC website periodically for any firmware updates for the RP5-GM11 module, which may improve compatibility or add features.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

For specific warranty information regarding your PAC RP5-GM11 Radio Replacement Package, please refer to the documentation included with your purchase or visit the official PAC Audio webtapak.

For technical support, troubleshooting assistance beyond what is provided in this manual, or to inquire about firmware updates, please contact PAC Audio customer support directly.

PAC Audio Official Webtapak: www.pac-audio.com
