Bio Bidet by Bemis Prodigy P700 Advanced Smart Toilet User Manual

pengenalan

Welcome to the comprehensive user manual for your Bio Bidet by Bemis Prodigy P700 Advanced Smart Toilet. This manual provides detailed instructions for the installation, operation, and maintenance of your new smart toilet, ensuring optimal performance and longevity. The Prodigy P700 is designed to offer an ultimate bathroom upgrade with advanced features for enhanced hygiene and comfort.

Key features include a tankless design, warm air dryer, soothing blue night light, comfortable expanded size heated seat with adjustable temperature controls, and a quiet automatic open/close lid. You can customize water temperature, pressure, and nozzle position using the wireless remote for personalized cleansing. The self-cleaning, stainless steel nozzle provides front and back cleansing, and the automatic hands-free flush adds convenience.

Persediaan dan Pemasangan

The Bio Bidet Prodigy P700 is designed for easy installation, often without the need for a professional plumber. All necessary components, including the water hose and bidet connectors, are provided. Please ensure a nearby electrical outlet is available for the heated seat, night light, and ambient water temperature features.

Komponen Termasuk:

• Tandas Bidet
• Perkakasan Pemasangan
• Komponen Penyambung
• Wireless Remote & Instructions
• 3 bateri AA (termasuk untuk alat kawalan jauh)

Langkah Pemasangan:

1. Sediakan Kawasan: Ensure the existing toilet is removed and the floor is clean. Verify that a standard floor-mounted toilet connection and a nearby electrical outlet are available.
2. Sambungkan Bekalan Air: Attach the provided water hose and connectors to your home's water supply line. Ensure all connections are secure to prevent leaks.
3. Mount the Toilet: Carefully position the Prodigy P700 over the floor flange and secure it using the supplied mounting hardware. Tighten all bolts evenly to ensure stability.
4. Sambungkan Elektrik: Pasangkan kord kuasa tandas ke soket elektrik yang dibumikan.
5. Pasang Bateri Jauh: Insert the 3 AA batteries into the wireless remote control.
6. Kefungsian Ujian: Turn on the water supply and check for any leaks. Test all features of the toilet using the remote control to ensure proper operation.

Rajah 1: Sisi view of the Prodigy P700 Smart Toilet, showcasing its sleek, tankless design.

Rajah 2: Pemasangan selesaiview highlighting the need for an electrical outlet and ease of setup.

Arahan Operasi

The Prodigy P700 offers a range of customizable features for a personalized and hygienic experience. All functions are controlled via the wireless remote.

Ciri-ciri Utama dan Operasi:

• Automatic Open/Close Lid: The lid automatically opens and closes as you approach or leave the toilet. This feature can also be controlled manually via the remote.
• Tempat duduk yang dipanaskan: The seat features adjustable temperature controls for optimal comfort. Use the remote to select your preferred temperature setting.
• Customizable Water Wash: Choose between rear wash and front wash. Adjust the water pressure, water temperature (warm, cold, or hot), and nozzle position to suit your personal needs. The vortex wash provides extra cleanliness.
• Pengering Udara Suam: After cleansing, activate the warm air dryer to reduce the need for toilet paper. Adjust the air temperature for comfort.
• Automatic Deodorizer: The built-in deodorizer helps keep your bathroom fresh.
• Cahaya Malam: A soothing blue night light illuminates the toilet, guiding you in the dark.
• Automatic Hands-Free Flush: The toilet automatically flushes upon standing, adjusting the flush volume (full or small) based on usage.

Figure 3: The wireless remote control, your command center for all smart toilet functions.

Figure 4: Detailed feature overview, illustrating the various cleansing and comfort options.

Figure 5: The expanded comfort seat provides additional support and a comfortable experience.

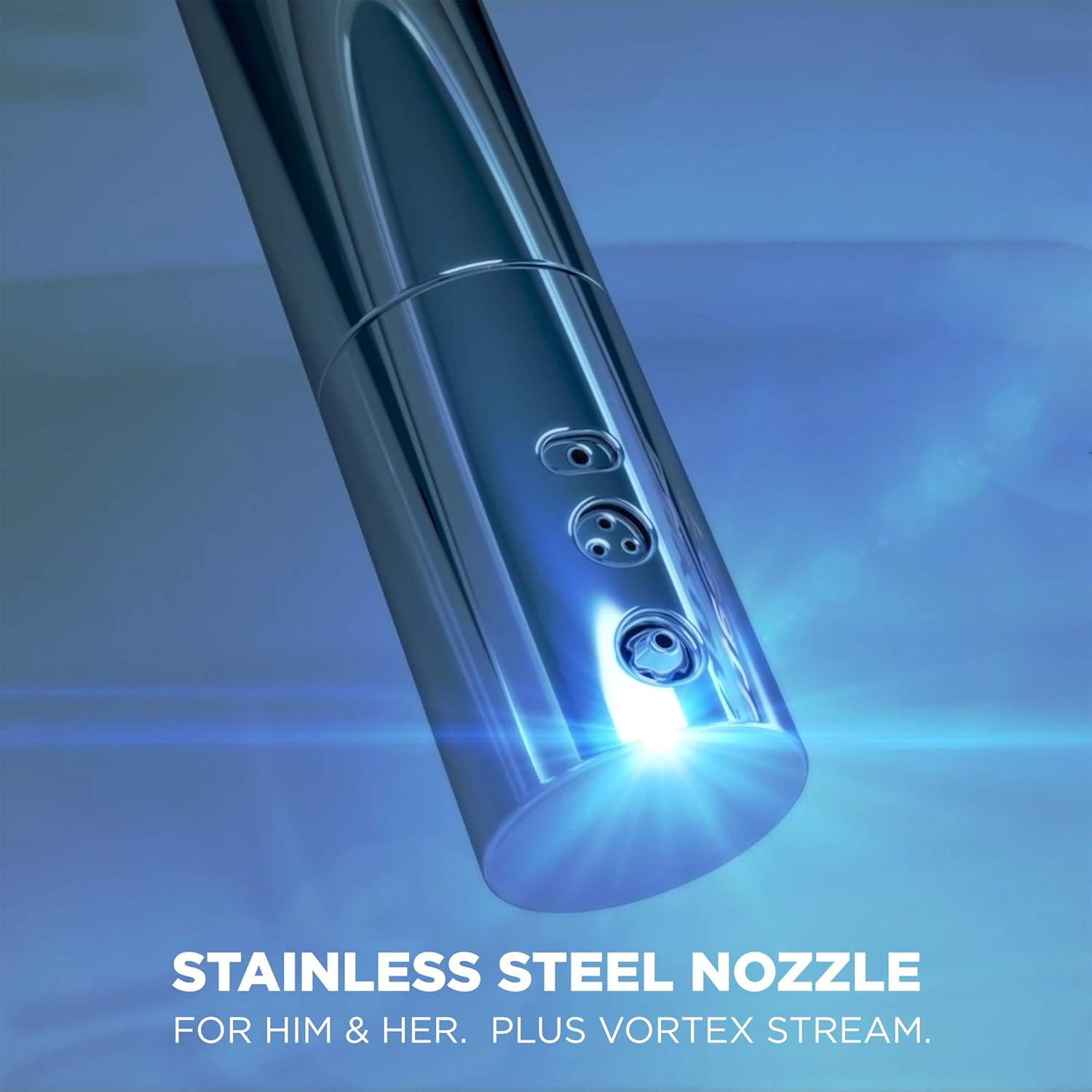

Figure 6: The stainless steel nozzle ensures hygienic and effective cleansing for all users.

Penyelenggaraan dan Penjagaan

Regular maintenance ensures the longevity and hygienic performance of your Bio Bidet Prodigy P700 Smart Toilet.

Membersihkan muncung:

• The stainless steel nozzle is self-cleaning. Activate the nozzle cleaning function via the remote control for automatic rinsing.
• For deeper cleaning, gently wipe the nozzle with a soft cloth and mild, non-abrasive cleaner. Do not use harsh chemicals or abrasive materials.

Pembersihan Am:

• Wipe down the exterior surfaces of the toilet and seat with a soft, damp kain dan pembersih bilik mandi yang lembut dan tidak melelas.
• Elakkan menyembur air terus ke atas komponen elektrik.
• Regularly clean the toilet bowl using standard toilet bowl cleaners.

Penyelenggaraan penapis:

• Refer to the detailed instructions in the full user guide (link provided in the Warranty & Support section) for specific filter cleaning or replacement schedules, if applicable.

Menyelesaikan masalah

If you encounter any issues with your Bio Bidet Prodigy P700, please refer to the following common troubleshooting tips. For more complex problems, consult the full user guide or contact customer support.

Spesifikasi

Detailed technical specifications for the Bio Bidet by Bemis Prodigy P700 Advanced Smart Toilet.

Waranti dan Sokongan

Your Bio Bidet by Bemis Prodigy P700 Advanced Smart Toilet comes with a manufacturer's warranty and dedicated support.

Maklumat Waranti:

Manufacturer warranty covers US and Canada customer purchases for 1 year from the date of purchase. Please retain your proof of purchase for warranty claims.

Sumber Tambahan:

• For a detailed user guide and further information, please refer to the official PDF document: Bio Bidet Prodigy P700 User Guide (PDF)
• For customer support or service inquiries, please visit the Bio Bidet Store on Amazon atau hubungi perkhidmatan pelanggan mereka secara terus.
