pengenalan
Thank you for choosing the Greenworks 1500 PSI 1.2 GPM Electric Pressure Washer, model GPW1502. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your pressure washer. Please read it thoroughly before use and keep it for future reference.
This electric pressure washer is designed for residential cleaning applications, offering 1500 PSI of pressure at 1.2 gallons per minute (GPM) for effective cleaning power. Its lightweight and compact design ensures easy maneuverability and storage.
Maklumat Keselamatan Penting
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury. This product is for outdoor use only. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Keselamatan Elektrik: Ensure the power cord is connected to a grounded outlet. The unit features a built-in GFCI (Ground Fault Circuit Interrupter) for added safety. Do not bypass or modify the GFCI plug.
- Sambungan Air: Connect the pressure washer to a cold water supply only. Do not use hot water. Ensure all connections are tight to prevent leaks.
- Peralatan Pelindung Diri: Sentiasa pakai pelindung mata (cermin mata keselamatan) dan pakaian pelindung yang sesuai semasa mengendalikan mesin basuh tekanan tinggi.
- Persekitaran Operasi: Keep the operating area clear of all persons, especially children and pets. Do not direct the spray at people, animals, or electrical devices.
- Penyelenggaraan: Putuskan sambungan bekalan kuasa sebelum melakukan sebarang penyelenggaraan atau pembersihan.
Komponen Produk
Your Greenworks pressure washer comes with several key components designed for efficient cleaning:
- Unit Pencuci Tekanan: Badan utama yang menempatkan motor dan pam.

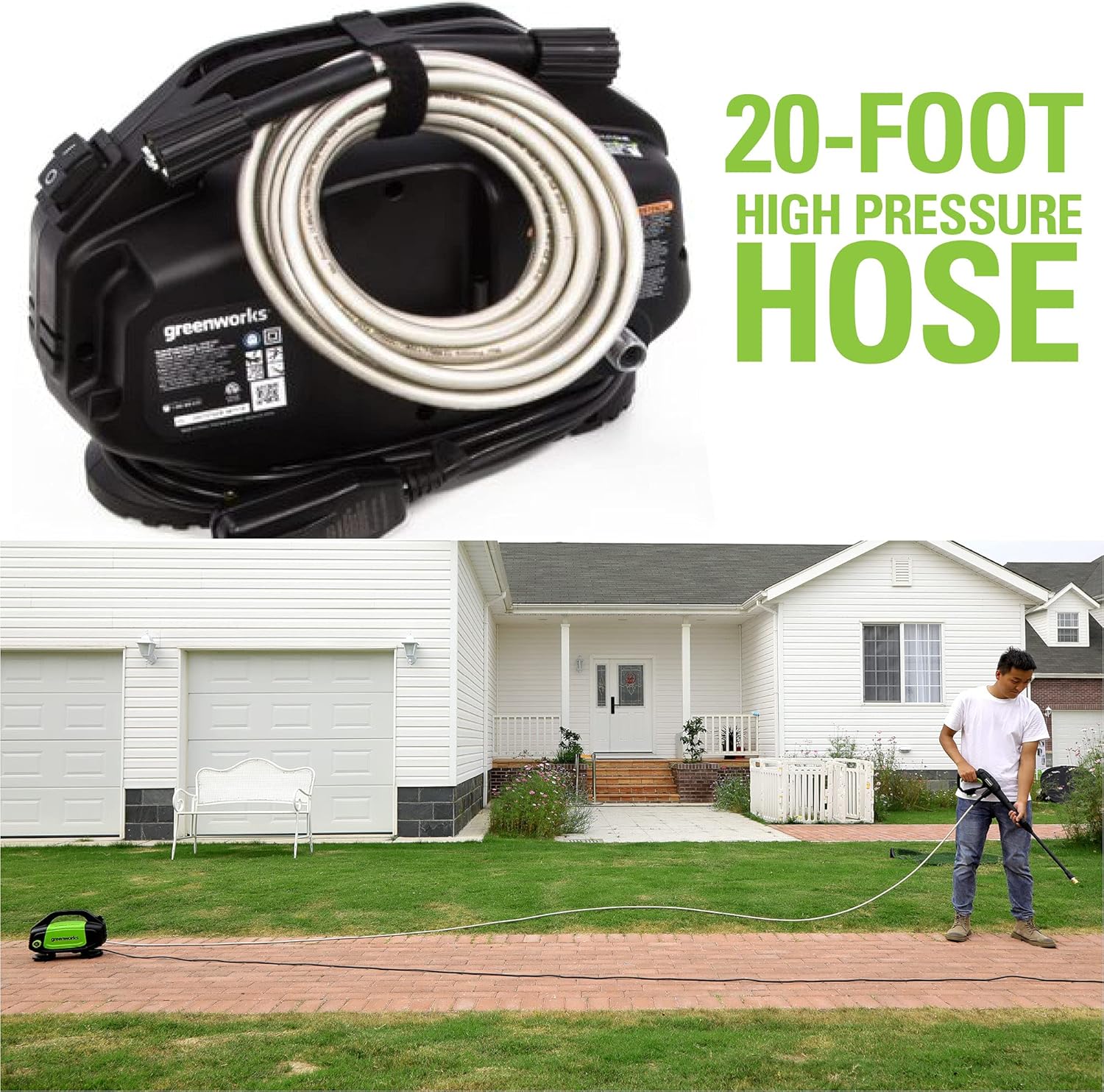

- Selang Tekanan Tinggi: A 20-foot hose connecting the unit to the spray gun.
- Spray Gun with Quick Connect Wand: Features a variable nozzle for different spray patterns.
- Soap Dispenser Attachment: A small tank for applying detergent during cleaning.
- Kord Kuasa: Equipped with a GFCI for electrical safety.
- Penyimpanan Muncung: Convenient onboard storage for nozzles.
Arahan Persediaan
- Buka bungkusan dan Periksa: Remove all components from the packaging and inspect for any damage. Ensure all parts listed in the "Product Components" section are present.
- Sambungkan Bekalan Air: Attach your garden hose (not included) to the water inlet on the pressure washer unit. Ensure the connection is secure and leak-free. Connect the other end of the garden hose to a cold water tap.
- Sambungkan Hos Tekanan Tinggi: Connect one end of the 20-foot high-pressure hose to the outlet on the pressure washer unit and the other end to the spray gun. Tighten all connections firmly.
- Attach Wand and Nozzle: Insert the quick connect wand into the spray gun. Select the desired nozzle (e.g., 25° or 40° for general cleaning, or the soap dispenser for detergent application) and attach it to the end of the wand.
- Sambungan Elektrik: Plug the power cord into a grounded 120V AC outlet. The built-in GFCI will provide electrical protection.
- Singkirkan Udara daripada Sistem: Before turning on the power, turn on the water supply completely. Squeeze the trigger on the spray gun to allow water to flow through the system and purge any trapped air. Continue until a steady stream of water emerges from the nozzle.
Arahan Operasi
Memulakan Mesin Cuci Tekanan
- Ensure the water supply is fully open and all air has been purged from the system (as per Setup Step 6).
- Turn the power switch on the unit to the "ON" position. The motor will start briefly and then shut off once pressure is built.
- Squeeze the spray gun trigger to begin spraying. The motor will restart automatically.
Menggunakan Nozel Berbeza
Your pressure washer includes a quick connect wand with a variable nozzle, allowing you to adjust the spray pattern for different cleaning needs. The unit also features convenient onboard storage for additional nozzles (if applicable).
- 25° Nozzle (Medium Angle Spray): Ideal for general cleaning tasks on various surfaces.
- 40° Nozzle (Wide Angle Spray): Suitable for delicate surfaces or for covering larger areas quickly.
- Soap Dispenser Attachment: Use for applying detergent. Fill the dispenser with pressure washer-safe detergent, attach it to the wand, and spray.
Petua Operasi Am
- Always start spraying with the nozzle pointed away from yourself and others.
- Maintain a safe distance from the surface being cleaned to avoid damage. Test on an inconspicuous area first.
- Move the spray gun in a sweeping motion, keeping it at a consistent distance from the surface.
- For optimal cleaning, apply detergent from bottom to top, then rinse from top to bottom.
Video 1: Demonstration of the Greenworks 1500 PSI Electric Pressure Washer in use, highlighting its effectiveness for cleaning various surfaces.
Penyelenggaraan
Penyelenggaraan yang betul memastikan jangka hayat dan prestasi optimum mesin basuh tekanan anda.
- Selepas Setiap Penggunaan:
- Turn off the power switch and disconnect the power cord.
- Turn off the water supply and squeeze the spray gun trigger to release any remaining pressure.
- Putuskan sambungan hos taman dan hos tekanan tinggi.
- Drain all water from the pump by tilting the unit and running it for a few seconds until no more water comes out.
- Clean the nozzles and store them in the onboard storage.
- Storan: Store the pressure washer in a dry, frost-free area. Do not store the unit or accessories in temperatures below 32°F (0°C) to prevent damage from freezing water.
- Pembersihan Penapis: Regularly check and clean the inlet filter on the water inlet to prevent debris from entering the pump.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Unit tidak bermula | Power cord not plugged in; GFCI tripped; No power at outlet. | Check power connection; Reset GFCI; Check circuit breaker. |
| Tekanan rendah | Insufficient water supply; Air in pump; Clogged nozzle; Leaks in hose connections. | Ensure full water flow; Purge air from system; Clean or replace nozzle; Tighten connections. |
| Motor berhenti semasa operasi | Overheating; Electrical overload. | Allow unit to cool down; Reduce operating time; Check for proper voltage. |
| Air bocor | Loose connections; Damaged O-rings. | Tighten all connections; Replace damaged O-rings. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | Greenworks |
| Nombor Model | GPW1502 |
| Sumber Kuasa | Elektrik |
| Tekanan Maksimum | 1500 PSI |
| Kadar Aliran Maksimum | 1.2 Gelen Seminit (GPM) |
| Panjang Hos | 20 Kaki |
| Dimensi Produk (L x W x H) | 14.96" x 6.77" x 10.9" |
| Berat Barang | 15.72 paun |
| UPC | 841821043018 |
Waranti & Sokongan
Your Greenworks 1500 PSI 1.2 GPM Electric Pressure Washer (GPW1502) is covered by a Waranti 3 tahun, protecting your investment against defects in materials and workmanship under normal use. For warranty claims, technical support, or replacement parts, please contact Greenworks Customer Service.
Untuk bantuan lanjut, sila layari laman web rasmi Greenworks webtapak atau rujuk dokumentasi pembelian anda untuk butiran hubungan.
