Maxxima MPWL-21

Manual Pengguna Lampu Kerja LED Mudah Alih Maxxima

Model: MPWL-21

Produk Selesaiview

The Maxxima Portable LED Work Light (Model MPWL-21) is a heavy-duty, versatile lighting solution designed for illuminating construction areas, job sites, and various home improvement projects. It provides bright, efficient light and is built for durability.

Ciri-ciri Utama:

Maklumat Keselamatan

Sila baca dan fahami semua arahan keselamatan sebelum mengendalikan produk ini. Kegagalan mematuhi arahan ini boleh mengakibatkan renjatan elektrik, kebakaran atau kecederaan serius.

Persediaan

  1. Bongkar: Carefully remove the Maxxima Portable LED Work Light from its packaging. Inspect for any signs of damage.
  2. Kedudukan: Place the work light on a flat, stable surface. The sturdy stand allows it to stand on its own.
  3. Laraskan Sudut: Loosen the adjustment knobs on either side of the light head. Adjust the light head to the desired angle (up to 180 degrees). Tighten the knobs securely to fix the position.
  4. Sambungan Kuasa: Uncoil the 5-foot power cord. Ensure the power outlet is easily accessible and provides 110V AC.
Maxxima Portable LED Work Light in upright position

Image: The Maxxima Portable LED Work Light shown in its standard upright position, ready for use.

sebelah view of Maxxima Portable LED Work Light showing adjustable head

Imej: Sisi view of the work light, illustrating the adjustable light head that can pivot to direct illumination.

Arahan Operasi

  1. Hidupkan kuasa: Plug the power cord into a standard 110V AC electrical outlet. The light will turn on automatically upon connection.
  2. Matikan: To turn off the light, unplug the power cord from the electrical outlet.
  3. Melaraskan Arah Cahaya: If needed, loosen the adjustment knobs, reposition the light head, and then re-tighten the knobs to secure the new angle.

Nota: This model does not feature an integrated on/off switch. Operation is controlled by plugging and unplugging the unit.

Video: This video demonstrates the Maxxima Portable LED Work Light (MPWL-21) in use, showcasing its brightness and how it illuminates a space. It also shows the light being unboxed, adjusted, and folded for storage.

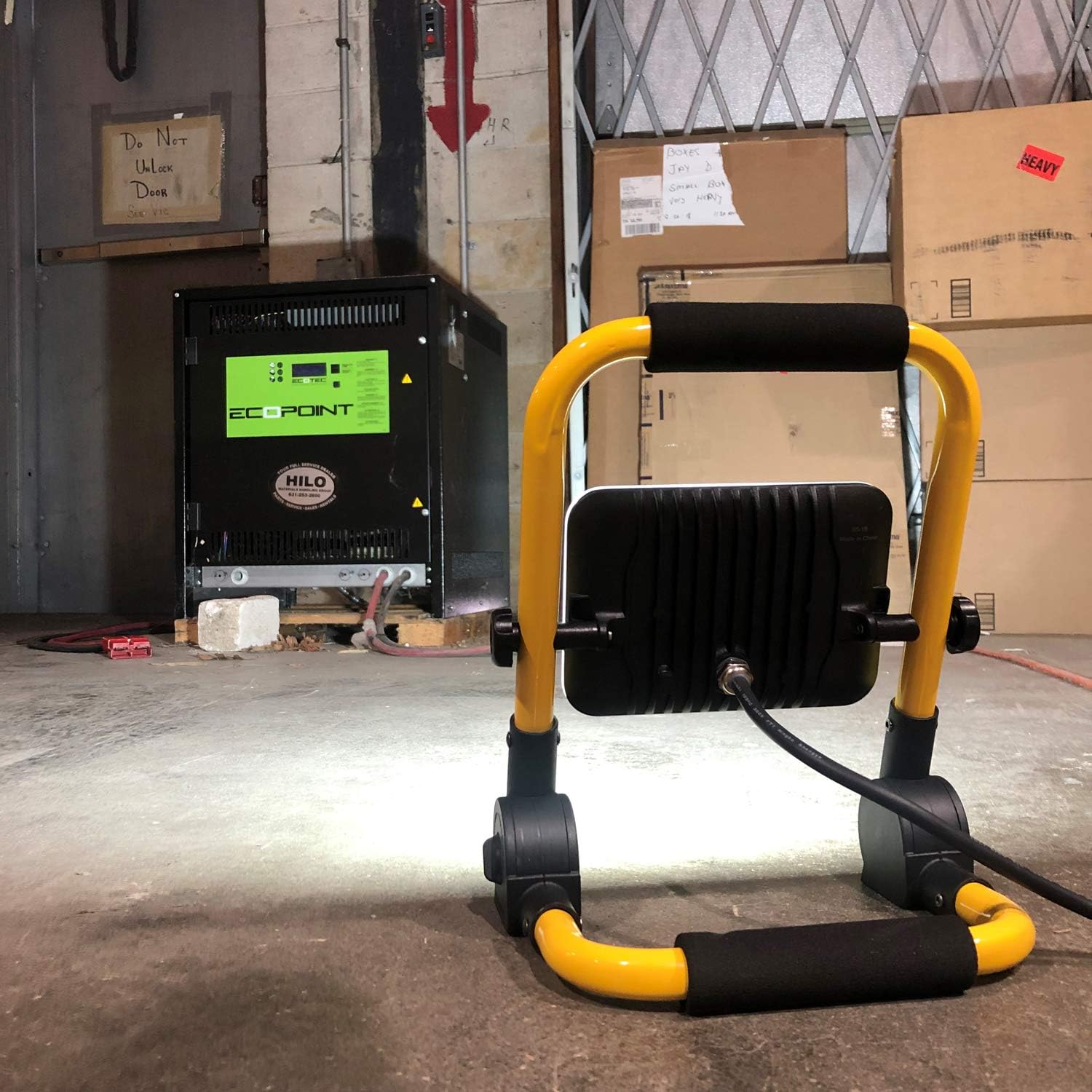

Maxxima Portable LED Work Light illuminating a dark room

Image: The work light actively illuminating a dark area, demonstrating its powerful light output for job sites or large spaces.

Penyelenggaraan

Maxxima Portable LED Work Light folded for storage

Image: The Maxxima Portable LED Work Light shown in its folded configuration, highlighting its compact design for easy storage and transport.

Menyelesaikan masalah

MasalahKemungkinan PuncaPenyelesaian
Cahaya tidak menyala.Tiada kuasa ke saluran keluar.
Kord kuasa atau palam rosak.
Light is not fully plugged in.
Periksa salur keluar kuasa dengan peranti lain.
Inspect the cord and plug for damage; do not use if damaged.
Pastikan palam dimasukkan sepenuhnya ke dalam alur keluar.
Cahaya berkelip atau malap.Bekalan kuasa tidak stabil.
Sambungan longgar.
Cuba pasangkan ke soket lain.
Ensure the plug is secure.
Light is hot to the touch.Operasi biasa.
Pengudaraan tidak mencukupi.
This is normal for LED work lights. Avoid direct contact.
Ensure the light is not covered and has clear space around it.

Spesifikasi

AtributNilai
Nombor ModelMPWL-21
JenamaMaxxima
Jenis Sumber CahayaLED
Kecerahan1850 Lumen
Wattage20 Watt
Voltage110V AC
Suhu Warna6500K (Putih Sejuk)
Indeks Paparan Warna (CRI)85
Sudut Rasuk110°
KebolehlarasanSehingga 180 Darjah
bahanDie-cast Aluminum, Glass
Penarafan IPIP65
Panjang Kord Kuasa5 Kaki
Dimensi Produk (L x W x H)2.4" x 9.6" x 11.5"
Berat Barang3.23 paun
PensijilanTersenarai ETL
UPC755183178755

Waranti dan Sokongan

The Maxxima Portable LED Work Light (MPWL-21) is backed by a Waranti 3 tahun dari tarikh pembelian. Waranti ini melindungi kecacatan pada bahan dan mutu kerja di bawah penggunaan biasa.

For warranty claims, technical support, or any questions regarding your product, please contact Maxxima customer service. Please have your model number (MPWL-21) and proof of purchase available when contacting support.

For more information about Maxxima products, visit the official Maxxima Store: Kedai Maxxima di Amazon.
