Manual Pengguna Sistem Penapisan Air Bawah Singki Aqualuxe Multipure

1. Introduction to the Multipure Aqualuxe

The Multipure Aqualuxe Below Sink Water Filtration System represents a significant advancement in water purification technology. This system is engineered to provide superior contaminant reduction, combining innovative filtration with a sleek design. It is designed for installation beneath your sink, delivering filtered water through a dedicated faucet.

The Aqualuxe system is rigorously tested and verified by third parties, holding multiple NSF certifications:

• Piawaian NSF/ANSI 42: Certified for the reduction of contaminants of Aesthetic Concern.
• Piawaian NSF/ANSI 53: Certified for the reduction of contaminants of Health Concern.
• Piawaian NSF/ANSI 401: Certified for the reduction of Emerging Contaminants/Incidental Compounds.
• NSF Protocol P231: Certified for the reduction of bacteria and viruses.

This manual provides essential information for the proper installation, operation, and maintenance of your Aqualuxe system to ensure optimal performance and longevity.

2. Maklumat Keselamatan Penting

Please read all safety instructions carefully before installing or operating your Multipure Aqualuxe system. Failure to follow these instructions could result in property damage or injury.

• Tekanan Air: Ensure your water pressure is within the recommended operating range. Excessive pressure can damage the system.
• Pengesanan Kebocoran: The system is equipped with a leak detection feature. Regularly check for any signs of leaks around the unit and connections.
• Suhu Pembekuan: Do not allow the unit to freeze. Freezing can cause severe damage to the filter and housing, leading to leaks. If the unit has been exposed to freezing temperatures, it must be replaced.
• Penggantian Penapis: Use only genuine Multipure replacement filters. Using non-Multipure filters may void your warranty and compromise filtration performance.
• Pemasangan Profesional: If you are unsure about any installation steps, it is recommended to consult a qualified plumber.
• Kualiti Air: This system is intended for use with potable water only. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

3. Apa yang Termasuk

Your Multipure Aqualuxe Below Sink Water Filtration System package typically includes the following components:

• Aqualuxe Filtration Unit (Black)
• Standalone Chrome Faucet
• Adapta Valve for cold water line connection
• Installation Accessories (tubing, connectors, mounting hardware)
• First Aqualuxe Filter Cartridge

Please inspect all components upon receipt to ensure everything is present and undamaged. If any parts are missing or damaged, contact Multipure customer support immediately.

4. Persediaan dan Pemasangan

The Aqualuxe Below Sink unit is designed for discreet installation under your kitchen sink, providing filtered water through a dedicated faucet mounted on the sink or countertop.

4.1 Langkah Pra-Pemasangan

1. lokasi: Choose a suitable location under your sink that allows easy access for filter changes and maintenance.
2. Alat yang Diperlukan: Gather necessary tools such as a drill, adjustable wrench, screwdriver, and a bucket.
3. Bekalan Air: Turn off the cold water supply to your sink at the shut-off valve.

4.2 Pemasangan Faucet

1. The standalone chrome faucet requires a 0.5-inch (1/2") hole for mounting. If your sink or countertop does not have an existing hole, one will need to be drilled.
2. Mount the faucet securely according to the detailed instructions provided in the separate faucet installation guide.

4.3 Sambungan Sistem

1. Connect the Aqualuxe unit to the cold water line using the supplied Adapta Valve. Ensure all connections are tight to prevent leaks.
2. Connect the filtered water outlet from the Aqualuxe unit to the base of the newly installed chrome faucet using the provided tubing.
3. Secure the Aqualuxe unit under the sink using the mounting hardware, ensuring it is stable and upright.

4.4 Initial Flushing

1. Once all connections are secure, slowly turn on the cold water supply.
2. Open the Aqualuxe faucet and allow water to flow for at least 30-40 minutes. This flushes out any air and carbon fines from the new filter.
3. During initial flushing, the water may appear cloudy or white due to trapped air. This is normal and will clear up as the system purges air.

5. Arahan Operasi

Operating your Multipure Aqualuxe system is straightforward. Once installed and flushed, simply use the dedicated chrome faucet to dispense filtered water.

• Mendispens Air: Turn the handle on the chrome faucet to the 'on' position to get filtered water. Turn it to the 'off' position to stop the flow.
• Kadar Aliran: The system is designed for a flow rate of approximately 0.75 gallons per minute (GPM). A noticeable decrease in flow rate often indicates that the filter cartridge is nearing the end of its service life and requires replacement.
• Lampu Penunjuk: The Aqualuxe unit may feature indicator lights to communicate system status, such as filter life or leak detection. Refer to the detailed product manual for specific interpretations of these indicators.

6. Penyelenggaraan

Regular maintenance, primarily filter replacement, is crucial for ensuring your Aqualuxe system continues to provide high-quality filtered water.

6.1 Penggantian Penapis

The Aqualuxe filter cartridge has a rated capacity of 500 gallons or approximately one year, whichever comes first. However, actual filter life can vary based on water quality and usage. It is recommended to replace the filter when:

• The flow rate significantly decreases.
• The taste or odor of the filtered water changes.
• The filter life indicator (if present) signals a replacement is due.

Prosedur Penggantian:

1. Turn off the cold water supply to the Aqualuxe system.
2. Open the Aqualuxe faucet to relieve pressure.
3. Follow the specific instructions in your detailed product manual for opening the Aqualuxe housing and removing the old filter.
4. Insert the new genuine Multipure Aqualuxe filter cartridge, ensuring it is seated correctly.
5. Tutup perumahan dengan selamat.
6. Slowly turn on the cold water supply and perform the initial flushing procedure as described in Section 4.4.

6.2 Pembersihan

Periodically wipe down the exterior of the Aqualuxe unit and the chrome faucet with a soft, damp kain. Jangan gunakan pembersih atau pelarut yang melelas, kerana ini boleh merosakkan kemasan.

7. Penyelesaian masalah

This section addresses common issues you might encounter with your Aqualuxe system.

If you experience a problem not listed here or if the suggested solutions do not resolve the issue, please contact Multipure customer support for assistance.

8. Spesifikasi

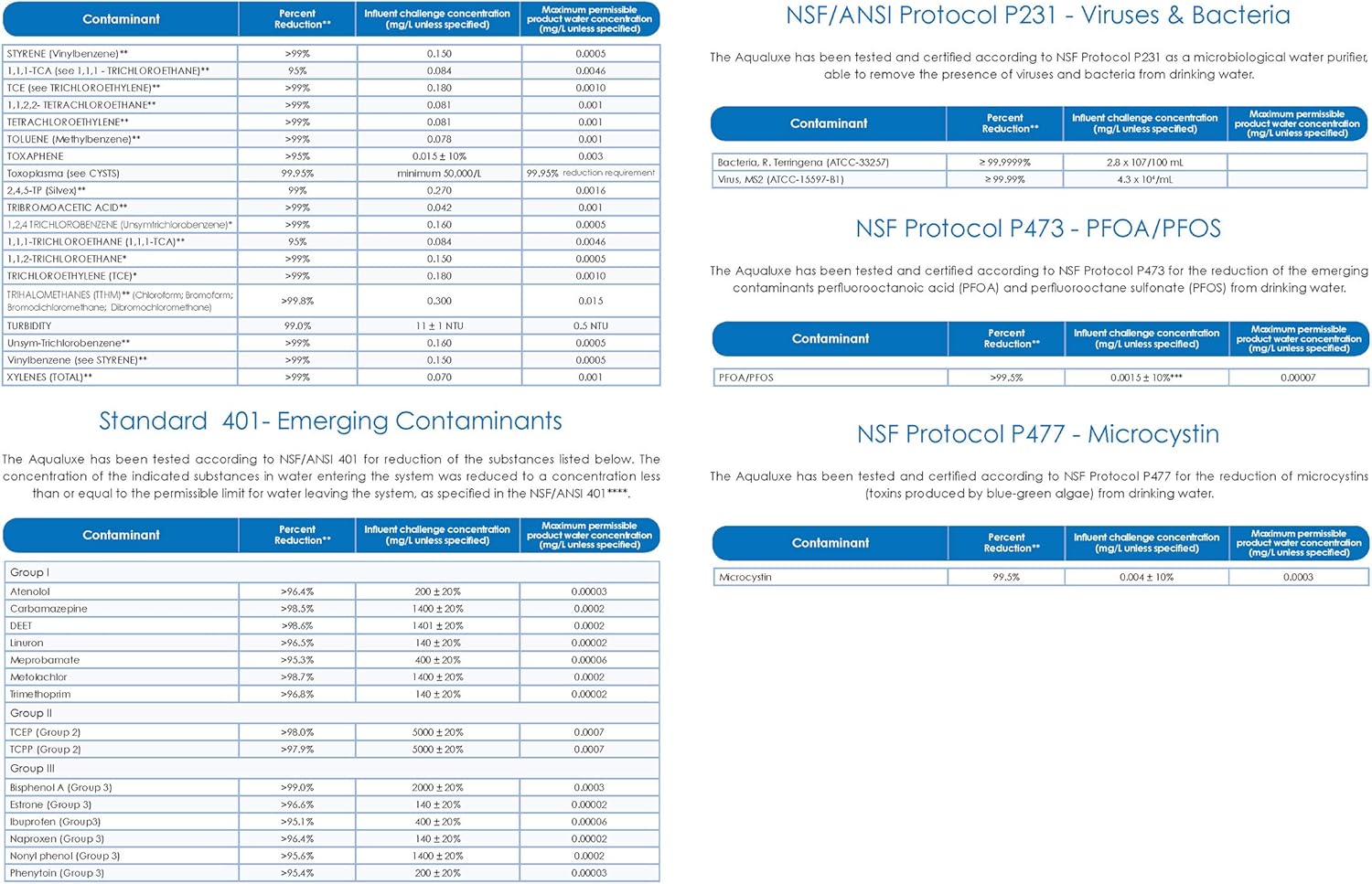

9. NSF Performance Data

The Multipure Aqualuxe has been independently tested and certified by NSF International for its ability to reduce a wide range of contaminants. Below are summaries of the performance data for various NSF standards and protocols.

9.1 NSF/ANSI 42 - Aesthetic Effects

Certified to treat contaminants affecting the aesthetic qualities of water, such as taste and odor.

9.2 NSF/ANSI 53 - Health Effects

Certified to treat contaminants that pose health risks, including lead, asbestos, and various organic compounds.

9.3 NSF/ANSI 401 - Emerging Contaminants/Incidental Compounds

Certified for the reduction of emerging contaminants and incidental compounds, such as pharmaceuticals and pesticides.

9.4 NSF Protocol P231 - Viruses & Bacteria

Certified for the reduction of microbiological contaminants, including viruses and bacteria.

9.5 NSF Protocol P473 - PFOA/PFOS

Certified for the reduction of perfluorooctanoic acid (PFOA) and perfluorooctane sulfonate (PFOS).

9.6 NSF Protocol P477 - Microcystin

Certified for the reduction of microcystins (toxins produced by blue-green algae).

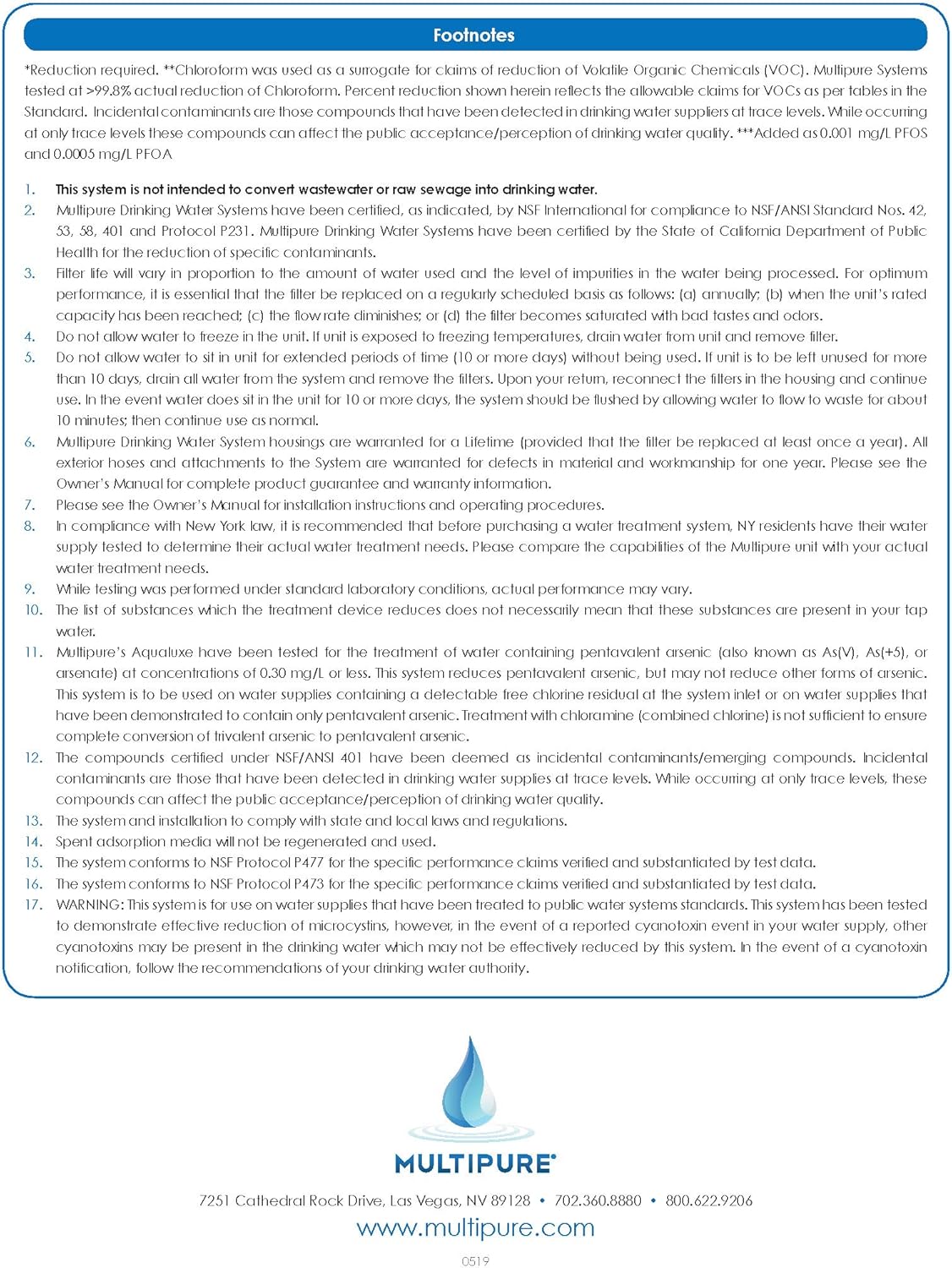

9.7 Footnotes and Important Considerations

Refer to the footnotes for detailed explanations regarding testing conditions, specific contaminant definitions, and operational guidelines.

10. Waranti dan Sokongan

Multipure stands by the quality of its products. The Aqualuxe system is warranted for defects in material and workmanship for one year from the date of purchase. Please retain your proof of purchase.

For complete product details, specifications, and the full warranty statement, please refer to the official Multipure webtapak atau hubungi terus sokongan pelanggan.

Sokongan Pelanggan: For any questions regarding installation, operation, maintenance, or troubleshooting that are not covered in this manual, please contact Multipure customer service.

• telefon: 800.622.9206
• Webtapak: www.multipure.com

Pulangan: All returns are subject to restocking fees plus shipping charges. Please review the return policy with Multipure or your seller before initiating a return.
