Sunbuck AS-29BU Stereo AmpManual Pengguna yang lebih hidup

pengenalan

This user manual provides detailed instructions for the operation and maintenance of your Sunbuck AS-29BU Karaoke Wireless Bluetooth Stereo Amplifier System. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage.

The Sunbuck AS-29BU is a compact yet powerful home audio amplifier receiver designed to enhance your listening experience. It features built-in Bluetooth for wireless audio streaming, support for SD cards and USB flash drives, FM radio, and RCA audio inputs. It is compatible with a wide range of devices including smartphones, tablets, PCs, and traditional audio equipment.

Kandungan Pakej

Selepas membuka pakej, sila sahkan bahawa semua item yang disenaraikan di bawah ada dan dalam keadaan baik:

• 1 x Sunbuck AS-29BU Bluetooth Amppenyambung (110V)
• 1 x Alat Kawalan Jauh
• 1 x Manual Pengguna (dokumen ini)

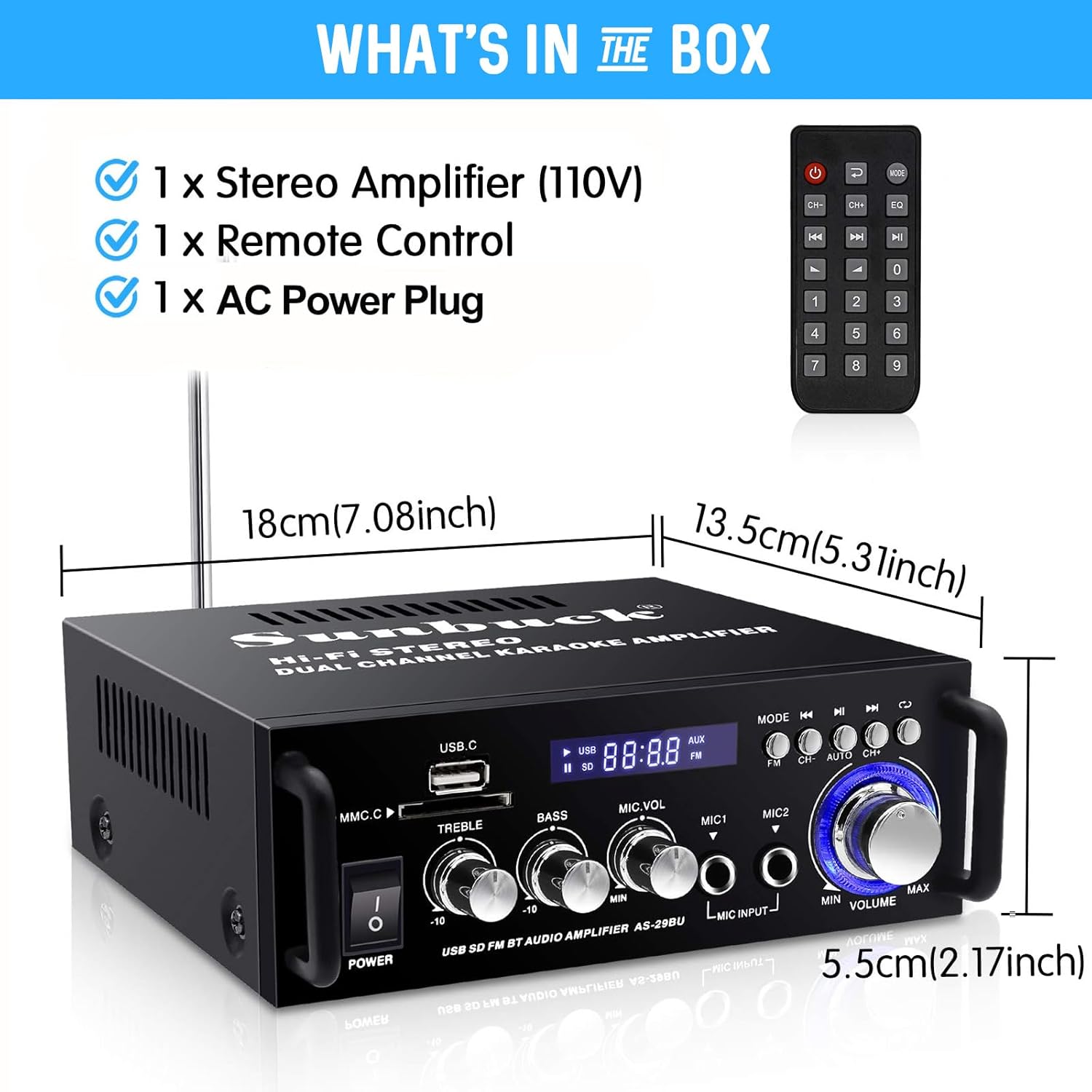

Figure 1: Package Contents and Dimensions. This image displays the amplifier unit, the remote control, and indicates the product dimensions: 18cm (7.08 inches) length, 13.5cm (5.31 inches) width, and 5.5cm (2.17 inches) height.

Produk Selesaiview

The Sunbuck AS-29BU amplifier features a user-friendly front panel and comprehensive rear panel connections for versatile audio setups.

Figure 2: Front Panel and Remote Control. This image shows the front of the amplifier with its various controls including power switch, USB and SD card slots, treble, bass, microphone volume controls, microphone inputs, mode selection, and master volume knob. The included remote control is also visible.

Figure 3: Rear Panel Connections. This image illustrates the rear panel of the amplifier, highlighting the RCA audio input (L/R), speaker system outputs (4Ω-16Ω), FM antenna input, and power input (DC12V/5A). It also shows various compatible devices such as TVs, Blu-ray players, outdoor speakers, computer speakers, ceiling speakers, and car/motorcycle speakers.

Figure 4: Compact Desktop Placement. This image shows the amplifier placed on a desk in front of a television, illustrating its compact size and suitability for various home or office environments.

Panduan Persediaan

1. Sambungan Kuasa

1. Memastikan ampSuis kuasa lifier berada dalam kedudukan MATI.
2. Connect the provided AC power plug to the "POWER DC INPUT" port on the rear panel of the amplebih hidup.
3. Plug the other end of the power cable into a standard 110V AC power outlet.

2. Sambungan Pembesar Suara

The amplifier supports 2.0 channel stereo output. Connect your passive speakers to the "SPEAKER SYSTEM 4Ω-16Ω" terminals on the rear panel.

1. Identify the positive (+) and negative (-) terminals on your speakers and on the amplebih hidup.
2. Connect the positive terminal of the left speaker to the "L+" terminal on the amplifier and the negative terminal to the "L-" terminal.
3. Repeat the process for the right speaker, connecting to the "R+" and "R-" terminals.
4. Ensure all connections are secure to prevent short circuits or poor audio quality.

3. Sambungan Input Audio

The amplifier offers multiple input methods:

Figure 5: Flexible and Diverse Input Methods. This image visually represents the various audio input options available on the amplifier, including Bluetooth, USB, SD card, CD/DVD players, microphone inputs, and FM radio.

• RCA Audio Input: Connect external audio sources (e.g., CD/DVD players, TVs, computers) to the "AUDIO INPUT (L/R)" RCA ports on the rear panel using an RCA cable.
• Kad USB/SD: Insert a USB flash drive or SD memory card into the respective slots on the front panel. The amplifier will automatically detect and play compatible audio files (WMA, WAV).
• Input Mikrofon: Connect up to two microphones to the "MIC INPUT" jacks on the front panel for karaoke or public address functions.
• Antena FM: Connect the FM antenna to the "FM ANT" port on the rear panel for improved radio reception.

Arahan Operasi

1. Hidupkan/Mati Kuasa

Press the "POWER" button on the front panel to turn the amplifier ON or OFF. The display will illuminate when the unit is powered on.

2. Kawalan Kelantangan

• Jumlah Induk: Rotate the large "VOLUME" knob on the front panel to adjust the overall output volume.
• Kelantangan Mikrofon: Use the "MIC.VOL" knob to adjust the volume of the connected microphones.

3. Kawalan Nada

Adjust the "TREBLE" and "BASS" knobs on the front panel to fine-tune the audio's high and low frequencies according to your preference.

4. Pemilihan Mod Input

Press the "MODE" button on the front panel or the remote control to cycle through available input sources: Bluetooth, USB, SD Card, FM Radio, and AUX (RCA input).

5. Operasi Bluetooth

Figure 6: Excellent Bluetooth Compatibility. This image demonstrates the amplifier's Bluetooth connectivity, showing a smartphone wirelessly streaming music to the unit.

1. Select "Bluetooth" mode using the "MODE" button. The display will show "BLUE" or a similar indicator.
2. Pada peranti anda yang didayakan Bluetooth (telefon pintar, tablet, PC), cari peranti Bluetooth yang tersedia.
3. Select "Sunbuck AS-29BU" or a similar name from the list to pair.
4. Setelah dipasangkan, anda boleh menstrim audio secara wayarles dari peranti anda ke amplebih hidup.

6. Main semula USB/Kad SD

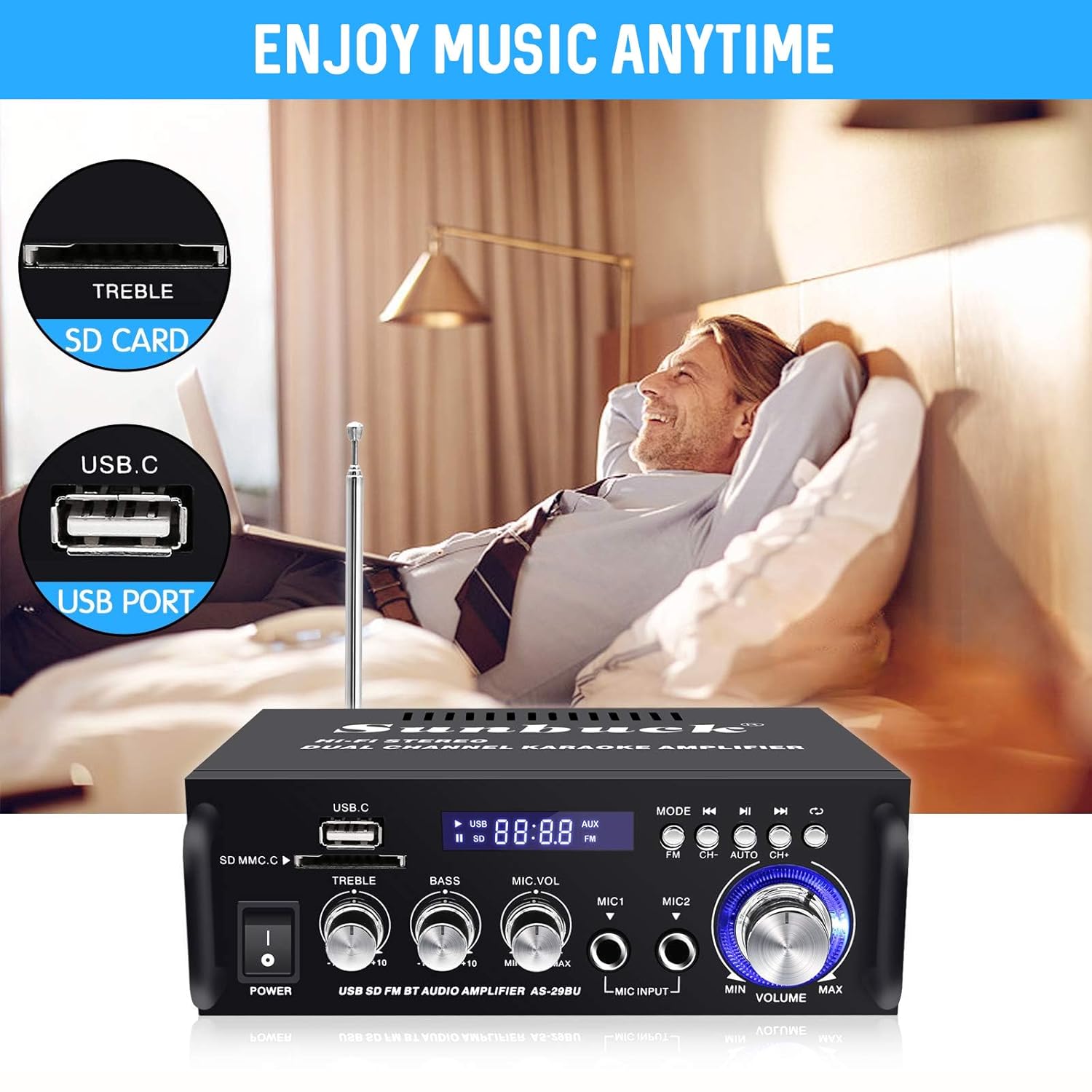

Figure 7: Enjoy Music Anytime with USB/SD Card. This image highlights the convenience of playing music directly from USB drives and SD cards inserted into the amplifier's front panel slots.

1. Insert a USB flash drive or SD card containing WMA or WAV audio files ke dalam slot yang sepadan.
2. The amplifier will automatically switch to USB/SD mode and begin playback.
3. Use the playback controls (Play/Pause, Next/Previous Track) on the front panel or remote control.

7. Operasi Radio FM

1. Select "FM" mode using the "MODE" button.
2. Press the "AUTO" button (or "CH+" / "CH-" for manual tuning) to scan and save available FM stations.
3. Use the "CH+" and "CH-" buttons to navigate through saved stations.

8. Alat Kawalan Jauh

The included remote control provides convenient access to all amplifier functions from a distance. Ensure line of sight to the amplifier's IR receiver for optimal performance.

Penyelenggaraan dan Penjagaan

• Pembersihan: Gunakan kain lembut dan kering untuk membersihkannya amplifier's exterior. Do not use liquid cleaners or abrasive materials, as they may damage the finish or internal components.
• Pengudaraan: Pastikan pengudaraan yang mencukupi di sekeliling amplifier. Do not block the ventilation openings, as this can lead to overheating.
• penempatan: Letakkan amplifier on a stable, flat surface away from direct sunlight, heat sources, and excessive moisture.
• Matikan: Sentiasa matikan amplifier and unplug it from the power outlet before performing any cleaning or maintenance.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

For warranty information and technical support, please refer to the documentation provided at the time of purchase or contact Sunbuck customer service. Keep your purchase receipt as proof of purchase for warranty claims.

For further assistance, please visit the official Sunbuck webtapak atau hubungi saluran sokongan mereka.
