SHIMANO FD-TY710 Tourney Front Derailleur Instruction Manual

1. Pengenalan

This manual provides detailed instructions for the installation, adjustment, operation, and maintenance of your SHIMANO FD-TY710 Tourney Front Derailleur. This component is designed for 7/8-speed double chainring bicycle systems and features a top swing, dual pull, multi-fit design. Please read these instructions carefully before use to ensure proper function and safety.

2. Produk Lebihview

The SHIMANO FD-TY710 Tourney Front Derailleur is a reliable component for recreational cycling, offering smooth and consistent shifting performance. Key features include:

• Speed Compatibility: Designed for 7-speed and 8-speed double chainring systems.
• Top Swing Design: The derailleur body pivots above the clamp pancaragam.
• Dual Pull: Compatible with both top-route and bottom-route shift cables.
• Multi-Fit Clamp: Adaptable to various seat tube diameters.

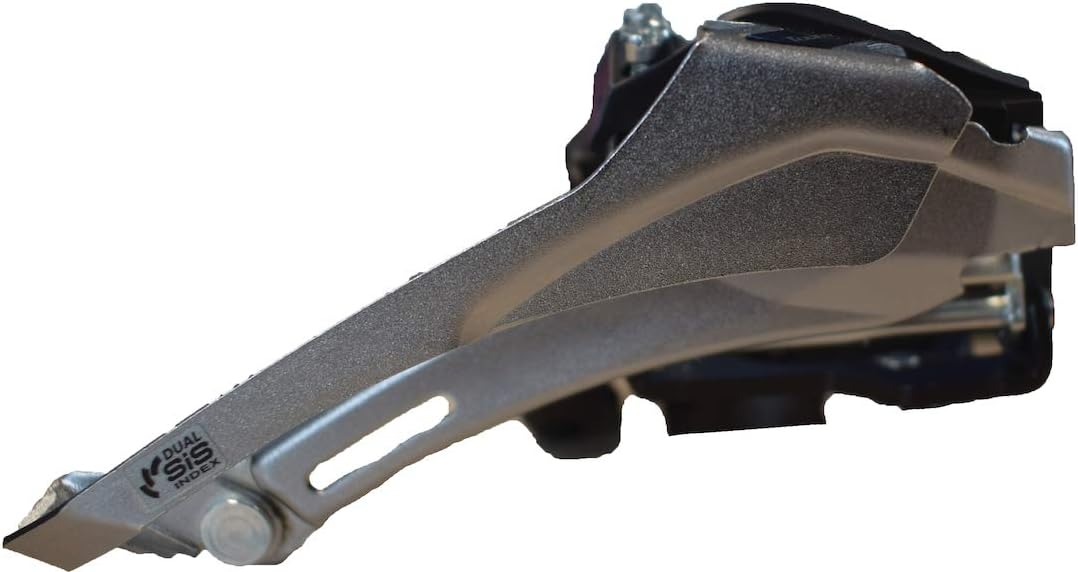

Figure 1: Close-up of the derailleur cage.

Figure 2: SHIMANO FD-TY710 Tourney Front Derailleur.

3. Persediaan dan Pemasangan

Proper installation is crucial for optimal performance and safety. If you are unsure about any steps, consult a professional bicycle mechanic.

3.1 Alat Diperlukan

• Hex wrenches (typically 4mm, 5mm)
• Pemotong kabel
• Torque wrench (recommended for precise tightening)
• Grease or anti-seize compound

3.2 Langkah-Langkah Pemasangan Asas

1. Pemasangan: Attach the derailleur to the bicycle's seat tube. The FD-TY710 is a multi-fit type, so ensure the correct adapter (if applicable) is used for your seat tube diameter. Position the outer cage plate parallel to the largest chainring, with a gap of 1-3mm between the bottom of the outer cage plate and the top of the largest chainring teeth.
2. Menjamin: Ketatkan clamp band bolt to the manufacturer's specified torque. Over-tightening can damage the frame or derailleur.
3. Penghalaan Kabel: Route the shift cable from your shifter to the derailleur. The FD-TY710 features a dual-pull design, allowing the cable to be routed from either the top or bottom of the frame. Secure the cable to the derailleur's cable fixing bolt, ensuring proper tension.
4. Limit Screw Adjustment: Adjust the high (H) and low (L) limit screws to prevent the chain from overshifting off the chainrings. The H-screw controls the outward movement, and the L-screw controls the inward movement.
5. Cable Tension Adjustment: Fine-tune the cable tension using the barrel adjuster on the shifter or derailleur (if present) to achieve smooth and precise shifting across both chainrings.

For detailed installation procedures, including specific torque specifications and cable routing diagrams, please refer to the official SHIMANO dealer manual for the FD-TY710 series, available on the SHIMANO webtapak.

4. Arahan Operasi

The SHIMANO FD-TY710 front derailleur facilitates shifting between your bicycle's two front chainrings. It is operated by your left-hand shifter.

• Shifting Up (to larger chainring): Push the main lever of your left-hand shifter to move the chain from the smaller chainring to the larger one. This provides a higher gear ratio for increased speed.
• Shifting Down (to smaller chainring): Push the release lever of your left-hand shifter to move the chain from the larger chainring to the smaller one. This provides a lower gear ratio for easier pedaling, especially on inclines.

Always shift smoothly and avoid excessive force. Do not attempt to shift the front derailleur while pedaling backward or under heavy load, as this can damage the drivetrain components.

5. Penyelenggaraan

Regular maintenance ensures optimal performance and extends the lifespan of your front derailleur.

• Pembersihan: Keep the derailleur body, cage, and pivot points clean from dirt, mud, and grime. Use a mild degreaser and a brush, then rinse with water and dry thoroughly.
• Pelinciran: Apply a small amount of bicycle-specific lubricant to the pivot points of the derailleur and the shift cable (if exposed) periodically. Avoid over-lubricating, as this can attract dirt.
• Pemeriksaan: Regularly check for any loose bolts, bent cage plates, or excessive play in the pivots. Ensure the shift cable is free from fraying, corrosion, or kinks.
• Cable Tension: Check and adjust cable tension as needed to maintain crisp and responsive shifting.

6. Penyelesaian masalah

Here are solutions to common issues you might encounter with your front derailleur:

• Problem: Chain rubs against the derailleur cage.
  Penyelesaian: This often indicates incorrect limit screw adjustment or cable tension. Adjust the high (H) or low (L) limit screws slightly. Ensure the derailleur is correctly aligned parallel to the chainrings.
• Problem: Difficulty shifting to the larger chainring.
  Penyelesaian: The cable tension might be too low. Increase cable tension using the barrel adjuster. Check for friction in the shift cable or housing. Ensure the H-limit screw is not set too tight, restricting outward movement.
• Problem: Difficulty shifting to the smaller chainring.
  Penyelesaian: The cable tension might be too high. Decrease cable tension using the barrel adjuster. Check for friction in the shift cable or housing. Ensure the L-limit screw is not set too tight, restricting inward movement.
• Problem: Derailleur feels stiff or sluggish.
  Penyelesaian: Clean and lubricate the pivot points. Check for bent components, damaged cable housing, or a corroded shift cable. Replace worn parts as necessary.

7. Spesifikasi

8. Maklumat Keselamatan

Always prioritize safety when working with or riding your bicycle.

• Ensure all components are correctly installed and torqued to manufacturer specifications. Loose components can lead to accidents.
• Regularly inspect your bicycle for wear and damage, especially safety-critical components like brakes, tires, and drivetrain.
• If you are unsure about any installation, adjustment, or repair procedure, consult a professional bicycle mechanic.
• Always wear appropriate safety gear, including a helmet, when cycling.

9. Waranti dan Sokongan

SHIMANO products are covered by a limited warranty. For specific warranty terms and conditions, please refer to the official SHIMANO website or consult your local authorized SHIMANO dealer.

For technical support, service, or replacement parts, please contact your authorized SHIMANO dealer or visit the official SHIMANO support page online.
