1. Pengenalan
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Fantech FLEX100H Heat Recovery Ventilator (HRV). The FLEX100H is designed to provide fresh air while recovering heat from exhaust air, improving indoor air quality and energy efficiency. Please read this manual thoroughly before proceeding with installation or operation.
2. Maklumat Keselamatan
Adherence to the following safety guidelines is crucial for preventing injury and ensuring proper unit function.
- All electrical wiring must be performed by a qualified electrician in accordance with local and national electrical codes.
- Pemasangan dan servis hanya boleh dilakukan oleh kakitangan yang berkelayakan.
- Disconnect power to the unit before performing any maintenance or servicing.
- Jangan kendalikan unit ini dengan pendawaian atau komponen yang rosak.
- Ensure all duct connections are sealed properly to prevent air leakage.
- Perkakas ini tidak dimaksudkan untuk digunakan oleh orang (termasuk kanak-kanak) yang kurang keupayaan fizikal, deria atau mental, atau kurang pengalaman dan pengetahuan, melainkan mereka telah diberi pengawasan atau arahan mengenai penggunaan perkakas oleh orang yang bertanggungjawab untuk keselamatan mereka.
3. Persediaan dan Pemasangan
3.1 Membongkar
Carefully remove the FLEX100H unit from its packaging. Inspect the unit for any signs of shipping damage. Report any damage to your supplier immediately. Retain all packaging materials for potential future transport or return.
3.2 Pemasangan
The FLEX100H can be mounted in various orientations. Ensure the mounting location allows for adequate access for maintenance, particularly filter replacement. The unit should be installed in a conditioned space to prevent condensation and optimize performance. Refer to the dimensional drawing for space requirements.
3.3 Sambungan Saluran
Connect the appropriate ductwork to the four ports on top of the unit. Ensure all connections are airtight using suitable clamps dan pengedap. Nota: The FLEX100H utilizes oval duct connections. Verify the availability of compatible oval ducting or appropriate adapters before installation. Reshaping round ducting to fit may be challenging and could compromise performance or sealing.
Rajah 1: Bahagian Luar view of the Fantech FLEX100H Heat Recovery Ventilator. This image shows the compact white casing with four top-mounted duct connections and the Fantech logo.

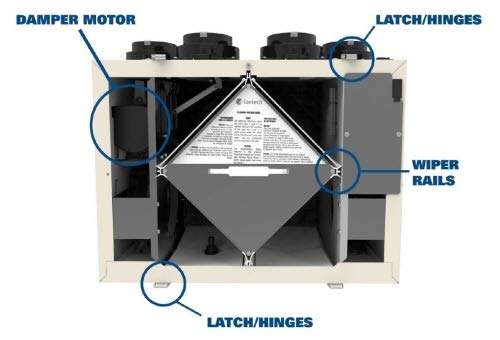

Gambar 2: Dalaman view of the Fantech FLEX100H with key components labeled. This image highlights the damper motor, latches/hinges, and wiper rails, providing insight into the unit's internal structure.
Figure 3: Dimensional drawing of the Fantech FLEX100H, showing various measurements (A, B, C, D, E, F) for installation planning. This diagram is essential for ensuring proper fit and clearance during installation.
4. Operasi
The Fantech FLEX100H operates automatically to exchange indoor and outdoor air, recovering heat in the process. The unit typically integrates with a wall control (sold separately or as part of a system) to manage fan speed and operating modes (e.g., continuous, intermittent, high speed). Refer to your wall control's manual for specific operating instructions.
- Operasi Berterusan: Provides constant ventilation at a set speed.
- Operasi sekejap: Cycles the unit on and off based on a timer or sensor input.
- High Speed Boost: Temporarily increases ventilation for rapid air exchange, often activated by a bathroom switch or humidity sensor.
5. Penyelenggaraan
Regular maintenance ensures optimal performance and longevity of your HRV unit.
5.1 Pembersihan/Penggantian Penapis
The FLEX100H is equipped with filters that should be cleaned or replaced periodically, typically every 3-6 months, depending on air quality and usage. Dirty filters reduce airflow and efficiency.
- Disconnect power to the unit at the circuit breaker.
- Open the access panel by releasing the latches/hinges (refer to Figure 2).
- Carefully slide out the filters.
- Clean filters with a vacuum cleaner or wash them with warm, soapy water. Ensure filters are completely dry before reinstallation. Replace filters if they are damaged or cannot be cleaned effectively.
- Reinsert the clean/new filters and close the access panel, ensuring latches are securely fastened.
- Kembalikan kuasa ke unit.

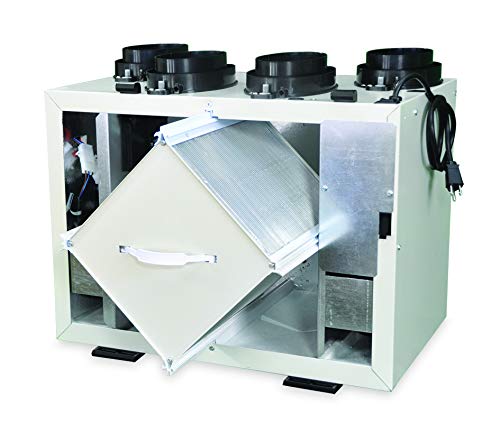

Figure 4: Image showing the access panel open and a filter being removed from the Fantech FLEX100H. This illustrates the process for filter maintenance.
5.2 Pembersihan Am
Periodically inspect the interior of the unit for dust buildup. Use a soft cloth or vacuum to clean internal surfaces. Do not use abrasive cleaners or solvents.
6. Penyelesaian masalah
This section provides solutions to common issues you might encounter with your FLEX100H HRV.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Unit tidak dihidupkan | No power supply; tripped circuit breaker; faulty wiring | Check power connection; reset circuit breaker; consult a qualified electrician. |
| Pengurangan aliran udara | Dirty filters; blocked ductwork; fan motor issue | Clean or replace filters; inspect ductwork for obstructions; contact Fantech support if fan motor is suspected. |
| Bunyi bising yang luar biasa dari unit | Loose components; fan imbalance; motor bearing wear | Ensure access panel is securely closed; inspect for loose parts; contact Fantech support for motor issues. |
| Pemeluwapan yang berlebihan | Improper drainage; unit installed in unconditioned space; extreme humidity difference | Verify condensate drain is clear and properly sloped; ensure unit is in conditioned space; adjust humidity settings if applicable. |
If troubleshooting steps do not resolve the issue, please contact Fantech customer support or a qualified HVAC technician.
7. Spesifikasi
The following are general specifications for the Fantech FLEX100H Heat Recovery Ventilator:
- Jenama: FANTECH
- model: FLEX100H
- Voltage: 12 Volt
- Wattage: 100 watt
- Jenis Penyambung Kuasa: 4-Pin
- Kaedah penyejukan: Udara Paksa
- Kelajuan Putaran Maksimum: 1800 RPM
- Bahan: Aluminum, Copper, Metal, Plastic
- Bilangan Item: 1
