Master & Dynamic MW07 True Wireless Earphones

pengenalan

The Master & Dynamic MW07 True Wireless Earphones are designed to deliver a premium audio experience with a focus on aesthetics, strength, comfort, and exceptional sound. These noise-isolating, in-ear wireless earbuds feature advanced acoustics, best-in-class connectivity, and innovative comfort technology for an immersive listening experience.

Crafted with a luxurious handcrafted marbled acetate design, the MW07 earphones are both modern and timeless, transforming the way you listen to your favorite music.

Apa yang ada dalam Kotak

Your Master & Dynamic MW07 True Wireless Earphones package includes the following components:

• MW07 True Wireless Earphones (Left and Right)
• Stainless Steel Charging Case
• Kabel Pengecasan USB-C ke USB-A
• Penyesuai USB-A
• 5 Pairs of Silicone Ear Tips (XS, S, M, L, XL)
• 2 Pairs of Silicone Fit Wings (Small, Large)
• Canvas Pouch for accessories

Figure 1: Included components of the MW07 True Wireless Earphones.

Produk Selesaiview

The MW07 earphones are engineered for superior sound and user convenience. Key features include:

• 10mm High-Performance Beryllium Drivers: Deliver rich, expansive sound across all music genres.
• Noise-Isolating Design: Provides a snug fit that reduces ambient noise for an immersive audio experience.
• Lightweight Slim Profile: Designed for comfortable, extended wear and easy portability.
• Handcrafted Marbled Acetate Construction: Offers a durable and aesthetically pleasing selesai.
• Hand-Polished Stainless Steel Charging Case: Provides elegant mobility and additional charges.

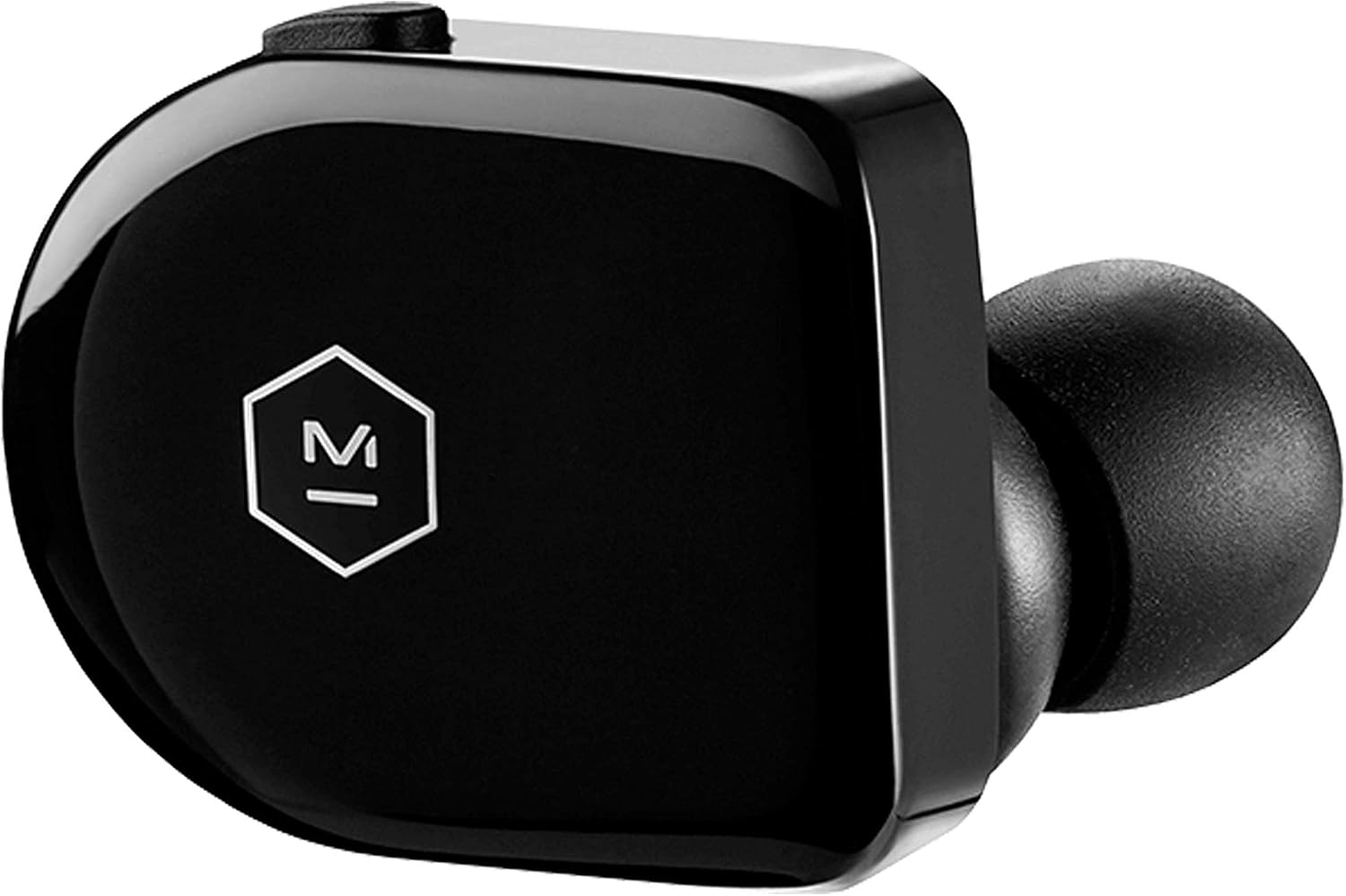

Rajah 2: Jarak dekat view of a single MW07 earbud.

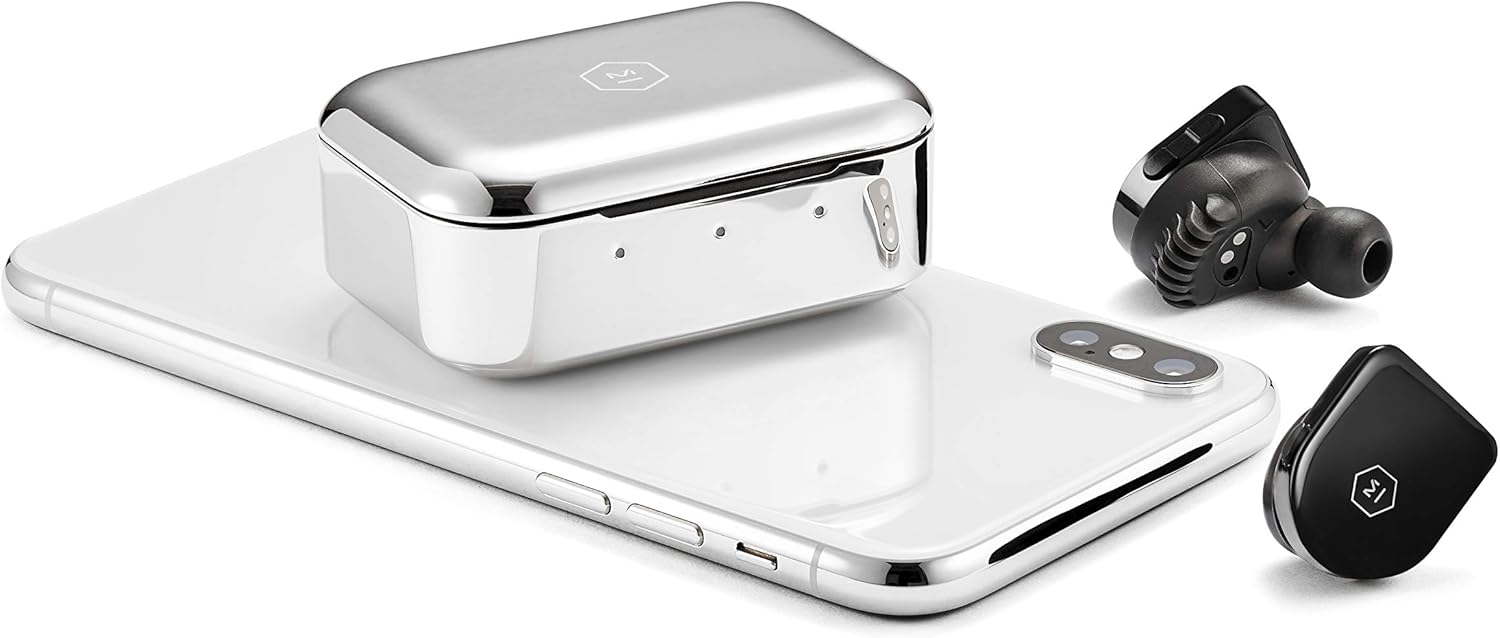

Figure 3: MW07 earbuds and charging case with a smartphone.

Persediaan

1. Mengecas Fon Telinga dan Sarung

Before first use, fully charge your MW07 earphones and the charging case. The case holds 3 additional charges, providing a total of 14 hours of listening time.

• Connect the provided USB-C to USB-A charging cable to the charging case and a power source.
• The indicator lights on the case will show the charging status:
  • merah: Bateri lemah
  • Amber: Bateri sederhana
  • hijau: Bateri penuh
• Place the earphones into the charging case. The earphone indicator lights will illuminate to show their charging status.
• A full charge for the earphones takes approximately 1.5 hours. The charging case can be charged to 50% in 15 minutes and 100% in 40 minutes.

Figure 4: Charging instructions (refer to the "充電方法" section).

2. Fitting the Earphones

Proper fit is crucial for optimal sound quality and noise isolation. The MW07 comes with various ear tips and patented silicone "fit wings" to ensure a secure and comfortable fit.

• Experiment with the 5 sizes of silicone ear tips to find the best seal for your ear canal.
• Select either the small or large silicone fit wings. These wings are designed to rest securely in the outer part of your ear.
• Gently insert the earphone into your ear, rotating it slightly until the fit wing sits comfortably and securely.

Figure 5: MW07 earbud with a silicone fit wing.

Figure 6: MW07 earbud properly seated in an ear.

3. Berpasangan dengan Peranti Anda

The MW07 earphones feature quick pairing Bluetooth 4.2 technology with a range of over 20 meters.

1. Pastikan fon telinga dicas dan diletakkan di dalam bekas pengecas.
2. Buka bekas pengecas. Fon telinga akan memasuki mod berpasangan secara automatik.
3. Pada peranti anda (telefon pintar, tablet, komputer), navigasi ke tetapan Bluetooth.
4. Select "MW07" from the list of available devices.
5. Once connected, the indicator light on the right earbud will turn solid blue.
6. For subsequent uses, simply remove the earphones from the charging case, and they will automatically connect to the last paired device.

Figure 7: Pairing instructions (refer to the "ペアリング" section).

Operating the Earphones

1. Kawalan

The MW07 earphones feature intuitive controls for media playback and calls:

• Right Earbud (Multifunction Button):
  • Akhbar Tunggal: Main/Jeda muzik.
  • Tekan dua kali: Langkau ke trek seterusnya.
  • Tiga Tekan: Langkau ke trek sebelumnya.
  • Tekan dan Tahan: Activate voice assistant (Siri, Google Assistant, etc.).
• Left Earbud (Volume Control):
  • Butang Naik Kelantangan: Tingkatkan kelantangan.
  • Butang Kurang Kelantangan: Kurangkan volum.

Figure 8: Earphone controls (refer to the "本体操作" section).

2. Automatic Play and Pause

The MW07 earphones are equipped with optical sensors that detect in-ear placement. This enables an automatic play and pause function:

• Music will automatically pause when you remove one or both earphones from your ears.
• Music will automatically resume when you place both earphones back into your ears.

3. Membuat dan Menerima Panggilan

Mikrofon terbina dalam membolehkan komunikasi yang jelas semasa panggilan.

• Menjawab / Menamatkan Panggilan: Single press the multifunction button on the right earbud.
• Menolak Panggilan: Press and hold the multifunction button on the right earbud.

Penyelenggaraan

To ensure the longevity and optimal performance of your MW07 earphones, follow these maintenance guidelines:

• Pembersihan: Lap fon telinga dan bekas pengecas dengan kerap menggunakan kain lembut, kering dan tidak berbulu. Jangan gunakan bahan kimia yang keras atau bahan yang melelas.
• Ear Tips and Fit Wings: Remove and clean the silicone ear tips and fit wings with mild soap and water. Ensure they are completely dry before reattaching.
• Storan: When not in use, always store the earphones in their charging case to protect them and keep them charged. Store the case in a cool, dry place away from extreme temperatures.
• Tahan Air: The MW07 earphones are water-resistant. However, they are not waterproof. Avoid submerging them in water or exposing them to heavy rain. Dry them thoroughly if they get wet.

Menyelesaikan masalah

If you encounter issues with your MW07 earphones, try the following troubleshooting steps:

Spesifikasi

Video Produk Rasmi

Waranti dan Sokongan

For detailed warranty information and customer support, please refer to the official Master & Dynamic webtapak atau panduan pengguna yang disediakan bersama produk anda.

A digital version of the user guide can be found here: Master & Dynamic MW07 User Guide (PDF)

Untuk bantuan lanjut, anda juga boleh melawati MASTER & DYNAMIC Store on Amazon.
