Sangean DT-800YL AM/FM/NOAA Weather Alert Pocket Radio Instruction Manual

pengenalan

This manual provides detailed instructions for the setup, operation, and maintenance of your Sangean DT-800YL AM/FM/NOAA Weather Alert Pocket Radio. Please read this manual thoroughly before using the device to ensure proper function and longevity.

Imej: Depan view of the Sangean DT-800YL radio, displaying its controls and screen.

Persediaan

1. Pemasangan Bateri

The DT-800YL requires AA batteries for operation. To install:

1. Cari petak bateri di belakang radio.
2. Luncurkan penutup petak bateri terbuka.
3. Masukkan bateri AA yang diperlukan, pastikan kekutuban yang betul (+/-).
4. Tutup penutup petak bateri dengan selamat.

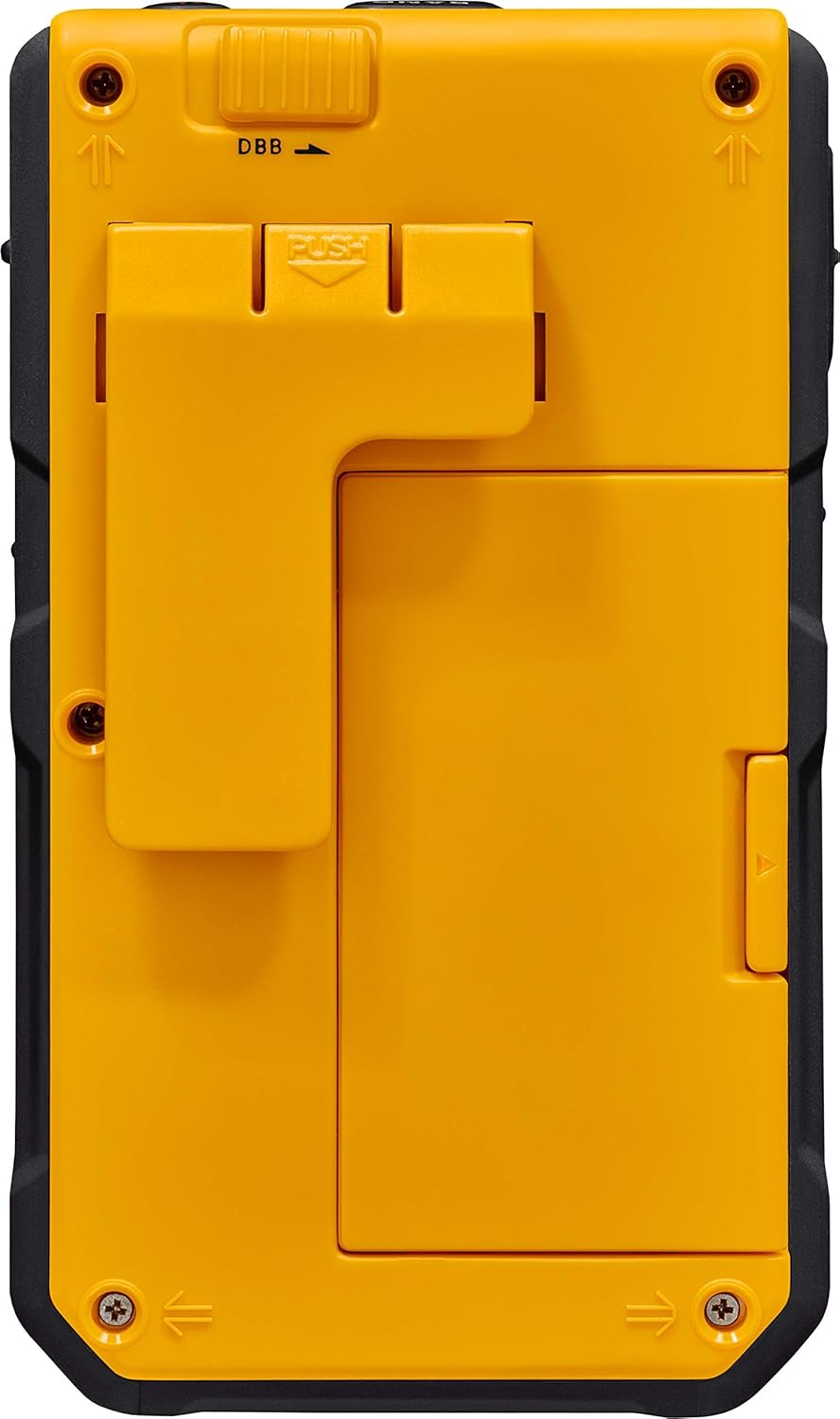

Imej: Belakang view of the radio, showing the battery compartment and removable belt clip.

2. Pengecasan Awal

The radio features a built-in battery charger. To charge the batteries:

1. Connect the provided power adapter to the DC IN (5V/0.5A) Micro USB B Type socket on the side of the radio.
2. Palamkan penyesuai kuasa ke soket elektrik standard.
3. The radio will begin charging the installed rechargeable batteries.

Imej: Sisi view of the radio with the Micro USB charging cable connected.

3. Memasang Belt Clip

A removable belt clip is included for portability. Align the clip with the designated slots on the back of the radio and slide it into place until it clicks securely.

Arahan Operasi

1. Hidupkan/Mati Kuasa

Tekan ke kuasa butang yang terletak di bahagian atas radio untuk menghidupkan atau mematikannya.

2. Penalaan dan Pemilihan Jalur

• Gunakan Penalaan up/down buttons on the side to manually adjust the frequency.
• Tekan ke Band button (often labeled as INFO or a dedicated band button) to switch between AM, FM, and NOAA Weather bands.
• The radio features an Mencari Stesen Auto function to find available stations automatically. Refer to the on-screen prompts or specific button for this feature.

3. Memory Station Presets

The DT-800YL allows for 45 memory station presets (20 FM, 20 AM, 5 WX).

1. Tune ke stesen yang dikehendaki.
2. Press and hold a numbered preset button (1-5) to save the current station.
3. Gunakan HALAMAN button to access different pages of presets.
4. To recall a saved station, simply press the corresponding numbered preset button.

4. Amaran Cuaca NOAA

The NOAA Weather Alert Emergency Channel provides critical alerts for extreme weather, police emergencies, child abductions, and other public awareness events.

• When an alert is issued, the radio will emit a loud tone.
• The LCD backlight will flash to indicate that the alert is active.
• You can select when the NOAA alert is active to conserve battery life. Consult the menu settings for this option.
• The radio receives all 7 NOAA Weather Channels for up-to-date weather information.

5. Penggalak Bes Dinamik (DBB)

Activate the Dynamic Bass Boost feature for enhanced low-frequency audio output, improving your stereo musical listening experience. This is typically controlled by a switch or button labeled DBB.

6. Suis Kunci

Gunakan Suis Kunci to prevent accidental changes to settings or station selection during transport or storage.

7. Adjustable Auto Shutoff

The radio features an adjustable auto shutoff function to conserve battery life. Access the menu settings to configure the desired shutoff time.

8. Softmute

The Softmute feature reduces background noise for clearer reception. This can be toggled on or off via a dedicated button or menu option.

9. Jam Penggera

The DT-800YL includes an alarm clock function. Refer to the radio's on-screen menu for setting the time and alarm preferences.

Penyelenggaraan

1. Pembersihan

Lap bahagian luar radio dengan lembut, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish. Ensure no liquid enters the device.

2. Penjagaan Bateri

• If using rechargeable batteries, ensure they are fully charged before extended use.
• If the radio will not be used for a long period, remove non-rechargeable batteries to prevent leakage.
• Only use the built-in charger for compatible rechargeable batteries.

Menyelesaikan masalah

• Tiada Kuasa: Check battery installation and charge level. Ensure the power adapter is correctly connected if using external power.
• Penerimaan yang lemah: Extend the antenna fully for FM/NOAA. For AM, try rotating the radio for better signal. Ensure you are not in an area with heavy interference.
• Tiada Bunyi: Check volume level. Ensure headphones are not connected if you expect sound from the speaker.
• NOAA Alert Not Activating: Verify that the NOAA alert function is enabled in the radio's settings. Ensure you are within range of a NOAA broadcast.
• Butang Tidak Responsif: Check if the Lock Switch is engaged. If so, disengage it. If the issue persists, try removing and reinserting batteries to reset the device.

Spesifikasi

Image: Dimensions of the Sangean DT-800YL radio.

Waranti dan Sokongan

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Sangean website. Specific warranty terms may vary based on region and retailer.
