HITBOX 100A MIG Welding Gun (10ft) Instruction Manual

1. Produk Lebihview

This manual provides instructions for the HITBOX 100A MIG Welding Gun, a 10-foot (3-meter) replacement torch designed for compatibility with various Miller M-series welders. This welding gun is suitable for MIG (GMAW) and Flux Cored (FCAW) processes, offering reliable performance for a range of welding applications.

Ciri-ciri Utama:

• 10-foot (3m) cable length for extended reach.
• Dinilai untuk 100 Amperes.
• Compatible with Miller M-series consumables.
• Designed to feed .030-.035 inch (0.8-0.9 mm) diameter welding wire.
• Ergonomic handle for comfortable grip and reduced fatigue.
• Electrically insulated metal jacket on the gun tube for optimized fine wire welding.
• Abrasion-resistant extruded rubber jacket on the cable for durability.

Keserasian: This MIG gun is compatible with Miller M-100 (M-10) MIG guns and can be used with models such as Miller SideKick, SideKick XL/Cricket XL/Millermatic 90, Millermatic 130/130XP/135/140s/175/180s/DVIs /211, Challenger, Challenger 172, Passport/Passport Plus, or Hobart IronMan 210.

2. Maklumat Keselamatan

Sentiasa mengutamakan keselamatan semasa mengendalikan peralatan kimpalan. Kegagalan mematuhi garis panduan keselamatan boleh mengakibatkan kecederaan serius atau kematian.

• Perlindungan Mata dan Muka: Sentiasa pakai topi keledar kimpalan dengan kanta pelindung yang sesuai untuk melindungi mata dan muka anda daripada sinaran arka dan percikan api.
• Pakaian Pelindung: Wear flame-resistant clothing, heavy-duty gloves, and safety shoes to protect against burns and electrical shock.
• Pengudaraan: Ensure adequate ventilation to remove welding fumes and gases from the work area. If working in confined spaces, use a respirator.
• Pencegahan Kebakaran: Keep a fire extinguisher nearby. Remove all flammable materials from the welding area. Sparks and hot metal can travel a significant distance.
• Keselamatan Elektrik: Ensure the welding machine is properly grounded. Do not touch live electrical parts. Inspect cables and connections for damage before each use.
• Kawasan Kerja: Pastikan kawasan kerja bersih dan bebas daripada kekusutan. Pastikan tapak kaki stabil.
• Read Welder Manual: Always refer to your welding machine's instruction manual for specific safety precautions and operating procedures.

3. Persediaan

Proper setup is crucial for safe and effective welding. Follow these steps to prepare your HITBOX MIG Welding Gun for use.

3.1 Membongkar dan Pemeriksaan

• Carefully remove the welding gun from its packaging.
• Inspect the gun, cable, and connector for any signs of shipping damage. Do not use if damaged.
• Ensure all components, including the nozzle, contact tip, and gas diffuser, are present.

3.2 Connecting the Welding Gun

1. Matikan: Ensure your welding machine is turned off and unplugged from the power source.
2. Cari Port Sambungan: Identify the MIG gun connection port on your welding machine. This is typically a multi-pin connector for power, gas, and trigger control.
3. Sisipkan Penyambung: Align the rear connector of the HITBOX MIG gun with the corresponding port on your welder. Push firmly until it is securely seated.
4. Sambungan Selamat: If your welder has a locking mechanism (e.g., a collar or nut), tighten it to ensure a stable connection.

3.3 Pemasangan Bahan Habis

The MIG gun uses Miller M-series consumables. Ensure you have the correct size for your welding wire.

1. Gas Diffuser: Screw the gas diffuser onto the gun neck.
2. Petua Hubungan: Select the appropriate contact tip for your wire size (.030-.035 inch). Screw the contact tip firmly into the gas diffuser.

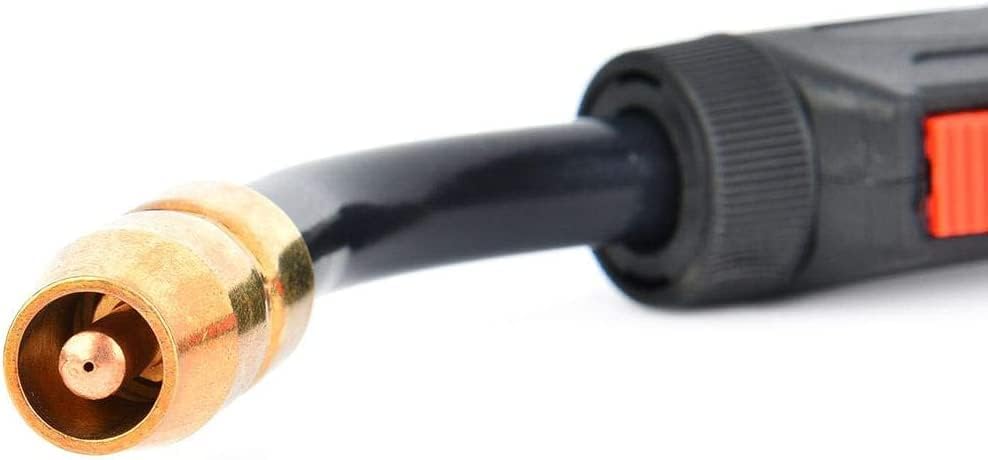

3. muncung: Slide the nozzle over the contact tip and gas diffuser. Ensure it is securely seated.

3.4 Wire Feeding

Refer to your welding machine's manual for specific instructions on loading welding wire. Generally:

1. Open the wire feeder compartment.
2. Load the wire spool onto the spindle.
3. Thread the wire through the drive rolls and into the gun liner.
4. Close the drive roll tension arm and adjust tension as needed.
5. With the gun pointed away from yourself and others, press the trigger to feed the wire through the gun until it exits the contact tip.

4. Arahan Operasi

Once the MIG gun is properly set up, you can begin welding. Always wear appropriate personal protective equipment (PPE).

4.1 Operasi Asas

1. Hidupkan kuasa: Turn on your welding machine.
2. Aliran Gas: Open the gas cylinder valve and set the gas flow rate (typically 15-25 CFH for MIG welding with shielding gas).
3. Tetapkan Parameter: Laraskan voltage and wire feed speed on your welding machine according to the material thickness and wire type. Consult your welder's chart for recommended settings.
4. Tanah Clamp: Pasang tanah tanahamp dengan selamat pada benda kerja atau meja kimpalan, memastikan sentuhan elektrik yang baik.
5. Position Gun: Position the MIG gun over the joint to be welded, maintaining the correct stick-out (distance from contact tip to workpiece).
6. Mulakan Arka: Press the trigger on the MIG gun to start the wire feed and initiate the welding arc.
7. Kimpalan: Maintain a consistent travel speed and gun angle to create a uniform weld bead.
8. Pencetus Lepaskan: Lepaskan picu untuk menghentikan kimpalan.

5. Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your HITBOX MIG Welding Gun.

5.1 Penyelenggaraan Harian

• muncung bersih: Remove spatter from the nozzle using pliers or a nozzle reamer. Excessive spatter can obstruct gas flow.
• Inspect Contact Tip: Check the contact tip for wear, enlargement of the bore, or excessive spatter. Replace if necessary.
• Check Gas Diffuser: Ensure the gas diffuser is clean and free of obstructions.

5.2 Penyelenggaraan Berkala

• Periksa Kabel: Check the entire length of the welding cable for cuts, abrasions, or kinks. Damaged cables can pose electrical hazards.
• Semak Sambungan: Ensure all electrical and gas connections are tight and secure.
• Pemeriksaan Pelapik: If wire feeding issues occur, the gun liner may need cleaning or replacement. Consult your welder's manual for liner maintenance.

6. Penyelesaian masalah

Bahagian ini menangani isu biasa yang mungkin anda hadapi semasa operasi.

7. Spesifikasi

8. Waranti dan Sokongan

For warranty information, technical support, or replacement parts, please contact HITBOX customer service through their official webtapak atau peruncit tempat produk dibeli. Simpan resit pembelian anda sebagai bukti pembelian.
