Delta Faucet 77660-BL Stryke Universal Toilet Tank Lever User Manual

1. Pengenalan dan Lebihview

This manual provides essential information for the installation, operation, and maintenance of your Delta Faucet 77660-BL Stryke Universal Toilet Tank Lever. The Stryke Bath Collection features a robust design with an assured stature and ascending contours, making this transitional flush lever suitable for various bathroom styles.

Figure 1: Delta Faucet 77660-BL Stryke Universal Toilet Tank Lever, Flat Black.

2. Ciri-ciri Produk

• Kemasan Hitam Matte: Creates a sophisticated aesthetic and coordinates with various fixtures and accents.
• Pembinaan Tahan Lama: Features a long-lasting finish designed to resist corrosion, tarnish, and discoloration.
• Zinc Die Cast Material: Ensures reliability and durability for extended use.
• Keserasian Universal: Designed to fit most American right and left mounted toilets.
• Coordinated Design: Complements other accessories within the Stryke bath collection.

3. Kandungan Pakej

The following items are typically included with your Delta Faucet 77660-BL Stryke Universal Toilet Tank Lever:

• Tuas Tangki Tandas
• Arahan Pemasangan
• Perkakasan Pemasangan

4. Persediaan dan Pemasangan

For detailed installation instructions, including step-by-step guides and diagrams, please refer to the official Installation Manual PDF provided by Delta Faucet. This document contains critical information for proper and secure installation.

Muat Turun Manual Pemasangan Rasmi (PDF)

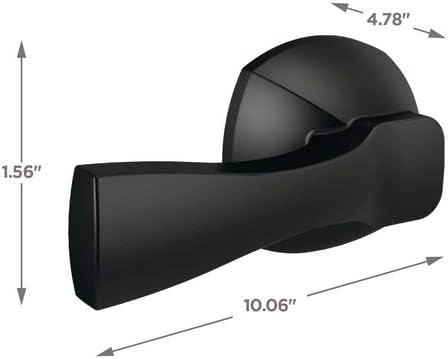

Figure 2: Product dimensions of the toilet tank lever (10.06"L x 4.78"W).

Nota Pemasangan Umum:

• Ensure the toilet's water supply is turned off before beginning installation.
• Remove the old tank lever by unscrewing the nut from the inside of the toilet tank.
• Insert the new lever through the hole in the toilet tank and secure it with the provided hardware.
• Attach the lift chain or rod from the flapper to the lever arm, ensuring proper tension for a complete flush and seal.
• Test the flush mechanism and adjust as necessary.

5. Arahan Operasi

The Delta Faucet 77660-BL Stryke Universal Toilet Tank Lever operates by a simple downward press. To flush the toilet:

1. Locate the tank lever on the front or side of your toilet tank.
2. Gently press the lever downwards. This action lifts the flapper inside the tank, allowing water to flow into the bowl and initiate the flush cycle.
3. Release the lever once the flush is complete. The flapper will return to its closed position, and the tank will begin to refill.

Ensure the lever returns to its original position after each flush to prevent continuous water flow and conserve water.

6. Penyelenggaraan

Proper care and maintenance will help preserve the finish and functionality of your toilet tank lever.

• Pembersihan: Clean the lever regularly with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the matte black finish.
• Pemeriksaan: Periodically check the connection of the lift chain/rod to the flapper and the lever arm. Ensure it is securely attached and has appropriate tension.
• Pelinciran: No lubrication is typically required for the lever mechanism itself.

7. Penyelesaian masalah

If you encounter issues with your toilet tank lever, consider the following common troubleshooting steps:

• Siram Lemah:
  • Check the flapper chain: Ensure it is not too loose or too tight. A loose chain may not lift the flapper enough, while a tight chain may prevent it from sealing properly.
  • Inspect the flapper: Ensure it is sealing correctly at the bottom of the tank.
• Lever Not Returning to Original Position:
  • Check for obstructions: Ensure nothing is impeding the lever's movement inside or outside the tank.
  • Verify installation: Re-check the mounting hardware to ensure it is not overtightened or misaligned, which could cause friction.
• Air Berterusan:
  • Adjust the flapper chain: If the chain is too tight, it might be holding the flapper slightly open.
  • Inspect the flapper: A worn or damaged flapper may not create a proper seal.

If problems persist, consult the full installation manual or contact Delta Faucet customer support.

8. Spesifikasi

9. Maklumat Waranti

Delta Faucet products are manufactured to high standards of quality and performance. For specific warranty details pertaining to your Stryke Universal Toilet Tank Lever, please refer to the documentation included with your product or visit the official Delta Faucet website. Warranty coverage typically includes defects in material and workmanship.

10. Sokongan Pelanggan

Should you require further assistance, have questions about installation, or need to report a product issue, please contact Delta Faucet customer support. Contact information can typically be found on the official Delta Faucet webtapak atau dalam pembungkusan produk.

Sumber Dalam Talian: www.deltafaucet.com
