1. Produk Lebihview
The GIRA Universal-LED Power Add-on Module 238300 is an original GIRA electrical component designed to enhance the functionality of LED lighting systems. This robust and durable module is engineered for reliable performance in various electrical installations.
Ciri-ciri utama termasuk:
- High-quality material construction for durability.
- Flexible design for versatile application.
- Ideal quality ensuring optimal performance.

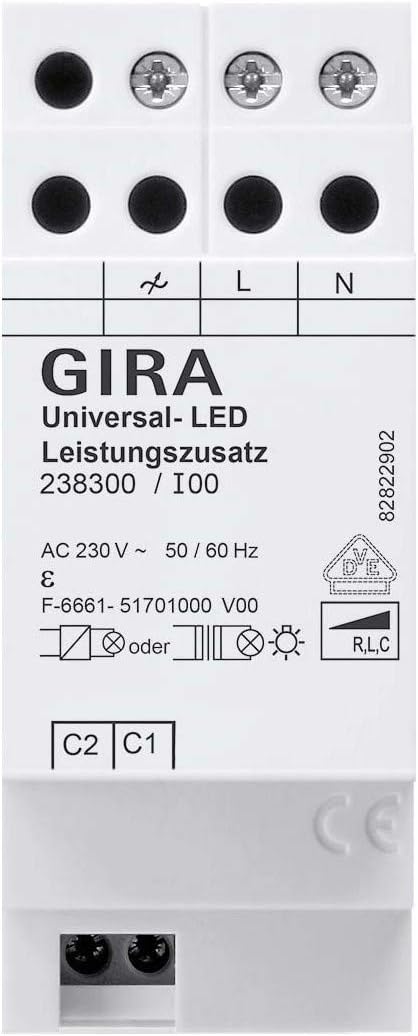

Rajah 1: Depan view of the GIRA Universal-LED Power Add-on Module 238300. The module is white with black text and symbols. Visible labels include "GIRA Universal-LED Leistungszusatz 238300 / I00", "AC 230 V ~ 50/60 Hz", and connection terminals marked "L", "N", "C1", "C2". Electrical symbols indicate compatibility with resistive, inductive, and capacitive loads, and dimming functionality. The CE mark is also visible.
2. Maklumat Keselamatan
Always observe the following safety instructions to prevent personal injury and damage to the product or connected devices:
- Installation and maintenance must only be carried out by a qualified electrician.
- Before any work on the device, disconnect the power supply.
- Pastikan vol operasitage and frequency (AC 230 V ~ 50/60 Hz) match your electrical system.
- Jangan dedahkan peranti kepada kelembapan atau suhu yang melampau.
- Do not open the device housing. There are no user-serviceable parts inside.
3. Pemasangan dan Persediaan
The GIRA Universal-LED Power Add-on Module 238300 is designed for integration into existing electrical installations. Refer to the wiring diagram on the device and consult local electrical codes.
3.1 Sambungan Pendawaian
The module features clearly marked terminals for connection:
- L (Line): Connect to the live phase conductor (AC 230 V).
- N (Neutral): Connect to the neutral conductor.
- C1, C2: These are control terminals, typically for connecting to a dimmer or switch for LED load control. Refer to the specific wiring diagram provided with your LED lighting system or dimmer.
- The symbol with 'R,L,C' indicates compatibility with resistive, inductive, and capacitive loads, which is typical for universal dimmers or power factor correction.
Ensure all connections are secure and properly insulated. After wiring, restore power and test the functionality.
4. Arahan Operasi
This module functions as an add-on for Universal-LED systems, primarily to ensure stable operation and compatibility with various LED loads, especially in dimming applications. Once correctly installed, its operation is typically integrated with the connected LED lighting and control device (e.g., a dimmer).
- The module automatically adapts to the connected LED load characteristics.
- It helps to prevent flickering or instability often associated with dimming certain LED types.
- Operation is passive and requires no direct user interaction after installation.
5. Penyelenggaraan dan Penjagaan
The GIRA Universal-LED Power Add-on Module 238300 requires minimal maintenance.
- Pembersihan: Disconnect power before cleaning. Use a soft, dry cloth to wipe the surface. Do not use abrasive cleaners, solvents, or excessive moisture.
- Pemeriksaan: Periodically inspect the module and its connections for any signs of damage, loose wiring, or overheating. If any issues are observed, disconnect power immediately and consult a qualified electrician.
- pembaikan: This device is not user-serviceable. Do not attempt to repair it yourself.
6. Penyelesaian masalah
If you experience issues with your GIRA Universal-LED Power Add-on Module, consider the following common troubleshooting steps:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| LEDs flickering or unstable | Incorrect wiring; Incompatible LED load; Overload. | Verify all wiring connections are correct and secure. Ensure the connected LED load is within the module's specifications. Consult a qualified electrician. |
| Module not functioning | No power supply; Faulty connections; Damaged module. | Check power supply to the circuit. Inspect all connections. If the module is damaged, it must be replaced by a qualified professional. |
| Isu peredupan | Incompatible dimmer; Incorrect dimmer settings. | Ensure the dimmer used is compatible with universal LED modules and the specific LED load. Refer to the dimmer's instruction manual for settings. |
If the problem persists after attempting these steps, contact a qualified electrician or GIRA customer support.
7. Spesifikasi
| Atribut | Perincian |
|---|---|
| Pengeluar | GIRA |
| Nombor Bahagian | 238300 |
| Nombor Model | 238300 |
| Dimensi Produk | 1 x 1 x 1 cm |
| Berat badan | 159 Gram |
| warna | Not specified (visually white) |
| Bilangan Item dalam Pakej | 1 |
| Komponen yang Disertakan | Perkakasan pemasangan |
| ASIN | B07L12T8JH |
| Tarikh Tersedia Pertama | 15 Januari 2020 |
| Vol Operasitage | AC 230 V ~ 50/60 Hz |
| Keserasian Beban | Resistive (R), Inductive (L), Capacitive (C) |
8. Waranti dan Sokongan
Specific warranty information for the GIRA Universal-LED Power Add-on Module 238300 is not provided in this document. Please refer to the manufacturer's official website or contact your point of purchase for detailed warranty terms and conditions.
For technical support or further assistance, please contact GIRA customer service or a certified GIRA installer.
