1. Produk Lebihview
This document provides instructions for the Geekpure C-RO3-100G replacement filter set, designed for 3-stage portable aquarium reverse osmosis water filter systems. This set includes a PP Sediment Cartridge, a Carbon Filter, and an RO Membrane, essential for maintaining water quality for sensitive applications like aquariums.
Imej 1: Selesaiview of the Geekpure C-RO3-100G Replacement Filters Set.
2. Product Components and Functions
The Geekpure C-RO3-100G filter set consists of three distinct stages, each performing a critical function in the water purification process:
- PP Sediment Cartridge (1st Stage): This filter reduces particulate materials such as sand, silt, and rust from the water. It acts as the first line of defense, protecting subsequent filters.
- Carbon Filter (2nd Stage): This filter is designed to reduce chlorine, unpleasant tastes, and odors, along with very fine particulates, improving the overall quality and taste of the water.
- RO Membrane (3rd Stage): The Reverse Osmosis membrane is the core of the system, capable of reducing up to 99% of total dissolved minerals, arsenic, lead, fluoride, mercury, cadmium, and other contaminants.

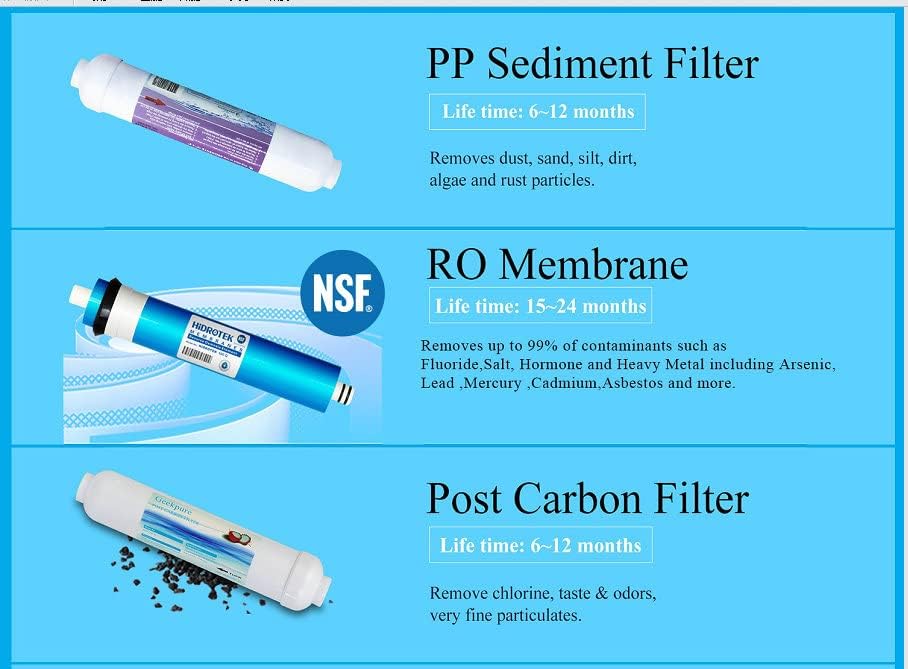

Imej 2: Terperinci view of the three filter stages, their functions, and estimated service life.
Reverse Osmosis Membrane Detail
The RO membrane utilizes a multilayer rolling design for efficient water purification. It has a micron rating of 0.0001, allowing it to remove a wide range of contaminants. The typical wastewater ratio for this system is 1:2, meaning approximately 2 gallons of wastewater are produced for every gallon of pure water.
Image 3: Internal diagram of the Reverse Osmosis Membrane, showing water flow and filtration layers.
3. Spesifikasi
| Atribut | Nilai |
|---|---|
| bahan | PP&Carbon, TFC membrane |
| Dimensi Produk | 2"D x 2"W x 10"H |
| Berat Barang | 1.76 paun |
| Pensijilan Ujian Luaran | NSF |
| Bilangan Item | 3 (filters) |
| Nombor Model | C-RO3-100G |
| UPC | 610895384880 |
4. Keadaan Operasi
For optimal performance and longevity of the filter set, adhere to the following operating conditions:
- Tekanan Air Suapan: 40 - 100 PSI
- Suhu: 40-110°F (5-45°C)
- pH: 3.0 - 11.0
- Maximum TDS (Total Dissolved Solids): 1000 PPM
- Kekeruhan: <1.0 NTU
- Maximum SDI (Silt Density Index): <4.0
- Kekerasan: <5 GPG
Image 4: Performance charts illustrating the effect of feed pressure and temperature on water production rate.
5. Pemasangan dan Persediaan
Follow these guidelines during installation to ensure proper function and prevent leaks:
- It is recommended to wait until the entire system is pressurized and re-check for any leaks before finalizing the installation.
- Before using the filters to feed your aquarium, flush the filters for 30 minutes. This helps remove any manufacturing residues.
- It is normal for some black carbon fines to appear when flushing the carbon filter initially. This will clear up with continued flushing.
- When connecting tubing, push it all the way in to ensure a secure fit. Use Teflon tape on threaded connections to prevent leaks.
6. Penyelenggaraan dan Penggantian Penapis
Regular maintenance, including timely filter replacement, is crucial for the continued efficiency and safety of your reverse osmosis system. The lifespan of filter cartridges depends on usage amount and feed water quality.
- PP Sediment Cartridge: Replace every 6-12 months.
- Penapis Karbon: Replace every 6-12 months.
- Membran RO: Replace every 15-24 months.
Always flush new filters as described in the Installation section after replacement.
7. Sokongan
For technical assistance or inquiries regarding your Geekpure filter set, 24/7 technical support is available. Please refer to the contact information provided with your original system documentation or visit the official Geekpure webtapak untuk butiran sokongan.
