Hudson Valley Lighting MDS700-AGB Sphere No.1-1 Light Pendant User Manual

1. Pengenalan dan Lebihview

Thank you for choosing the Hudson Valley Lighting MDS700-AGB Sphere No.1-1 Light Pendant. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before beginning installation and retain them for future reference.

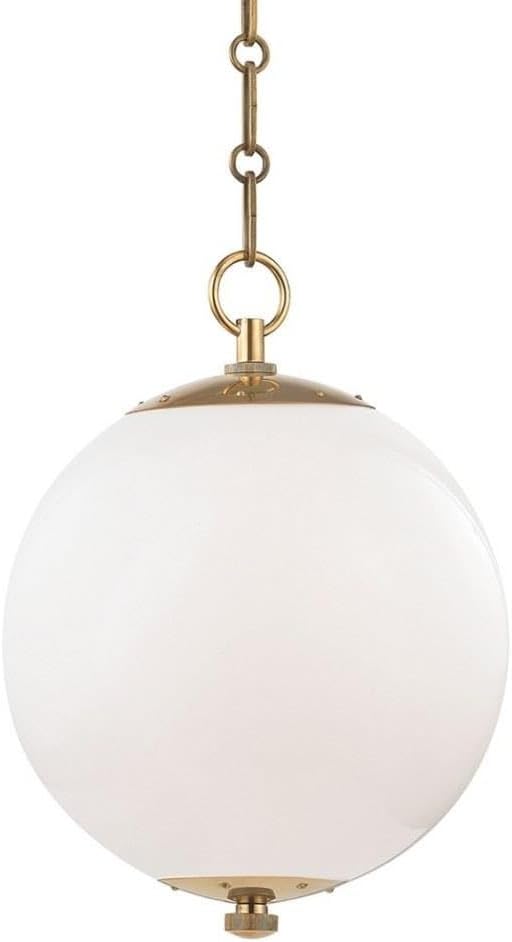

Image 1.1: Hudson Valley Lighting MDS700-AGB Sphere No.1-1 Light Pendant, featuring an aged brass finish and an opal glass sphere.

The MDS700-AGB is a transitional one-light pendant designed for indoor use, featuring an aged brass finish and a distinctive spherical glass shade. It measures approximately 11.25 inches in width and 15.25 inches in height, providing elegant illumination for various indoor spaces.

2. Maklumat Keselamatan

AMARAN: Risiko renjatan elektrik. Putuskan sambungan kuasa pada kotak fius atau pemutus litar sebelum pemasangan atau servis.

• Semua sambungan elektrik mestilah mengikut kod tempatan, ordinan atau Kod Elektrik Kebangsaan (NEC). Rujuk juruelektrik bertauliah jika anda tidak biasa dengan sambungan pendawaian elektrik yang betul.
• Lekapan ini bertujuan untuk kegunaan dalaman sahaja. Jangan dedahkan kepada air atau kelembapan.
• Pastikan permukaan pelekap boleh menyokong berat lekapan.
• Gunakan hanya jenis mentol dan wat yang ditentukantage (E26 Medium base, 100W max incandescent). Exceeding the maximum wattage boleh menyebabkan terlalu panas dan kerosakan pada lekapan.
• Jangan cuba mengubah suai lekapan. Sebarang pengubahsuaian boleh membatalkan waranti dan menimbulkan bahaya keselamatan.
• Kendalikan komponen kaca dengan berhati-hati bagi mengelakkan kerosakan dan kecederaan.

3. Kandungan Pakej

Carefully unpack your fixture and identify all parts. Keep all packaging materials until you are sure all parts are present and in good condition. If any parts are missing or damaged, do not attempt to assemble or install the fixture.

• 1 x Hudson Valley Lighting MDS700-AGB Sphere No.1-1 Light Pendant
• Mounting Hardware (e.g., mounting plate, screws, wire nuts)
• Manual Arahan

Nota: Mentol tidak disertakan dan mesti dibeli secara berasingan.

4. Persediaan dan Pemasangan

Assembly of this fixture is required. It is recommended that installation be performed by a qualified electrician.

4.1 Pra-Pemasangan

1. Matikan kuasa: Cari pemutus litar atau kotak fius dan matikan kuasa ke kotak simpang tempat lekapan akan dipasang.
2. Sediakan kawasan: Clear the work area and ensure you have all necessary tools (e.g., screwdriver, wire strippers, ladder).
3. Unpack components: Keluarkan semua bahagian dari bungkusan dengan berhati-hati dan periksa untuk sebarang kerosakan.

4.2 Memasang Lekapan

1. Attach the mounting plate to the ceiling junction box using the provided screws. Ensure the plate is securely fastened.
2. Determine the desired hanging height for the pendant. Adjust the chain length by opening links as needed.
3. Masukkan wayar lekapan melalui rantai dan kanopi.

4.3 Sambungan Elektrik

1. Connect the fixture's bare copper or green ground wire to the house's green or bare copper ground wire using a wire nut.
2. Connect the fixture's ribbed (or white) wire to the house's white (neutral) wire using a wire nut.
3. Connect the fixture's smooth (or black) wire to the house's black (hot) wire using a wire nut.
4. Berhati-hati masukkan semua wayar ke dalam kotak simpang.

4.4 Perhimpunan Akhir

1. Secure the canopy to the mounting plate, ensuring it sits flush against the ceiling.
2. Install one E26 Medium base incandescent bulb (maximum 100 watts) into the socket.
3. Carefully attach the glass sphere shade to the fixture according to the specific design.
4. Kembalikan kuasa pada pemutus litar atau kotak fius.

5. Arahan Operasi

The Hudson Valley Lighting MDS700-AGB Sphere No.1-1 Light Pendant is designed for simple operation. Once properly installed and wired, the fixture is typically controlled by a standard wall switch connected to the circuit.

• Untuk menghidupkan: Putar suis dinding yang disambungkan ke kedudukan 'HIDUP'.
• Untuk mematikan: Putar suis dinding yang disambungkan ke kedudukan 'MATI'.

Note: If your home is equipped with a dimmer switch, ensure it is compatible with incandescent bulbs and the total wattage does not exceed the dimmer's rating.

6. Penyelenggaraan

6.1 Pembersihan

• Always disconnect power to the fixture before cleaning.
• For general cleaning, wipe the fixture with a soft, dry cloth.
• For the glass shade, use a mild glass cleaner applied to a cloth (not directly to the fixture) to avoid damaging the finish.
• Avoid using abrasive cleaners, solvents, or polishes as they may damage the finish or electrical components.

6.2 Penggantian Mentol

• Ensure the power to the fixture is turned off and the bulb has cooled completely before attempting to replace it.
• Carefully unscrew the old bulb from the E26 Medium base socket.
• Screw in a new E26 Medium base incandescent bulb, ensuring it does not exceed 100 watts.
• Pulihkan kuasa pada lekapan.

7. Penyelesaian masalah

Jika anda mengalami masalah dengan lampu loket anda, rujuk masalah dan penyelesaian biasa berikut:

If you are unable to resolve an issue after following these steps, please contact customer support.

8. Spesifikasi

9. Waranti dan Sokongan

9.1 Maklumat Waranti

This Hudson Valley Lighting fixture is covered by a Waranti pengeluar terhad 1 tahun from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications.

9.2 Sokongan Pelanggan

For technical assistance, warranty claims, or to report missing/damaged parts, please contact Hudson Valley Lighting customer service. Please have your model number (MDS700-AGB) and proof of purchase available when contacting support.

Anda biasanya boleh mendapatkan maklumat hubungan pada pegawai pengilang webtapak atau melalui peruncit anda.
