Esperanza EKM027 Multifunctional Food Processor PANZANELLA User Manual

1. Pengenalan dan Lebihview

Thank you for choosing the Esperanza EKM027 Multifunctional Food Processor PANZANELLA. This appliance is designed to simplify various kitchen tasks, offering both citrus juicing and grating/slicing functionalities. Please read this manual carefully before first use to ensure safe and efficient operation, and retain it for future reference.

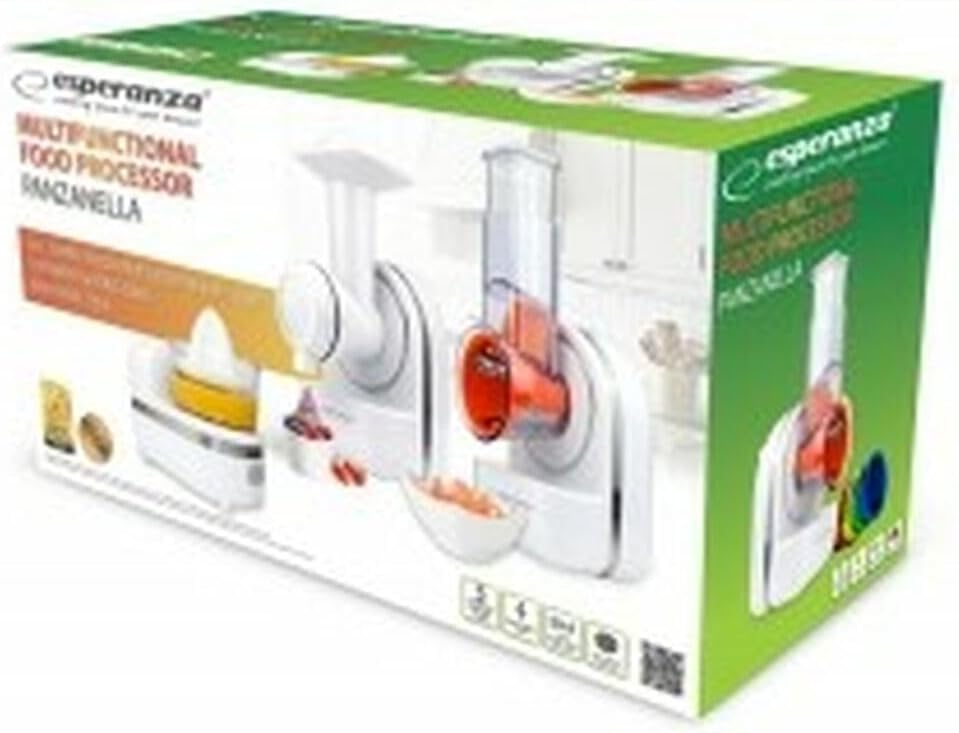

Image 1.1: Esperanza EKM027 Multifunctional Food Processor PANZANELLA product packaging.

2. Arahan Keselamatan Penting

Apabila menggunakan peralatan elektrik, langkah berjaga-jaga keselamatan asas hendaklah sentiasa diikuti untuk mengurangkan risiko kebakaran, kejutan elektrik dan/atau kecederaan kepada orang, termasuk yang berikut:

• Baca semua arahan sebelum mengendalikan perkakas.
• Jangan rendam unit motor dalam air atau cecair lain. Bersih dengan iklanamp kain sahaja.
• Cabut plag dari alur keluar apabila tidak digunakan, sebelum memasang atau membuka bahagian, dan sebelum membersihkan.
• Avoid contact with moving parts. Keep hands and utensils away from blades and discs during operation to prevent injury.
• Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau terjatuh atau rosak dalam apa jua cara.
• Penggunaan lampiran yang tidak disyorkan atau dijual oleh pengilang boleh menyebabkan kebakaran, kejutan elektrik atau kecederaan.
• Jangan gunakan di luar rumah.
• Jangan biarkan kord tergantung di tepi meja atau kaunter atau menyentuh permukaan panas.
• Perkakas ini tidak dimaksudkan untuk digunakan oleh orang (termasuk kanak-kanak) yang kurang keupayaan fizikal, deria atau mental, atau kurang pengalaman dan pengetahuan, melainkan mereka telah diberi pengawasan atau arahan mengenai penggunaan perkakas oleh orang yang bertanggungjawab untuk keselamatan mereka.
• Pengawasan rapi diperlukan apabila sebarang perkakas digunakan oleh atau berhampiran kanak-kanak.

3. Komponen Produk

The Esperanza EKM027 Food Processor comes with a main motor unit and interchangeable attachments for various functions.

• Unit Motor Utama: The base of the appliance, housing the motor and control button.
• Citrus Juicer Attachment: Includes a reamer and a pulp filter for extracting juice from citrus fruits.
• Lampiran Parut/Penghiris: Consists of a feeding tube, pusher, and multiple interchangeable drums for grating and slicing.
• Interchangeable Grating/Slicing Drums: Various drums for different textures (e.g., fine grating, coarse grating, slicing).

Imej 3.1: Selesaiview of all Esperanza EKM027 Food Processor components.

4. Persediaan dan Pemasangan

Before first use, wash all removable parts in warm soapy water, rinse thoroughly, and dry. Ensure the main motor unit is unplugged from the power outlet.

4.1. Assembling the Citrus Juicer

1. Place the main motor unit on a stable, flat surface.
2. Align the citrus juicer attachment with the motor unit's drive shaft and gently press down until it locks into place.
3. Ensure the pulp filter and reamer are correctly seated on the juicer attachment.

Image 4.1: Esperanza EKM027 assembled with the citrus juicer attachment.

4.2. Assembling the Grater/Slicer

1. Place the main motor unit on a stable, flat surface.
2. Align the grater/slicer attachment with the motor unit's drive shaft and gently press down until it locks into place.
3. Select the desired grating or slicing drum. Insert the drum into the attachment's housing, ensuring it is securely fitted.
4. Place the feeding tube and pusher on top of the attachment.

Image 4.2: Esperanza EKM027 assembled with the grater/slicer attachment and drums.

5. Arahan Operasi

Sentiasa pastikan perkakas dipasang dengan betul dan dipalamkan ke salur keluar kuasa yang sesuai sebelum beroperasi.

5.1. Using the Citrus Juicer

1. Assemble the citrus juicer attachment as described in Section 4.1.
2. Cut citrus fruits (oranges, lemons, grapefruits) in half.
3. Place a glass or container under the spout to collect the juice.
4. Pasangkan perkakas.
5. Press a fruit half onto the reamer. The motor will activate automatically with pressure.
6. Apply gentle downward pressure and rotate the fruit to extract juice.
7. Release pressure to stop the motor.
8. Cabut plag perkakas selepas digunakan.

5.2. Using the Grater/Slicer

1. Assemble the grater/slicer attachment with the desired drum as described in Section 4.2.
2. Place a bowl or container under the output chute to collect processed food.
3. Prepare food by cutting it into pieces that fit comfortably into the feeding tube.
4. Pasangkan perkakas.
5. Turn on the appliance using the power button (if available, otherwise it may activate upon pressure).
6. Insert food into the feeding tube and use the pusher to guide it down towards the rotating drum. Never use your fingers.
7. Process food until desired quantity is achieved.
8. Matikan dan cabut plag perkakas selepas digunakan.

6. Pembersihan dan Penyelenggaraan

Regular cleaning ensures optimal performance and extends the life of your appliance. Always unplug the food processor before cleaning.

• Unit Motor: Lap unit motor utama dengan iklanamp kain. Jangan rendamkannya dalam air atau sebarang cecair lain.
• Bahagian boleh tanggal: All removable parts (juicer components, grater/slicer attachment, drums, pusher) can be washed in warm soapy water. Rinse thoroughly and dry immediately.
• Sisa degil: For stubborn food residue, soak parts in warm soapy water before cleaning. Use a brush for hard-to-reach areas.
• Storan: Store the appliance and its attachments in a clean, dry place.

7. Penyelesaian masalah

If you encounter issues with your Esperanza EKM027, refer to the following common problems and solutions:

Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi sokongan pelanggan.

8. Spesifikasi

• Jenama: Esperanza
• Nombor Model: EKM027 (ESP-EKM027)
• Dimensi Produk (L x W x H): Kira-kira 10 x 10 x 10 cm (4 x 4 x 4 inci)
• Berat Barang: Kira-kira 378 g (0.83 paun)
• Kapasiti (Cecair): Approximately 11 fluid ounces (325 ml)
• Negara Asal: Poland

9. Waranti dan Sokongan

Specific warranty information for the Esperanza EKM027 Multifunctional Food Processor PANZANELLA is not provided in this manual. For details regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact your retailer or the manufacturer directly.

For technical support, spare parts availability, or any other inquiries, please reach out to Esperanza customer service through their official webtapak atau maklumat hubungan yang diberikan pada pembungkusan produk.
