Moulinex 1,2,3 DP8108 Electric Chopper User Manual

1. Arahan Keselamatan Penting

Please read all instructions carefully before using your Moulinex 1,2,3 DP8108 Electric Chopper. Retain this manual for future reference.

• Keselamatan Elektrik: Pastikan voltage yang ditunjukkan pada perkakas sesuai dengan sumber listrik tempatan andatage before connecting. Do not immerse the motor unit, cord, or plug in water or any other liquid. Always unplug the appliance from the power supply before cleaning, assembling, or disassembling parts, and when not in use.
• Keselamatan Bilah: The blades are very sharp. Handle them with extreme care, especially when removing, inserting, or cleaning. Always hold the blade unit by the plastic top.
• Keselamatan Operasi: Never operate the appliance without food in the bowl. Do not overload the chopper; adhere to the maximum capacity guidelines. Ensure the lid is securely locked in place before operating. Do not attempt to defeat the safety interlock system.
• Kanak-kanak dan Penyeliaan: Perkakas ini tidak dimaksudkan untuk digunakan oleh kanak-kanak. Pengawasan rapi diperlukan apabila sebarang perkakas digunakan berhampiran kanak-kanak.
• Perlindungan Terlalu Panas: The appliance is equipped with an automatic overheat protection system. If the motor stops due to overheating, unplug the appliance and allow it to cool down for at least 30 minutes before resuming use.

2. Produk Lebihview

The Moulinex 1,2,3 DP8108 Electric Chopper is designed for efficient food preparation. Familiarize yourself with its components:

• Unit Motor: The main body containing the 1000W motor and control button.
• Chopping Bowl: Transparent bowl with a capacity of 550 ml (350g).
• Powerlife Blades: Two sharp blades with titanium coating for durability and efficient chopping.
• Hermetic Lid: Secures the bowl and prevents splashes during operation.

Rajah 2.1: Meletup view showing the motor unit, chopping bowl, blade assembly, and lid.

Figure 2.2: Assembled Moulinex 1,2,3 DP8108 Electric Chopper.

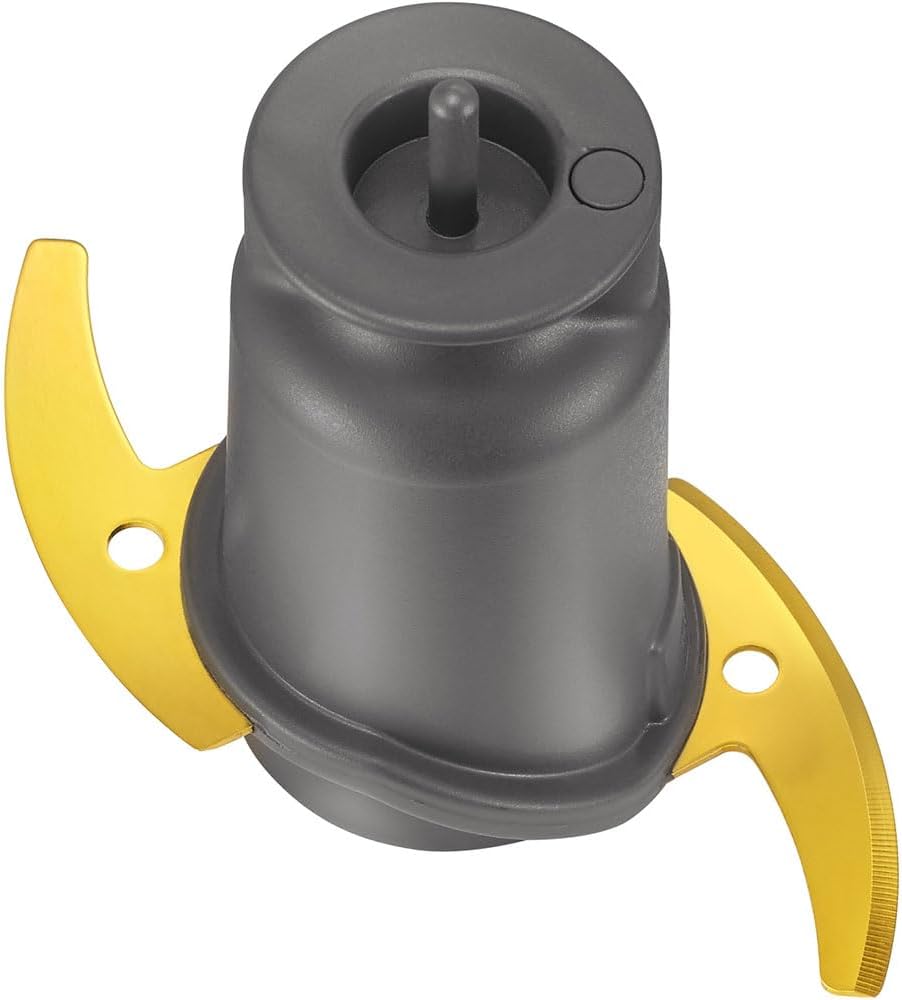

Figure 2.3: Detail of the Powerlife titanium-coated blades.

3. Persediaan dan Pemasangan

Follow these steps to assemble your electric chopper before first use:

1. Letakkan unit motor pada permukaan yang stabil dan rata.
2. Carefully place the Powerlife blade unit onto the central pin inside the chopping bowl. Ensure it sits correctly.
3. Place the chopping bowl onto the motor unit, aligning the grooves.
4. Add your ingredients to the chopping bowl.
5. Place the hermetic lid onto the chopping bowl and twist it clockwise until it locks securely into position. The appliance will not operate if the lid is not properly locked.
6. Palamkan perkakas ke dalam salur keluar kuasa yang sesuai.

4. Arahan Operasi

Your Moulinex 1,2,3 DP8108 Electric Chopper is designed for various food preparation tasks, including chopping, mincing, grinding, grating, mixing, and blending.

4.1 Menyediakan Bahan

• Cut larger ingredients into smaller, uniform pieces (approximately 2-3 cm) to ensure even processing.
• Remove any hard bones, pits, or tough skins from fruits, vegetables, or meat.

4.2 Chopping and Mincing

1. Pasang pencincang seperti yang diterangkan dalam Bahagian 3.
2. Add the prepared ingredients to the chopping bowl. Do not exceed the maximum capacity of 350g for solid ingredients or 550ml for liquids.
3. Ensure the lid is securely locked.
4. Press and hold the button on the motor unit to start chopping. The longer you hold the button, the finer the consistency will be. Use short pulses for coarse chopping.
5. Release the button to stop the operation.
6. Unplug the appliance, carefully remove the lid, then remove the blade unit before emptying the bowl.

Figure 4.1: The chopper in use with various ingredients.

Gambar 4.2: Cthample of minced meat prepared with the chopper.

4.3 Blending Semi-Liquids

For blending semi-liquid preparations like smoothies or sauces, the chopper can also function as a blender with its 1.5L capacity. The hermetic lid helps prevent splashes.

• Ensure the blender attachment (if included and applicable to your model) is correctly assembled.
• Add liquids and soft ingredients.
• Secure the lid and operate using the pulse function until desired consistency is achieved.

5. Pembersihan dan Penyelenggaraan

Regular cleaning ensures the longevity and hygiene of your chopper.

5.1 Pembongkaran untuk Pembersihan

1. Always unplug the appliance before disassembling.
2. Remove the lid, then carefully remove the blade unit by holding its plastic top.
3. Remove the chopping bowl from the motor unit.

5.2 Komponen Pencucian

• The chopping bowl, lid, and blade unit are removable and dishwasher safe.
• Alternatively, wash these parts in warm, soapy water using a brush for the blades, then rinse thoroughly and dry.
• Awas: Kendalikan bilah dengan sangat berhati-hati kerana ketajamannya.

5.3 Motor Unit Cleaning

• Lap unit motor dengan iklanamp kain. Jangan rendamkannya di dalam air atau bilas di bawah air yang mengalir.
• Pastikan semua bahagian kering sepenuhnya sebelum memasang semula atau menyimpan perkakas.

5.4 Penyimpanan

Store the assembled chopper in a dry place, away from direct sunlight and out of reach of children.

6. Penyelesaian masalah

If you encounter issues with your chopper, refer to the following table for common problems and solutions:

7. Spesifikasi

Technical details for the Moulinex 1,2,3 DP8108 Electric Chopper:

• Jenama: Moulinex
• Nombor Model: DP810855
• warna: Hitam
• Kuasa: 1000 Watt
• Voltage: 220 Volt
• Kapasiti Mangkuk Pencincang: 550 Milliliters (liquid) / 350 Grams (solid)
• Blender Bowl Capacity: 1.5 Liters (if applicable to specific model variant)
• Dimensi (L x W x H): 17 x 17 x 25.5 cm
• Berat: 2.57 Kilogram
• Bahan Bilah: Titanium (Powerlife blades)
• Bilangan Kelajuan: 1 (Pulse operation)
• Ciri Khas: 2 Powerlife blades, Hermetic lid, Overheat protection system, Removable parts are dishwasher safe.

Figure 7.1: Product dimensions: 17 cm width and 25.5 cm height.

8. Waranti dan Sokongan

For warranty information, service, or support, please refer to the warranty card included with your product or visit the official Moulinex website. You can also contact Moulinex customer service for assistance.

Visit the official Moulinex store for more information: Moulinex Store
