LivePure LP-HF250 True HEPA Replacement Filter User Manual

1. Pengenalan

The LivePure LP-HF250 True HEPA Replacement Filter is designed to maintain optimal air quality in your home or office. This medical-grade filter captures up to 99.97% of airborne particles as small as 0.3 microns, including smoke, dust, pollen, pet hair, dander, and mold spores. Regular replacement ensures your LivePure air purifier operates at peak efficiency, providing cleaner, fresher air.

Figure 1: True HEPA Filtration Diagram. This image illustrates the size of various airborne particles, such as human hair, pollen, household dust, pet dander, and smoke particles, and highlights the effectiveness of True HEPA filtration in capturing particles down to 0.3 microns.

2. Keserasian

The LivePure LP-HF250 True HEPA Replacement Filter is compatible with the following LivePure Sierra series tall air purifier models:

• LP250TH
• LP250TH-G
• LP250TH-WT
• LP250TH-BLK
• LP260TH
• LP260TH-G
• LP260TH-B
• LP260TH-W
• LP260THP-G
• LP260THP-B
• LP260THP-W
• LP270THP-W
• LP270THP-B
• LP270THP-G

Ensure your air purifier model matches one of the listed models for proper fit and function.

3. Pemasangan

Follow these steps to replace the True HEPA filter in your LivePure Sierra Tall Tower Air Purifier:

1. Matikan: Unplug the air purifier from the power outlet before beginning the filter replacement process.
2. Akses Petak Penapis: Refer to your air purifier's specific user manual for instructions on how to open the filter compartment. This typically involves removing a back or side panel.
3. Keluarkan Penapis Lama: Carefully remove the used True HEPA filter from the air purifier. Dispose of the old filter according to local regulations.
4. Buka Pek Penapis Baharu: Remove the new LivePure LP-HF250 True HEPA Replacement Filter from its protective packaging.
5. Masukkan Penapis Baharu: Insert the new filter into the air purifier's filter compartment, ensuring it is seated correctly and securely. The filter should fit snugly.

Figure 2: Filter Insertion. This image shows a hand carefully inserting the new LivePure True HEPA filter into the designated slot of an air purifier, demonstrating the correct orientation and placement.
6. Tutup Petak: Close and secure the filter compartment panel.
7. Pulihkan Kuasa: Pasangkan semula penulen udara ke soket kuasa.
8. Tetapkan Semula Penunjuk Penapis: If your air purifier has a filter indicator light, follow the instructions in your air purifier's manual to reset it. This typically involves pressing and holding a specific button for a few seconds.

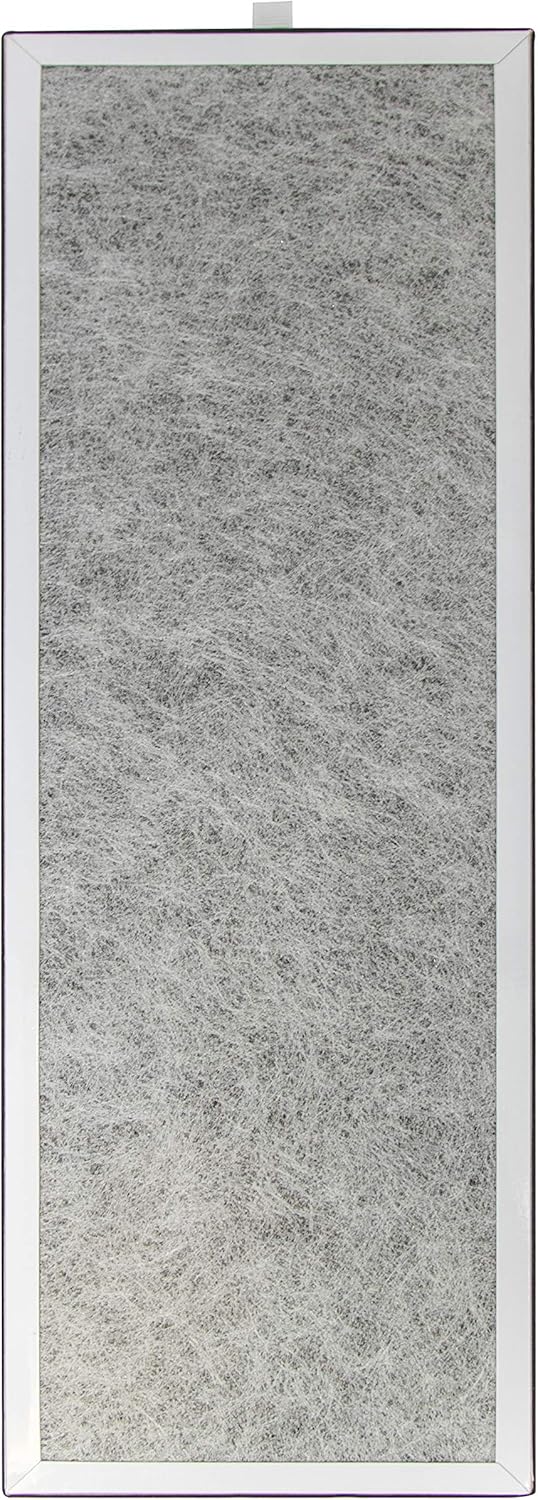

Rajah 3: Depan dan Belakang Views of the LP-HF250 Filter. These images display the front and back of the LivePure LP-HF250 True HEPA Replacement Filter, showing its construction and design.

4. Pertimbangan Operasi

Once the new filter is installed, your LivePure air purifier is ready for operation. The filter functions passively within the air purifier system. Key operational aspects related to the filter include:

• Hidupkan/Mati Kuasa: Use the power button on your air purifier to turn the unit on or off.
• Fan Speed/Sleep Mode: Adjust the fan speed settings (typically indicated by numbers 1-3 or similar) to control airflow and purification rate. A sleep mode setting is often available for quieter operation during rest periods.
• Fungsi Pemasa: Many LivePure air purifiers include a timer function (e.g., 2, 4, 6 hours) to automatically shut off the unit after a set duration.
• Penunjuk Penapis: The air purifier will have a filter indicator light or display that illuminates when it is time to replace the filter. This indicator needs to be manually reset after filter replacement.

For detailed instructions on operating your specific LivePure air purifier model, please consult its dedicated user manual.

5. Penyelenggaraan

Proper maintenance of your LivePure LP-HF250 filter ensures continuous high-performance air purification.

• Penggantian Penapis: It is recommended to replace the LivePure LP-HF250 True HEPA filter every 12 bulan for best results. This duration may vary depending on air quality, usage frequency, and the presence of pets or smokers.
• Pembersihan Penapis: The True HEPA filter is not washable or reusable. Attempting to clean the filter can damage its delicate fibers and reduce its filtration efficiency. Replace the filter as recommended.
• Pre-Filter (if applicable): Some LivePure air purifiers may include a washable pre-filter. If your model has one, refer to your air purifier's manual for cleaning instructions for the pre-filter only.

Adhering to the replacement schedule helps maintain the effectiveness of your air purifier and the quality of your indoor air.

6. Penyelesaian masalah

If you encounter issues related to filter performance, consider the following:

• Aliran Udara berkurangan: If the air purifier's airflow seems reduced, the filter may be clogged. Check the filter indicator light. If it's illuminated or if it has been 12 months since the last replacement, install a new filter.
• Bau yang berterusan: If odors persist despite regular air purifier use, the filter may be saturated. Replace the filter.
• Lampu Penunjuk Penapis Kekal Menyala Selepas Penggantian: Ensure you have properly reset the filter indicator after installing the new filter. Refer to your air purifier's user manual for specific reset instructions.
• Bunyi Luar Biasa: Ensure the filter is correctly seated in its compartment. A loose filter can cause rattling or other unusual noises.

For issues unrelated to the filter, consult the troubleshooting section of your LivePure air purifier's main user manual.

7. Spesifikasi

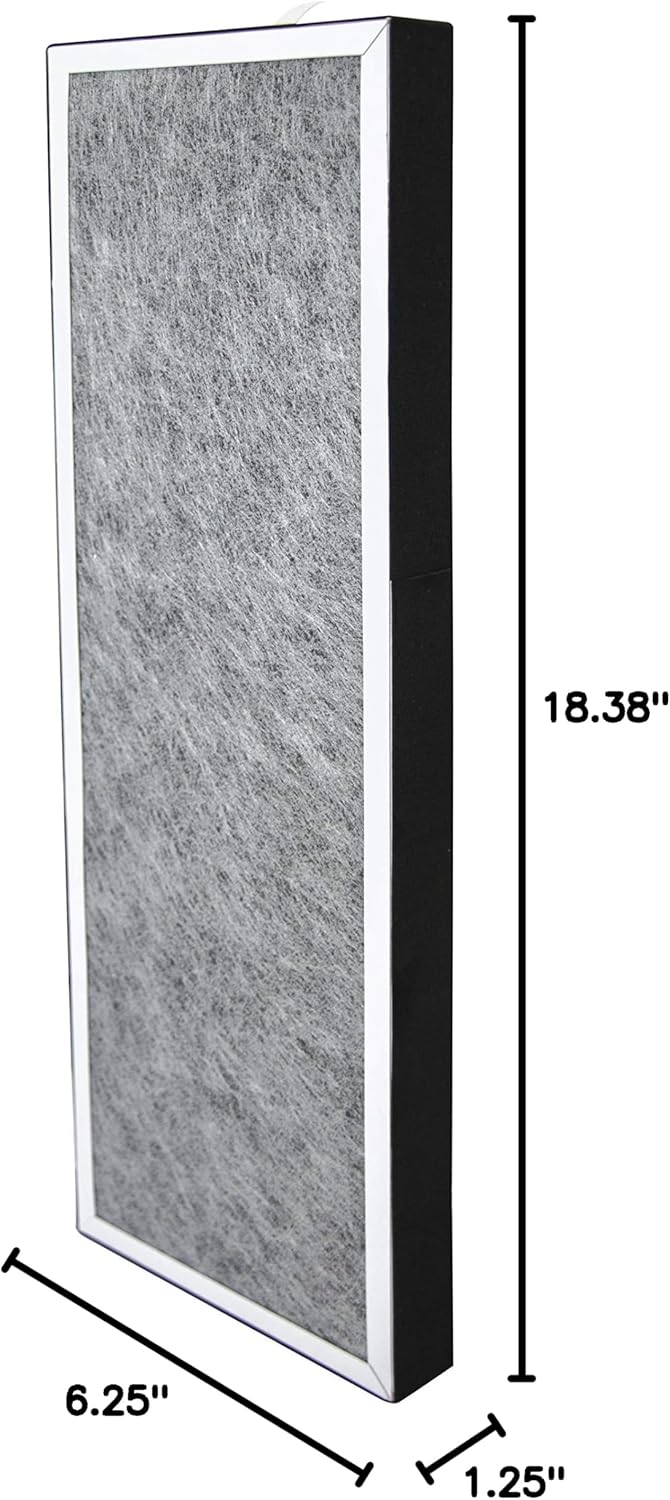

Figure 4: Filter Dimensions. This image provides a visual representation of the LivePure LP-HF250 filter with its key dimensions labeled for clarity.

8. Waranti dan Sokongan Pelanggan

For specific warranty information regarding your LivePure LP-HF250 True HEPA Replacement Filter or your LivePure air purifier, please refer to the warranty documentation included with your original air purifier purchase or visit the official LivePure webtapak.

For additional support, product information, or to purchase genuine LivePure replacement parts, please visit the LivePure Store on Amazon atau pegawai pengilang webtapak.
