This manual provides comprehensive instructions for the setup, operation, and maintenance of your Technical Pro RX113BT 1500w Home Theater Amplifier Receiver and RockvilIe HC85 8" In-Ceiling Speakers. Please read this manual thoroughly before using the product to ensure proper functionality and safety.
Kandungan Pakej
Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:
- (1) Technical Pro RX113BT 1500w Bluetooth Home Receiver Amplebih hidup Amp with 10 Band EQ
- (2) Pairs of RockvilIe HC85 8" Inch 700 Watt In-Ceiling Home Theater Speakers (4 speakers total)
- Rack Ears (detachable)
- Feet attached to bottom of receiver
- Antena Jauh
- Manual Pemilik (dokumen ini)
- Palam Kuasa
- Alat Kawalan Jauh

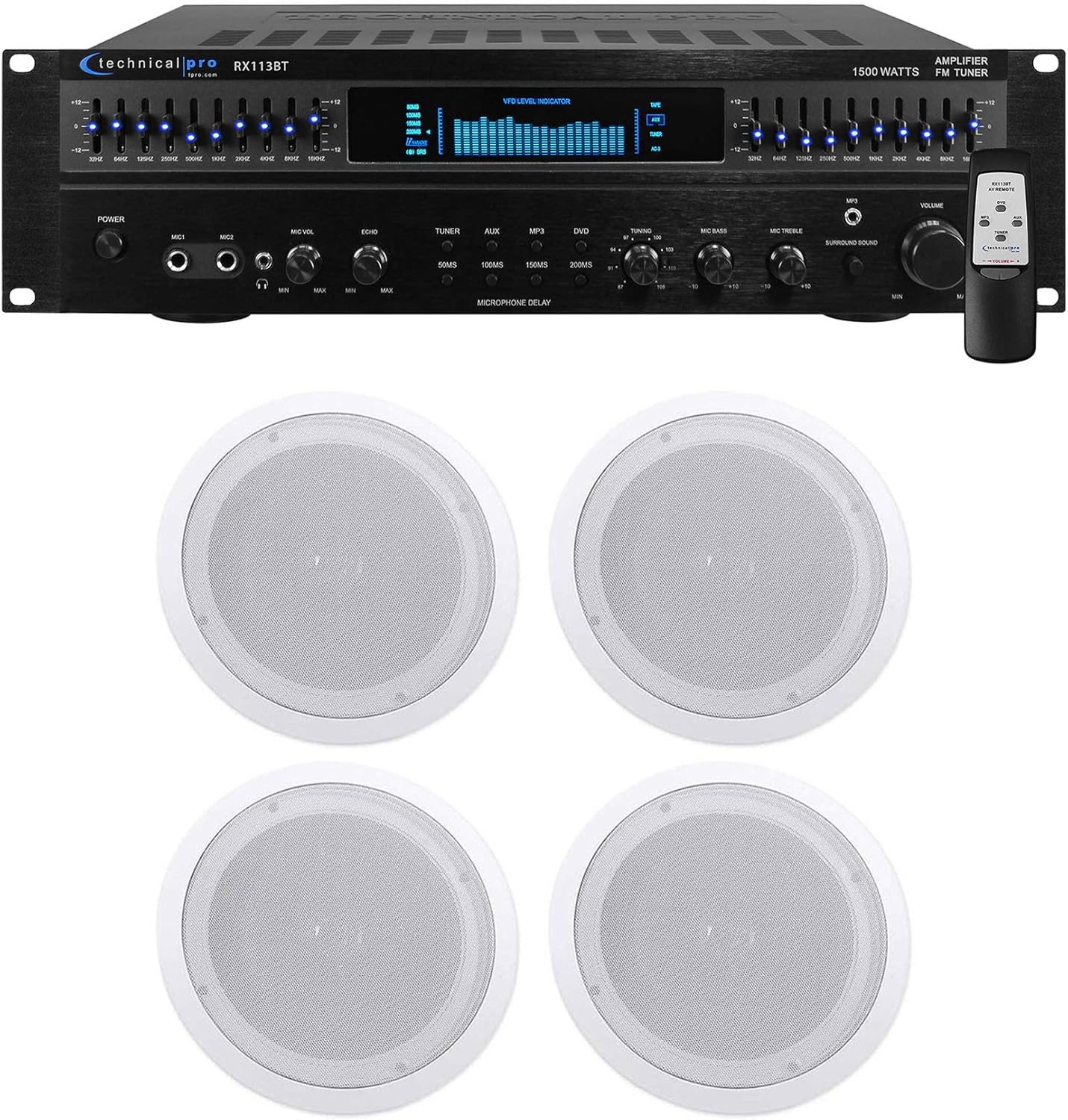

Image: The Technical Pro RX113BT amplifier receiver shown with four RockvilIe HC85 in-ceiling speakers.
Maklumat Keselamatan
AMARAN: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Do not open the casing; there are no user-serviceable parts inside. Refer all servicing to qualified service personnel.
- Pastikan pengudaraan yang betul di sekitar unit. Jangan halang bukaan pengudaraan.
- Jangan letakkan unit berhampiran sumber haba seperti radiator, daftar haba, dapur, atau radas lain (termasuk amppenghidup) yang menghasilkan haba.
- Lindungi kord kuasa daripada berjalan atau tersepit, terutamanya pada palam, bekas kemudahan dan tempat keluar dari radas.
- Hanya gunakan lampiran/aksesori yang ditentukan oleh pengilang.
- Cabut plag radas ini semasa ribut petir atau apabila tidak digunakan untuk jangka masa yang lama.
Persediaan
AmpPenempatan penguat
RX113BT amplifier can be placed on a flat surface or mounted in a standard 19-inch audio rack using the included detachable rack ears. Ensure adequate space for ventilation, especially around the cooling fan.
Imej: Depan view of the RX113BT amplifier, showing its controls and the option for rack mounting.
Speaker Installation (RockvilIe HC85 In-Ceiling Speakers)
The HC85 speakers are designed for in-ceiling installation. Refer to the separate speaker installation guide for detailed instructions on cutting the ceiling opening and securing the speakers. The cut-out diameter is 9.3 inches and mounting depth is 3.03 inches.
Image: A RockvilIe HC85 in-ceiling speaker with its grille removed, revealing the 8-inch woofer and Mylar dome tweeter.
Image: Two white, paintable grilles for the RockvilIe HC85 in-ceiling speakers.
Connecting Speakers to Amplebih hidup
The RX113BT supports 5-channel surround sound. Connect your speakers to the appropriate outputs on the rear panel of the amplifier. The HC85 speakers have an impedance of 8 Ohms.
- Use high-quality speaker wire.
- Connect the positive (+) terminal of the speaker to the positive (+) terminal of the ampoutput yang lebih hidup.
- Connect the negative (-) terminal of the speaker to the negative (-) terminal of the ampoutput yang lebih hidup.
- Pastikan semua sambungan selamat untuk mengelakkan litar pintas.
Imej: Panel belakang RX113BT amplifier, highlighting the speaker output terminals (Banana Binding Post and Push Button) and various audio inputs.
Menyambungkan Sumber Audio
The amplifier features multiple input options:
- Input RCA: Connect up to three audio sources (e.g., CD player, DVD player, game console) using RCA cables.
- Input Aux: Use the 1/8" (3.5mm) input for connecting MP3 players or other portable devices.
- Bluetooth: Pair your Bluetooth-enabled device wirelessly (see Operating Instructions).
- Input Mikrofon: Two 1/4" microphone inputs are available on the front panel for karaoke or DJ use.
Sambungan Kuasa
Connect the supplied power cord to the amplifier's power input and then to a suitable wall outlet. The unit is 110-220V switchable. Ensure the voltage selector on the rear panel matches your local power supply before plugging in.
Arahan Operasi
Menghidupkan/Mematikan
Tekan ke KUASA butang pada panel hadapan untuk menghidupkan atau mematikan unit.
Pemilihan Sumber
Use the input selector buttons (TUNER, AUX, MP3, DVD) on the front panel or remote control to choose your desired audio source.
Kawalan Kelantangan
Adjust the master JILID knob on the front panel or use the volume buttons on the remote control.
Pelarasan Penyamaan
The RX113BT features dual 10-band equalizers with individual LED indicators. Adjust the sliders for each frequency band to customize the audio output to your preference. Each EQ band is individually lit with a blue LED for easy readout.
Image: Close-up of the RX113BT amplifier's front panel, highlighting the dual 10-band graphic equalizer with its illuminated sliders.
Berpasangan Bluetooth
- Pilih BLUETOOTH sumber input.
- Pada peranti berdaya Bluetooth anda (telefon pintar, tablet, dll.), dayakan Bluetooth dan cari peranti yang tersedia.
- Select "RX113BT" from the list of devices.
- Setelah dipasangkan, audio daripada peranti anda akan dimainkan melalui amplebih hidup.
Karaoke / DJ Functions
Sambungkan mikrofon ke MIC1 or MIC2 inputs on the front panel. Use the MIC VOL, ECHO, MIC BASS, dan MIC TREBLE kawalan untuk melaraskan tahap dan kesan mikrofon.
The KELEWATAN MIKROFON buttons (50MS, 100MS, 150MS, 200MS) allow you to add a delay effect to the microphone output.
Penala FM
Pilih TUNER input. Use the tuning controls to manually scan for FM radio stations. The digital fluorescent output display meter will show tuning information.
Bunyi Sekeliling
The amplifier supports 5-channel surround sound. Ensure your speakers are connected correctly to the surround sound outputs. Use the BUNYI SEKELILING knob to adjust the surround effect.
Penyelenggaraan
- Pembersihan: Gunakan kain lembut dan kering untuk membersihkan bahagian luar ampkipas dan pembesar suara. Jangan gunakan pembersih cecair atau aerosol.
- Pengudaraan: Periksa secara berkala bahawa bukaan pengudaraan pada amplifier are clear of dust and debris to ensure proper cooling. The built-in cooling speed fan helps maintain optimal operating temperature.
- Gril Pembesar Suara: The speaker grilles are paintable. If painting, ensure the paint does not clog the perforations.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada kuasa | Power cord not connected; power outlet faulty; voltagpemilih e salah. | Ensure power cord is securely plugged in. Test outlet with another device. Verify voltage selector (110/220V) matches local supply. |
| Tiada suara dari pembesar suara | Incorrect input selected; speaker wires loose or incorrectly connected; volume too low; mute engaged. | Select correct input source. Check all speaker wire connections (positive to positive, negative to negative). Increase volume. Ensure mute is off. |
| Bluetooth tidak bersambung | Amplifier not in Bluetooth mode; device too far; device already paired with another unit. | pastikan amplifier input is set to Bluetooth. Move device closer to amplifier. Disconnect device from other Bluetooth devices and try again. |
| Audio yang diputarbelitkan | Volume too high; incorrect equalizer settings; faulty audio source. | Reduce volume. Adjust equalizer settings. Test with a different audio source. |
Spesifikasi
Teknikal Pro RX113BT Amplebih hidup
- Kuasa Puncak: 1500 Watt
- Saluran: 5 Suara Keliling Saluran
- Penyama: Dwi-10-jalur dengan penunjuk LED individu
- Input: RCA (3 audio sources), 1/8" (MP3/Aux), Bluetooth, Dual 1/4" Microphone
- Keluaran: Tiang Pengikat Pisang (2 Pembesar Suara), Butang Tekan (Pembesar Suara Bunyi Sekeliling), RCA (1 Talian Rakaman, 2 Mono ke Subwoofer)
- Penala: Penala Manual FM
- ciri-ciri: Cooling Speed Fan, Digital Display, Digital Fluorescent Output Display Meter, Removable Rack-Mount Brackets, Remote Control, Balance, Bass and Treble controls, Bass Booster, Echo, Treble controls for Mic.
- Dimensi: 17"l (19" dengan kurungan) x 5"t x 12.25"d
- Berat: 15 paun
- Voltage: 110-220V Boleh Tukar
RockvilIe HC85 In-Ceiling Speakers
- Pengendalian Kuasa Puncak: 350 Watts (setiap pembesar suara) / 700 Watts (sepasang)
- Pengendalian Kuasa RMS: 120 Watts (setiap pembesar suara) / 240 Watts (sepasang)
- woofer: Kon Polipropilena 8" dengan Keliling Getah
- Gegelung Suara: Aluminium 1"
- Tweeter: Kubah Mylar, Pusing Boleh Dituju
- Magnet: 20 oz. Ferit
- Terminal: High Quality Spring Loaded Push
- Respons Kekerapan: 40Hz - 20KHz
- Sensitiviti: 89dB @ 1w / 1m
- Impedans: 8 ohm
- Kedalaman Pemasangan: 3.03 inci
- Diameter potong: 9.3 inci
- warna: Putih (boleh dicat)
Waranti dan Sokongan
This product comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support or service inquiries, please contact Technical Pro customer service. Information regarding protection plans is available from your retailer.
Pengeluar: Pro Teknikal
Tarikh Mula-mula Tersedia: 17 September 2018
