Manual Pengguna Kereta Kawalan Jauh Silverlit Exost 360 Cross

1. Maklumat Keselamatan Penting

AMARAN: Not suitable for children under 36 months. To be used under adult supervision.

Always read and follow all instructions before use. Keep this manual for future reference.

2. Produk Lebihview

The Silverlit Exost 360 Cross is a high-performance remote-controlled car designed for incredible acrobatics and all-terrain driving. Its unique two-sided driving system allows it to flip and continue driving after impacts, ensuring continuous fun.

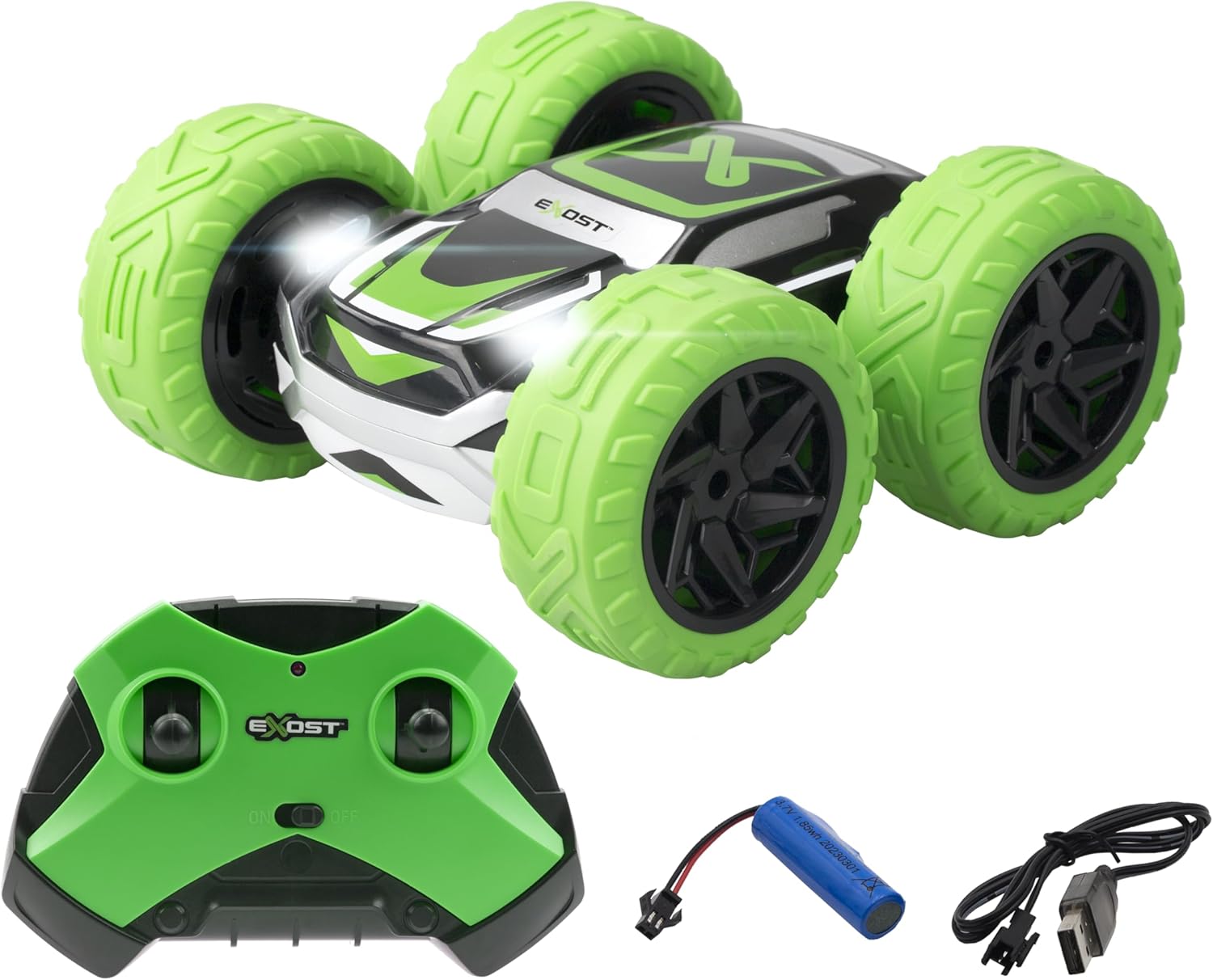

Image: The Exost 360 Cross car in green and black, shown with its matching green remote control, rechargeable battery, and USB charging cable.

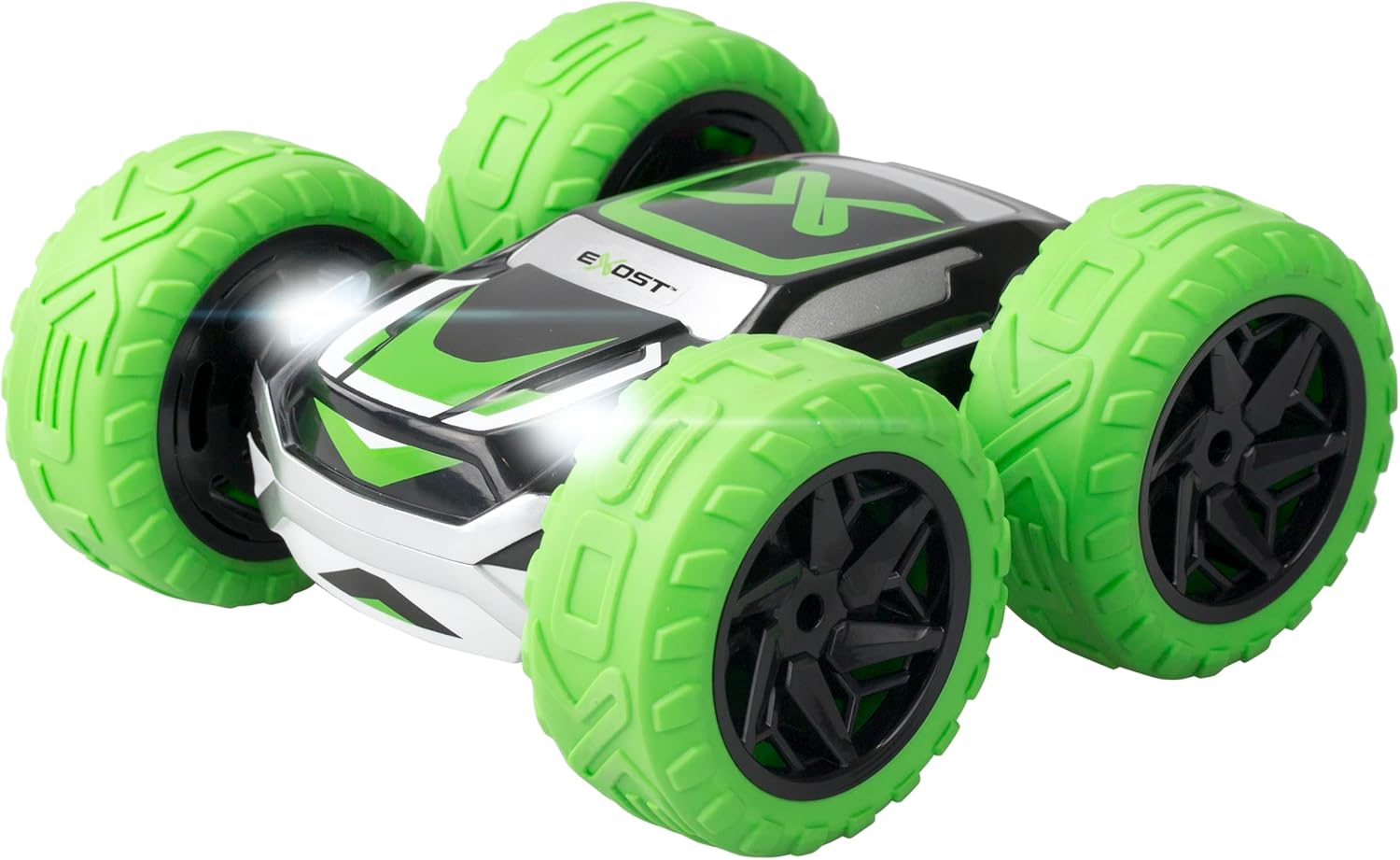

Imej: Muka depan dekat view of the Exost 360 Cross car, highlighting its bright green wheels and LED headlights.

Imej: Atas ke bawah view of the Exost 360 Cross car, showing its black and green design on one side, with "EXOST" branding visible.

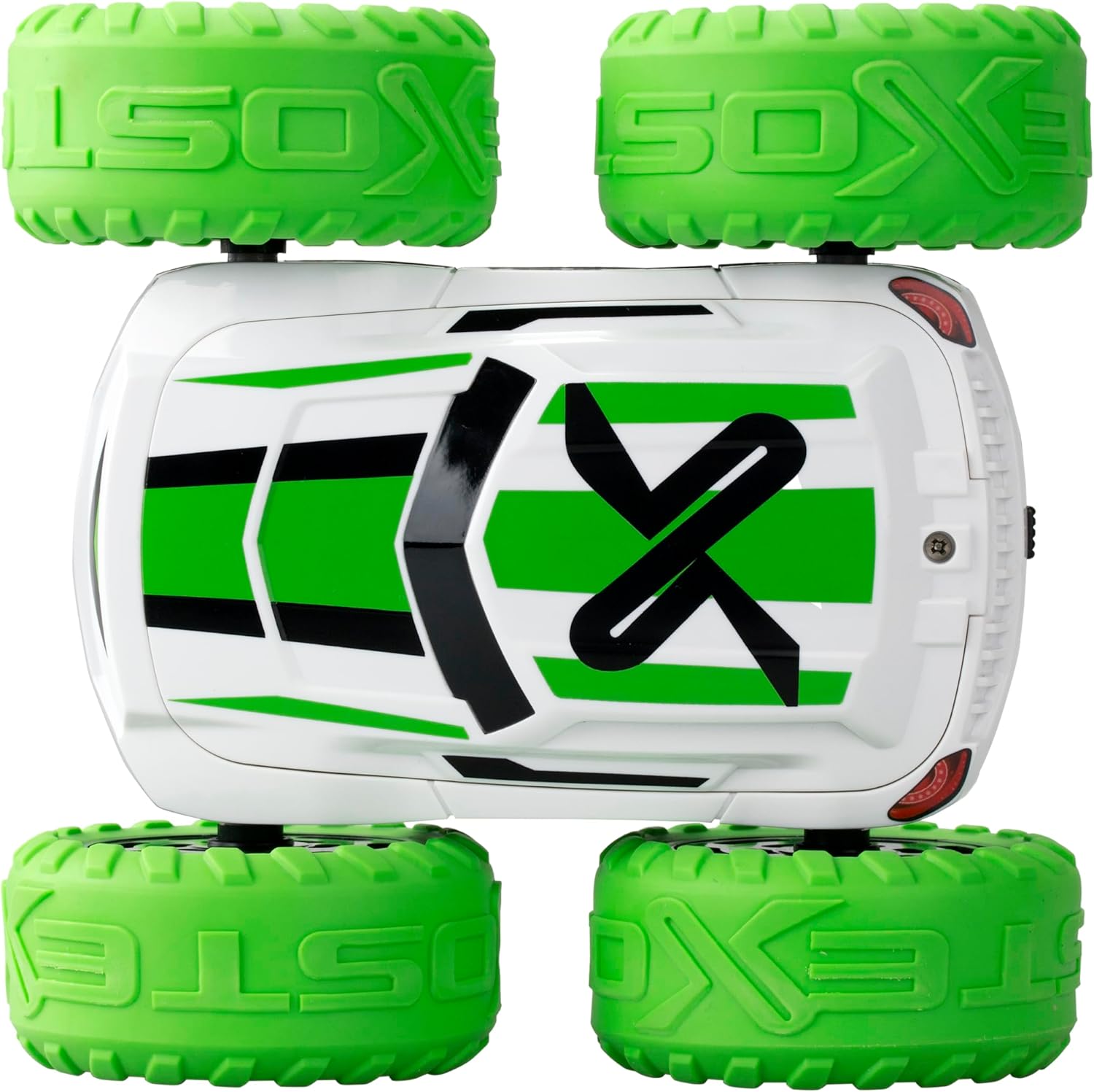

Imej: Atas ke bawah view of the Exost 360 Cross car, showing its white and green design on the opposite side, demonstrating its two-sided driving capability.

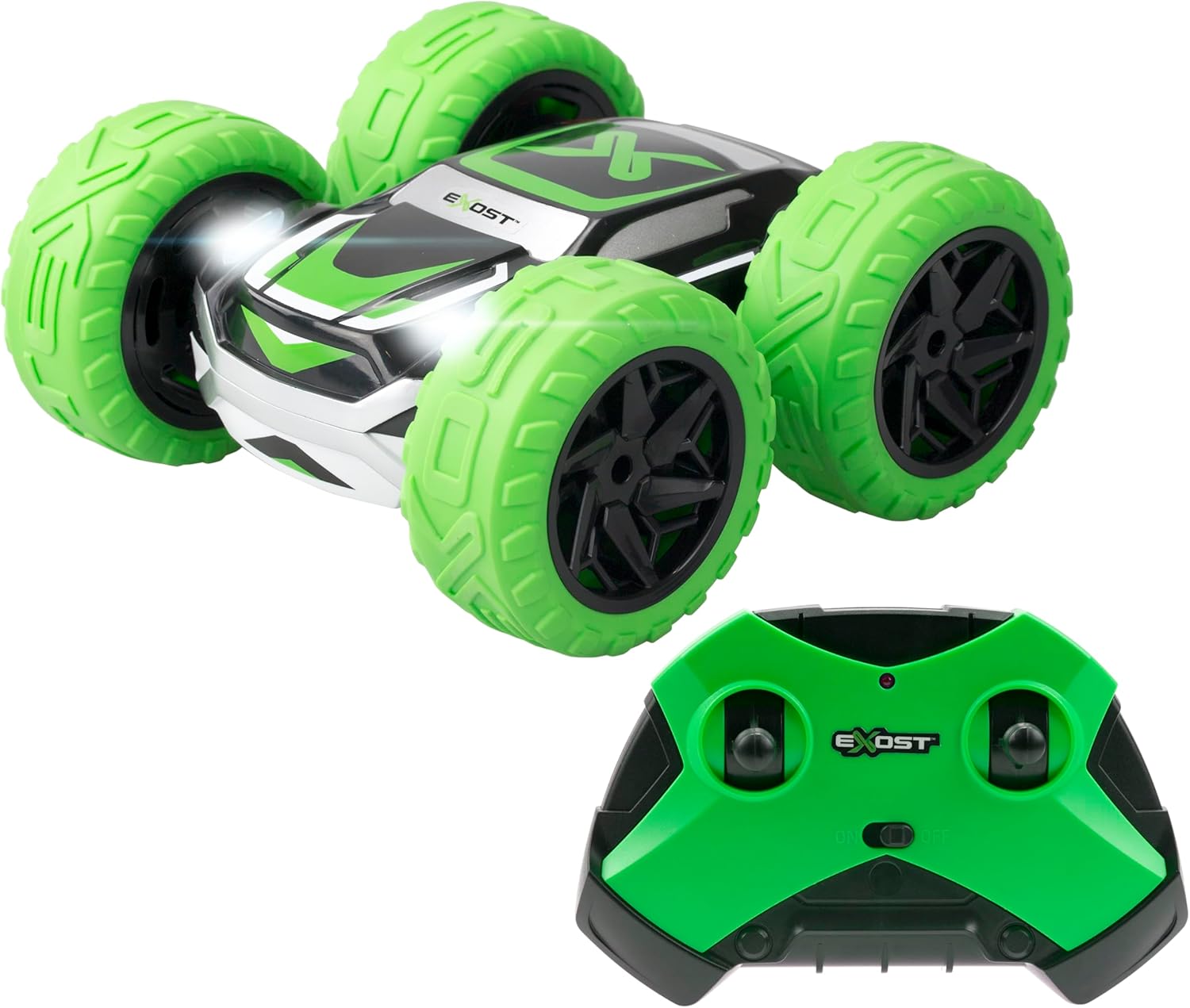

Image: A close-up of the green remote control for the Exost 360 Cross, showing its dual joysticks and power switch.

Ciri-ciri Utama:

• 360° Flip Function: Performs incredible acrobatics and flips to continue driving after impacts.
• Shockproof & All-Terrain: Equipped with puncture-proof tires designed to absorb shocks, suitable for various terrains including dirt, grass, and asphalt (not for water).
• Lightweight & Agile: Achieves speeds of up to 12km/h, offering excellent maneuverability for stunts.
• Teknologi 2.4GHz: Allows multiple cars to be played simultaneously for racing, suitable for both indoor and outdoor use.
• Bateri boleh dicas semula: Includes a rechargeable battery via USB cable for the car. Remote control requires 2 AA batteries (not included).

3. Persediaan

3.1. Pemasangan Bateri (Kawalan Jauh)

1. Cari petak bateri di belakang alat kawalan jauh.
2. Gunakan pemutar skru untuk membuka penutup petak bateri.
3. Masukkan 2 bateri AA baharu, pastikan kekutuban yang betul (+/-).
4. Gantikan penutup petak bateri dan kencangkannya dengan skru.

3.2. Mengecas Bateri Kereta

1. Locate the battery compartment on the car. This may require unscrewing a cover.
2. Connect the car's rechargeable battery to the provided USB charging cable.
3. Plug the USB cable into a standard USB power source (e.g., computer USB port, USB wall adapter).
4. The charging indicator light on the USB cable will show the charging status. Charging time is approximately 2 hours for up to 25 minutes of play.
5. Once fully charged, disconnect the battery from the USB cable and install it back into the car, securing the cover.

3.3. Pairing the Car and Remote Control

The 2.4GHz technology typically allows for automatic pairing. Follow these steps:

1. Ensure both the car and the remote control have fresh or fully charged batteries.
2. Turn on the car using its power switch.
3. Turn on the remote control using its power switch.
4. The car and remote control should automatically pair. If not, turn both off and on again.

4. Arahan Operasi

4.1. Fungsi Alat Kawalan Jauh

The remote control features two joysticks for precise control:

• Kayu Joy Kiri: Mengawal pergerakan ke hadapan dan ke belakang.
• Joystick Kanan: Mengawal stereng kiri dan kanan.

4.2. Driving the 360 Cross

• Maju/Mundur: Push the left joystick forward to move the car forward, pull it back to move backward.
• Berpusing: While moving forward or backward, push the right joystick left or right to steer.
• Putaran 360°: Push one joystick forward and the other backward simultaneously to perform rapid 360-degree spins.
• Two-Sided Driving: The car is designed to flip over upon impact and continue driving on its other side. No need to manually reorient the car.
• Lampu hadapan LED: The car features integrated LED headlights that illuminate during operation.

Practice in an open area to get accustomed to the controls and master the car's unique acrobatic capabilities.

5. Penyelenggaraan

• Pembersihan: Use a soft, dry cloth to clean the car and remote control. Do not use water or chemical cleaners.
• Storan: When not in use, store the car and remote control in a cool, dry place, away from direct sunlight. Remove batteries from the remote control if storing for extended periods.
• Penjagaan Bateri: Always fully charge the car's battery before storage and recharge periodically if not used for a long time to maintain battery health.

6. Penyelesaian masalah

7. Spesifikasi

8. Waranti dan Sokongan

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For warranty claims or technical support, please contact Silverlit customer service through their official webtapak atau peruncit tempat produk itu dibeli.

Sila simpan bukti pembelian anda untuk tujuan waranti.
