1. Lebihview
The Digitus DN-82024 Media Converter facilitates seamless conversion between multimode and singlemode fiber optic signals. This device allows for network extension over long distances using fiber optics without requiring a complete network cabling overhaul. Its intuitive design ensures straightforward installation and operation, providing a reliable solution for integrating different fiber optic network segments.
2. Kandungan Pakej
Pastikan semua item ada dalam pakej:
- Fast Ethernet Multimode/Singlemode Media Converter SC/SC
- Panduan Mula Pantas
- Penyesuai Kuasa
3. Ciri-ciri
- Simple conversion between Multi Mode and Single Mode fiber optic.
- Rapid migration for long distances.
- Connectors: SC/SC, Wavelength: 1310 nm.
- Suitable for 50/125µm, 62.5/125µm, and 100/140µm fiber optics (Multimode), up to 2 km.
- Suitable for 8.3/125µm, 8.7/125µm, 9/125µm, and 10/125µm fiber optics (Singlemode), up to 20 km.
4. Persediaan
Follow these steps to set up your Digitus DN-82024 Media Converter:
- Sambungkan Kuasa: Connect the provided power adapter to the DC 5V port on the media converter. Plug the power adapter into a standard electrical outlet. The 'PWR' LED indicator should illuminate.
- Connect Fiber Optic Cables: Connect the appropriate fiber optic cables (multimode or singlemode, depending on your network infrastructure) to the SC/SC ports. Ensure that the transmit (TX) port on one device connects to the receive (RX) port on the other, and vice-versa.
- Sambungkan Peranti Rangkaian: Connect your network devices (e.g., switches, routers, servers) to the other ends of the fiber optic cables.
- Sahkan Sambungan: Once all connections are made, observe the LED indicators on the front panel. The 'LINK A' and 'LINK B' LEDs should illuminate, indicating a successful fiber optic link. The 'TX' and 'RX' LEDs will flash to indicate data transmission and reception.

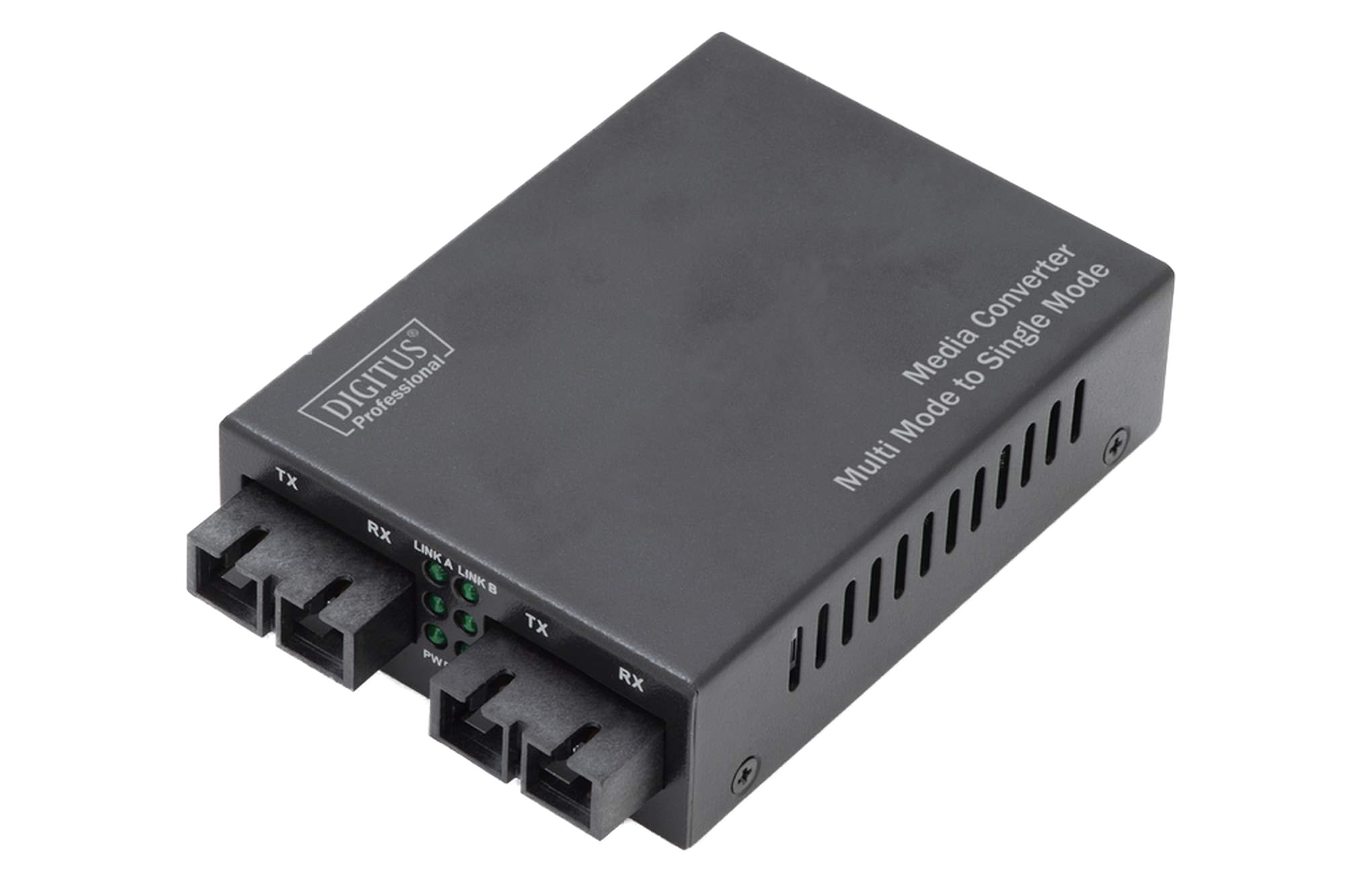

Figure 1: Digitus DN-82024 Media Converter unit.
Figure 2: Media converter with fiber optic cables connected to the SC/SC ports.

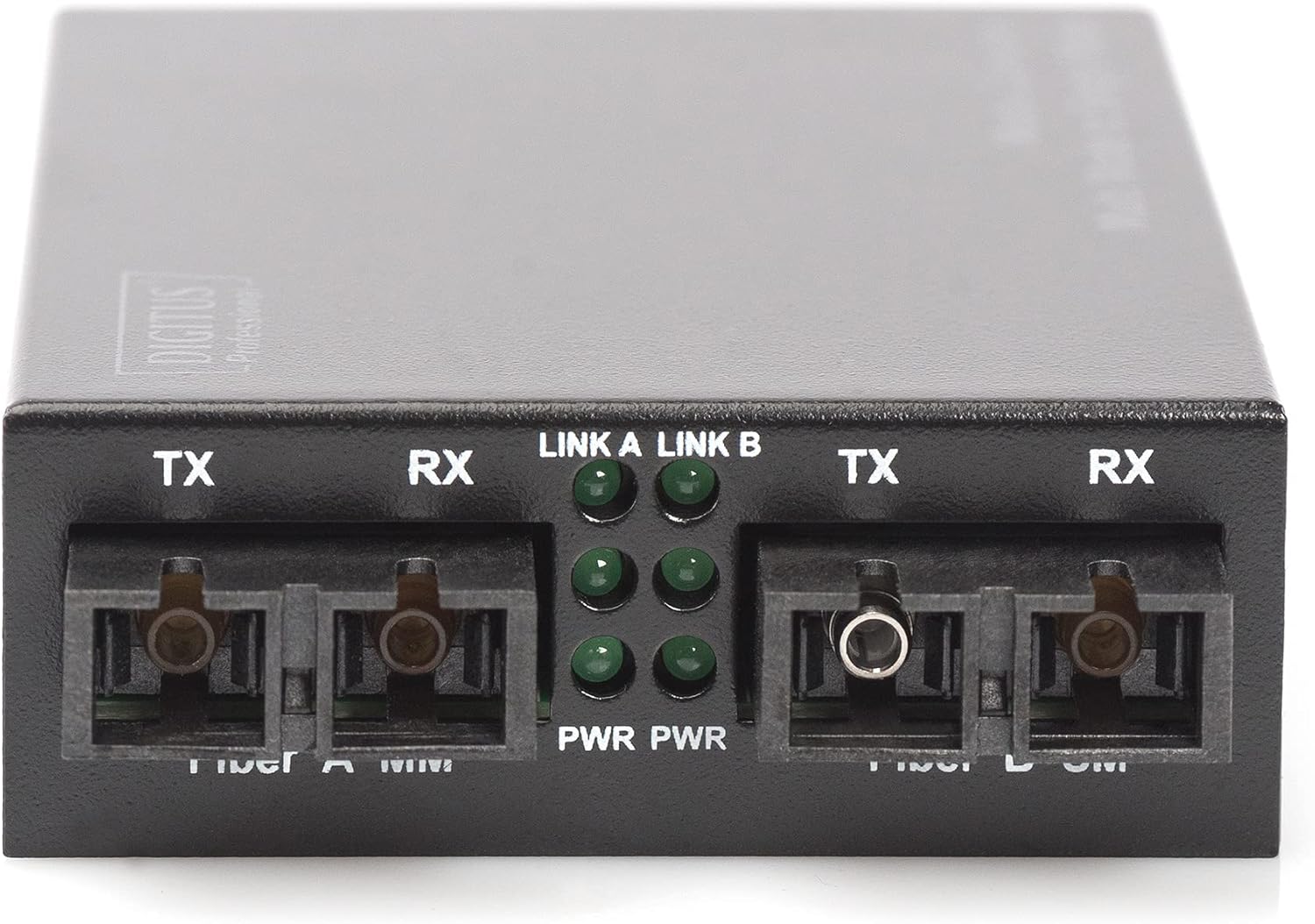

Figure 3: Front panel showing SC ports and LED indicators for power, link, and activity.
5. Arahan Operasi
The Digitus DN-82024 Media Converter operates automatically once all connections are established and power is supplied. It functions as a transparent bridge, converting Fast Ethernet signals between electrical and fiber optic media.
Penunjuk LED:
- PWR (Kuasa): Illuminates when the device is receiving power.
- LINK A / LINK B (Link Status): Illuminates when a valid fiber optic link is established. Flashes to indicate data activity.
- TX (Penghantaran): Flashes when data is being transmitted over the fiber optic link.
- RX (Terima): Flashes when data is being received over the fiber optic link.
6. Penyelenggaraan
To ensure optimal performance and longevity of your media converter:
- Persekitaran: Keep the device in a clean, dry, and well-ventilated environment. Avoid extreme temperatures and humidity.
- Fiber Optic Connectors: Regularly inspect and clean fiber optic connectors. Dust and debris can significantly degrade signal quality. Use only approved fiber optic cleaning tools and methods.
- Pengurusan Kabel: Ensure fiber optic cables are not bent beyond their minimum bend radius to prevent damage to the fiber core.
- Bekalan Kuasa: Periodically check the power adapter and cable for any signs of damage or loose connections.
7. Penyelesaian masalah
If you encounter issues with your Digitus DN-82024 Media Converter, refer to the following troubleshooting guide:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada LED Kuasa | No power supply or faulty adapter. | Ensure the power adapter is securely connected to the device and a working power outlet. Check the power adapter for damage. |
| No Link LED (LINK A/B) | Fiber optic cable issue, incorrect connection, or incompatible fiber type. | Verify that both ends of the fiber optic cable are correctly connected (TX to RX, RX to TX) and that the cable is not damaged. Ensure the connected network devices are powered on and functioning correctly. Confirm that the correct multimode or singlemode fiber type is used for the connection. Clean fiber optic connectors if necessary. |
| Slow Network Performance | Dirty fiber optic connectors, damaged cable, or network congestion. | Ensure fiber optic connectors are clean. Check for any physical damage to the cables or connectors. Verify that the connected network devices are operating at the expected speed and that there is no network congestion. |
8. Spesifikasi
| Model | DN-82024 |
| Penyambung | SC/SC |
| Panjang gelombang | 1310 nm |
| Kadar Pemindahan Data | 100 Mbit/s |
| Multimode Range | Up to 2 km (for 50/125µm, 62.5/125µm, 100/140µm fiber) |
| Singlemode Range | Up to 20 km (for 8.3/125µm, 8.7/125µm, 9/125µm, 10/125µm fiber) |
| Input Kuasa | 5V DC |
| Maks. Penggunaan terkini | 1 A |
| Penggunaan Kuasa | 3.5W |
| Dimensi (L x W x H) | 95 mm x 70 mm x 26 mm |
| Suhu Operasi | -10°C hingga 55°C |
| Berat badan | 300 g |
9. Waranti dan Sokongan
For detailed warranty information, technical support, and service inquiries, please refer to the official Digitus website or contact your local reseller. It is recommended to keep your purchase receipt as proof of purchase for any warranty claims.
You can find more information about Digitus solutions at: Digitus Solutions Overview
