pengenalan
Thank you for choosing the HOMCOM Audi Q5 Electric Ride-On Car. This manual provides important information for the safe assembly, operation, and maintenance of your new electric vehicle. Please read it thoroughly before use and retain it for future reference. This electric ride-on car is designed to provide an engaging and fun driving experience for children, featuring realistic details, sounds, and lights.
Image: The HOMCOM Audi Q5 Electric Ride-On Car in white, featuring a child at the wheel, showcasing its realistic design and functionality.
Maklumat Keselamatan
Keselamatan anak anda adalah yang paling utama. Sila patuhi garis panduan berikut:
- Cadangan Umur: This product is suitable for children aged 36 months to 6 years. Maximum manufacturer recommended age is 72 months (6 years).
- Had Berat: Jangan melebihi kapasiti beban maksimum 30 kg (66 lbs).
- Pengawasan Dewasa: Constant adult supervision is required at all times when the vehicle is in use.
- Persekitaran Operasi: Use only on flat, dry, and paved surfaces. Avoid slopes, uneven terrain, public roads, swimming pools, or other hazardous areas.
- Abah-abah Keselamatan: Always ensure the child is securely fastened with the 5-point safety harness before operation.
- Alat Pelindung: Encourage children to wear appropriate safety gear, such as a helmet, when operating the vehicle.
- Keselamatan Bateri: Keep the battery away from children. Do not short-circuit, puncture, or expose the battery to extreme temperatures.
- Kawalan Jauh: Parents can override manual control using the 2.4G remote control for added safety.
Imej: A terperinci view of the 5-point safety harness, emphasizing a key safety feature of the ride-on car.
Kandungan Pakej
Please check that all components are present and undamaged upon opening the package:
- Audi Q5 Electric Ride-On Car Body
- Roda Stereng
- Roda (4x)
- tempat duduk
- Kawalan Jauh 2.4G
- Pengecas
- Manual Arahan
- Perkakasan Pemasangan (skru, pencuci, dsb.)
Persediaan dan Perhimpunan
While the product is largely pre-assembled, some minor setup is required. Follow these general steps:
- Pasang Roda: Securely attach all four wheels to the axles using the provided hardware. Ensure they are firmly in place and can rotate freely.
- Pasang Stereng: Connect the steering wheel to the steering column. Ensure any electrical connectors for horn/music buttons are properly plugged in.
- Sambungkan Bateri: Locate the battery compartment (usually under the seat). Connect the battery terminals according to the polarity markings (+ to + and - to -).
- Pasang Tempat Duduk: Place the seat onto the car body and secure it with the designated screws or clips.
- Caj Permulaan: Before first use, fully charge the battery for the recommended duration (refer to the 'Charging the Battery' section).
The car also features a foldable pull bar at the front and two small wheels at the rear for easy transport when not in use or when the battery is low.
Arahan Operasi
The HOMCOM Audi Q5 offers two modes of operation: manual driving by the child and parental control via remote.
1. Dashboard Controls

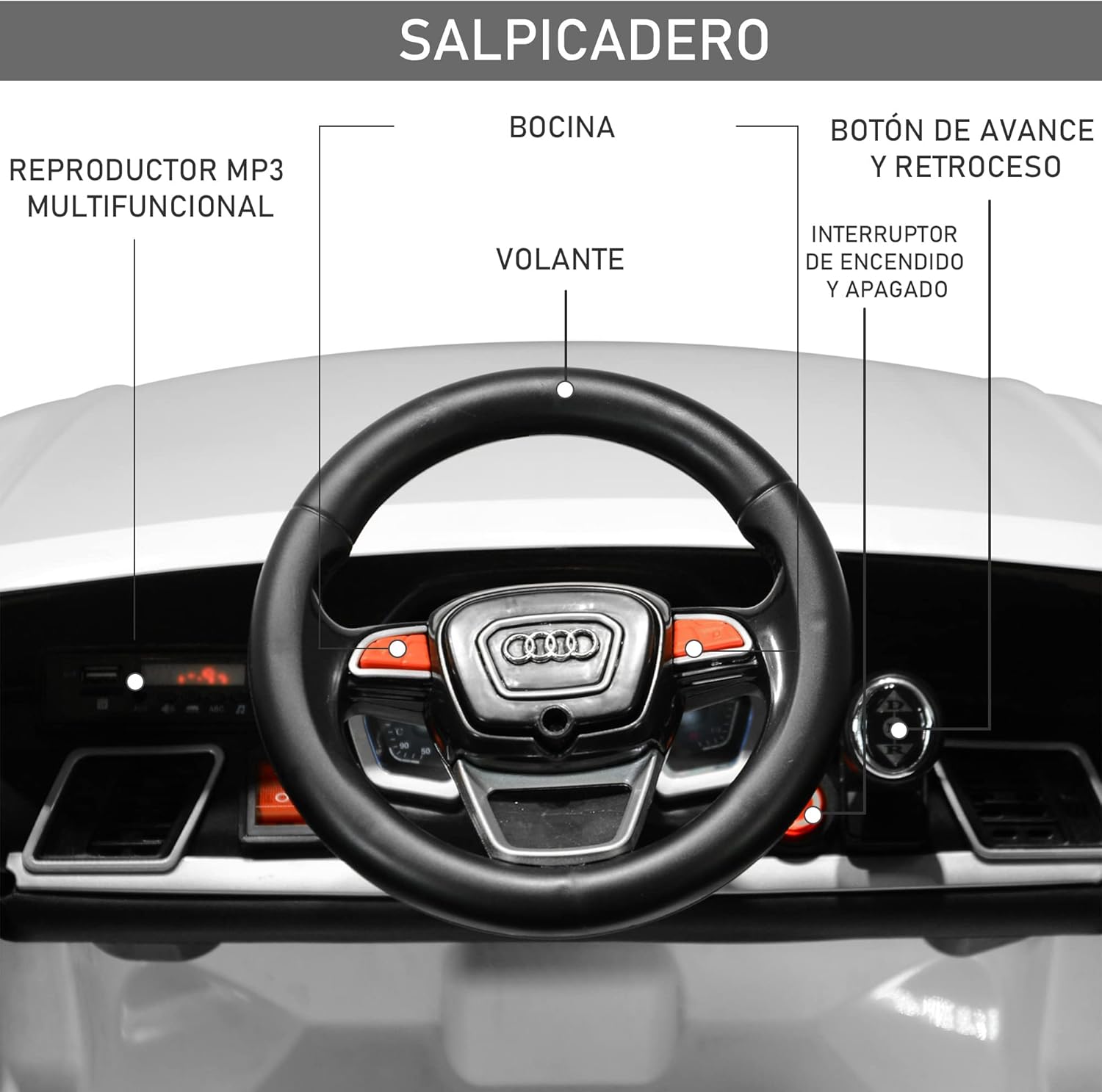

Image: The car's dashboard, highlighting the multifunctional MP3 player, horn, steering wheel, and power controls.
- Suis kuasa: Located on the dashboard (refer to image). Press to turn the car ON/OFF.
- Butang Maju/Undur: Controls the driving direction.
- Roda stereng: Used for manual steering.
- Butang Tanduk: Mengaktifkan bunyi hon.
- Multifunctional MP3 Player: Features a USB port, Micro SD card slot, and radio function for playing music.
Imej: A terperinci view of the gear shifter (P, R, D) and the red power button on the car's console.
2. Manual Driving Mode
Once the child is seated and secured with the safety harness:
- Turn on the car using the power switch.
- Select the desired direction (Forward/Reverse) using the gear shifter.
- Tekan pedal kaki untuk memecut. Lepaskan pedal untuk brek.
- Pandu menggunakan stereng.
3. Operasi Alat Kawalan Jauh
The 2.4G remote control allows parents to safely guide the vehicle.
Image: Illustration of the two driving modes and a clear diagram of the 2.4G remote control, detailing its functions for parental guidance.
- Berpasangan: Follow the remote control's specific instructions to pair it with the car.
- Hadapan/Undur: Buttons to move the car forward or backward.
- Kiri/Kanan: Buttons to steer the car left or right.
- Pemilihan Kelajuan: Adjust the speed settings (3-7 km/h) for safety and control.
- Butang Brek: Immediately stops the car.
Mengecas Bateri
To ensure optimal performance and battery life, follow these charging instructions:
- Cari Port Pengecasan: The charging port is typically located on the dashboard or under the seat.
- Sambungkan Pengecas: Plug the charger into a standard wall outlet, then connect the charger's plug to the car's charging port.
- Penunjuk Pengecasan: The charger will usually have an indicator light (e.g., red for charging, green for fully charged).
- Masa Pengecasan: For the first charge, allow 8-12 hours. Subsequent charges typically take 8-10 hours. Do not overcharge.
- Hayat Bateri: A fully charged battery provides approximately 1 hour of continuous use, depending on terrain and usage.
- Putuskan sambungan: Once fully charged, disconnect the charger from both the car and the wall outlet.
Only use the charger supplied with the product. Do not attempt to charge non-rechargeable batteries.
Penyelenggaraan
Regular maintenance will extend the life and performance of your electric ride-on car.
- Pembersihan: Wipe the car with a soft, damp kain. Jangan gunakan pembersih atau pelarut yang melelas. Elakkan menyembur air terus ke komponen elektrik.
- Storan: Store the car in a dry, cool place, away from direct sunlight and moisture. If storing for an extended period, charge the battery fully every 30 days to prevent deep discharge.
- Pemeriksaan: Periodically check all screws, nuts, and connections to ensure they are tight. Inspect wheels and tires for wear and tear.
- Penjagaan Bateri: Do not allow the battery to completely drain. Recharge promptly after each use.
Menyelesaikan masalah
Jika anda menghadapi sebarang masalah, rujuk kepada masalah dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Kereta tidak bergerak | Bateri lemah atau terputus sambungan Suis kuasa dimatikan Sambungan motor longgar Remote control override active | Charge battery, check connections Hidupkan suis kuasa Periksa pendawaian motor Ensure remote control is not actively controlling the car |
| Kereta bergerak perlahan | Bateri lemah Overloaded car Operating on uneven terrain | Isi semula bateri Kurangkan berat badan Bergerak ke permukaan yang rata dan licin |
| Lights/Sounds not working | Pendawaian longgar Bateri lemah | Periksa semua sambungan elektrik Cas bateri |
| Alat kawalan jauh tidak berfungsi | Bateri jauh mati Alat jauh tidak berpasangan | Gantikan bateri jauh Re-pair the remote control with the car (refer to remote manual) |
Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi sokongan pelanggan.
Spesifikasi
Key technical details for the HOMCOM Audi Q5 Electric Ride-On Car:

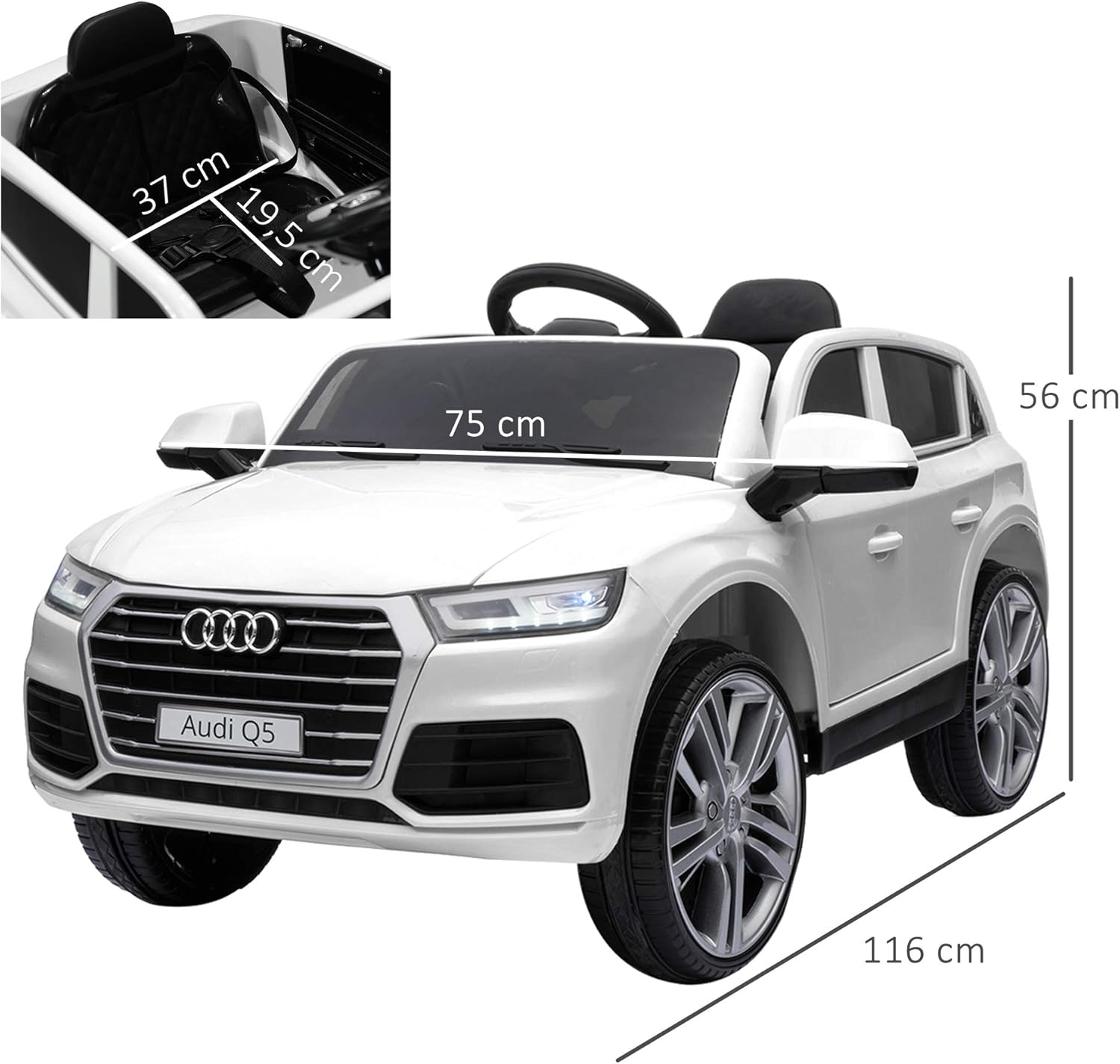

Image: Visual representation of the car's overall dimensions, including length, width, and height.
| Ciri | Perincian |
|---|---|
| Nombor Model | ES370-050WT0731 |
| Dimensi Keseluruhan (L x W x H) | 116 x 75 x 56 cm |
| Berat Produk | 16.5 kg |
| Umur Disyorkan | 36 bulan - 6 tahun |
| Kapasiti Beban Maksimum | 30 kg |
| Julat Kelajuan | 3 - 7 km/j |
| bahan | Metal and Polypropylene |
| Jenis Bateri | Boleh dicas semula, tahan lama |
| Autonomi Bateri | Up to 1 hour (after full charge) |
| Kekerapan Kawalan Jauh | 2.4G |
| Ciri-ciri | MP3 player, USB port, Micro SD slot, Radio, Lights, Sounds, 5-point safety harness, Opening doors, Foldable pull bar |
Waranti dan Sokongan
HOMCOM products are designed for quality and durability. For specific warranty information, please refer to the warranty card included with your purchase or visit the official HOMCOM website. If you require technical assistance, have questions about assembly, or need replacement parts, please contact HOMCOM customer support through their official channels. Please have your model number (ES370-050WT0731) and purchase details ready when contacting support.
