This manual provides detailed instructions for the installation, operation, and maintenance of your Modern Forms Hydra Smart Indoor and Outdoor 8-Blade Ceiling Fan. Please read this manual thoroughly before installation and use to ensure proper function and safety. This fan is designed for both indoor and outdoor applications, featuring smart home integration and an energy-efficient DC motor.

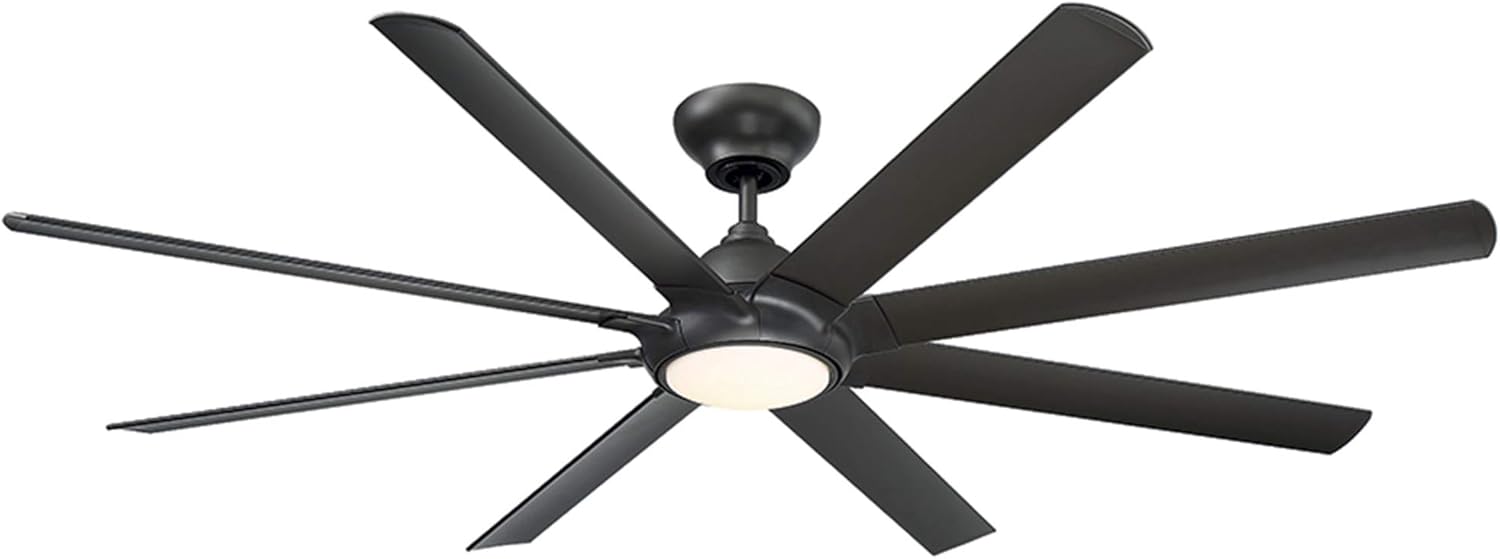

Figure 1: The Hydra Smart Indoor and Outdoor 8-Blade Ceiling Fan.
Maklumat Keselamatan
Always disconnect power at the circuit breaker before installing, cleaning, or servicing the fan. All wiring must be in accordance with national and local electrical codes. If you are unfamiliar with electrical wiring, consult a qualified electrician. Ensure the installation location can support the fan's weight. Do not bend the blade holders during installation or cleaning. Verify all connections are secure and properly grounded.
Kandungan Pakej
- Complete Ceiling Fan (Fan Blades, Motor)
- Kit Cahaya
- Penerima Pintar
- Mounting Hardware and 6-inch Downrod
- Bluetooth Hardwired Wall Control (Part# F-WCBT-WT)
- Installation Instructions & Setup Manual
Pemasangan
Professional installation is recommended for optimal safety and performance. The fan is designed to mount to a standard ceiling fan junction box. Ensure the junction box is securely fastened to the building structure and can support the fan's weight.
Figure 2: The Hydra fan shown with its included wall control.
Fan Sizing and Height
Proper fan sizing and downrod length are crucial for effective air circulation. Refer to the diagrams below to determine the appropriate blade span and downrod length for your space. The fan can be installed on slope ceilings up to a 32-degree slope. An optional XF-SCK Slope Ceiling Kit is available for slopes between 32-45 degrees. Downrods for longer lengths are sold separately.
Figure 3: Guide for selecting the correct blade span based on room size.
Figure 4: Recommended downrod lengths for different ceiling heights. A 6-inch downrod is included.
Ciri Pintar & Ketersambungan
The Hydra fan offers advanced smart features for convenient control and integration with your smart home ecosystem.
Muat Turun Aplikasi dan Penciptaan Akaun
To unlock the full potential of your smart fan, download the Modern Forms app from your device's app store. Once installed, you will need to create an account or log in using existing credentials.
Video 1: Modern Forms iOS APP Install Instructions. This video demonstrates the process of downloading the Modern Forms app and creating an account for fan control.
Berpasangan Wi-Fi
After creating your account, follow the in-app instructions to pair your fan with your home Wi-Fi network. Note that Modern Forms fans connect to 2.4 GHz Wi-Fi networks only.
Pilihan Kawalan
Your fan can be controlled via the included Bluetooth hardwired wall control, an optional battery-operated Bluetooth remote control (sold separately, Part # F-RCBT-WT), or through the Modern Forms app on your iOS or Android device. The app allows control from anywhere with Wi-Fi access.
Figure 5: Control options for the Hydra fan, including the wall control, remote, and mobile app.
Integrasi Rumah Pintar
The Hydra fan seamlessly integrates with popular smart home platforms, including Amazon Alexa, Google Assistant, Samsung Smart Things, Ecobee, Control4, and Josh AI. This allows for voice control and advanced automation.
Figure 6: The Hydra fan's compatibility with various smart home systems.
Video 2: Modern Forms Smart Fans Features Video. This video highlights the various smart features and integrations available with Modern Forms fans.
Mengendalikan Kipas
The Modern Forms app provides comprehensive control over your fan's functions, including fan speed, light brightness, and smart features like breeze mode and adaptive learning.
Kelajuan Kipas dan Kawalan Cahaya
Adjust the fan speed through six settings for optimal comfort. The integrated LED luminaire offers smooth and continuous brightness control, dimmable to 1%. The LED light is available in 2700K, 3000K, and 3500K options. An optional cover is included to conceal the luminaire if desired.
Operasi Bermusim
The fan can be operated in different modes to optimize comfort and energy efficiency throughout the year. In summer, the fan typically rotates counter-clockwise to create a downdraft, producing a cooling effect. In winter, it can be set to rotate clockwise at a low speed to create an updraft, circulating warm air trapped near the ceiling.
Figure 7: Summer and Winter modes for optimized air circulation.
Penyelenggaraan
Your Modern Forms fan is designed for durability and minimal maintenance. The incredibly efficient and silent DC motor is factory-balanced and sound tested to prevent wobbling, rattling, or clicking.
Pembersihan
Untuk membersihkan kipas, gunakan lembut, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or electrical components. Ensure the fan is completely dry before resuming operation.
Menyelesaikan masalah
For common issues and solutions, please refer to the official Troubleshooting Guide provided by Modern Forms. This document can help resolve many operational concerns.
Download the Troubleshooting Guide (PDF): Klik Sini
Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | Bentuk Moden |
| Nama Model | Hydra |
| Nombor Model | FR-W1805-80L-BZ |
| warna | Gangsa |
| Gaya | 3000K Warm White LED |
| Dimensi Produk | 80"D x 80"W x 17.25"H |
| Rentang Bilah | 80 inci |
| Bilangan Bilah | 8 |
| Bahan Bilah | aluminium |
| Sumber Kuasa | AC/DC |
| Voltage | 120 Volt |
| Wattage | 65.5 watt |
| Kapasiti Aliran Udara | 11308 Kaki Kubik Seminit |
| Tahap Kebisingan | 15 dB |
| Penggunaan Dalaman/Luar | Luar, Dalaman (Lokasi Basah Dinilai) |
| Jenis Cahaya | LED |
| Fluks Bercahaya | 2041 Lumen |
| Kaedah Kawalan | Remote, App, Voice Control |
| Ciri Khas | Works with Amazon Alexa, Google Assistant, Ecobee, Samsung Smart Things; Smart Home Enabled; App Operable; 6 Speed Brushless Silent and Energy Star Certified Efficient DC Motor. |
| Pensijilan | Energy Star, EPA, UL, FCC, cUL, ETL, cETL, CSA CAN Wet Location Listed |
Figure 8: Detailed dimensions of the Hydra Smart Ceiling Fan.
Figure 9: The Hydra fan is Energy Star certified for high efficiency.
Waranti
Modern Forms offers a comprehensive warranty for the Hydra Smart Ceiling Fan:
- LED: Waranti 5 tahun
- Motor: Waranti seumur hidup
- Semua bahagian lain: Waranti 1 tahun
Sokongan
For further assistance, please visit the Modern Forms website or contact their customer support. You can also refer to the Troubleshooting Guide linked in the Troubleshooting section of this manual.
