Alvoxcon UHF Wireless Dynamic Handheld Microphone System User Manual

pengenalan

This manual provides detailed instructions for the setup, operation, and maintenance of your Alvoxcon UHF Wireless Dynamic Handheld Microphone System. Please read this manual thoroughly before using the product to ensure proper function and longevity.

Kandungan Pakej

Setelah membuka bungkusan, pastikan semua barang yang disenaraikan di bawah ada dan dalam keadaan baik:

Alvoxcon UHF Wireless Handheld Microphone
UHF Wireless Receiver (1/4 inch plug)
AA Batteries (for microphone)
USB Charging Cable (for receiver)
1/4-inch to 1/8-inch TRS Adapter
1/8-inch TRRS Splitter Cable (for smartphones/laptops)
Manual Pengguna

Alvoxcon Wireless Microphone System components laid out on a white table, including the microphone, receiver, batteries, and cables.

Image: All components of the Alvoxcon Wireless Microphone System, including the handheld microphone, mini receiver, AA batteries, USB charging cable, and various adapters, neatly arranged on a white surface.

Video: Unboxing dan seterusnyaview of the Alvoxcon single wireless handheld microphone system (CK210), demonstrating the contents of the package and initial setup steps.

Arahan Persediaan

1. Installing Batteries in the Microphone

Unscrew the bottom part of the microphone to open the battery compartment.
Masukkan dua bateri AA, pastikan kekutuban (+/-) betul.
Skru bahagian bawah kembali dengan selamat.

2. Mengecas Penerima

Connect the USB charging cable to the receiver's charging port.
Palamkan hujung kabel USB yang satu lagi ke dalam penyesuai kuasa USB standard (tidak disertakan) atau port USB komputer.
The charging indicator light on the receiver will illuminate during charging and turn off when fully charged.

3. Connecting the Receiver to an Audio Device

The receiver features a 1/4-inch (6.35mm) plug for direct connection to devices with a 'MIC IN' jack. Use the provided adapters for other connections.

For PA Systems, Amplifiers, Mixers: Plug the 1/4-inch receiver directly into the 'MIC IN' jack.
Untuk Kamera DSLR: Use the 1/4-inch to 1/8-inch TRS adapter to connect the receiver to the camera's 1/8-inch microphone input.
For Smartphones/Tablets/Laptops (for recording): Use the 1/4-inch to 1/8-inch TRS adapter, then connect it to the 1/8-inch TRRS splitter cable. Plug the microphone icon end of the splitter into your device's headphone/microphone combo jack. Note: This setup is primarily for recording; real-time sound projection to speakers from smartphones/computers is not supported.

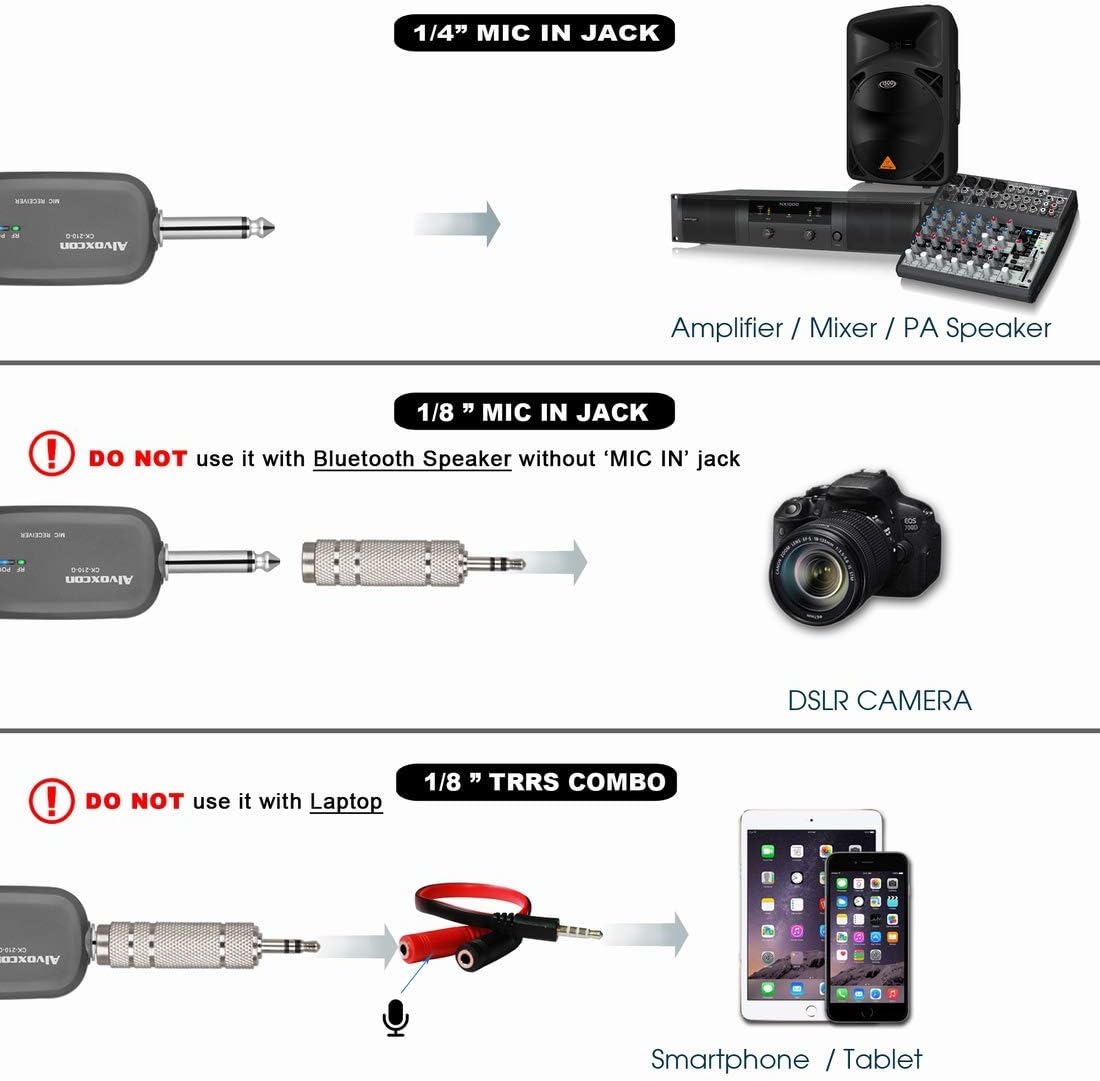

Diagram showing how to connect the Alvoxcon wireless microphone receiver to various audio devices: amplifier/mixer via 1/4 inch jack, DSLR camera via 1/8 inch jack, and smartphone/tablet via TRRS combo splitter.

Image: Connection diagram illustrating how to connect the wireless receiver to an amplifier/mixer (1/4" jack), a DSLR camera (1/8" jack), and a smartphone/tablet (1/8" TRRS combo).

Penting: Do not use with Bluetooth speakers that only have 'LINE' or 'AUX' input jacks, as this may result in insufficient sound or no sound at all. Not compatible with MacBook for real-time sound projection.

Arahan Operasi

1. Menghidupkan/Mematikan

mikrofon: Press and hold the power button on the microphone until the display illuminates.
Penerima: Press and hold the power button on the receiver until the indicator light turns on.
To power off, press and hold the respective power buttons again.

2. Automatic Frequency Pairing

The system is designed for automatic frequency pairing. Once both the microphone and receiver are powered on, they should automatically connect. The RF POW indicator on the receiver will light up when a stable connection is established.

3. Selecting Frequencies (20 Selectable UHF Frequencies)

If you experience interference, you can change the operating frequency:

On the microphone, press and hold the frequency selection button (often integrated with the power button or a separate 'SET' button) for approximately 5 seconds.
The frequency displayed on the microphone will change. The receiver will automatically sync to the new frequency.
Repeat this process until a clear channel is found.

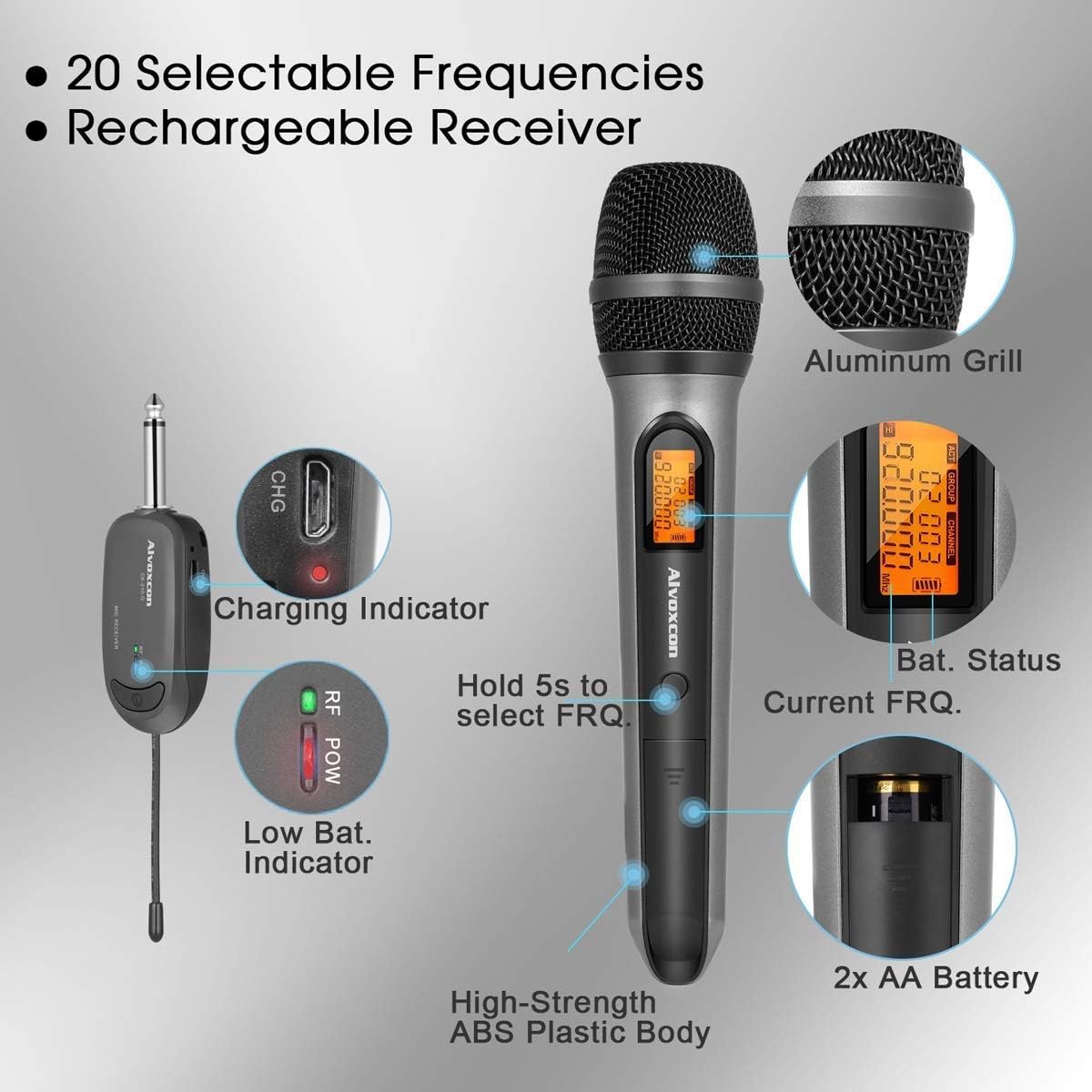

Terperinci view of the Alvoxcon wireless microphone and receiver, highlighting features like charging indicator, low battery indicator, battery status, current frequency display, and the button to hold for 5 seconds to select frequency.

Image: Close-up of the Alvoxcon wireless microphone and receiver, showing the charging indicator, low battery indicator, battery status, current frequency display, and the frequency selection button.

4. Optimal Usage

Maintain a clear line of sight between the microphone and receiver for best performance.
Keep the microphone within the recommended operating range of up to 30 meters (100 feet).
Avoid placing the receiver near metal objects or other electronic devices that may cause interference.

Penyelenggaraan

1. Pembersihan

Lap mikrofon dan penerima dengan kain lembut dan kering.
Jangan gunakan pembersih cecair atau pelarut, kerana ia boleh merosakkan kemasan atau komponen dalaman.

2. Penjagaan Bateri

Remove batteries from the microphone if it will not be used for an extended period to prevent leakage.
Ensure the receiver is fully charged before each use for optimal battery life.

3. Penyimpanan

Simpan sistem di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
Keep components in their original packaging or a protective case to prevent damage.

Menyelesaikan masalah

Masalah	Kemungkinan Punca	Penyelesaian
Tiada bunyi dari mikrofon	Microphone/Receiver not powered on. Bateri lemah. Sambungan ke peranti audio salah. Gangguan kekerapan.	Pastikan kedua-duanya dihidupkan. Replace AA batteries in microphone; charge receiver. Verify correct adapter and 'MIC IN' jack usage. Change microphone frequency (see Operating Instructions).
Static or intermittent sound	Gangguan daripada peranti lain. Mikrofon terlalu jauh dari penerima. Halangan antara mikrofon dan penerima.	Change microphone frequency. Bergerak lebih dekat kepada penerima. Pastikan garis penglihatan yang jelas.
Penerima tidak dicas	Kabel USB atau sumber kuasa yang rosak.	Cuba kabel USB atau penyesuai kuasa yang lain.

Spesifikasi

Faktor Bentuk Mikrofon: Sistem Mikrofon
Teknologi Ketersambungan: UHF
Bilangan Saluran: 20 frekuensi boleh dipilih
Julat Operasi: Sehingga 30 meter (100 kaki)
Nisbah Signal-to-Noise: 90 dB
Microphone Power Source: 2x Bateri AA
Receiver Power Source: Rechargeable Lithium Polymer battery
Jenis Penyambung: 3.5 mm Jack (with adapters for 1/4 inch)
Peranti Serasi: PA systems, Amplifiers, Mixers, DSLR Cameras, Smartphones, Laptops (for recording)
Bahan: Akrilonitril Butadiena Stirena, Aluminium
Berat Barang: 195 Grams (microphone)
Dimensi Produk: 11.8 x 5.11 x 2.55 inci
Nombor Model: B07DZ44TF6

Diagram illustrating the audio performance features of the Alvoxcon wireless microphone, including 100 ft distance, 0 ms latency, UHF DQPSK processing unit, large diaphragm dynamic capsule, and ultra-hi fidelity.

Image: Diagram detailing the extraordinary audio performance features of the microphone, such as 100 ft range, near-zero latency, UHF DQPSK processing, and a large diaphragm dynamic capsule.

Close-up of the Alvoxcon wireless microphone showing its polar pattern diagram and key features like good signal, distance, no noise, constant frequency, high fidelity, and good quality.

Image: Close-up of the microphone displaying its polar pattern and highlighting features like good signal, extended distance, noise reduction, constant frequency, high fidelity, and overall quality.

Waranti dan Sokongan

For warranty information and technical support, please refer to the official Alvoxcon website or contact their customer service directly. Contact details are typically provided in the product packaging or on the manufacturer's webtapak.

Lawati Alvoxcon Store on Amazon untuk maklumat lanjut dan kemas kini produk.

Alvoxcon B07DZ44TF6
