wsdcam TVI to HDMI Converter Instruction Manual

1. Pengenalan

The wsdcam TVI to HDMI Converter is designed to display high-definition video from various security cameras on an HDMI-compatible monitor or television. This device supports multiple analog video formats including TVI, CVBS, AHD, and CVI. It is capable of accepting input resolutions up to 8MP (4K) and outputs a standard 1080p HDMI video signal. This converter is ideal for public view monitors or connecting security camera feeds to a DVR.

2. Kandungan Pakej

Sila sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:

• 1 x wsdcam TVI to HDMI Converter
• 1 x Penyesuai Kuasa
• 1 x Kabel BNC
• 1 x USB Power Cable

Image: Package contents of the wsdcam TVI to HDMI Converter.

3. Produk Lebihview

Familiarize yourself with the ports and indicators on the wsdcam TVI to HDMI Converter:

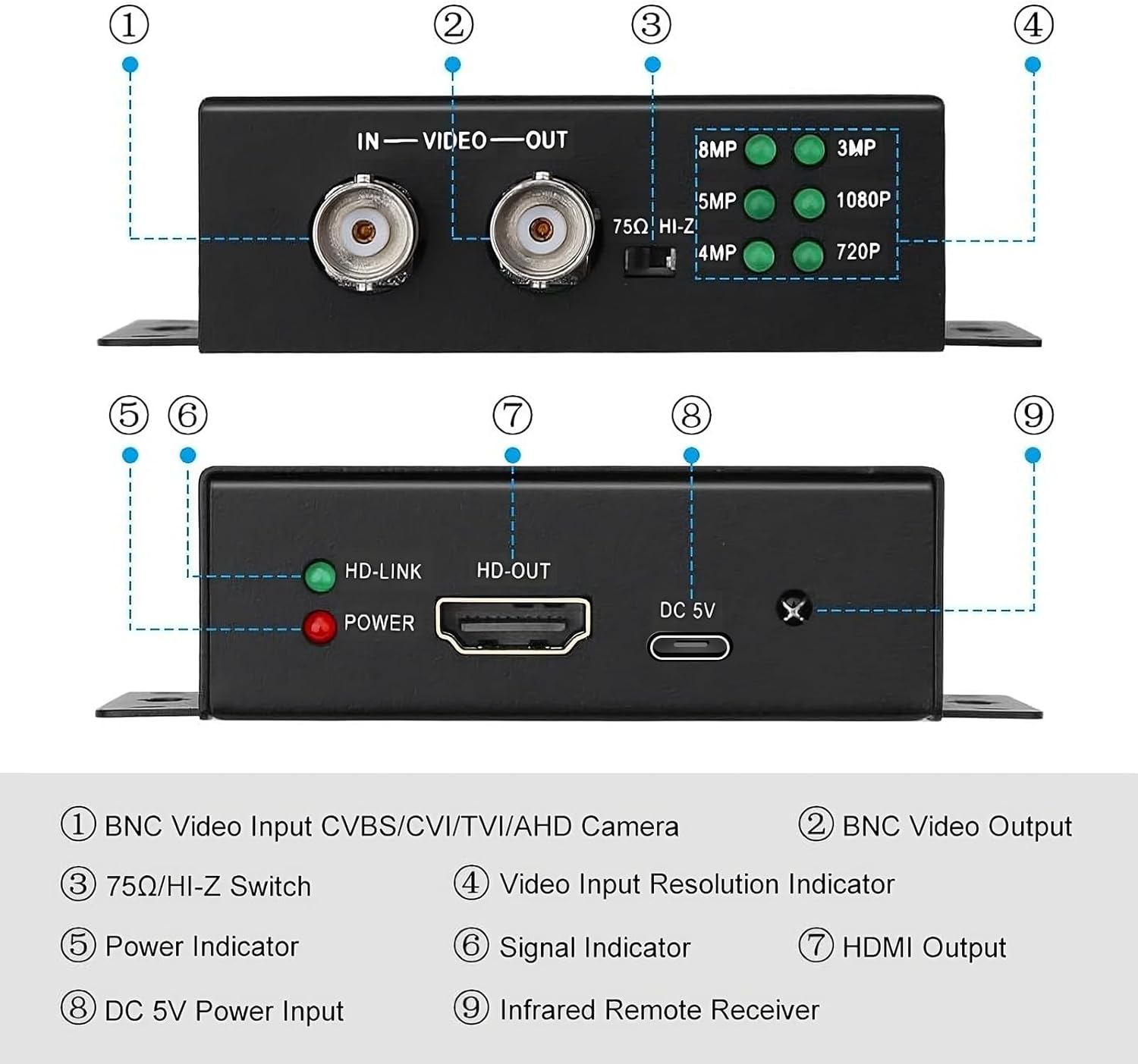

Imej: Depan dan belakang view of the converter with labeled ports and indicators.

1. BNC Video Input: Connects to CVBS, CVI, TVI, or AHD cameras.
2. BNC Video Output: Provides a 4K BNC video loop out for connecting to another device like a DVR or camera tester.
3. 75Ω/HI-Z Switch: Set to 75Ω for HDMI output only. Set to HI-Z if using the BNC loop output.
4. Video Input Resolution Indicators: LEDs illuminate to show the detected input resolution (8MP, 5MP, 4MP, 3MP, 1080P, 720P).
5. Penunjuk Kuasa: Red LED indicates the device is powered on.
6. Signal Indicator (HD-LINK): Green LED indicates a stable video signal input.
7. HDMI Output (HD-OUT): Connects to an HDMI display for 1080p video output.
8. Input Kuasa DC 5V: Sambungkan penyesuai kuasa yang disediakan.
9. Infrared Remote Receiver: For future or optional remote control functionality (remote not included).

4. Persediaan dan Sambungan

4.1 Connecting to a Single Monitor

Follow these steps to connect your security camera to a single HDMI monitor:

1. Connect your security camera's BNC output to the BNC Video Input port pada penukar.
2. Sambungkan kabel HDMI daripada Output HDMI port on the converter to the HDMI input on your monitor or TV.
3. Sambungkan penyesuai kuasa yang disediakan kepada Input Kuasa 5V DC port on the converter and plug it into a power outlet.
4. Memastikan 75Ω/HI-Z Switch ditetapkan kepada 75Ω if you are only using the HDMI output.
5. Power on your camera and monitor. The converter will automatically detect the input resolution and display it on the HDMI monitor.

Image: Connection diagram for a single monitor setup.

4.2 Connecting to Multiple HDMI Monitors (Video Splitter Function)

Multiple wsdcam TVI to HDMI converters can be used in series to display a single analog camera feed on several HDMI monitors. This utilizes the BNC Video Loop Out feature.

1. Connect your security camera's BNC output to the BNC Video Input port of the first converter.
2. Sambungkan kabel HDMI daripada Output HDMI of the first converter to your first HDMI monitor.
3. Connect a BNC cable from the Output Video BNC of the first converter to the BNC Video Input of the second converter.
4. Sambungkan kabel HDMI daripada Output HDMI of the second converter to your second HDMI monitor.
5. Repeat step 3 and 4 for additional converters and monitors as needed.
6. Connect power adapters to all converters.
7. Memastikan 75Ω/HI-Z Switch on all converters is set to HI-Z if you are using the BNC loop output.

Image: Connection diagram for multiple HDMI monitors.

5. Arahan Operasi

The wsdcam TVI to HDMI Converter is designed for plug-and-play operation, requiring no driver installation.

• Once all connections are made and power is supplied, the converter will automatically detect the incoming video signal type (CVBS, TVI, CVI, AHD) and its resolution.
• The corresponding LED on the converter (720P, 1080P, 3MP, 4MP, 5MP, 8MP) will illuminate to indicate the detected input resolution.
• The video signal will then be converted and outputted via the HDMI port at 1080p resolution to your connected display.

6. Penyelenggaraan

To ensure the longevity and optimal performance of your converter, please observe the following maintenance guidelines:

• Simpan peranti dalam persekitaran yang kering, jauh daripada kelembapan dan suhu yang melampau.
• Clean the exterior of the converter with a soft, dry cloth. Do not use liquid cleaners or aerosols.
• Elakkan daripada menjatuhkan atau meletakkan peranti kepada kesan yang kuat.
• Pastikan pengudaraan yang betul di sekeliling unit untuk mengelakkan terlalu panas.

7. Penyelesaian masalah

If you encounter issues with your wsdcam TVI to HDMI Converter, please refer to the following common problems and solutions:

• No video output on the HDMI display:
  • Verify that the power adapter is securely connected to the converter and a working power outlet. The red POWER LED should be on.
  • Check all BNC and HDMI cable connections to ensure they are secure and correctly plugged in.
  • Confirm that your security camera is powered on and functioning correctly.
  • Ensure the HDMI display is set to the correct input source.
  • Check the 75Ω/HI-Z switch setting. It should be 75Ω if only using HDMI output.
• Image is black and white:
  • This can sometimes occur with certain camera or monitor configurations. Try adjusting the color settings on your HDMI display.
  • Ensure the camera itself is outputting a color signal.
  • Jika masalah berterusan, hubungi sokongan pelanggan untuk mendapatkan bantuan lanjut.
• Power connection is loose or device does not power on:
  • Ensure the USB power cable is fully inserted into the DC 5V Power Input port.
  • Use the provided power adapter and USB cable. If using a different USB power source, ensure it provides stable 5V DC.

If you require further assistance or are unable to resolve an issue, please contact wsdcam customer support.

8. Spesifikasi

Image: Converter dimensions.

9. Waranti dan Sokongan

This product is covered by a standard manufacturer's warranty. For specific warranty details, please refer to the product packaging or contact your retailer.

For any technical assistance, questions, or concerns regarding your wsdcam TVI to HDMI Converter, please do not hesitate to contact us. We are committed to providing support and resolving any issues you may encounter.

Maklumat Hubungan: Please refer to the contact details provided with your purchase or visit the official wsdcam webtapak untuk pilihan sokongan.
