pengenalan
The Delta Faucet Woodhurst Widespread Bathroom Faucet in Chrome (Model 3532LF-MPU) is designed to provide a refined and functional addition to your bathroom. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your faucet.
The Woodhurst Collection features a classic design with button-cap detailing, offering both aesthetic appeal and reliable functionality. Delta faucets are engineered for durability and ease of use, backed by a Lifetime Limited Warranty.
Image: The Delta Woodhurst Widespread Bathroom Faucet in Chrome, showcasing its elegant design with two handles and a curved spout.
Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | DELTA |
| Nama Model | Woodhurst™ |
| Nombor Model | 3532LF-MPU |
| warna | Chrome |
| Jenis Selesai | Chrome |
| bahan | Zinc (Body), Stainless Steel (Handle) |
| Jenis Pemasangan | Gunung Dek |
| Jenis Pemasangan | Deck Mounted |
| Kiraan Lubang | 3 |
| Bilangan Pemegang | 2 |
| Ciri Khas | Longkang Pop Up |
| Kadar Aliran Maksimum | 1.2 Gelen Setiap Minit |
| Penggunaan Air | 1.2 Gelen seminit |
| Ketinggian spout | 6 Inci |
| Jangkauan muncung | 5.25 Inci |
| Dimensi Produk | 2"D x 6"W x 6.81"H |
| Berat Barang | 4.62 paun |
| Komponen yang Disertakan | Instruction Manual, Metal Pop-Up Drain Assembly |
| Tarikh Tersedia Pertama | 2 Julai 2018 |

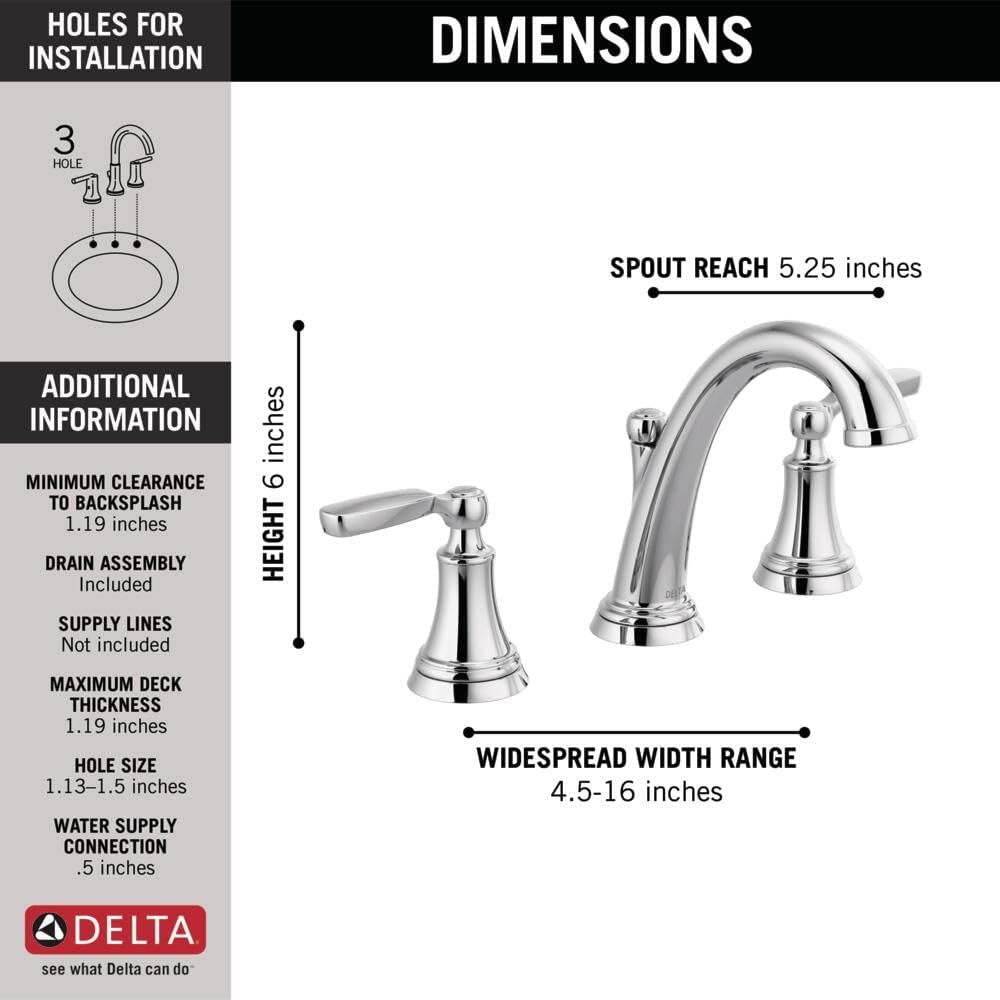

Image: Detailed diagram showing the dimensions of the Delta Woodhurst faucet, including spout height, spout reach, and widespread width range, along with information on 3-hole installation and maximum deck thickness.
Persediaan dan Pemasangan
The Delta Woodhurst faucet is designed for easy DIY installation, featuring a wrench-free, quick-connect hose system that audibly clicks when water lines are properly connected, helping to prevent leaks. This widespread bathroom faucet is suitable for 3-hole, 4-16 inch widespread installations.
Langkah Pemasangan:
- Sediakan Sinki: Ensure the sink area is clean and free of debris. Confirm your sink has three holes for widespread faucet installation.
- Feed Supply Lines: Feed the supply lines through the base gaskets and then through the outside holes of the sink.
- Feed Spout Inlet: Feed the spout inlet through the base gasket and then through the center hole of the sink.
- Kurungan Selamat: Secure the mounting bracket to the mounting stud using the pre-installed nut and included wrench.
- Connect Spout to Valve Outlets: Connect the spout inlet to the valve outlets using the supplied hose.
- Sambungkan Talian Bekalan: Connect the hot and cold supply lines (not included) to the hot and cold stops and tighten with an adjustable wrench.
- Pasang Pemasangan Parit: Install the metal push pop-up drain. The drain unscrews from above the deck for quick removal and easy cleaning.
- Ujian untuk Kebocoran: After installation, remove the aerator with the included wrench, run water for 30 seconds, and then reinstall the aerator. Check all connections for leaks.
Image: A visual step-by-step guide illustrating the installation process, from feeding supply lines to connecting hoses and securing the faucet.
Imej: Dari dekat view demonstrating the quick-connect hose system, highlighting its wrench-free design and audible click for secure connections.
Arahan Operasi
The Delta Woodhurst Widespread Bathroom Faucet features two handles for precise control over water temperature and flow. The left handle typically controls hot water, and the right handle controls cold water.
- Menghidupkan/Mematikan: Rotate the handles away from the spout to turn on the water. Rotate them back towards the spout to turn off the water.
- Melaraskan Suhu: Mix hot and cold water by adjusting both handles simultaneously until the desired temperature is achieved.
- Melaraskan Aliran: The further the handles are rotated, the greater the water flow.
Image: The Delta Woodhurst faucet installed on a bathroom sink, with water flowing, demonstrating its functional elegance in a typical bathroom setting.
Penyelenggaraan
Proper maintenance will ensure the longevity and continued aesthetic appeal of your Delta Woodhurst faucet. The faucet features a corrosion-resistant Chrome finish and a reliable valve designed for long-lasting performance.
Membersihkan Faucet:
- Bersihkan paip dengan kerap dengan lembut, damp kain.
- Elakkan pembersih yang melelas, bahan kimia yang keras, atau pad penyental, kerana ini boleh merosakkan kemasan.
- Untuk bintik-bintik degil, gunakan sabun lembut dan larutan air, kemudian bilas dengan bersih dan keringkan dengan kain lembut.
Penyelenggaraan longkang:
The metal push pop-up drain is designed for easy cleaning. It can be unscrewed from above the deck for quick removal of hair and other debris that may accumulate in the sink.
Valve Reliability:
The valve cartridge is tested to last at least 500,000 uses, ensuring high performance with minimal drips and smooth handle operation. If you experience persistent dripping or stiffness in the handles, refer to the troubleshooting section or contact customer support.
Image: An illustration highlighting the corrosion-resistant chrome finish, tested to exceed industry standards, ensuring durability against blistering, cracking, or peeling.
Image: A cutaway diagram illustrating the internal components, emphasizing the reliable valve tested for 500,000 uses, corrosion-resistant mounting shanks, and secure jack screws for stable installation.
Menyelesaikan masalah
This section addresses common issues you might encounter with your Delta Woodhurst faucet. For more complex problems, please contact customer support.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Aliran Air Rendah | Clogged aerator or debris in supply lines. | Keluarkan dan bersihkan aerator. Periksa talian bekalan untuk kekusutan atau halangan. |
| Bocor dari Spout | Worn out valve cartridge or debris in the valve. | Ensure handles are fully closed. If leaking persists, the valve cartridge may need inspection or replacement. Contact customer support. |
| Bocor pada Dasar Faucet | Sambungan longgar atau O-ring/gasket yang rosak. | Check and tighten all connections under the sink. Inspect gaskets and O-rings for damage and replace if necessary. |
| Kesukaran Memusing Pemegang | Pembentukan mineral atau kartrij haus. | Clean around the handle base. If the issue persists, the cartridge may need to be serviced or replaced. |
| Isu Suhu Air | Incorrect hot/cold supply connections or water heater issues. | Verify hot and cold supply lines are connected correctly. Check your water heater settings. |
Waranti dan Sokongan
Delta Faucet products are manufactured to the highest quality standards and are backed by a comprehensive warranty and dedicated customer support.
Waranti Terhad Sepanjang Hayat:
Delta Faucet provides a Lifetime Limited Warranty on all parts and finishes to the original consumer purchaser. This warranty covers defects in material and manufacturing workmanship. For full details, please refer to the official Delta Faucet warranty documentation or visit their webtapak.
Sokongan Pelanggan:
Delta Faucet's highly trained customer care team is ready to help on the spot. For assistance with installation, troubleshooting, or warranty claims, please contact them directly.
Telefon Perkhidmatan Pelanggan: 1-800-345-3358
You can also explore Delta Faucet's YouTube channel for step-by-step installation videos and additional product information.
Image: An advertisement for Delta Faucet's customer service, highlighting their availability and contact number for support.
Image: A visual representation of Delta Faucet's recognition by J.D. Power for outstanding customer service, featuring awards from 2022, 2023, and 2024.
