UHPPOTE AK-RK02E+J027

UHPPOTE AC/DC12-48V 2-Channel 433Mhz RF Wireless Remote Control Switch Instruction Manual

Model: AK-RK02E+J027

1. Pengenalan

This manual provides detailed instructions for the installation, setup, and operation of your UHPPOTE AC/DC12-48V 2-Channel 433Mhz RF Wireless Remote Control Switch. This device is designed for various applications, including home appliances, lighting, and other electronic equipment, offering convenient wireless control. Please read this manual thoroughly before use to ensure proper functionality and safety.

2. Produk Lebihview

The UHPPOTE 2-Channel RF Wireless Remote Control Switch is a versatile learning code receiver that allows you to control two independent channels wirelessly. Its robust design supports a wide power input range and features reliable signal transmission.

Ciri-ciri Utama:

jarak dekat view of the UHPPOTE 2-Channel RF Wireless Remote Control Switch circuit board

Imej: Jarak dekat view of the UHPPOTE 2-Channel RF Wireless Remote Control Switch circuit board, showing relays, capacitors, and connection terminals.

3. Setup and Code Learning

Before operating the switch, you must pair it with your remote control transmitter. The receiver has a 'Learning' button for this process.

Arahan Berpasangan:

  1. Learning for the First Relay: Press the 'Learning' button on the receiver once. The indicator light will flash. Immediately press any button on your remote control transmitter. The indicator light on the receiver will flash 3 times quickly, confirming successful code learning for the first relay.
  2. Learning for the Second Relay: Press the 'Learning' button on the receiver twice. The indicator light will flash. Immediately press any other button on your remote control transmitter. The indicator light on the receiver will flash 3 times quickly, confirming successful code learning for the second relay.

Clearing Stored Codes:

To clear all previously learned codes from the receiver, press and hold the 'Learning' button until the indicator light remains steadily bright. This indicates all stored remote control pairings have been erased.

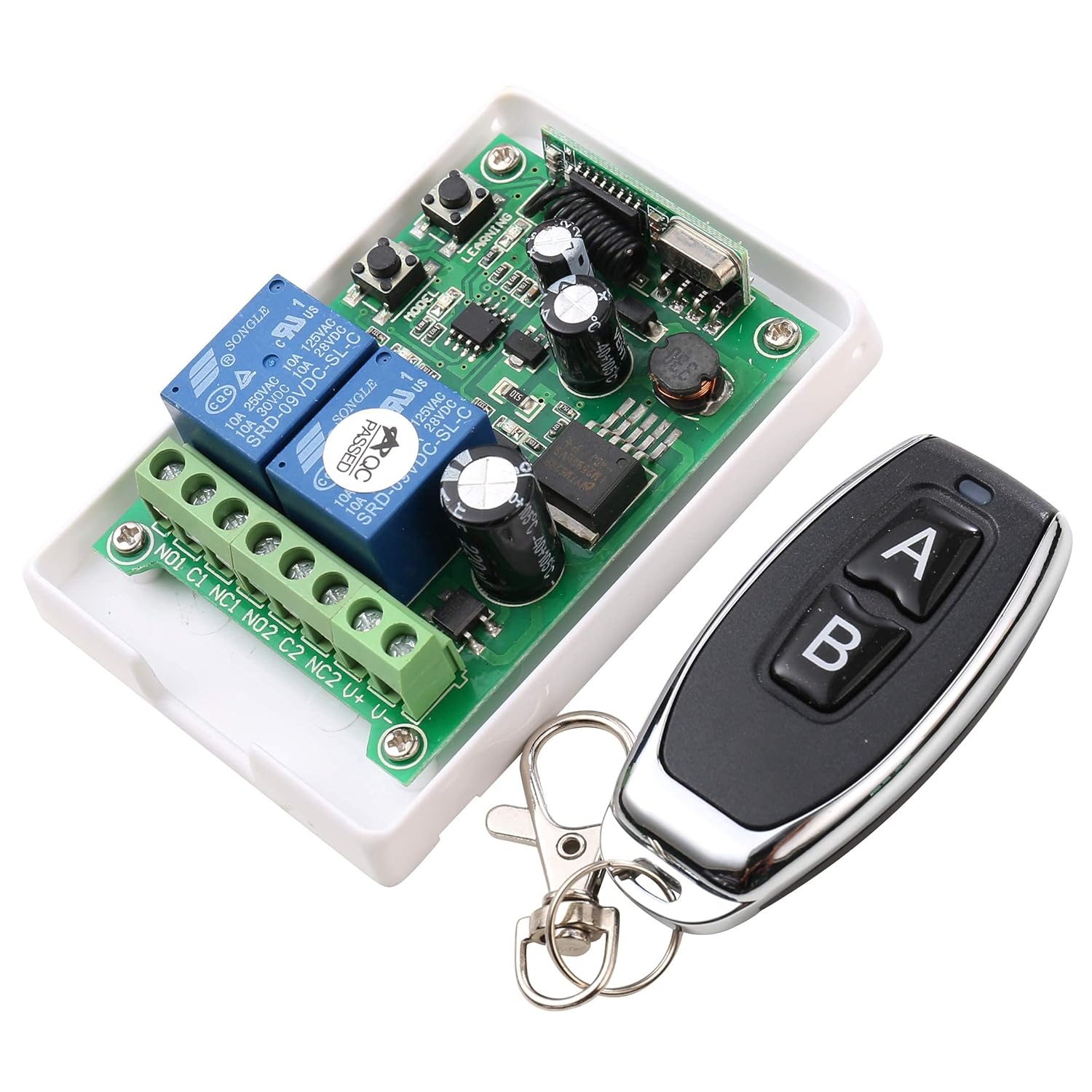

UHPPOTE 2-Channel RF Wireless Remote Control Switch with a remote control

Image: The UHPPOTE 2-Channel RF Wireless Remote Control Switch module shown alongside its two-button remote control. The 'Learning' and 'Model' buttons are visible on the circuit board.

4. Mod Operasi

The receiver supports multiple working modes, which can be selected using the 'Model' button on the circuit board. Each mode offers different control behaviors for the connected devices.

Pemilihan Mod:

  1. JOG Mode (Momentary): Press the 'Model' button once. The indicator light will flash once and then turn off. In JOG mode, the relay activates only while the remote button is pressed and deactivates upon release.
  2. Interlock Mode (Latched): Press the 'Model' button twice. The indicator light will flash twice and then turn off. In Interlock mode, pressing one remote button activates its corresponding relay and deactivates the other relay. Pressing the other remote button activates its relay and deactivates the first. Only one relay can be active at a time.
  3. Self-locking Mode (Toggle): Press the 'Model' button thrice. The indicator light will flash three times and then turn off. In Self-locking mode, each press of a remote button toggles the state of its corresponding relay (on/off).
  4. Delay Mode (5 Seconds): Press the 'Model' button four times. The indicator light will flash four times and then turn off. In Delay mode, activating a relay will keep it active for 5 seconds before automatically deactivating.

5. Diagram Pendawaian

Proper wiring is essential for the safe and correct operation of the wireless remote control switch. Refer to the diagrams below for connecting your power source and load devices.

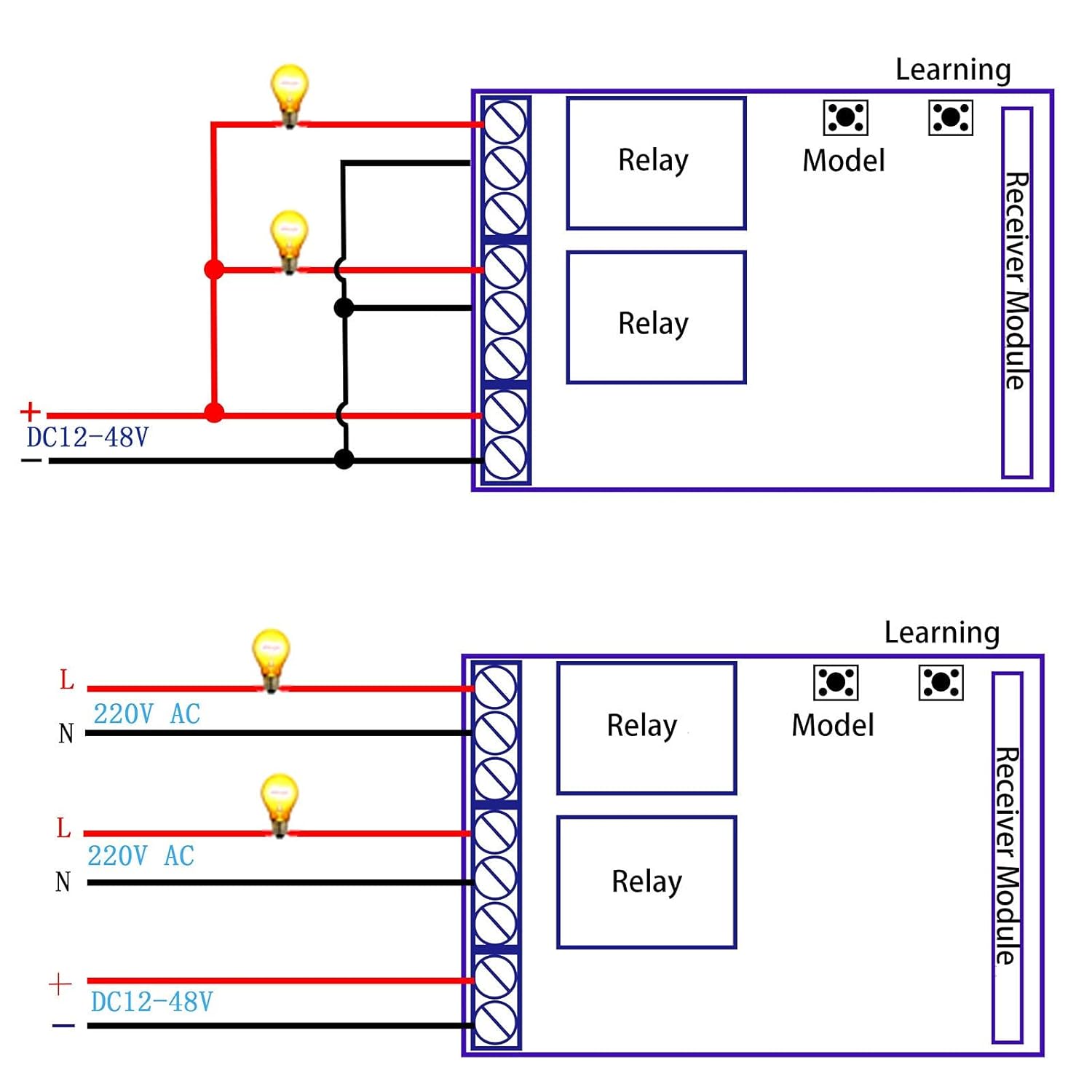

Wiring diagrams for UHPPOTE 2-Channel RF Wireless Remote Control Switch

Image: Two wiring diagrams. The top diagram illustrates connections for DC loads, showing a DC12-48V power input and two independent loads connected to the NO1/C1 and NO2/C2 terminals. The bottom diagram illustrates connections for AC loads, showing a DC12-48V power input for the receiver and two independent 220V AC loads connected to the NO1/C1 and NO2/C2 terminals, with L (Live) and N (Neutral) connections.

Nota Pendawaian Penting:

6. Penyelenggaraan

The UHPPOTE Wireless Remote Control Switch is designed for reliable operation with minimal maintenance. Follow these guidelines to ensure its longevity:

7. Penyelesaian masalah

If you encounter issues with your UHPPOTE Wireless Remote Control Switch, refer to the following troubleshooting steps:

8. Spesifikasi

Detailed technical specifications for the UHPPOTE AC/DC12-48V 2-Channel 433Mhz RF Wireless Remote Control Switch:

SpesifikasiNilai
Nombor ModelAK-RK02E+J027
Input VoltageAC / DC 12-48V
Kekerapan Operasi433Mhz
Saluran2-Saluran
Penilaian Semasa10 Amps
Arus Pensuisan Maksimum10 Amps
Vol. Pensuisan Maksimumtage48 Volt
Vol. Pensuisan Minimumtage12 Volt
Jenis PenyambungTerminal Skru
Jenis PemasanganLekapan Permukaan
Mod OperasiManual (via remote)
Dimensi Produk3.5 x 2.4 x 1.1 inci
Berat Barang4.8 auns

9. Maklumat Waranti

UHPPOTE products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, refer to the documentation included with your purchase or contact UHPPOTE customer support.

10. Sokongan

For further assistance, technical support, or inquiries regarding your UHPPOTE AC/DC12-48V 2-Channel 433Mhz RF Wireless Remote Control Switch, please contact UHPPOTE customer service. You can typically find contact information on the product packaging or the official UHPPOTE webtapak.

Pengeluar: UHPPOTE
